Home >> Pontiac >> 1996 >> Grand Prix Base >> Repair and Diagnosis >> Maintenance >> Procedures >> Maintenance Information >> Fuses & Circuit Breakers >> Anti-Lock Brake Power Center Identification >> Notes

Anti-Lock Brake Power Center Identification: Notes

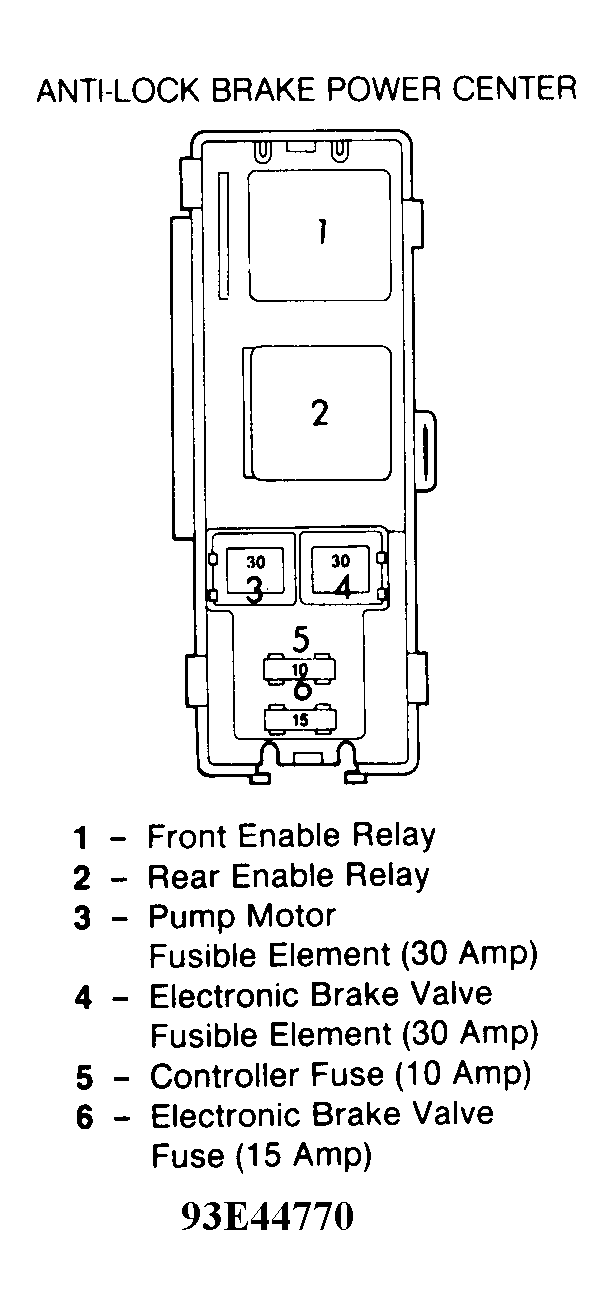

Fig 1: Anti-Lock Brake Power Center Identification

G93E44770

Courtesy of GENERAL MOTORS CORP.
