Connector C1

NOTE: For terminal identification, see Figure.

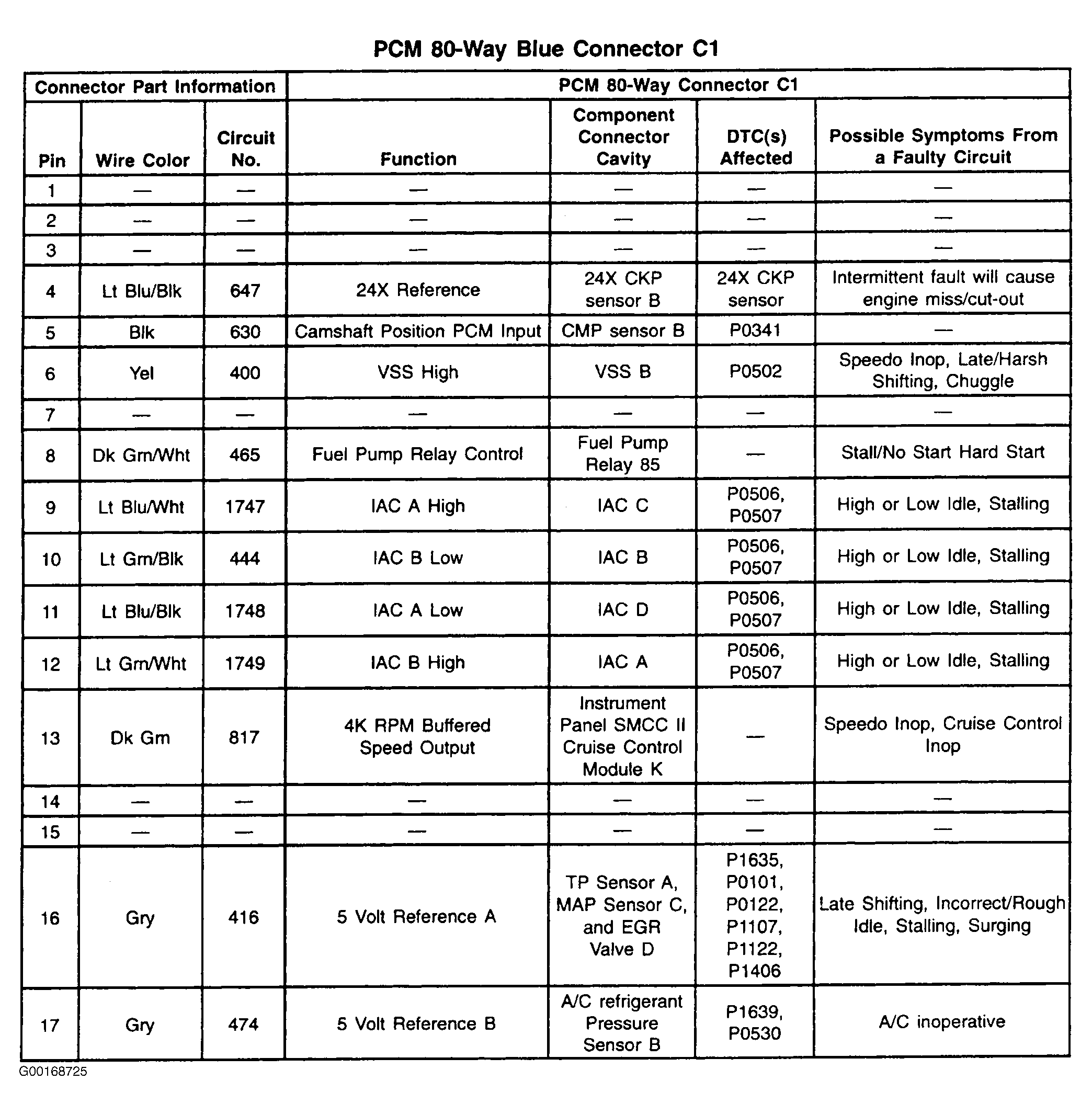

Fig 1: PCM 80-Pin Connector C1 (Blue) - Legend (Century & Regal) - (1 Of 3)
G00168725Courtesy of GENERAL MOTORS CORP.

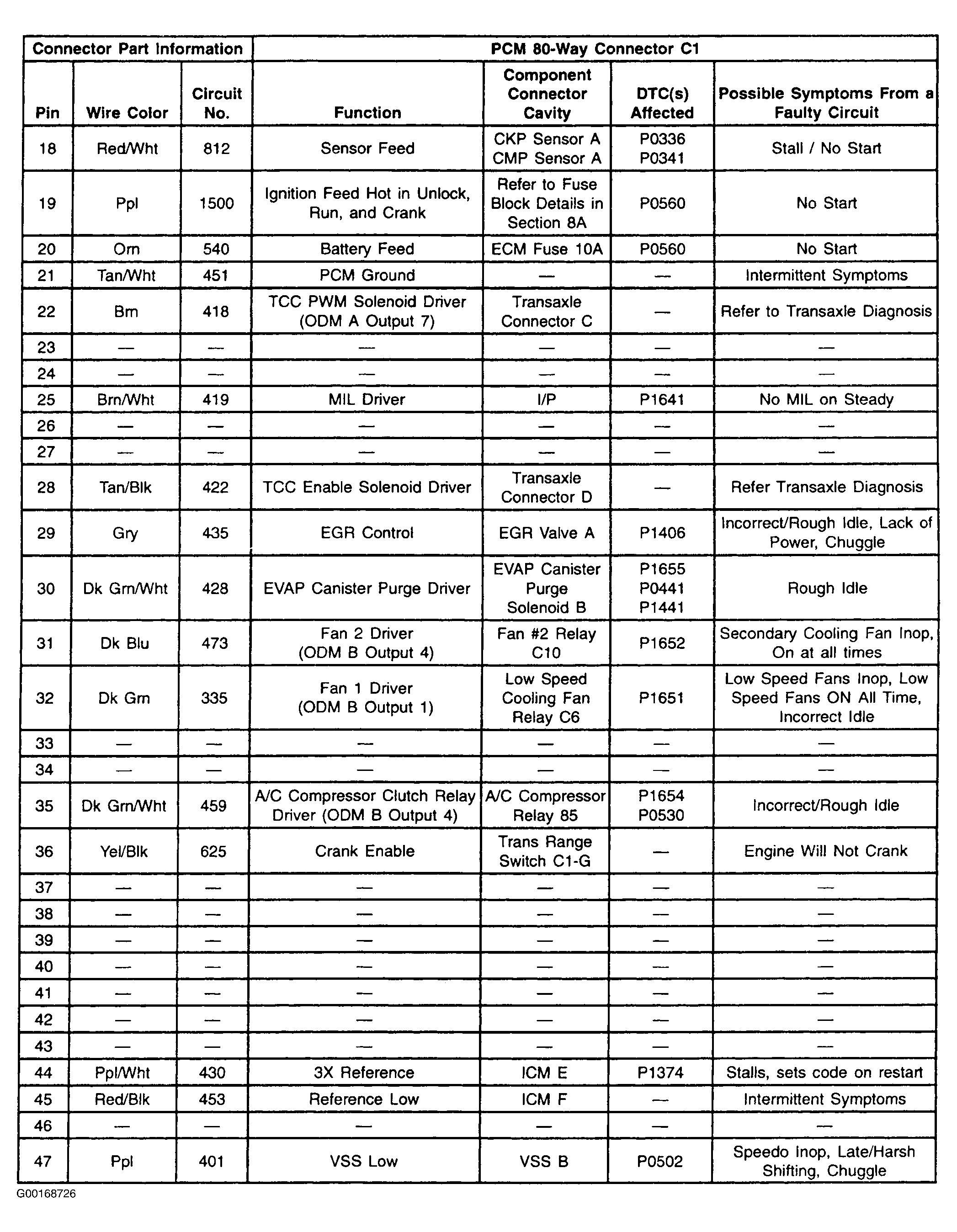

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (Regal) - (2 Of 3)
G00168726Courtesy of GENERAL MOTORS CORP.

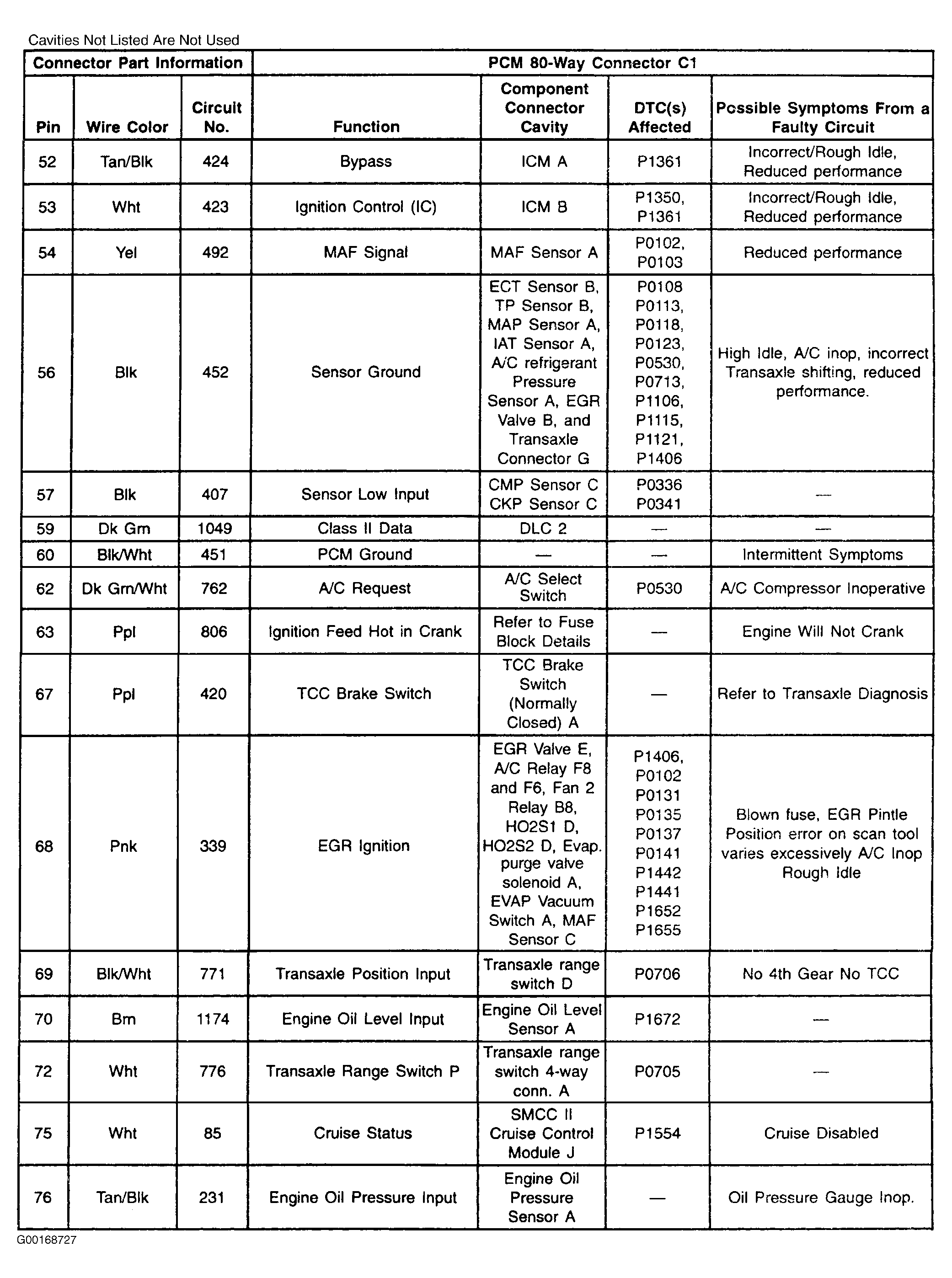

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (Regal) - (3 Of 3)
G00168727Courtesy of GENERAL MOTORS CORP.
