Connector C2

NOTE: For terminal identification, see Figure.
Fig 1: PCM 80-Pin Connector C2 (Clear) - Legend (Grand Prix) - (1 Of 2)
G00172969Courtesy of GENERAL MOTORS CORP.

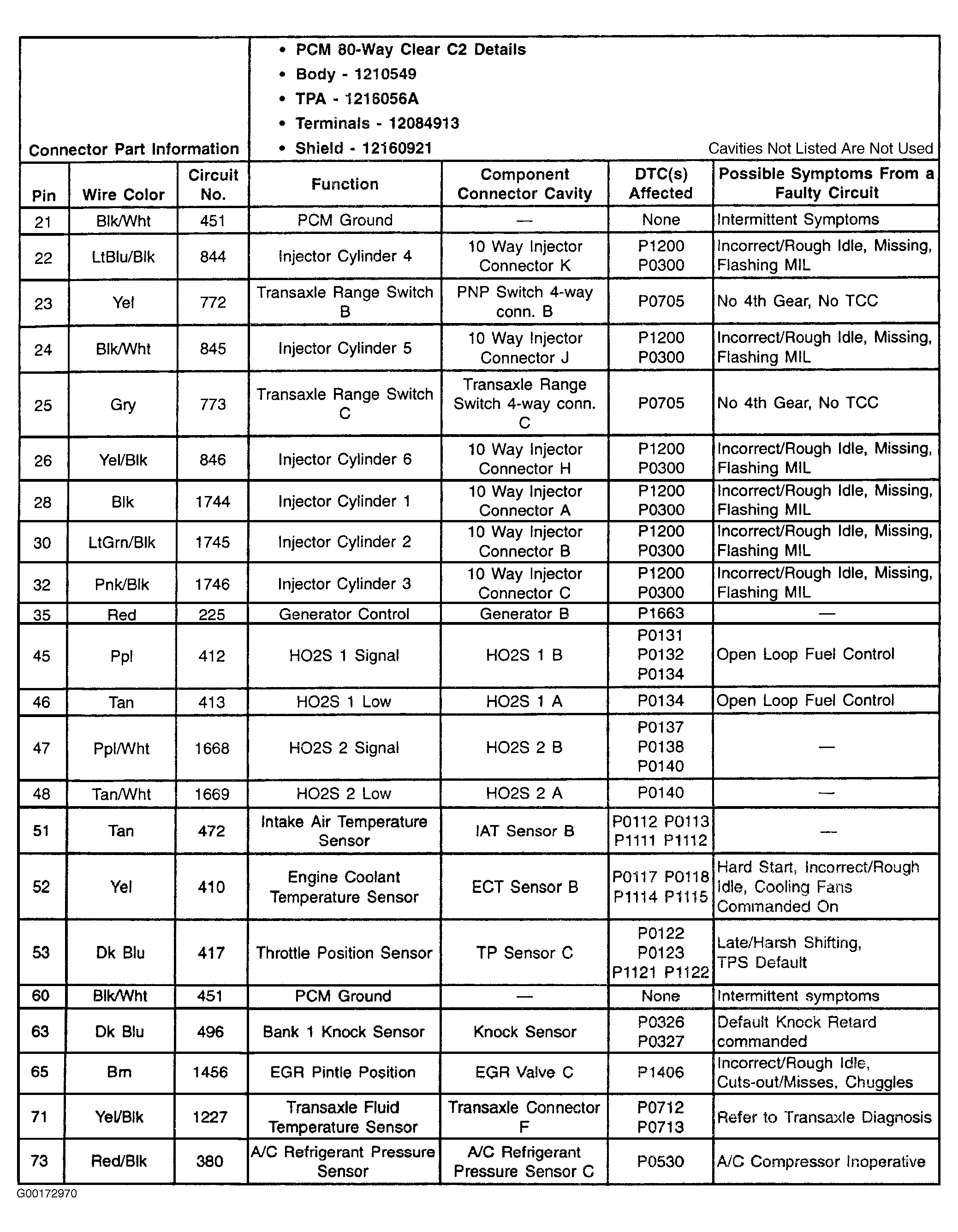

Fig 2: PCM 80-Pin Connector C2 (Clear) - Legend (Grand Prix) - (2 Of 2)
G00172970Courtesy of GENERAL MOTORS CORP.
