Connector C1

NOTE: For terminal identification, see Figure.

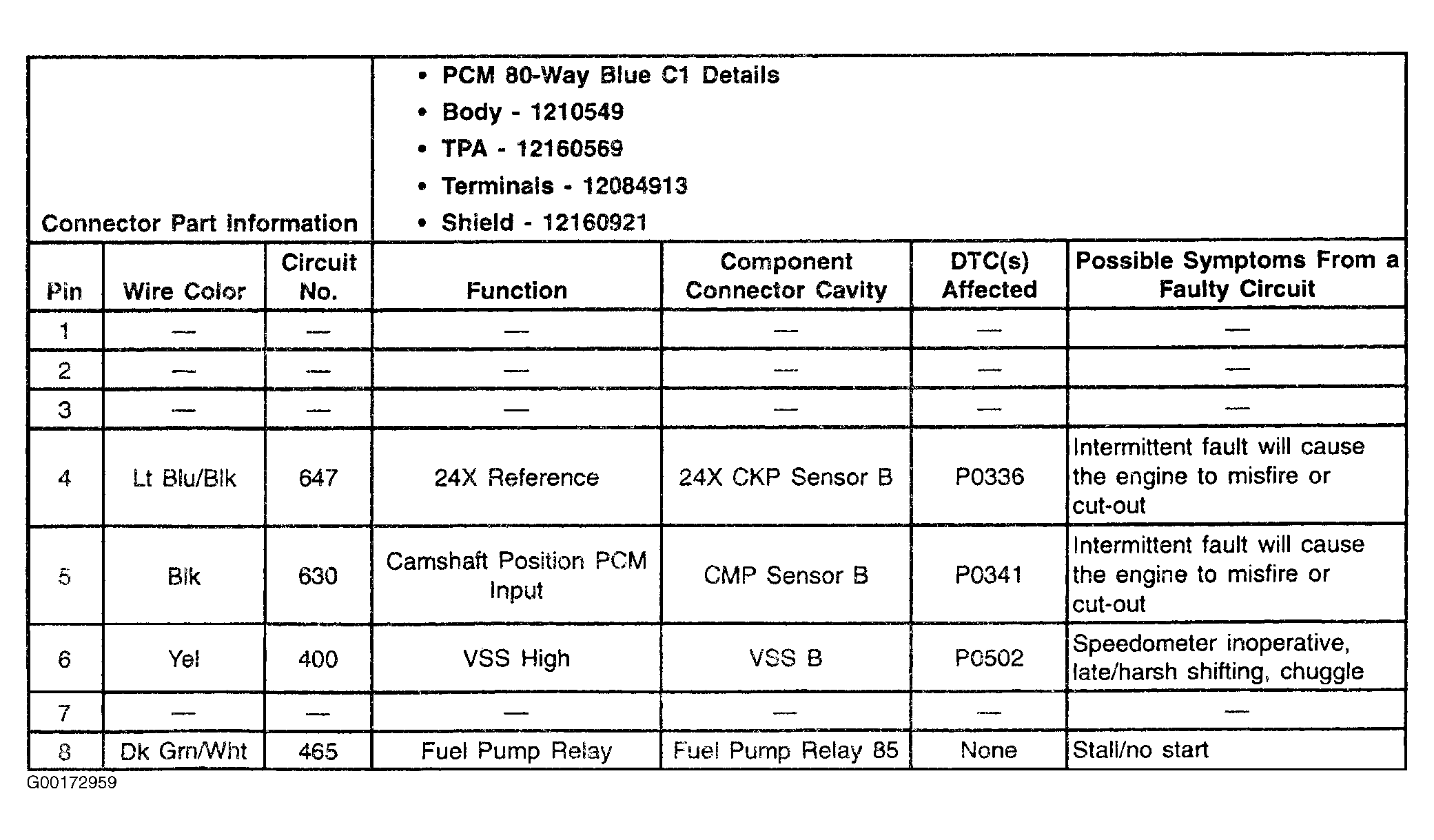

Fig 1: PCM 80-Pin Connector C1 (Blue) - Legend (Grand Prix) - (1 Of 4)
G00172959Courtesy of GENERAL MOTORS CORP.

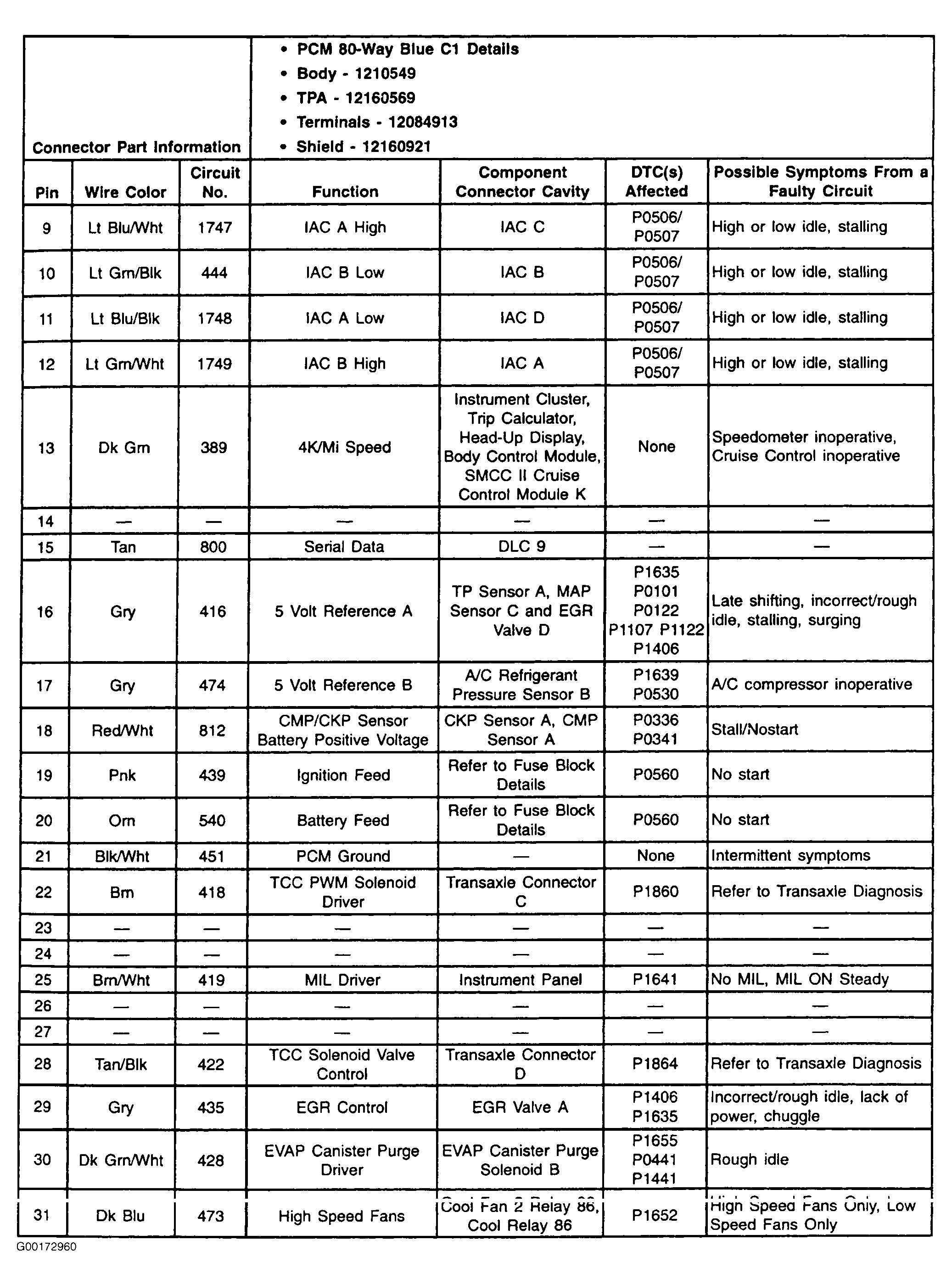

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (Grand Prix) - (2 Of 4)
G00172960Courtesy of GENERAL MOTORS CORP.

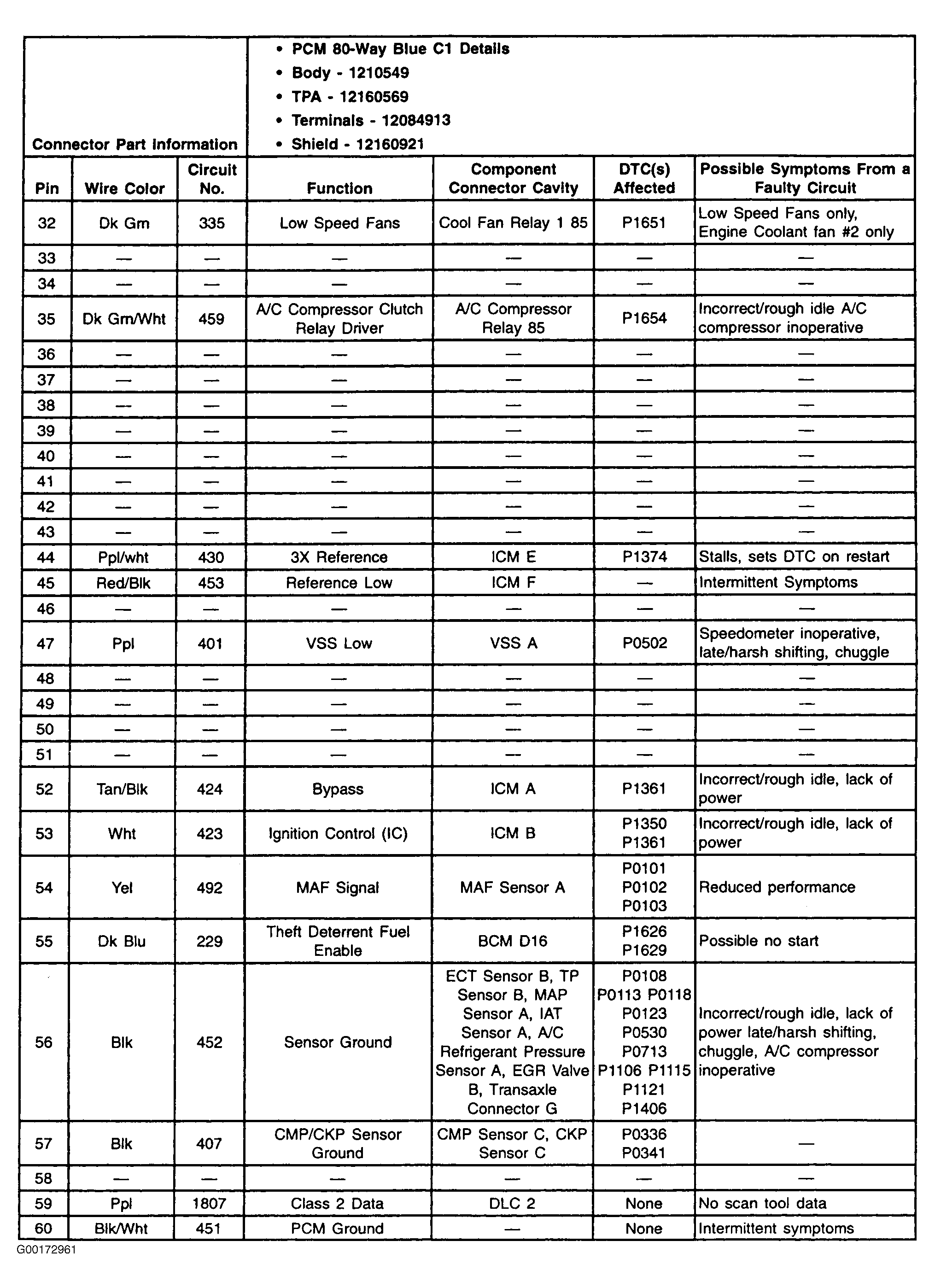

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (Grand Prix) - (3 Of 4)
G00172961Courtesy of GENERAL MOTORS CORP.

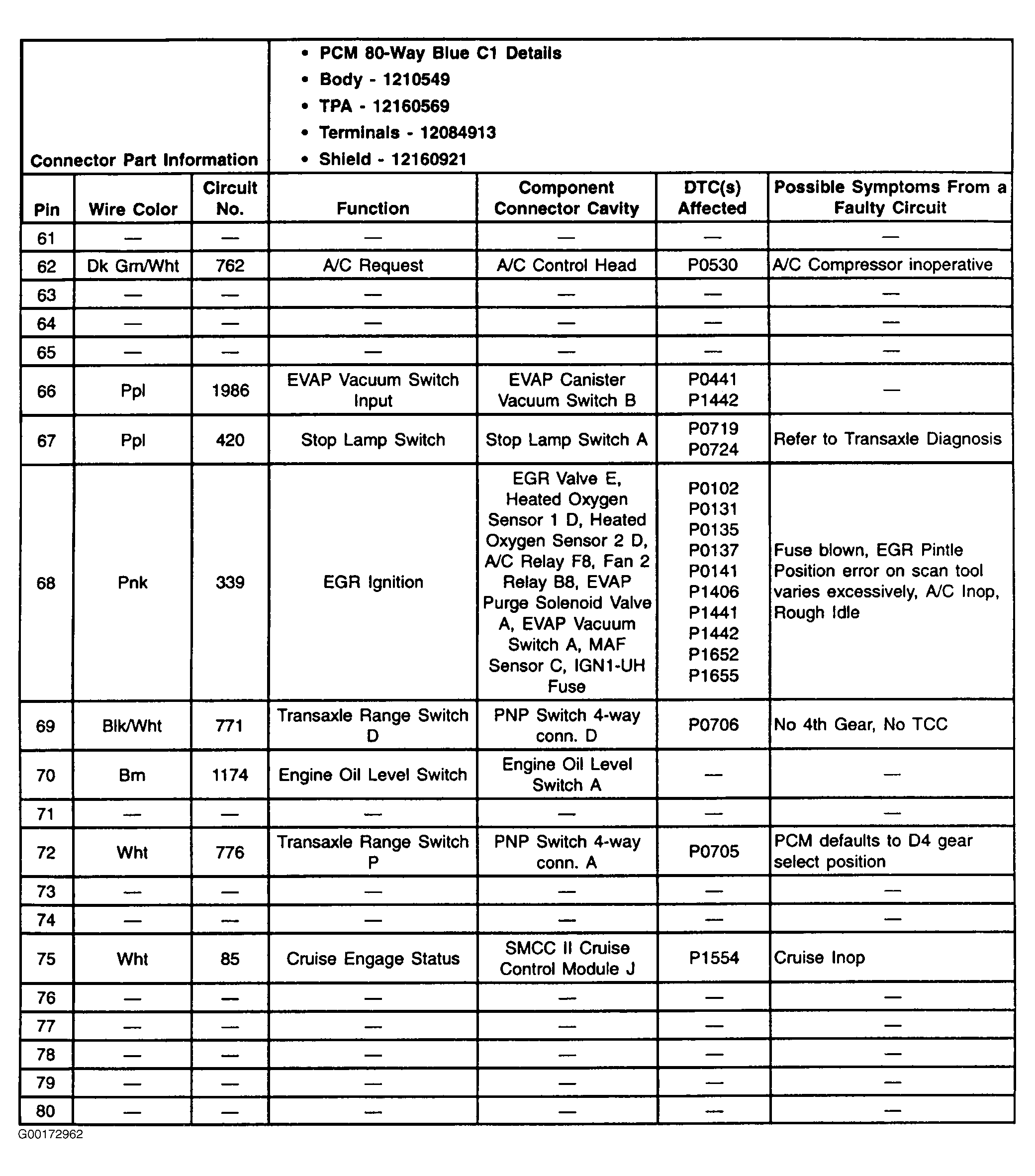

Fig 4: PCM 80-Pin Connector C1 (Blue) - Legend (Grand Prix) - (4 Of 4)
G00172962Courtesy of GENERAL MOTORS CORP.
