Data Link Connector

For Data Link Connector terminal identification, see Fig 1 .

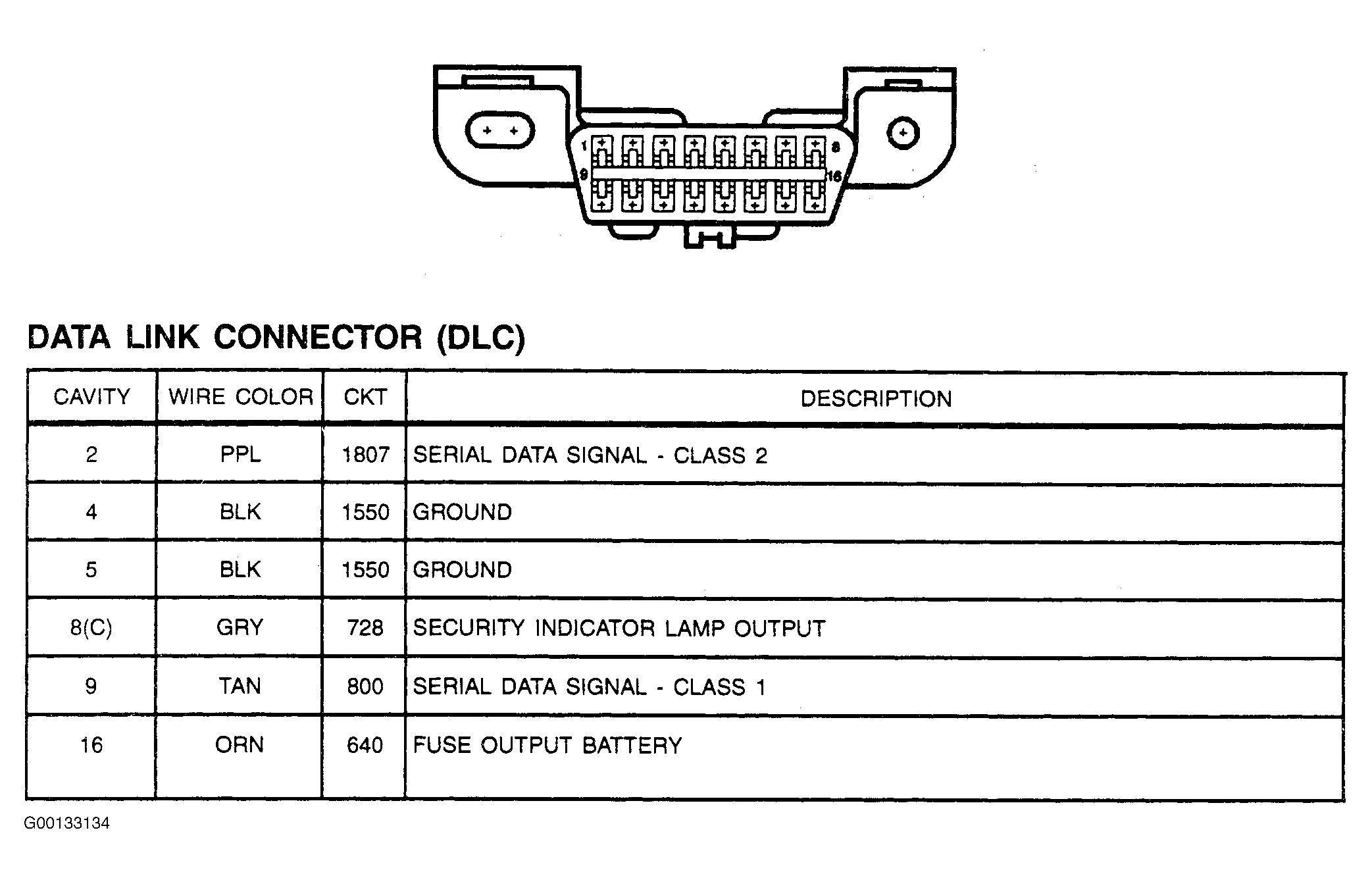

Fig 1: Identifying Data Link Connector Terminals

G00133134

Courtesy of GENERAL MOTORS CORP.
