EXPERTEC TSB (51-65-50)

WARNING: This page is about the Firebird Base, 2D Convertible, 3.4 S, Automatic, which is a different variant/trim than selected.

Publication date: 1995-08-28
Reference number: 51-65-50

EXPERTEC TSB

TECHNICAL SERVICE BULLETIN

Reference Number(s): 51-65-50, Date of Issue: 08/28/95

SMU - SECTION 6E3 - DRIVEABILITY & EMISSIONS

Model(s): 1995 Pontiac Firebird W/3.8L Engine

1995 Chevrolet Camaro

Bulletin No.: Pontiac 51-65-50

Date: 08/28/1995

BULLETIN ILLUSTRATION LIST

Fig 1: Graphic

Fig 2: Graphic

Fig 3: Graphic

Fig 4: Graphic

Fig 5: Graphic

SUBJECT

Section 6E3 - Driveability and Emissions Revised Diagnostic Charts

MODELS

1995 Chevrolet Camaro 1995 Pontiac Firebird with 3.8L Engine (VIN K - RPO L36)

SERVICE INFORMATION

This bulletin includes corrections to the specified diagnostic charts in the 1995 Camaro/Firebird Service Manual. Please make the following corrections to the

SERVICE MANUAL

Chart A-3, Page 6E3-A-50: The "No" column for Step 4 should read "Go to Step 23."
Chart A-5, Page 6E3-A-57: The "Yes" column for Step 12 should read "Go to Step 14." The "No" column for Step 12 should read "Go to Step 13."
DTC P0107, Page 6E3-A-76: The "Yes" column for Step 3 should read "Go to Step 4." The "Yes" column for Step 5 should read "Go to Step 6."
DTC P0507, Page 6E3-A-184: The incorrect wiring diagram is shown. The correct wiring diagram can be found on Page 6E3-A- 182.

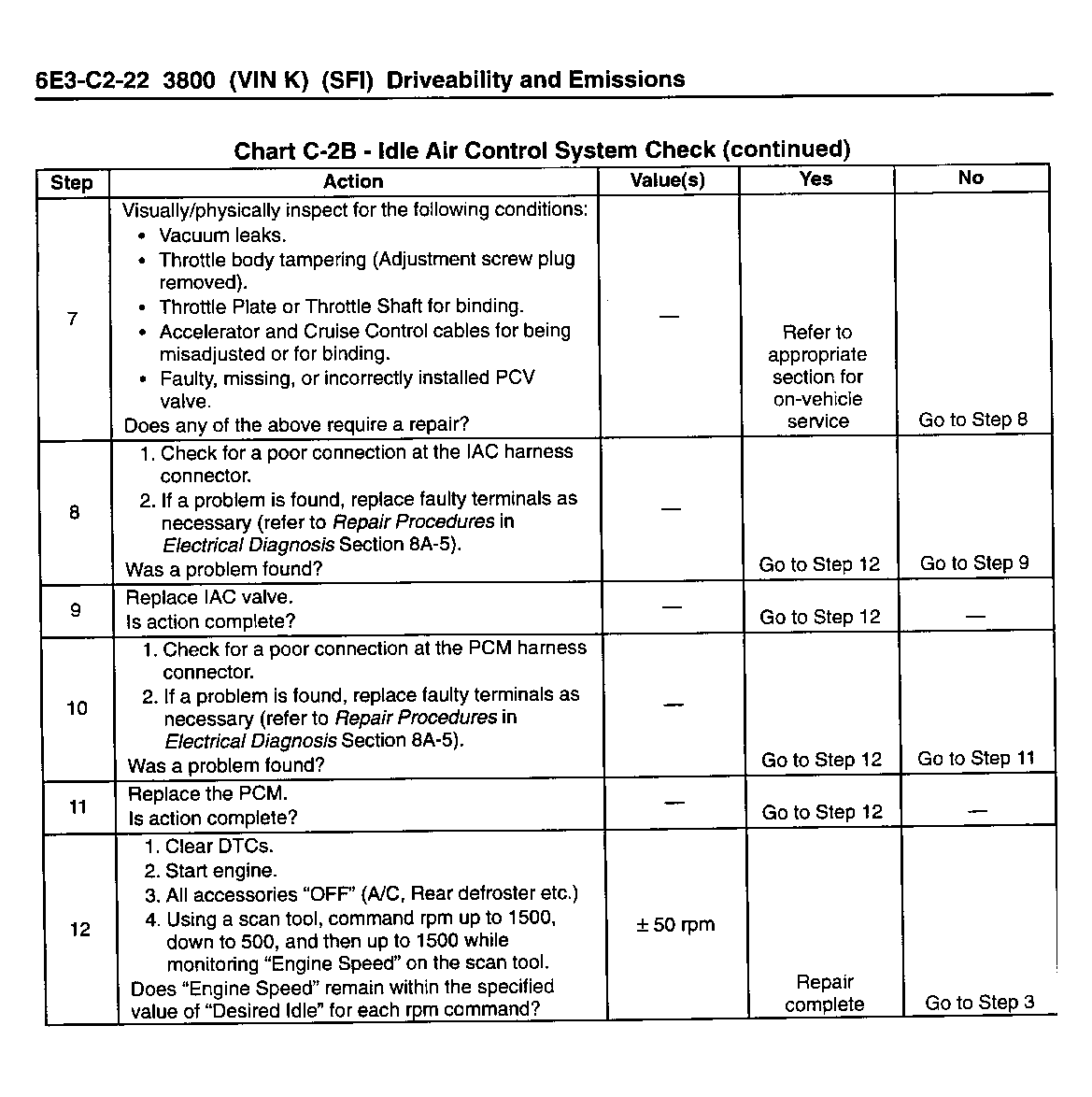

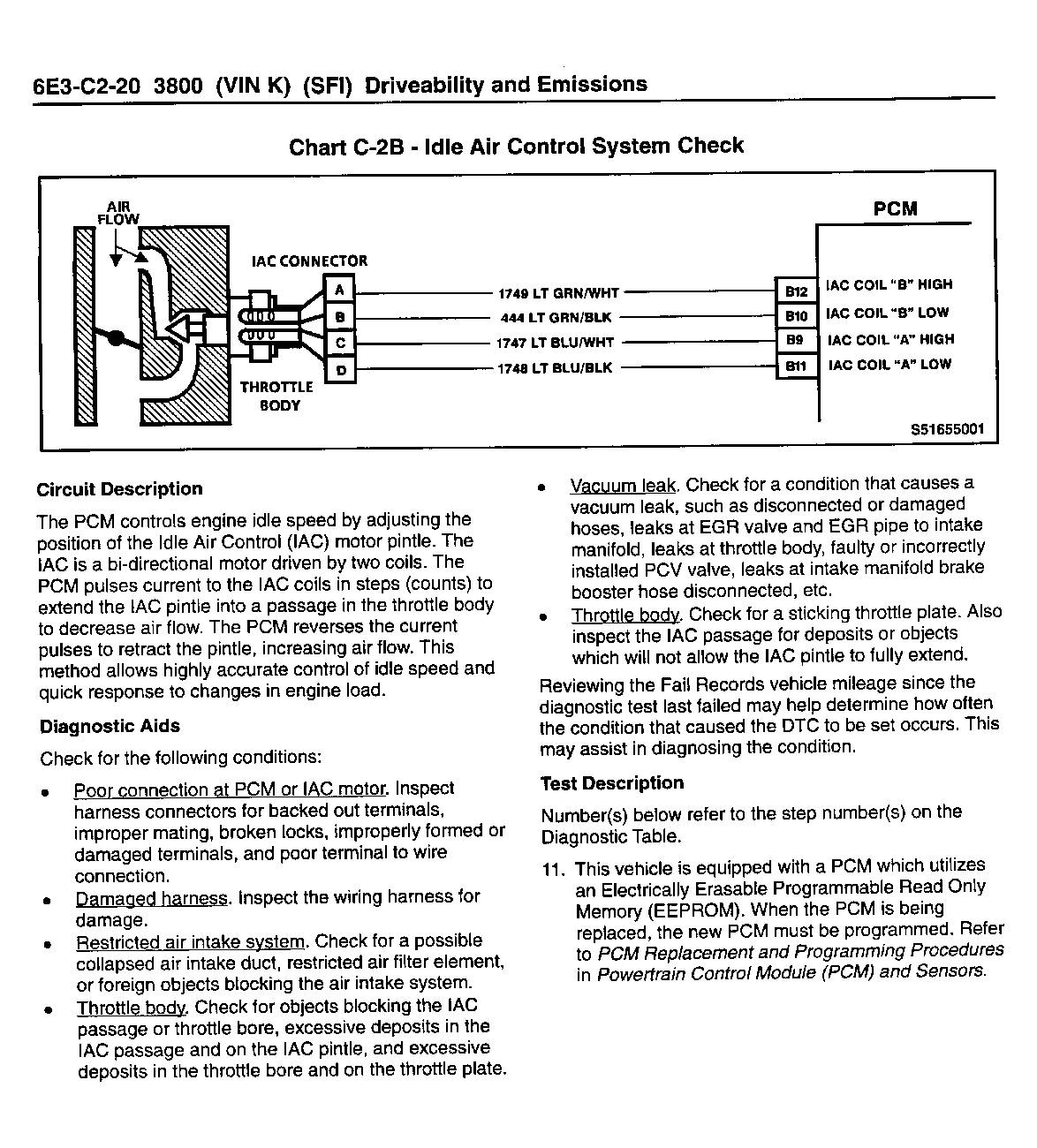

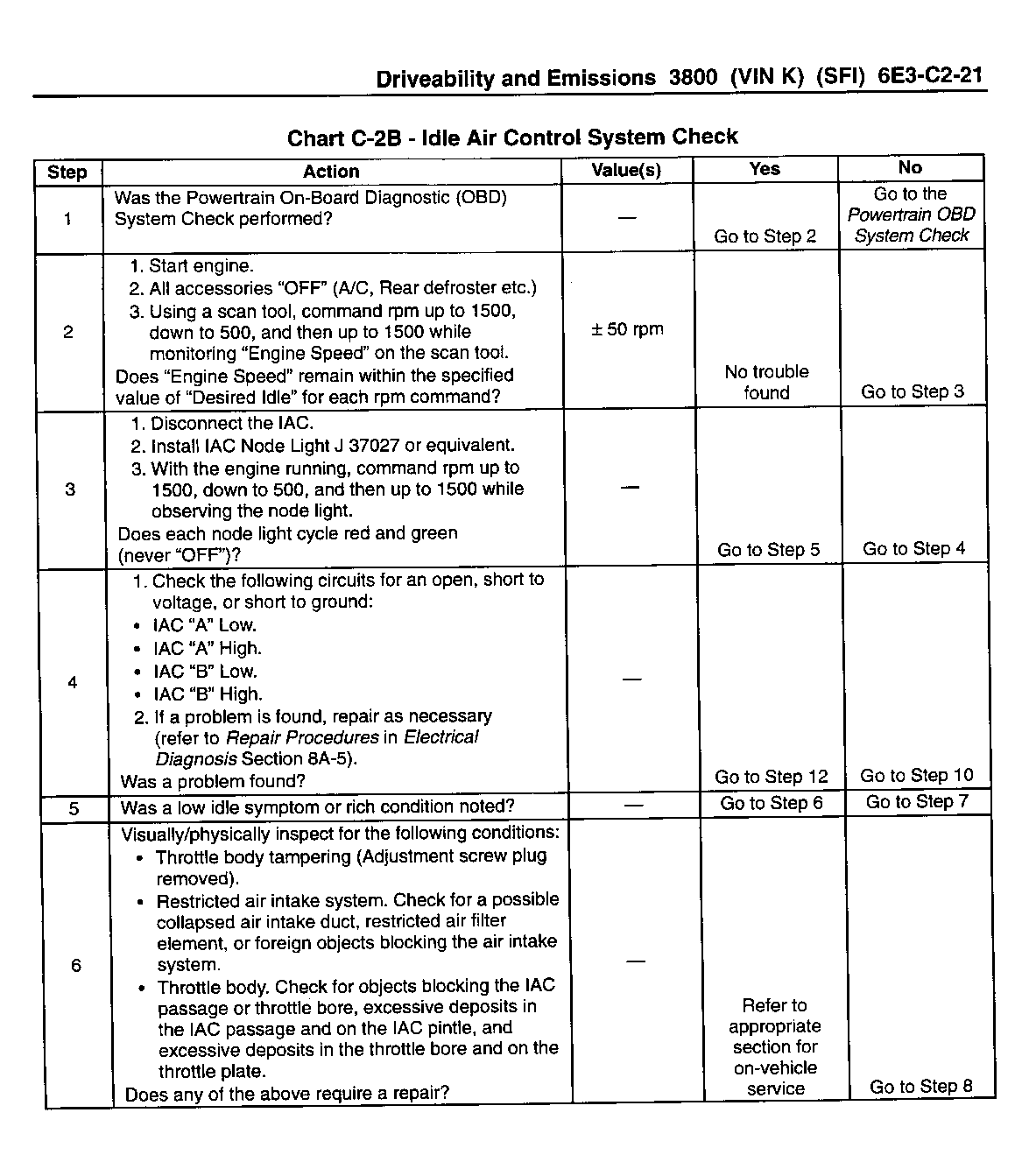

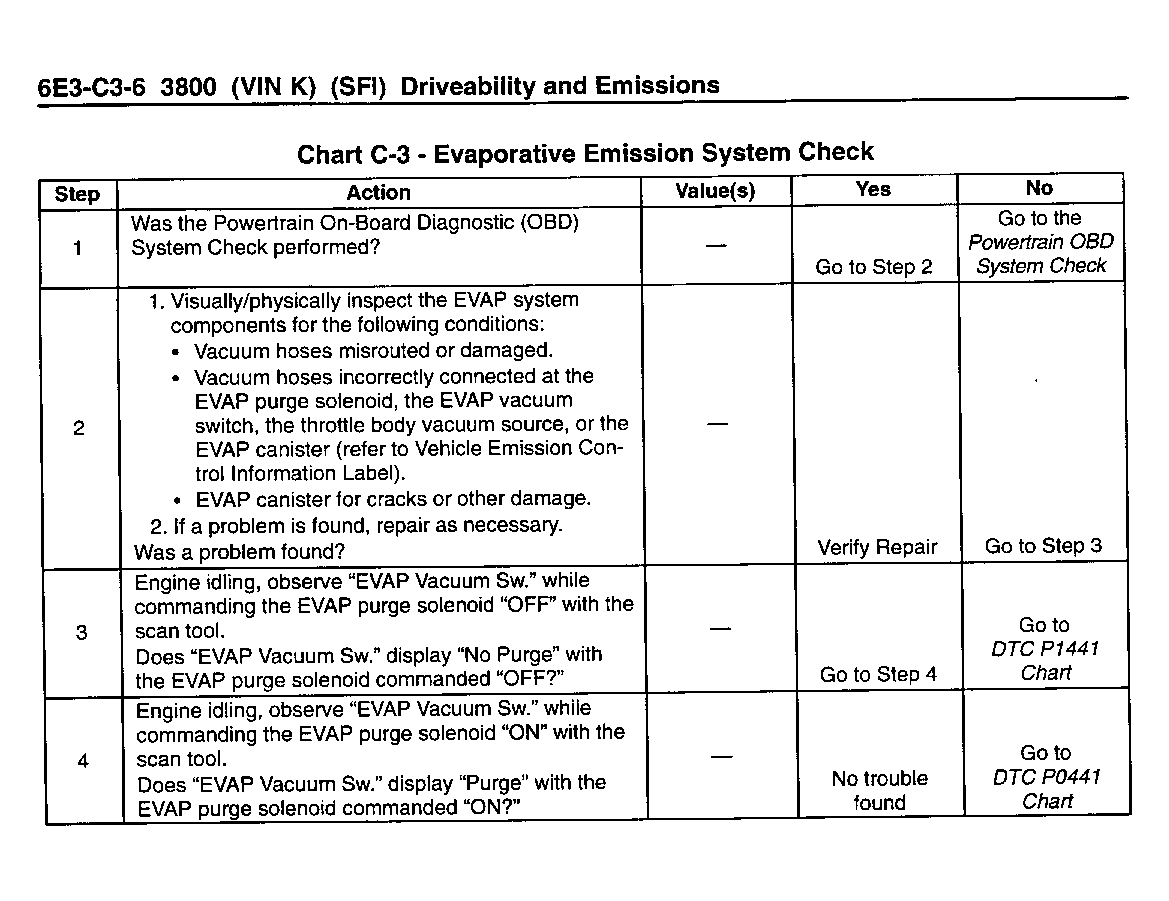

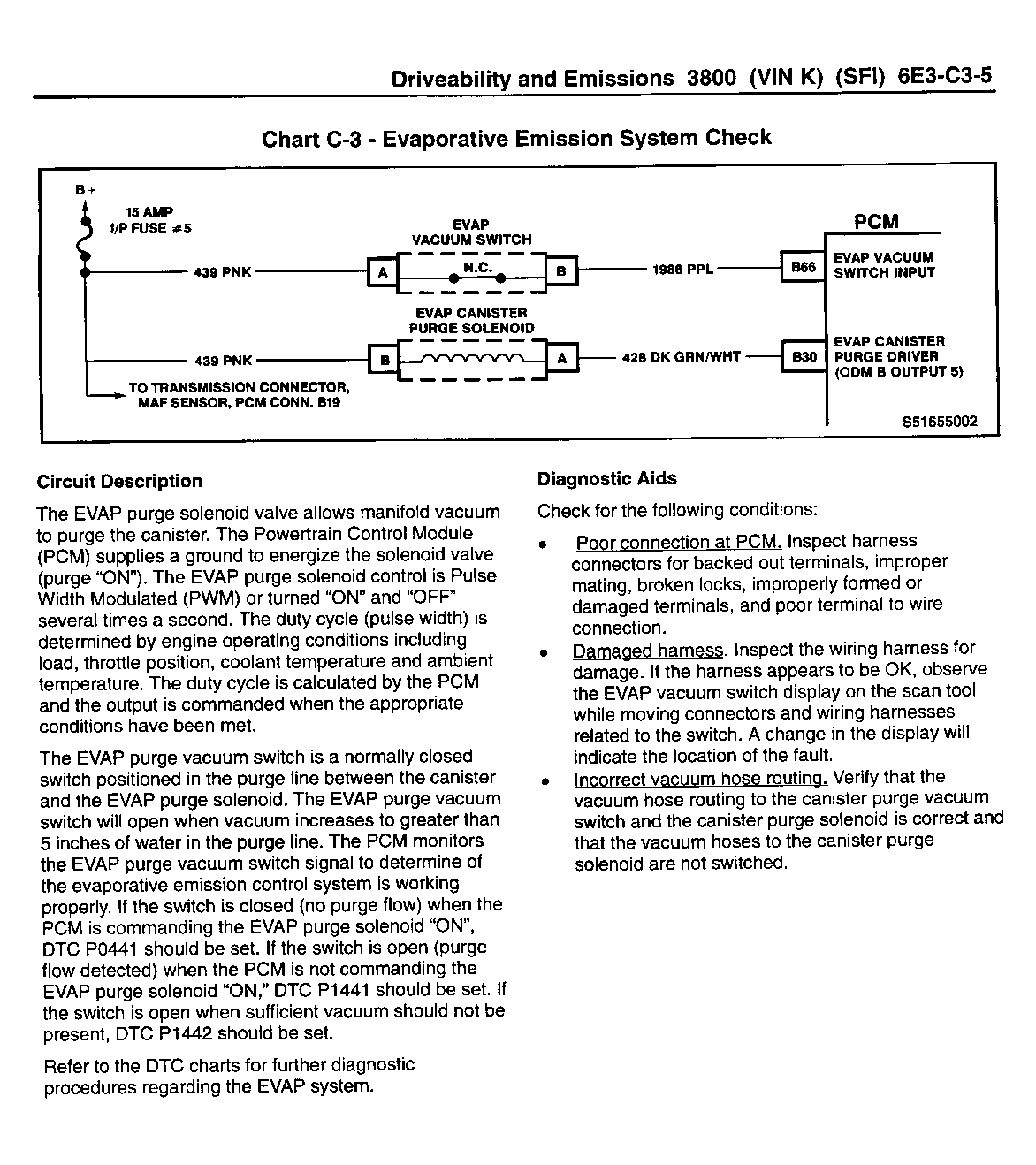

Several of the diagnostic charts in the Service Manual reference "Idle Air Control (IAC) Valve Check" Chart C-2B and "Evaporative Emissions Control (EVAP) Canister Valve Check " Chart C-3. These charts were omitted from the 1995 Camaro/Firebird Service Manual, but have been included with this bulletin.
