Home >> Pontiac >> 1995 >> Firebird Formula, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 3.4L >> ECM/Pcm Code Charts >> Code 93, Pressure Control Solenoid >> Diagnostic Aids

Diagnostic Aids

Check for poor connections at PCM and at transmission connector.

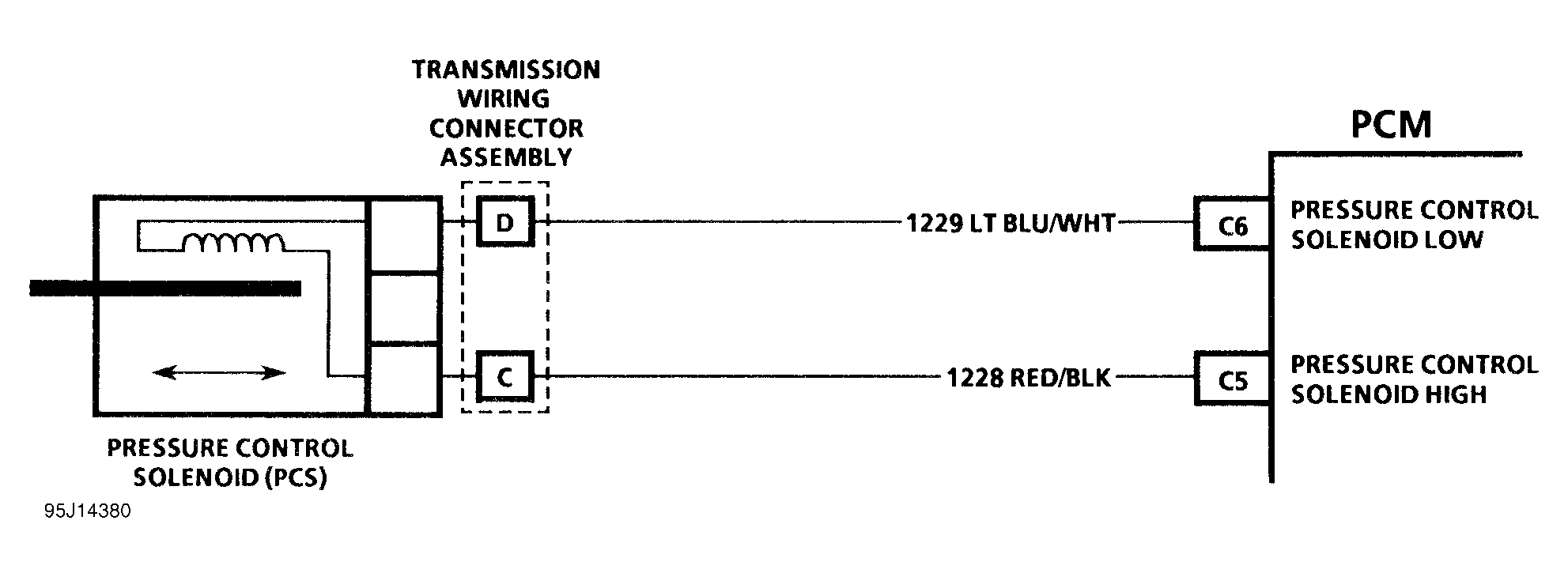

Fig 1: Code 93 Schematic (3.4L (VIN S)) Pressure Control Solenoid
G95J14380

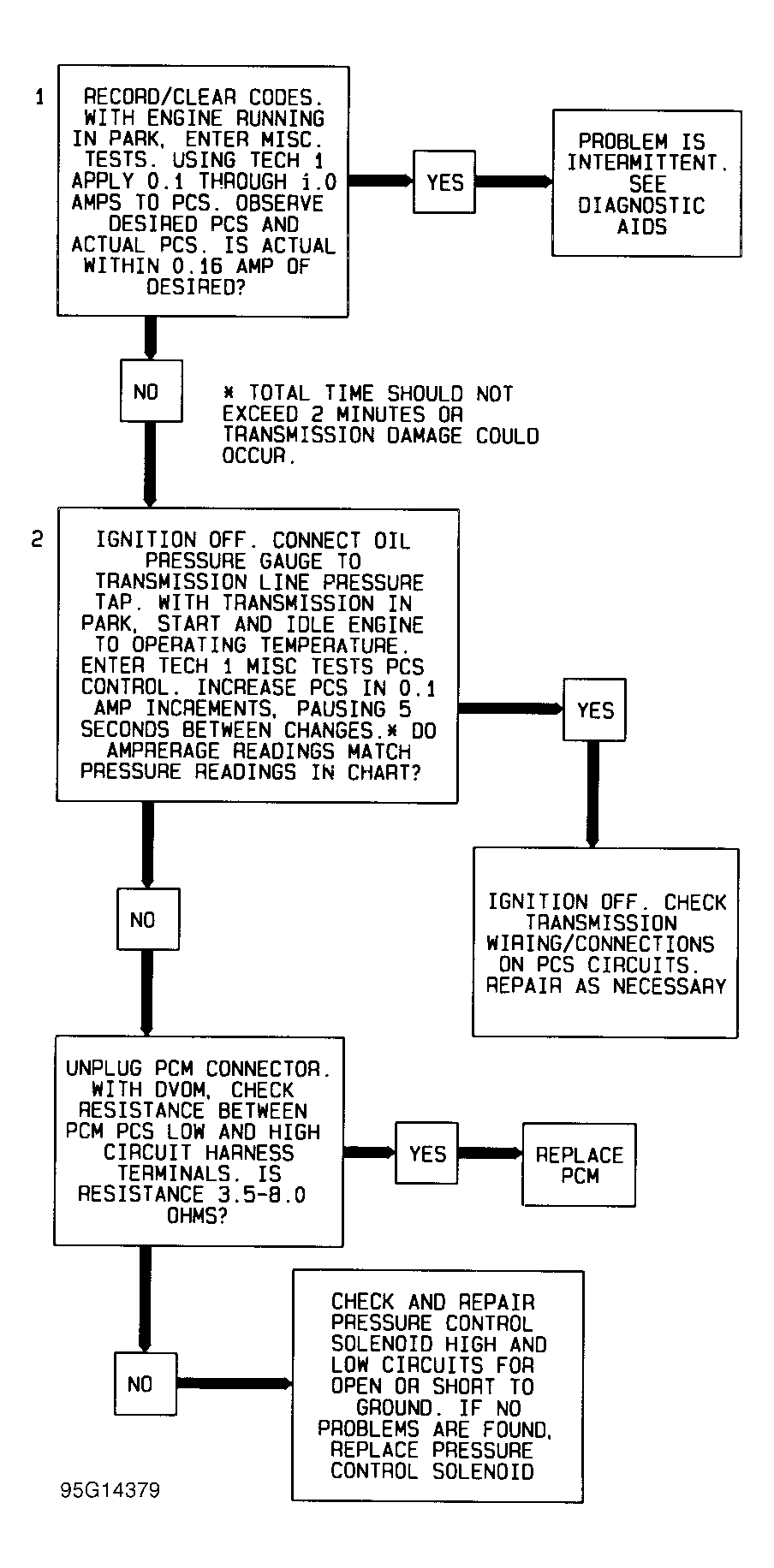

Fig 2: Code 93 Diagnostic Flow Chart (3.4L (VIN S)) Pressure Control Solenoid
G95G14379
