Diagnostic Aids

Check for poor connections at pass-through connector. A faulty transmission range pressure switch assembly may set Code 80.

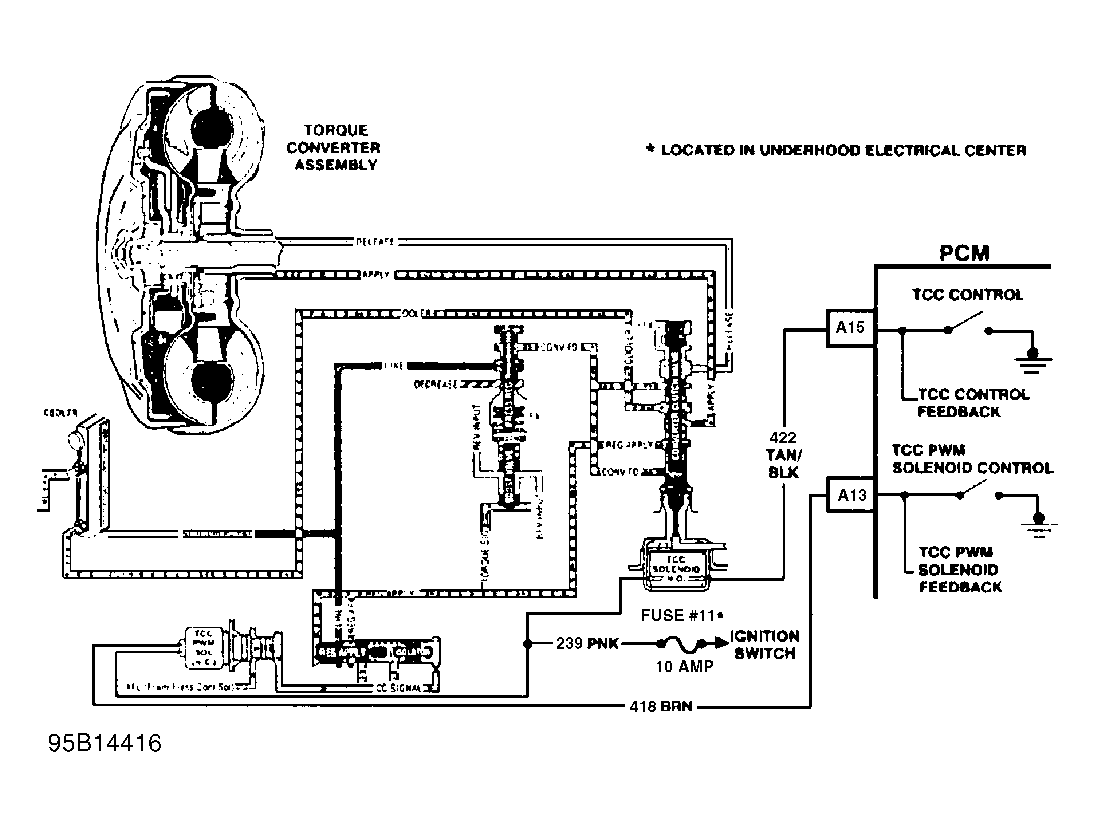

Fig 1: Code 80 Schematic (3.4L (VIN S)) Transmission Component Slipping

Fig 2: Code 80 Diagnostic Flow Chart (3.4L (VIN S)) Transmission Component Slipping
