Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

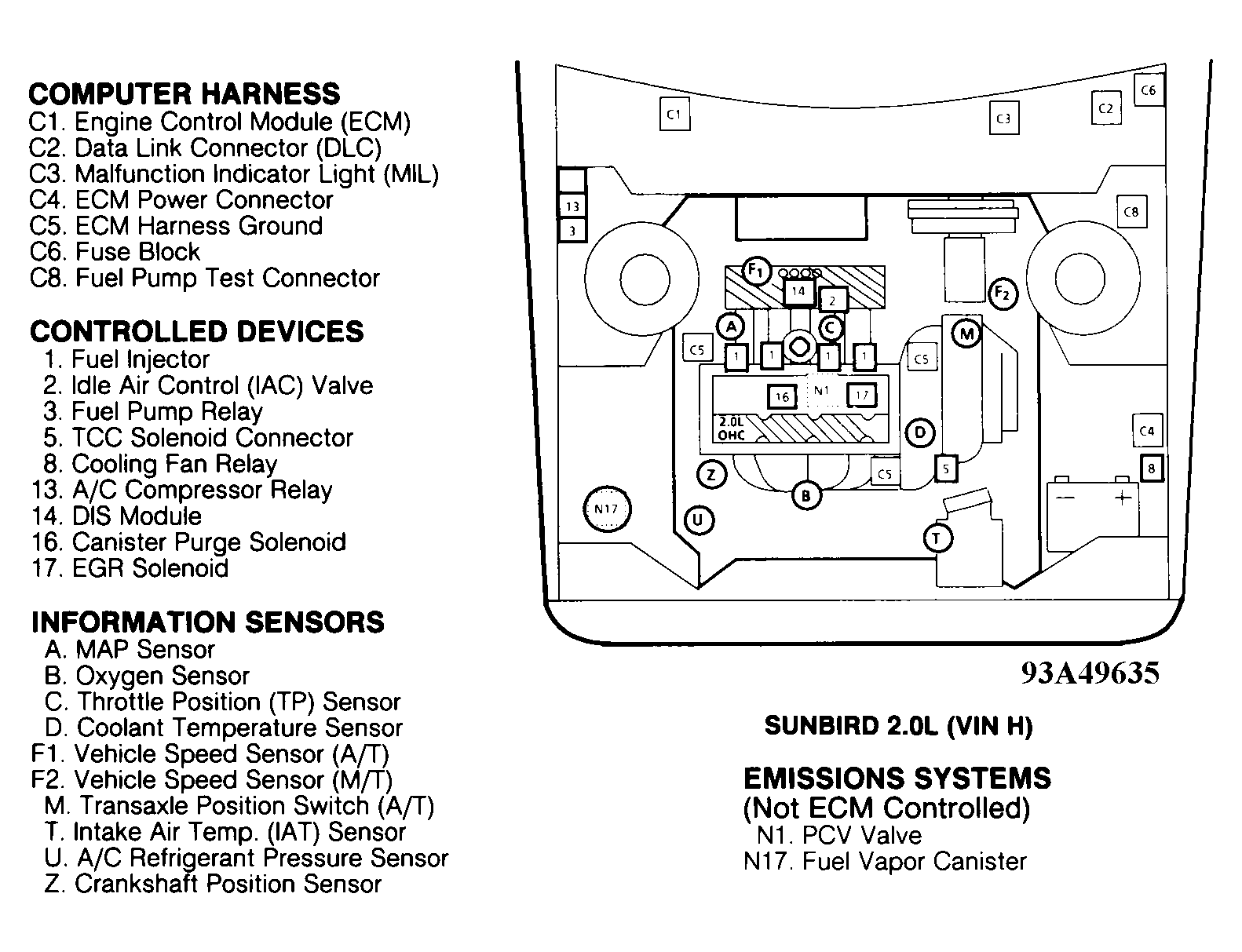

Fig 1: Component Locations (2.0L VIN H)
G93A49635

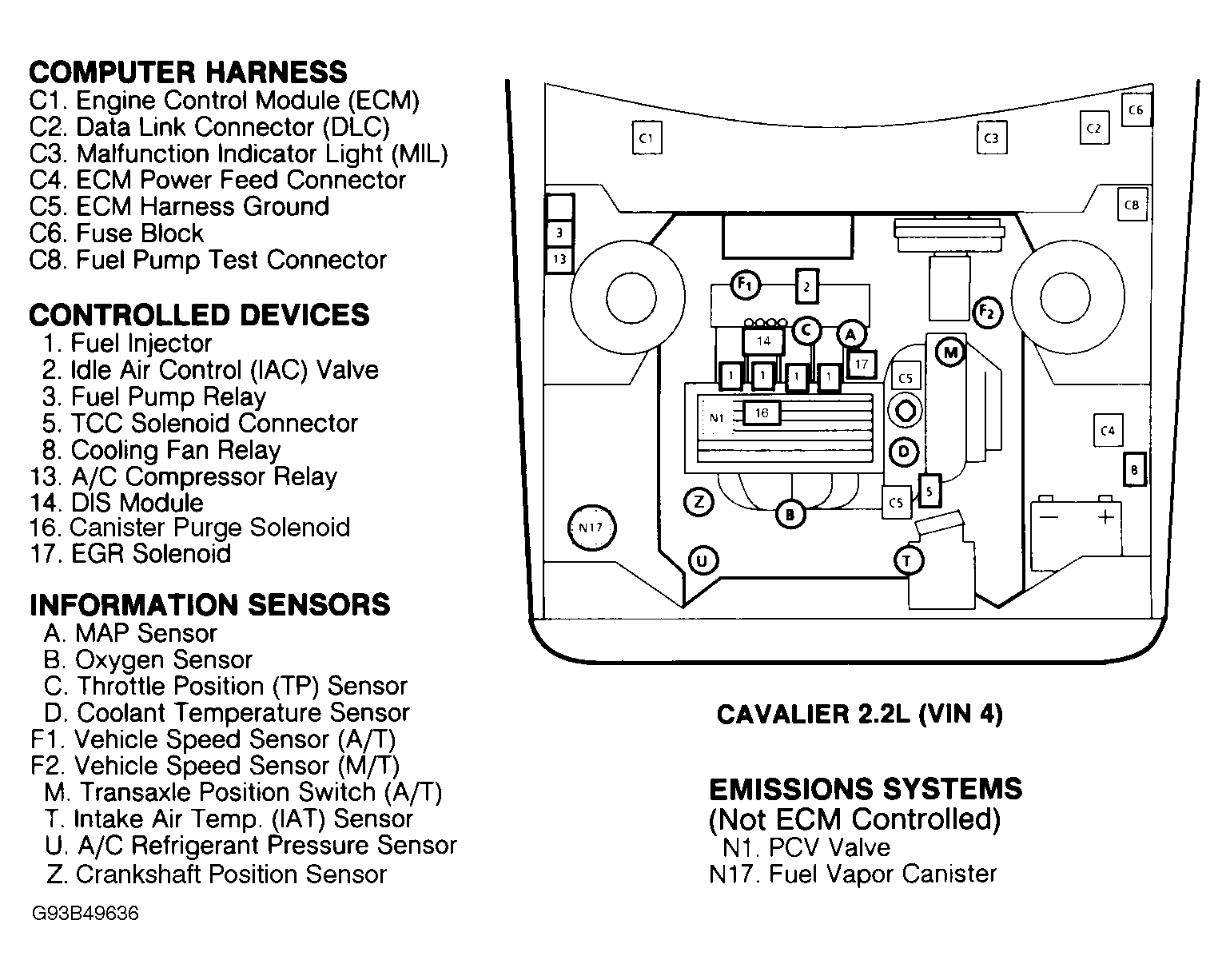

Fig 2: Component Locations (2.2L VIN 4)
G93B49636

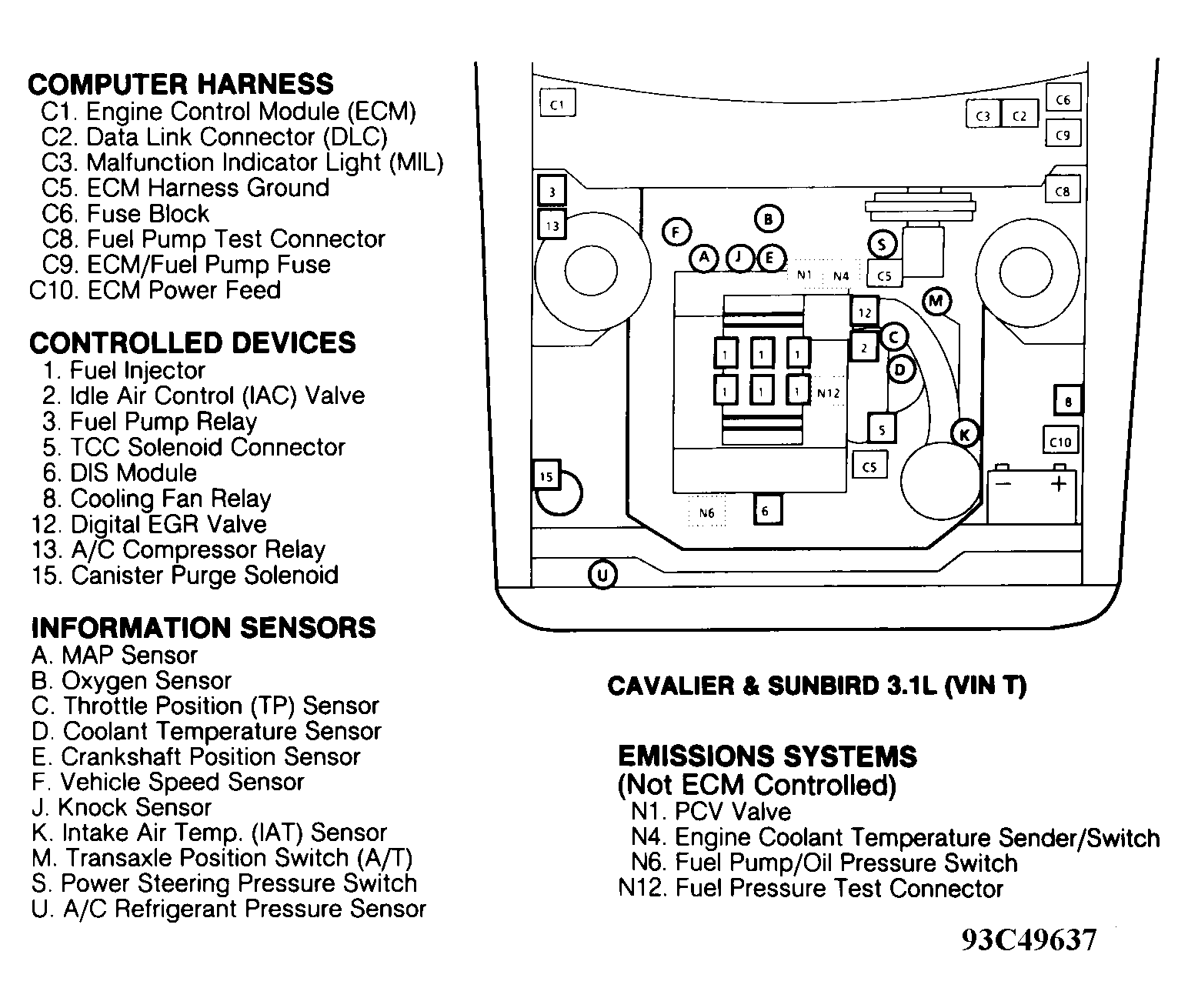

Fig 3: Component Locations (3.1L VIN T)
G93C49637
