Pin Voltage Charts
Pin Voltage Charts

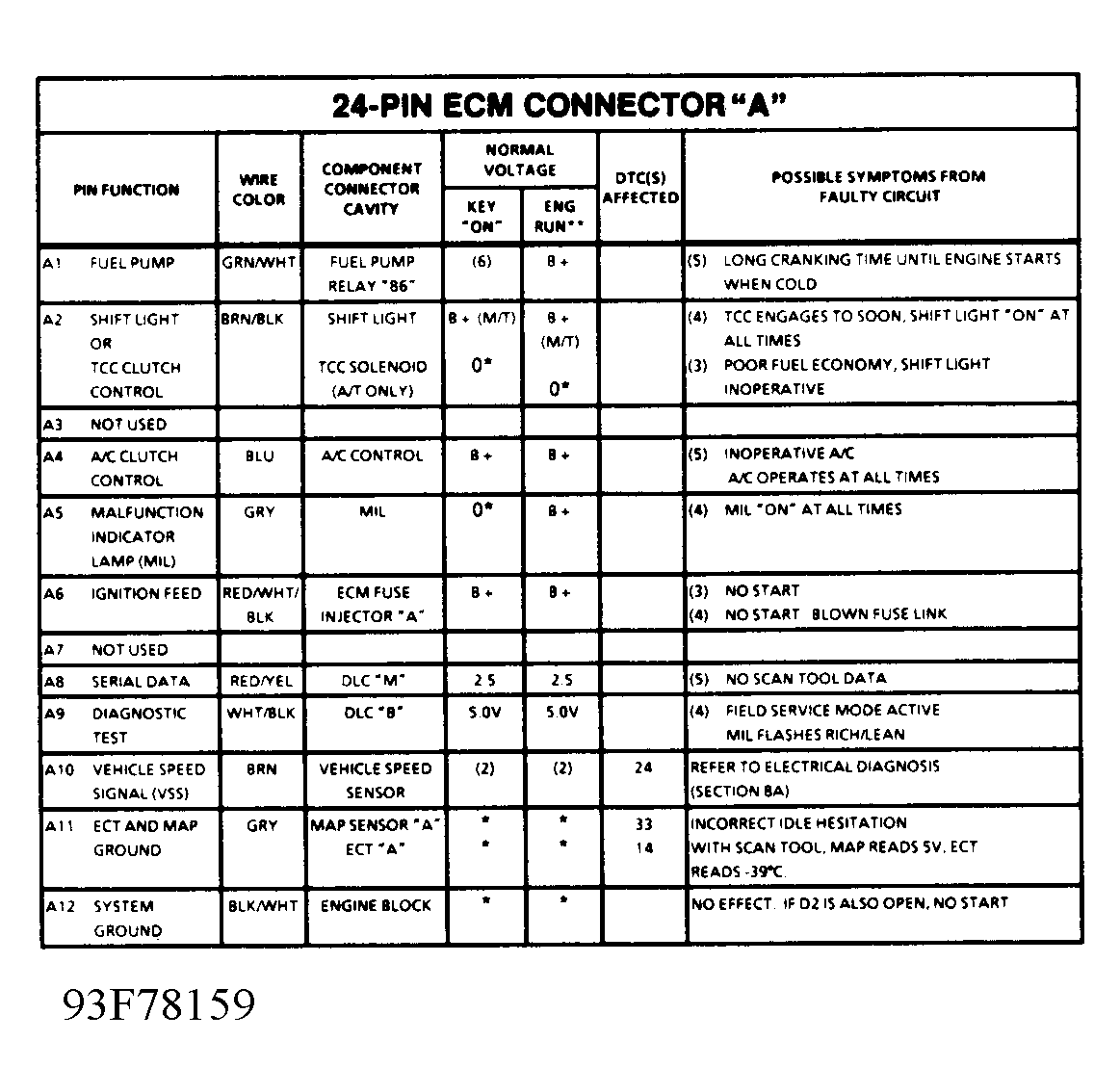

Fig 1: ECM Connector & Pin Voltages (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

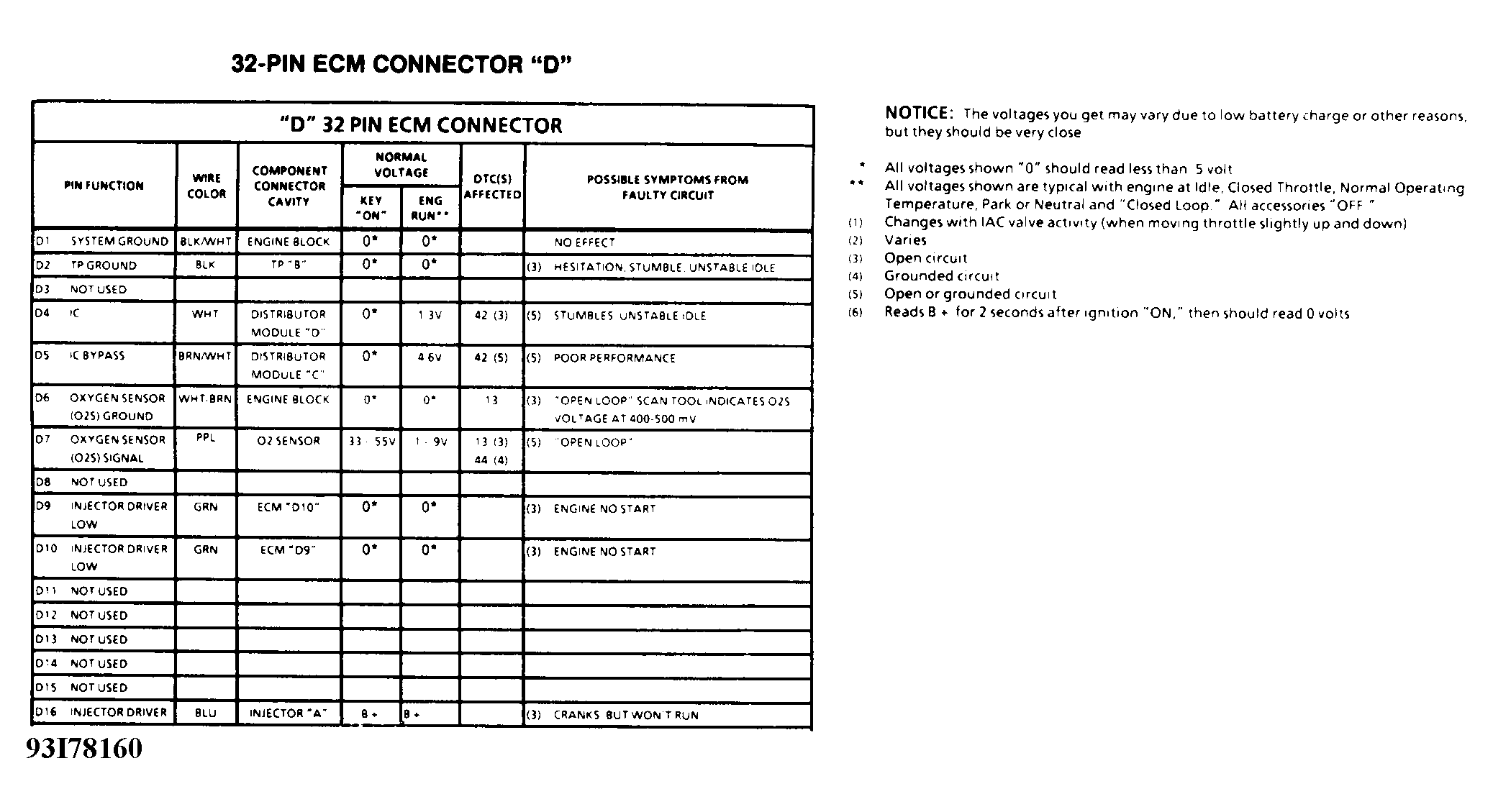

Fig 2: ECM Connector & Pin Voltages (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
