Wiring Diagrams

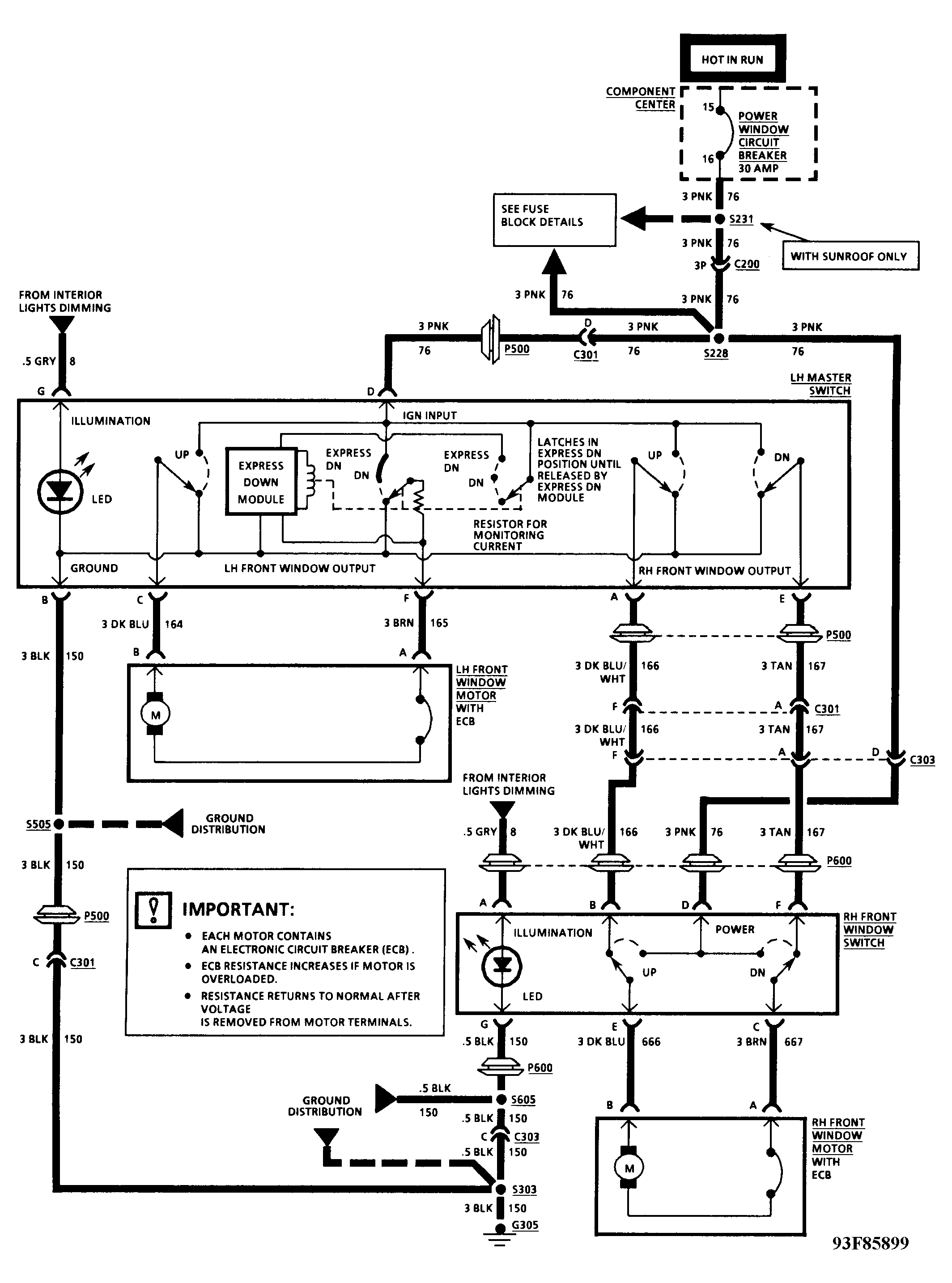

Fig 1: Power Window System Wiring Diagram (4-Door - 1 Of 2)

Courtesy of GENERAL MOTORS CORP.

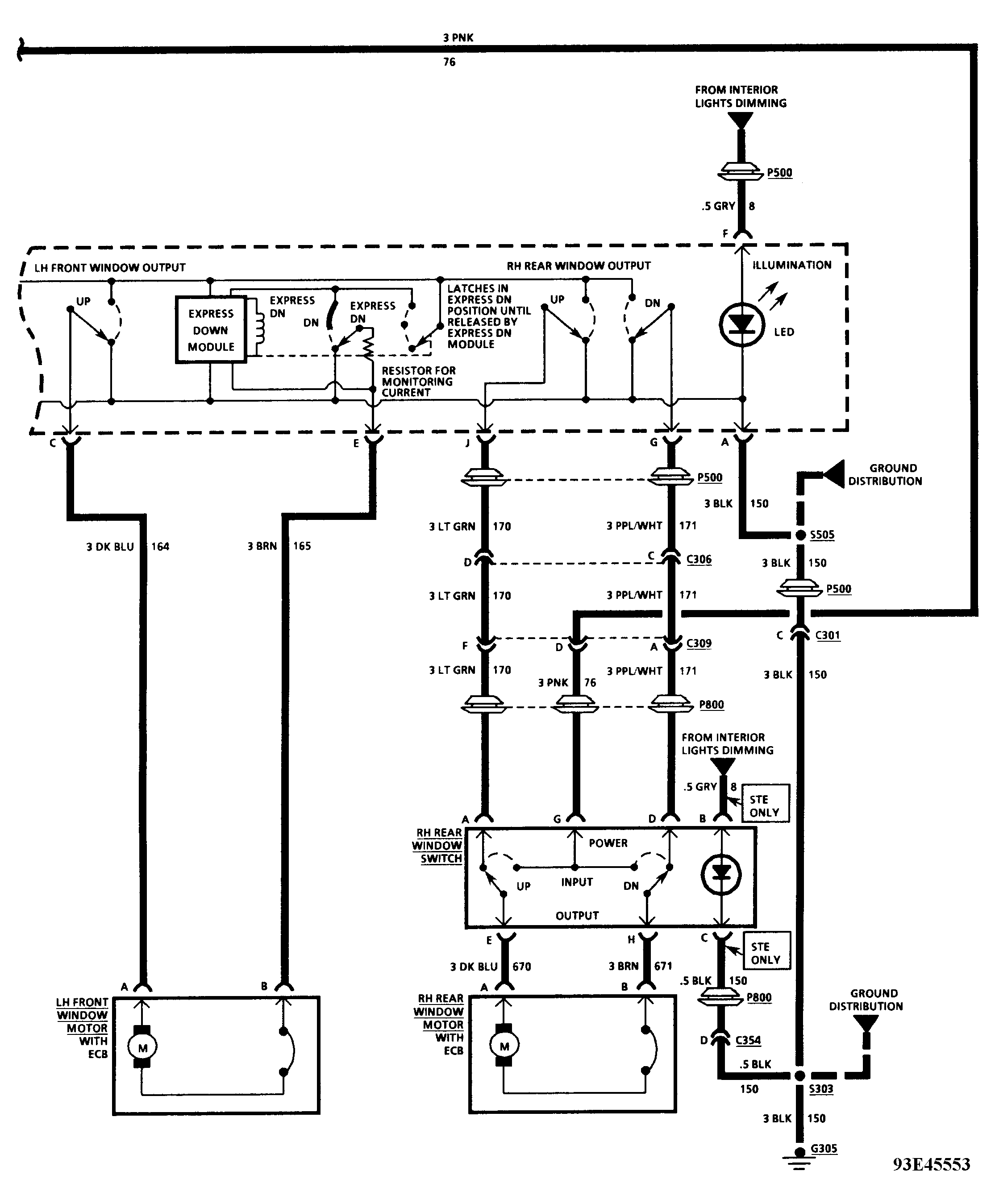

Fig 2: Power Window System Wiring Diagram (4-Door - 2 Of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Power Windows Wiring Diagram (2-Door)

Courtesy of GENERAL MOTORS CORP.
