Flow Chart 5, Entire Seat Will Not Move Up Or Down Forward & Back Functions Operate Normally
Flow Chart 5, Entire Seat Will Not Move Up Or Down Forward & Back Functions Operate Normally

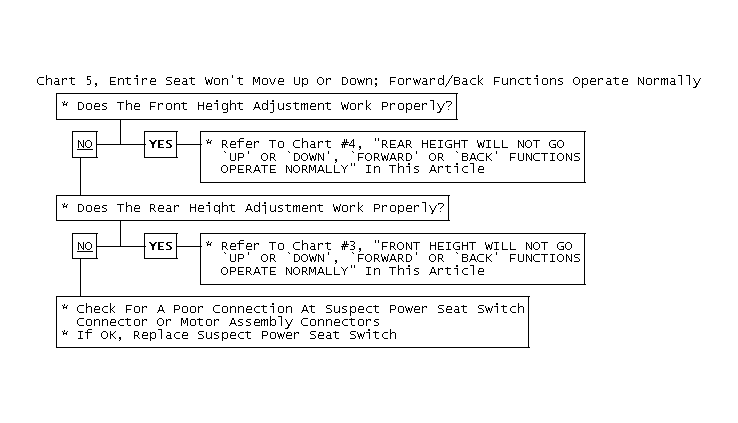

Fig 1: Chart 5, Entire Seat Won't Move Up Or Down; Forward/Back Functions Operate Normally
