Pontiac
>>
1993
>>
Grand Prix GTP, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats - Power
>>
System Testing
>>
Flow Chart 2, Entire Seat Will Not Move Forward &/Or Back Up Or Down Functions Operate Normally
Flow Chart 2, Entire Seat Will Not Move Forward &/Or Back Up Or Down Functions Operate Normally

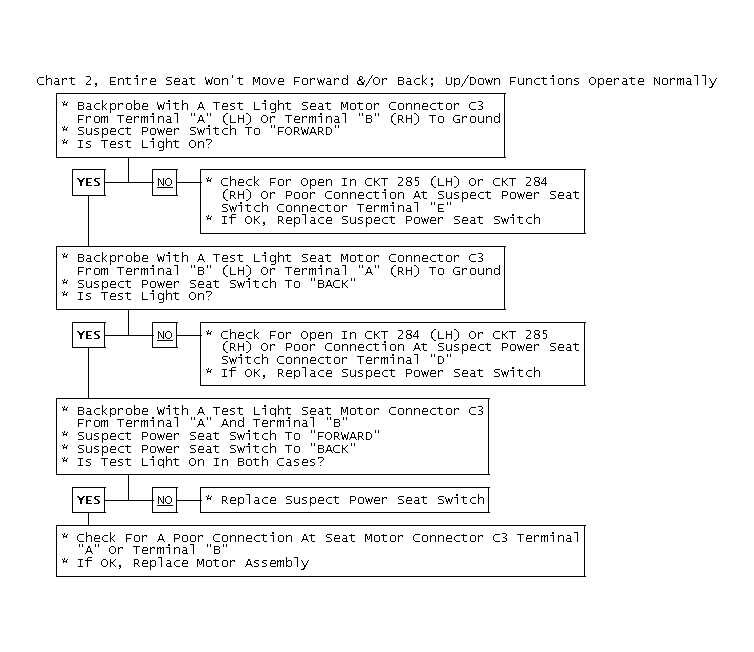

Fig 1: Chart 2, Entire Seat Won't Move Forward &/Or Back; Up/Down Functions Operate Normally
