Home >> Pontiac >> 1992 >> Trans Sport GT >> Repair and Diagnosis >> Body & Frame >> Seats - Power >> System Tests >> Test A: All Power Seat Functions Inoperative

Test A: All Power Seat Functions Inoperative

To perform the following test, refer to illustration. See Fig 1 .

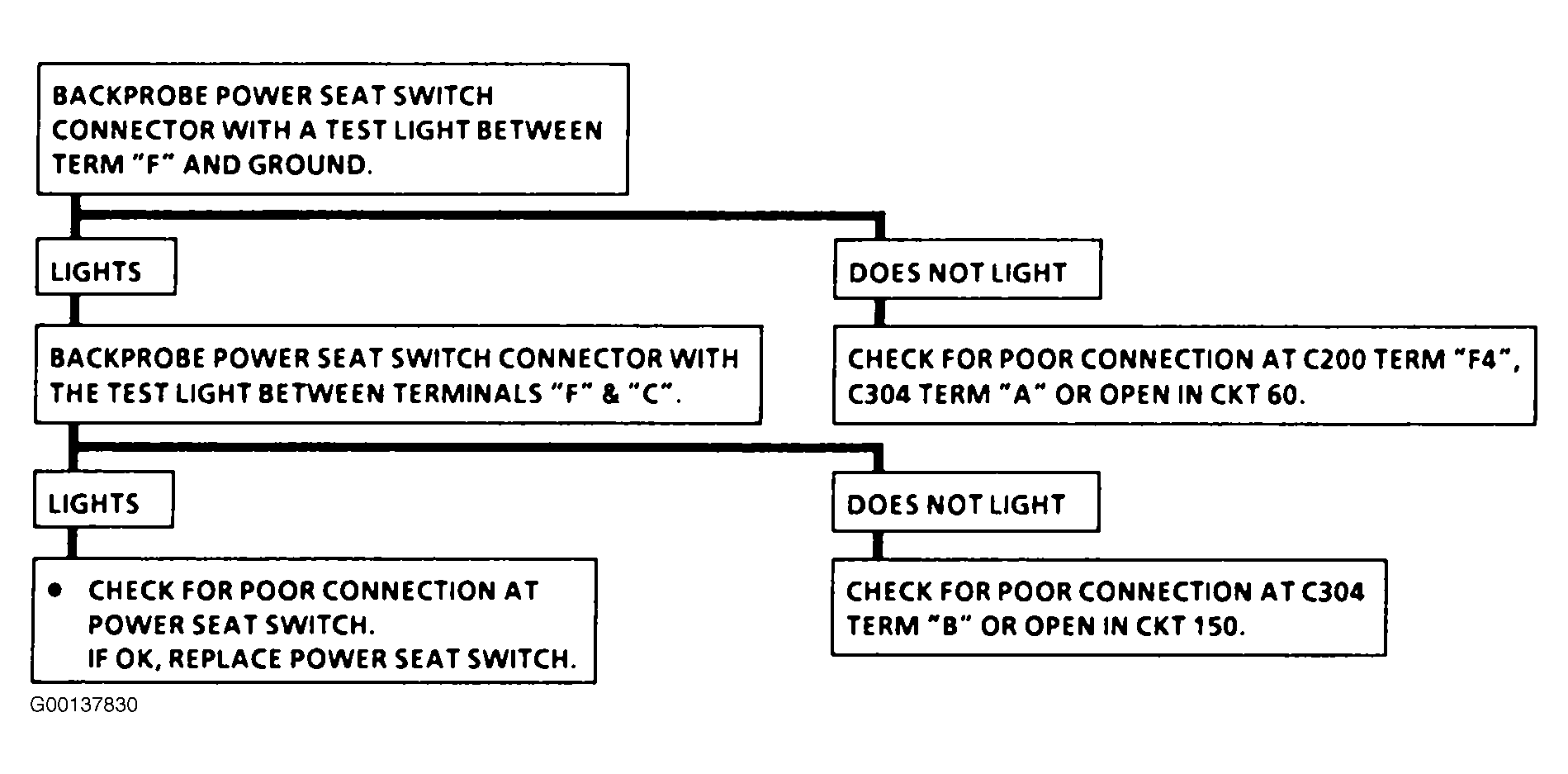

Fig 1: Test A: All Power Seat Functions Inoperative
G00137830Courtesy of GENERAL MOTORS CORP.
