Wiring Diagrams

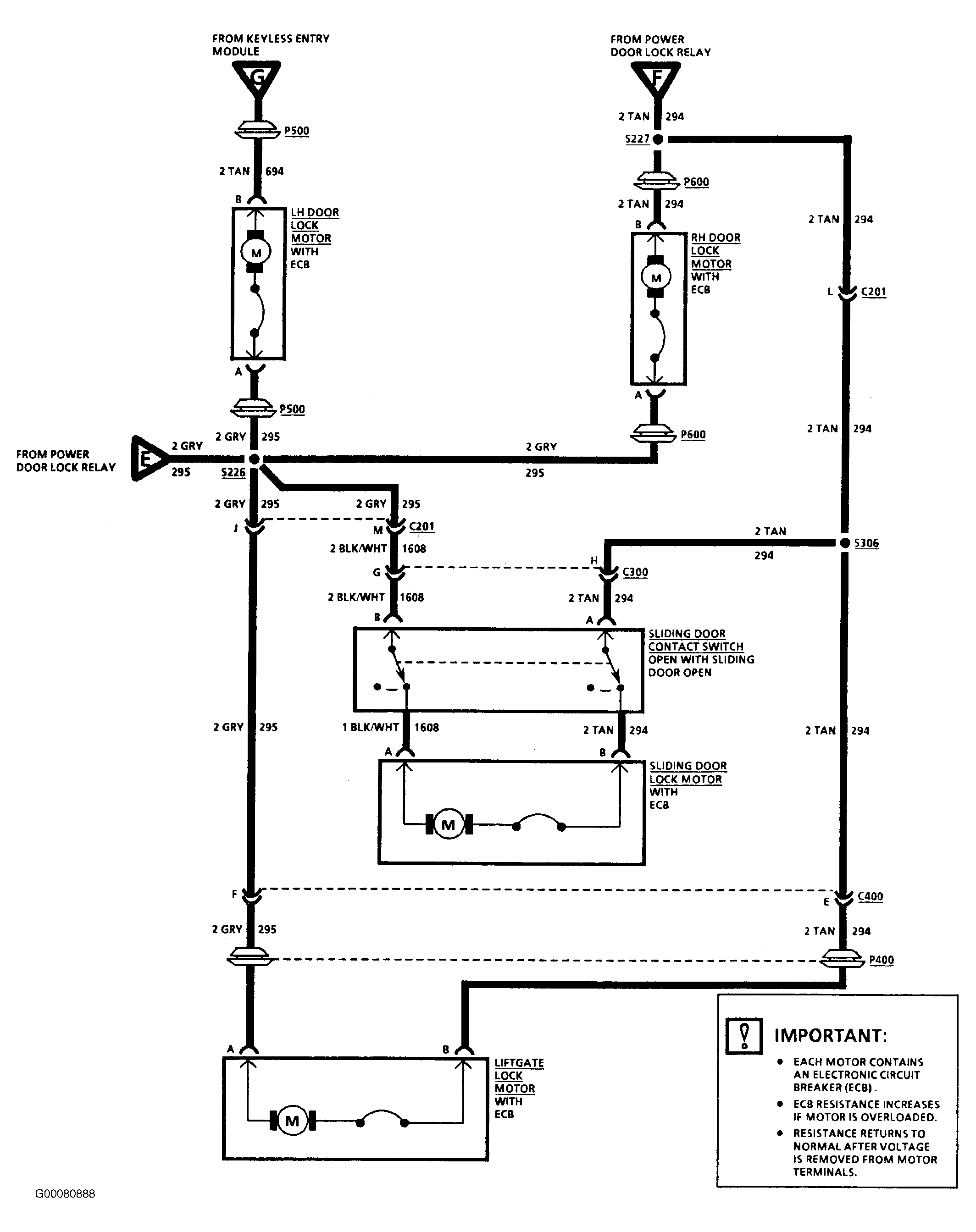

Fig 1: Keyless Entry System Wiring Diagram (1992, 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

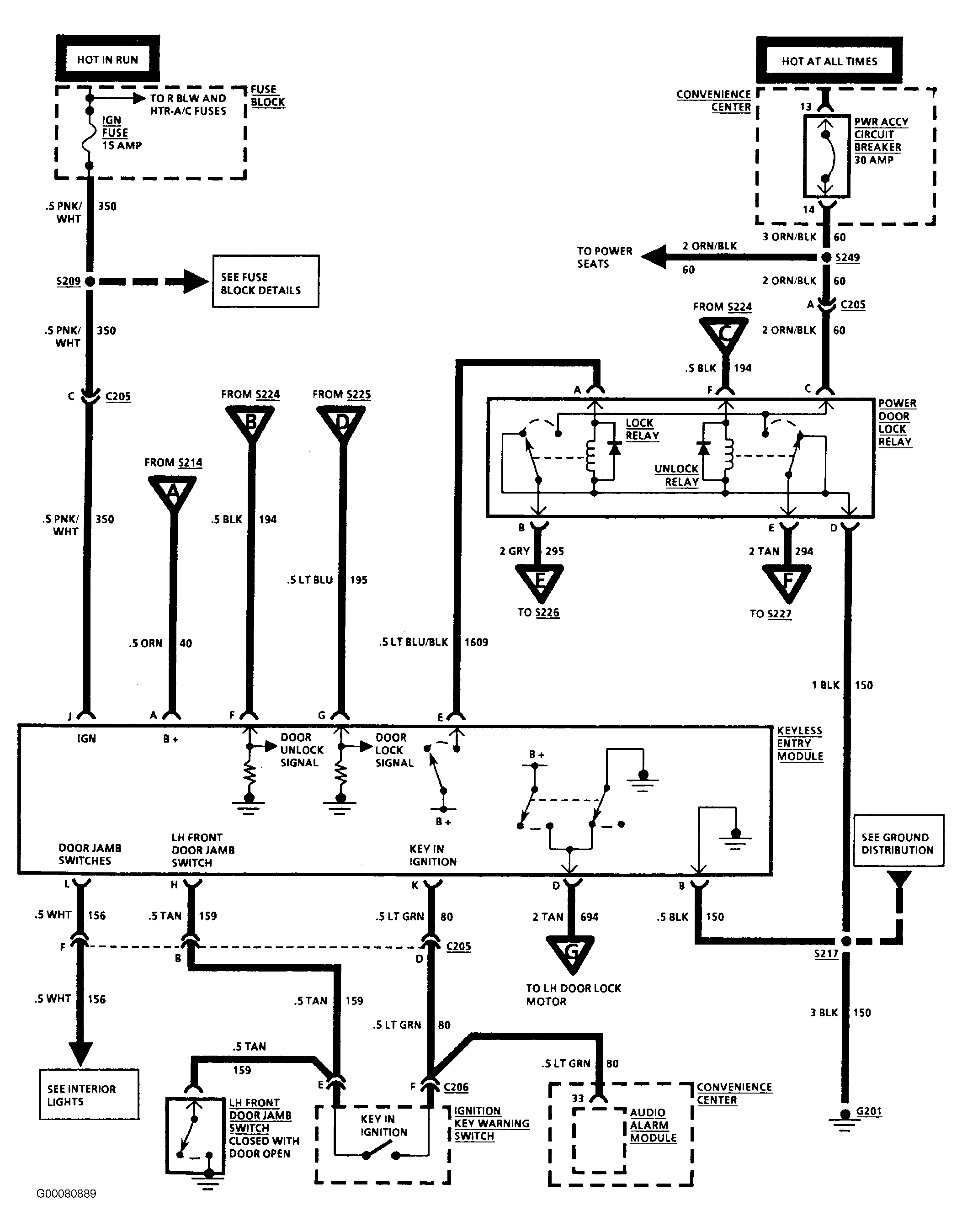

Fig 2: Keyless Entry System Wiring Diagram (1992, 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

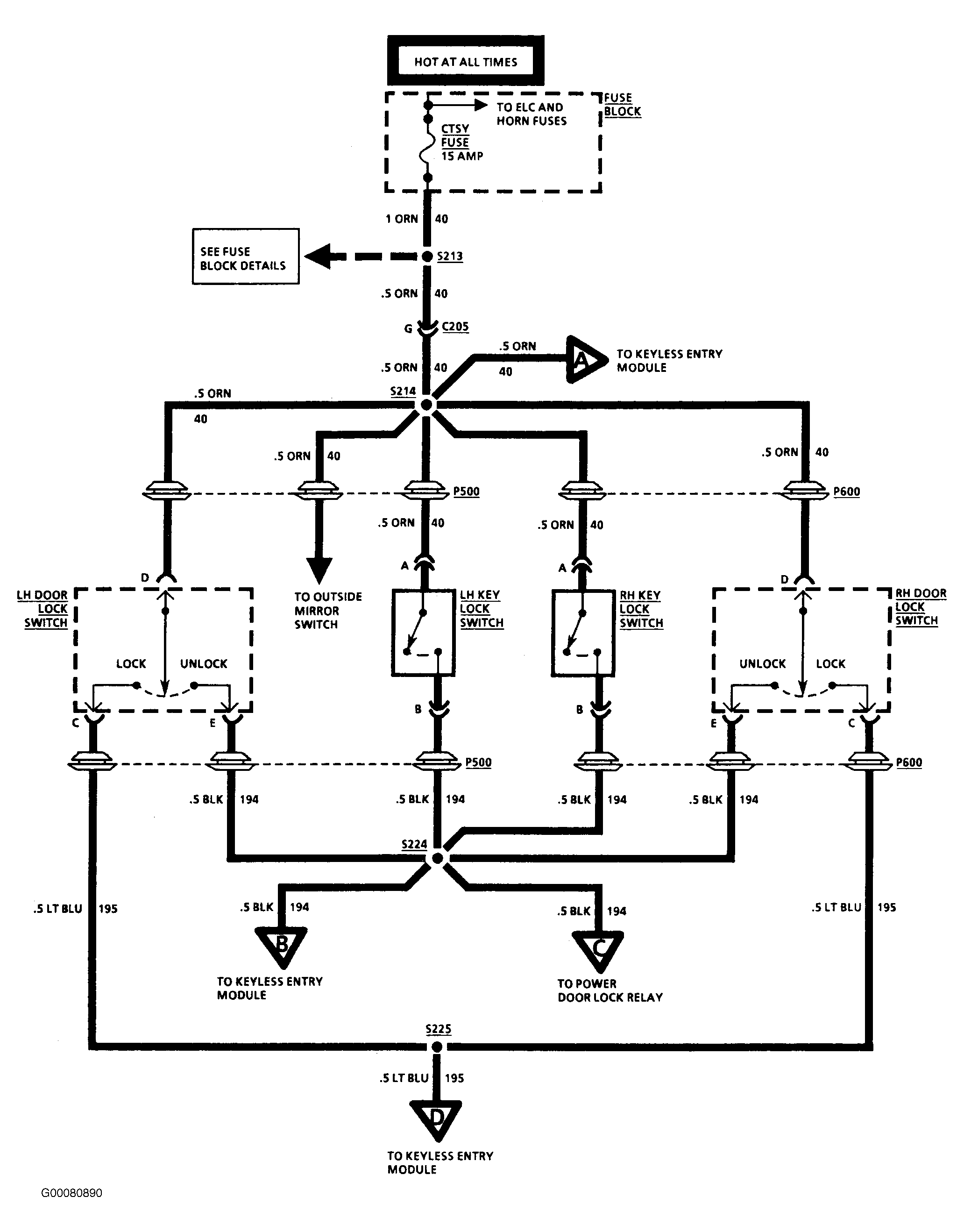

Fig 3: Keyless Entry System Wiring Diagram (1992, 3 Of 3)

Courtesy of GENERAL MOTORS CORP.

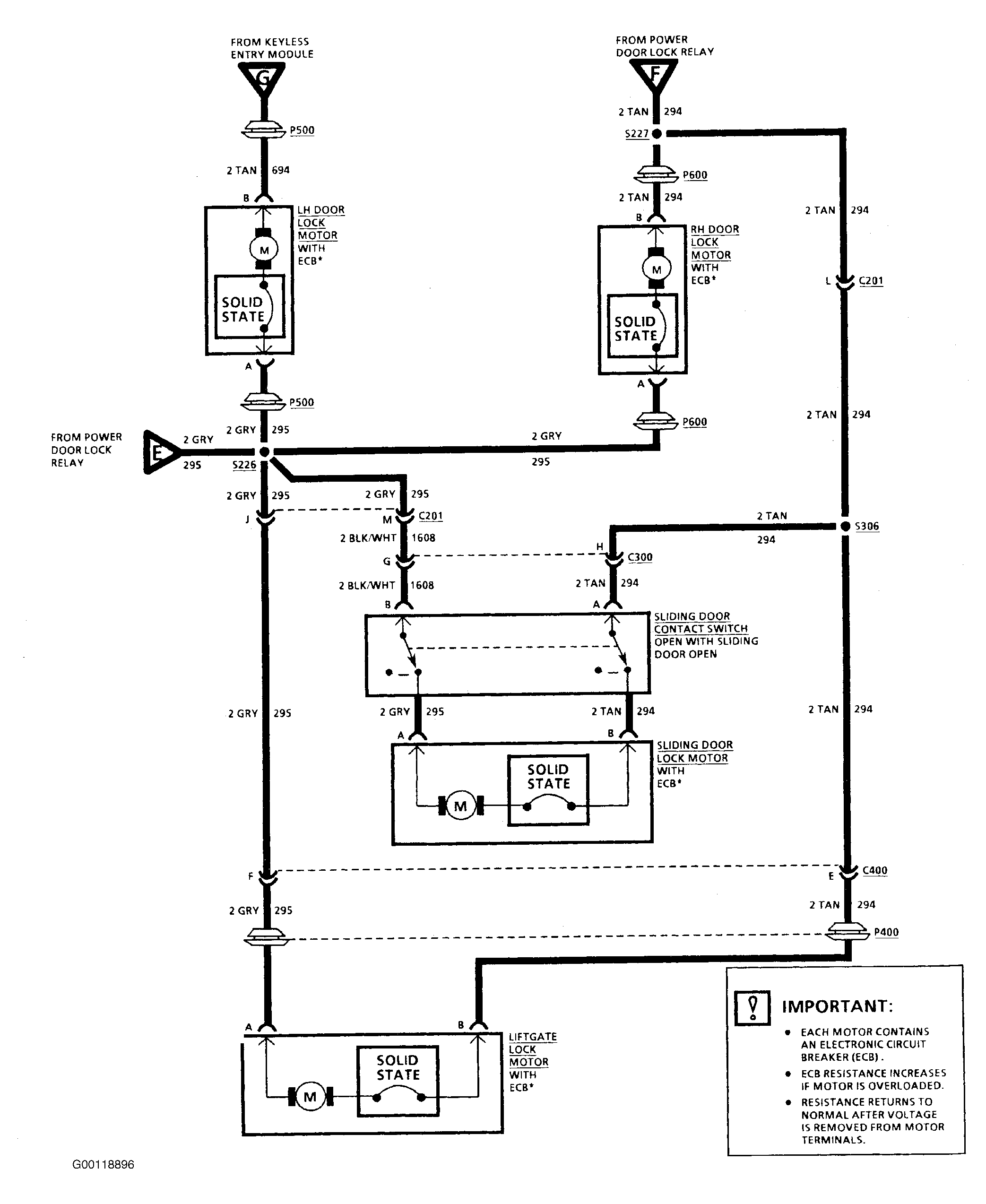

Fig 4: Keyless Entry System Wiring Diagram (1993, 1 Of 3)

Courtesy of GENERAL MOTORS CORP.

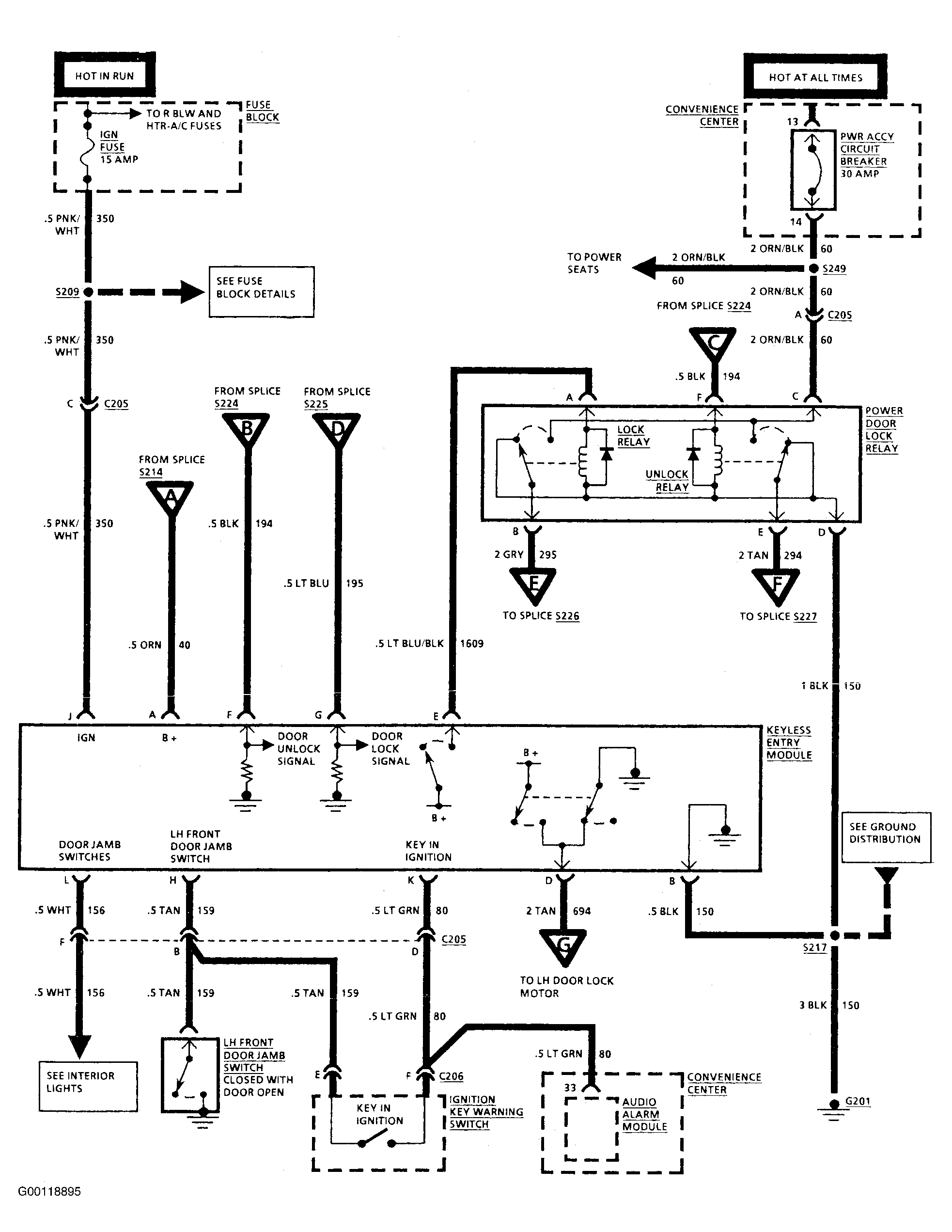

Fig 5: Keyless Entry System Wiring Diagram (1993, 2 Of 3)

Courtesy of GENERAL MOTORS CORP.

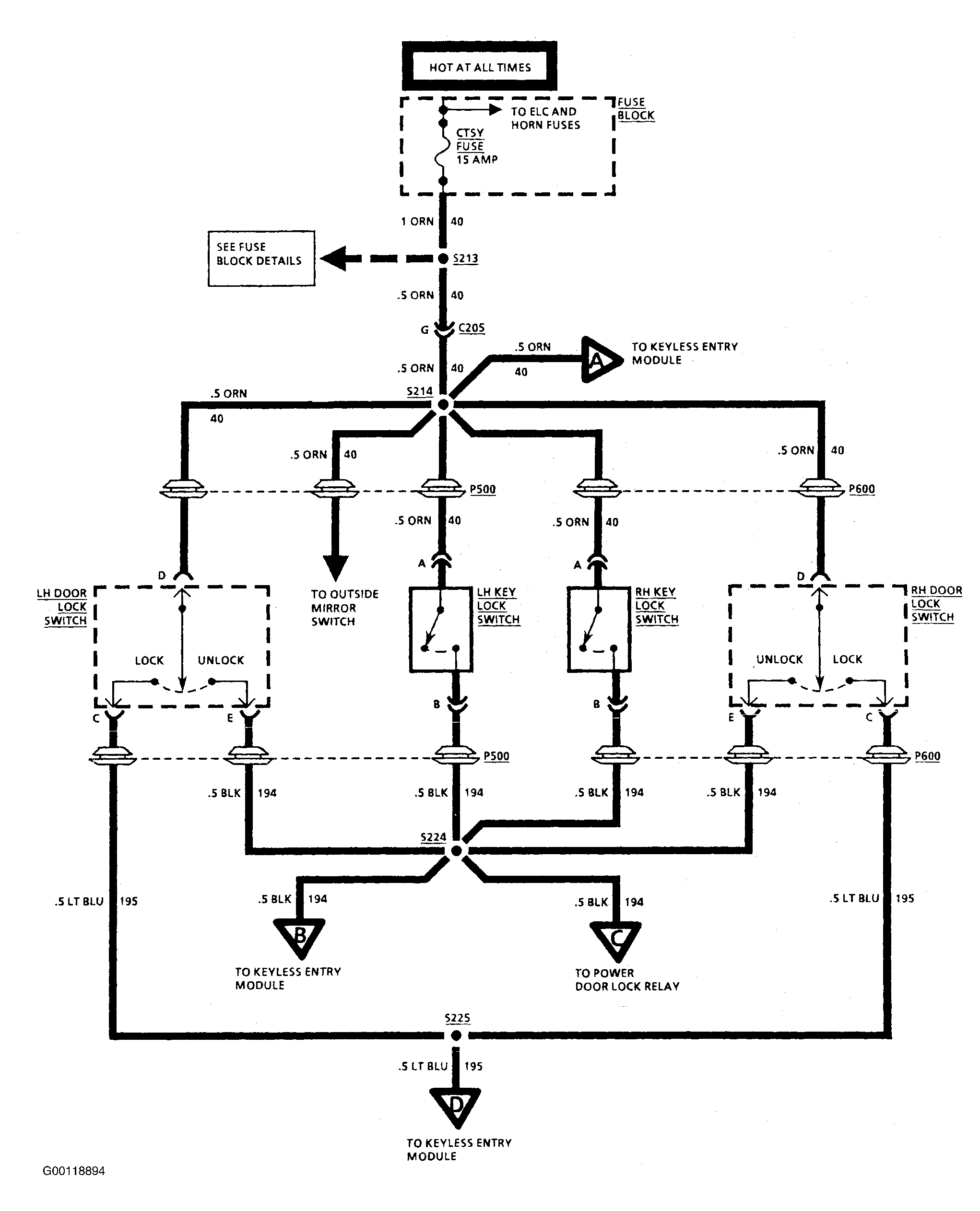

Fig 6: Keyless Entry System Wiring Diagram (1993, 3 Of 3)

Courtesy of GENERAL MOTORS CORP.
