Test A: Keyless Entry Transmitter Does Not Unlock Or Lock Doors

For test procedure, refer to illustration. See Fig 1

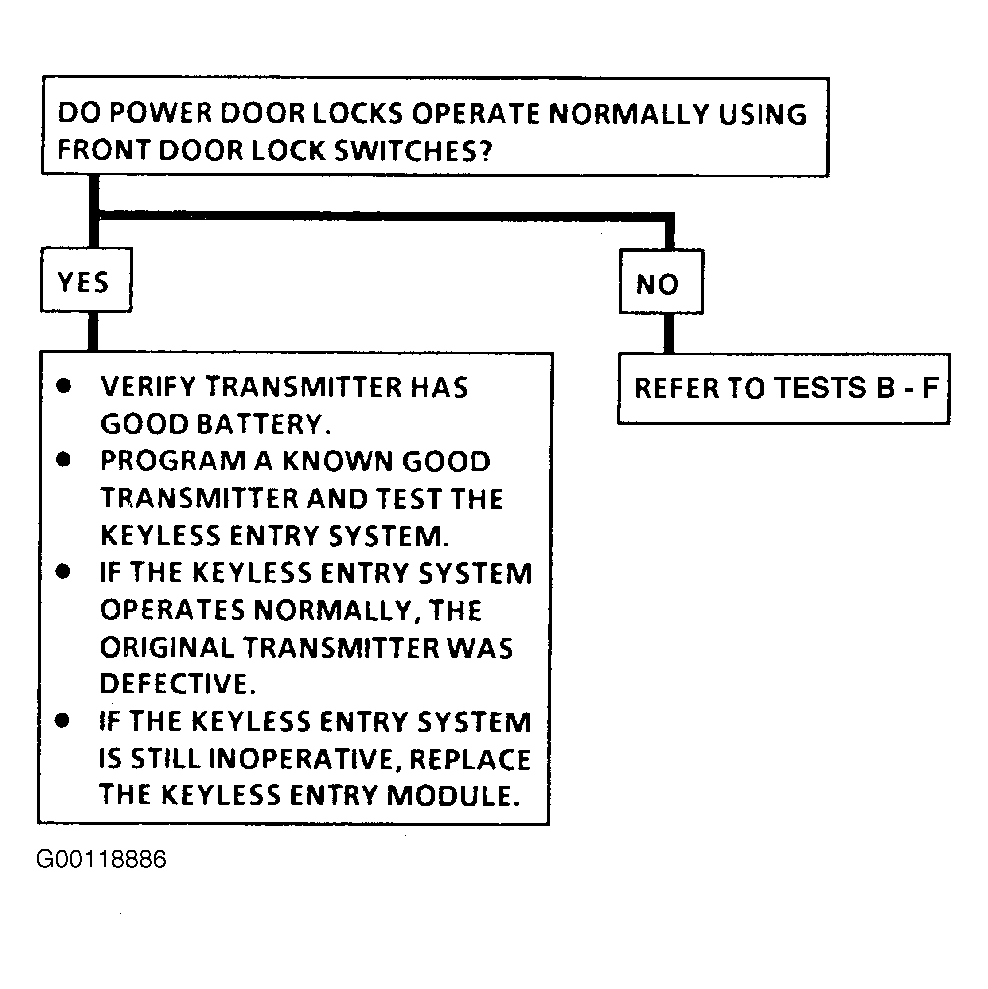

Fig 1: Test A: Keyless Entry Transmitter Does Not Unlock Or Lock Doors

Courtesy of GENERAL MOTORS CORP.
