Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | On left side of firewall. | |
| Cruise Control Module | ||
| Cavalier | Behind left side of dash, above kick panel. | |
| Sunbird | Behind center of dash. | |
| Daytime Running Lights (DRL) Module | Behind left side of dash, above kick panel. | |
| DIS Module | ||
| Sunbird 2.0L (VIN H) | On right side of engine. See Figure . | |

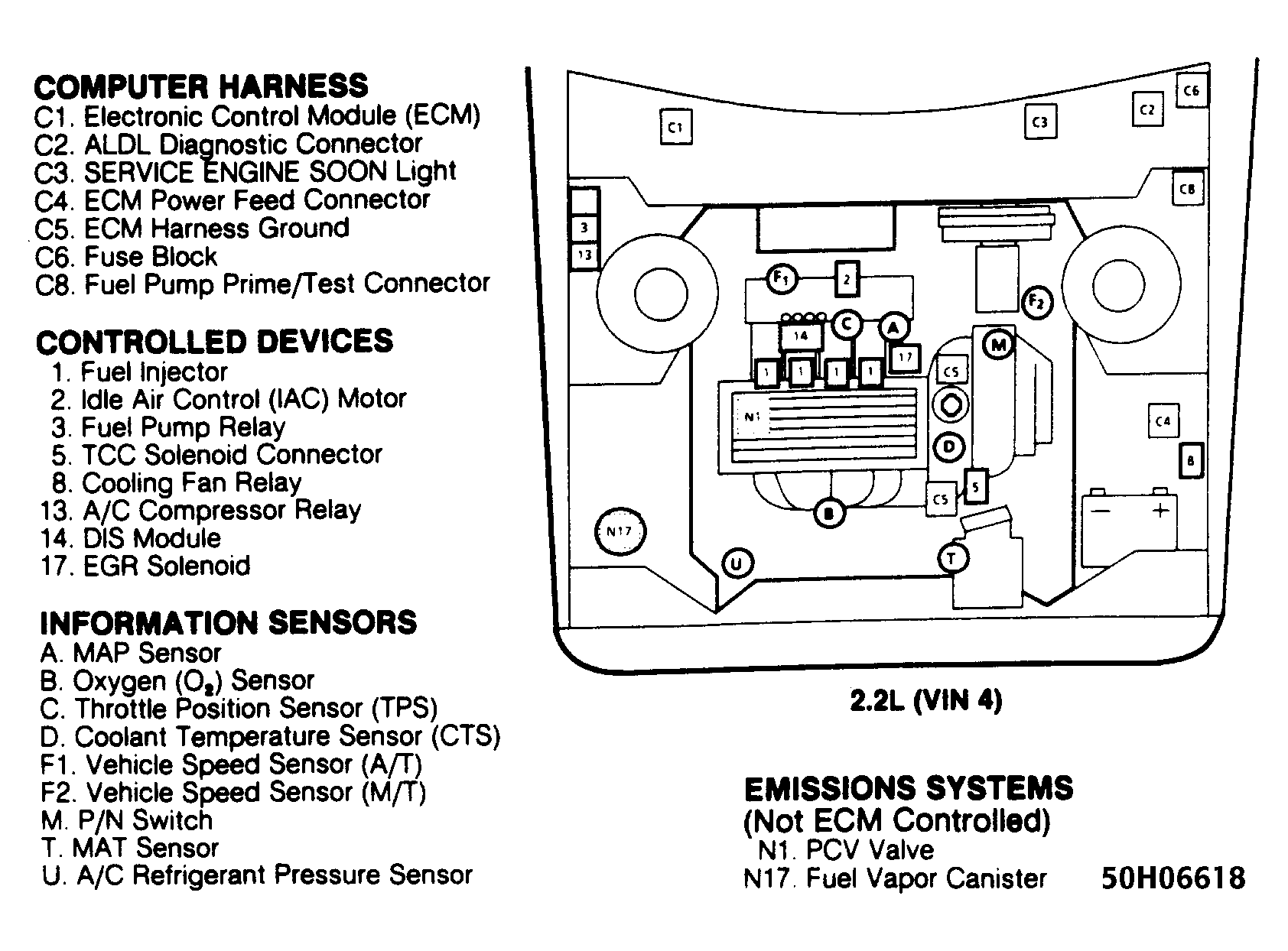

| Cavalier 2.2L (VIN 4) | On right side of engine. See Figure . | |
| 3.1L (VIN T) | On left side of engine. See Figure . | |
| Electronic Control Module (ECM) | ||
| Sunbird 2.0L (VIN H) | Behind right side of dash, behind glove box. See Figure . | |
| Cavalier 2.2L (VIN 4) | Behind right side of dash, behind glove box. See Figure . | |
| 3.1L (VIN T) | Behind right side of dash, behind glove box. See Figure . | |
| Headlight Door Control Module (Sunbird) | On left strut tower. | |
| Interior Lights Dimmer Module | Behind left side of dash, near turn signal flasher. | |
