Component Location

COMPONENT LOCATION

Component Location
Fuse Block Behind Left Side Of Instrument Panel. See Fig 1
Power Window Control Module Under Left Front Seat. See Fig 2
Power Window Motor Lower Front Of Respective Door. See Fig 3
C200 (30 cavities) Behind Instrument Panel, Near Left Shroud. See Fig 4
C318 (3 cavities) Behind Instrument Panel, Near Right Shroud. See Fig 5
C319 (3 cavities) Behind Instrument Panel, Near Left Shroud. See Fig 4
G321 Below Left Front Seat. See Fig 6
S215 Crosscar Harness, Near Upper Left Shroud. See Fig 7
S330 (Convertible) Body Front Harness, Behind Left Side Of Rear Seat. See Fig 6
S330 (Coupe) Body Front Harness, Behind Left Side Of Rear Seat. See Fig 8
S330 (Sedan) Body Front Harness, Left Side Of Passenger's Compartment. See Fig 2
S500 Crosscar Harness, Under Left Front Seat. See Fig 6

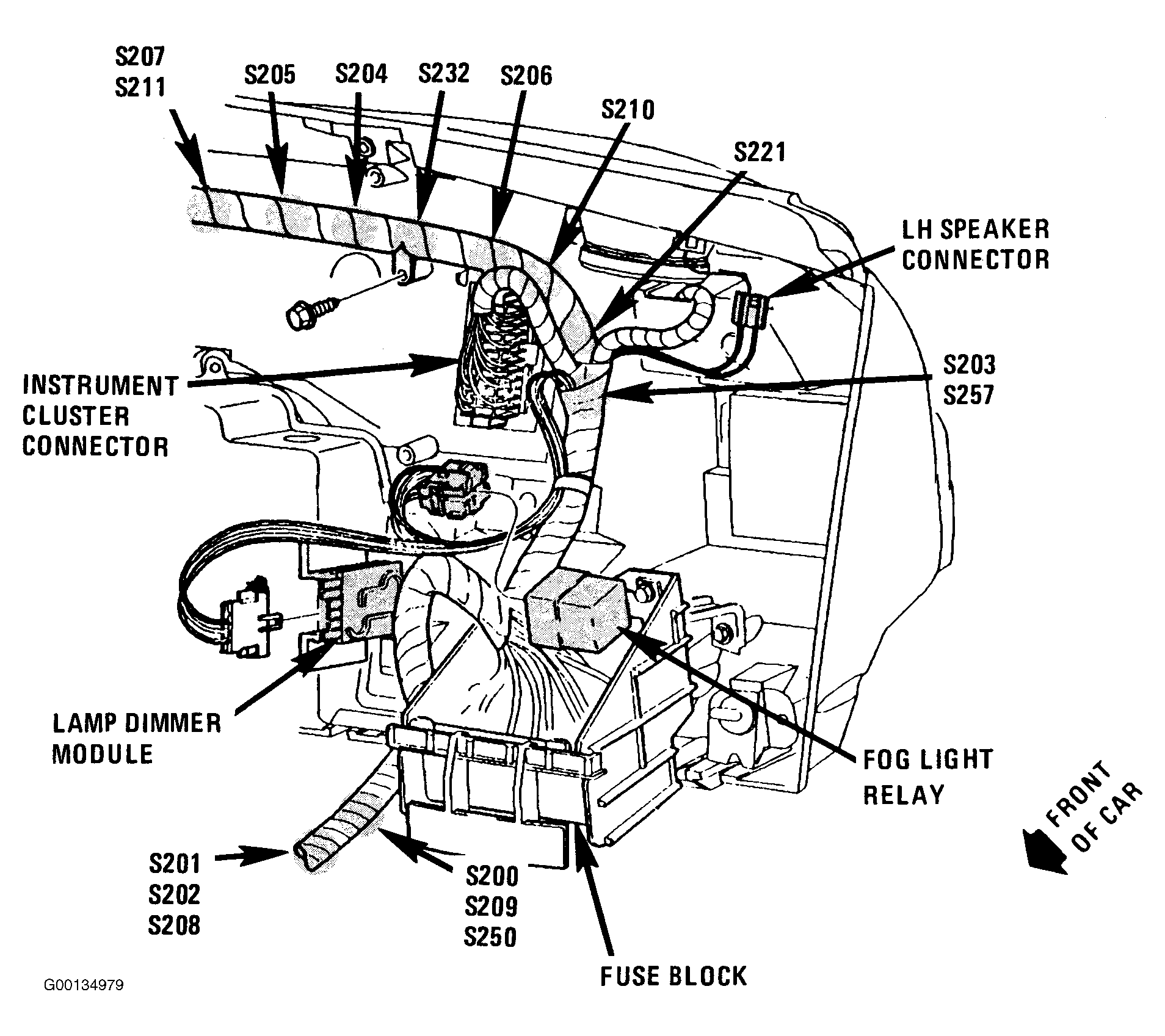

Fig 1: Locating Fuse Block
G00134979Courtesy of GENERAL MOTORS CORP.

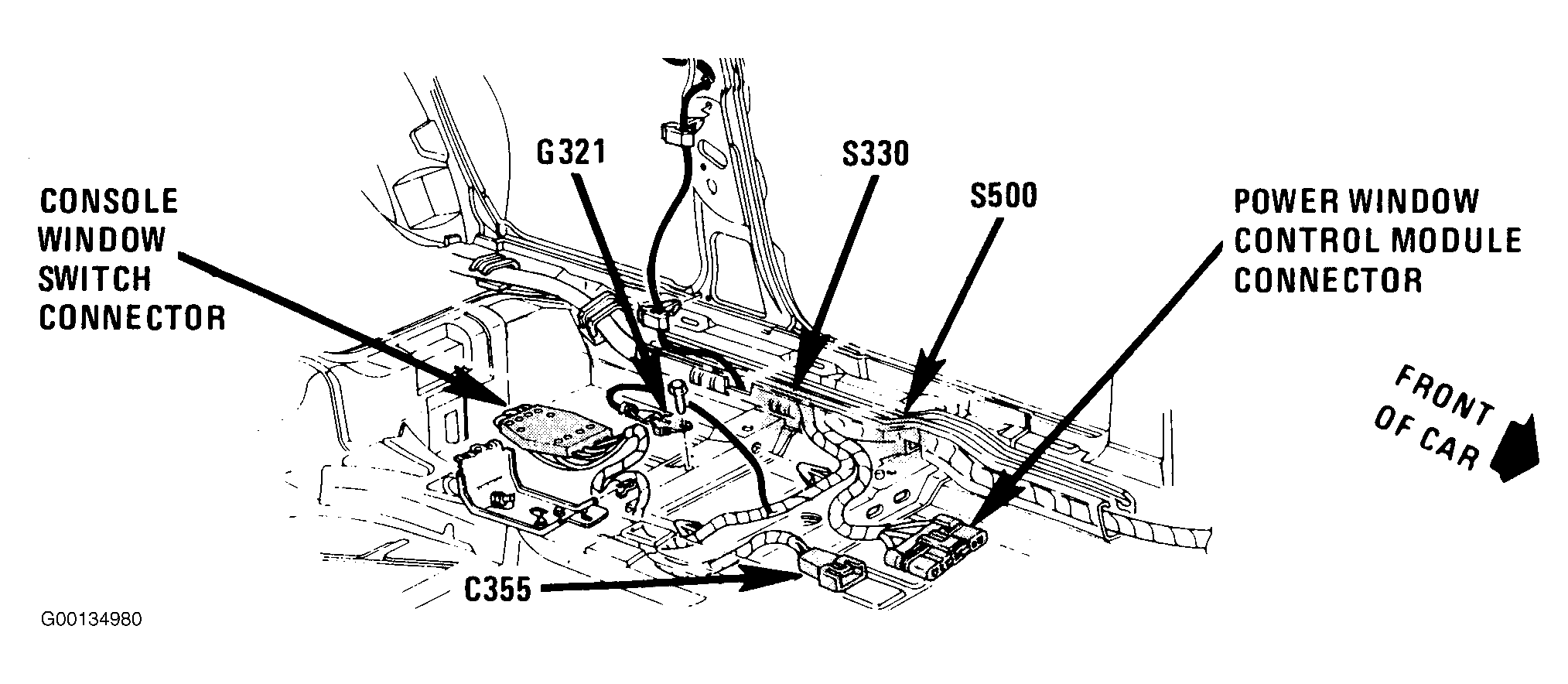

Fig 2: Locating Power Window Control Module & Connector C330 (Sedan Is Shown)
G00134980Courtesy of GENERAL MOTORS CORP.

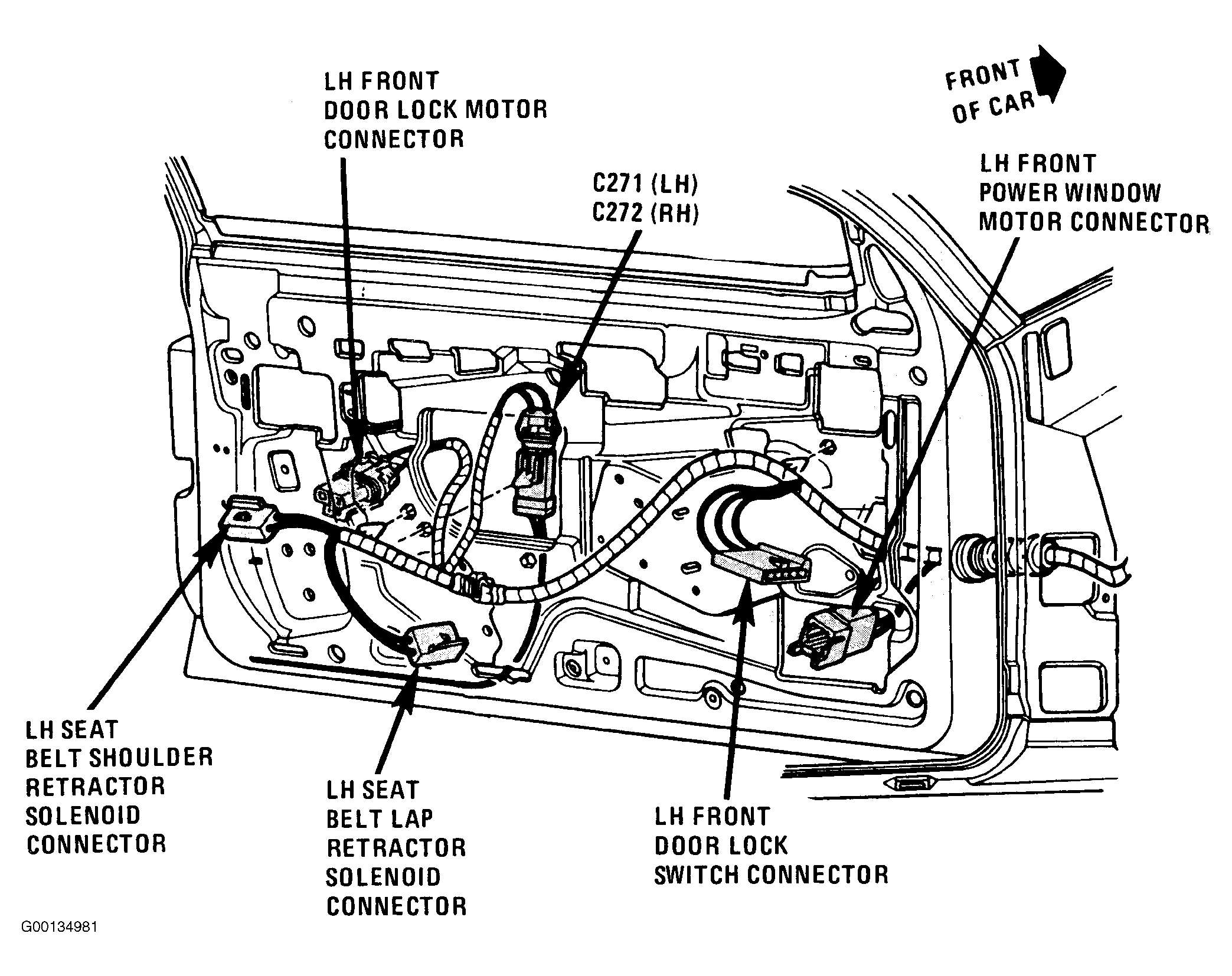

Fig 3: Locating Power Window Motor
G00134981Courtesy of GENERAL MOTORS CORP.

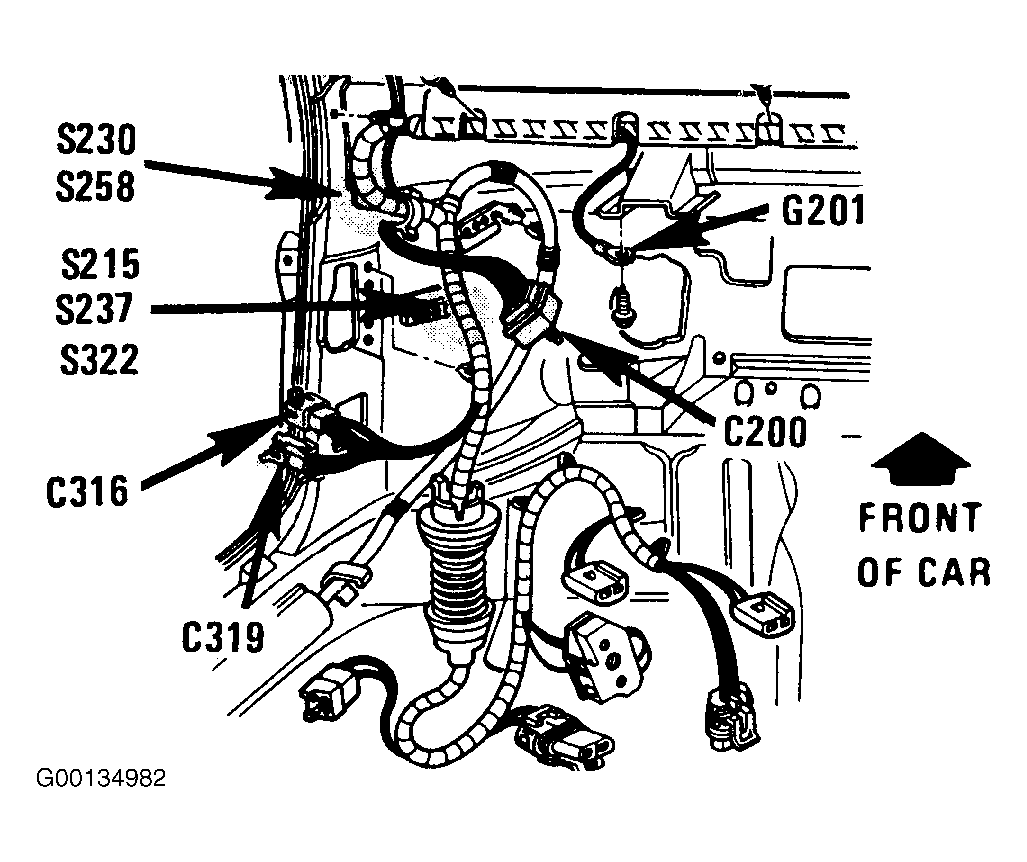

Fig 4: Locating Connectors C200 & C319
G00134982Courtesy of GENERAL MOTORS CORP.

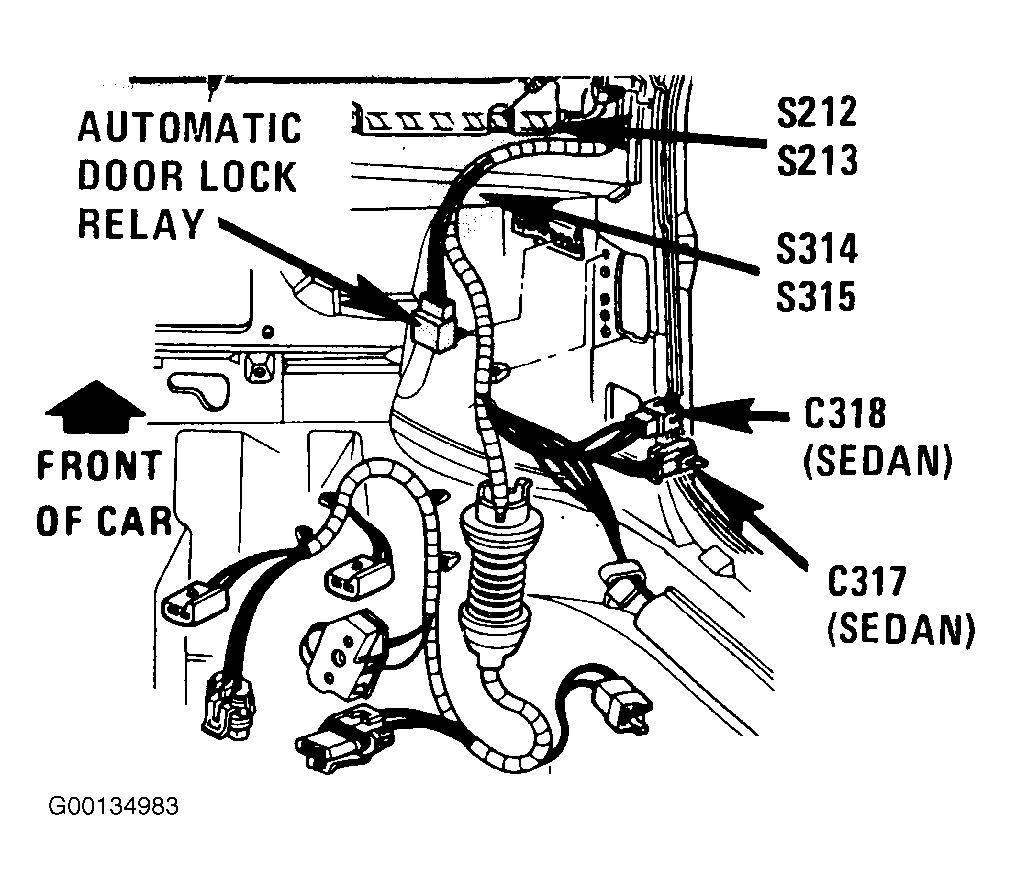

Fig 5: Locating Connector C318
G00134983Courtesy of GENERAL MOTORS CORP.

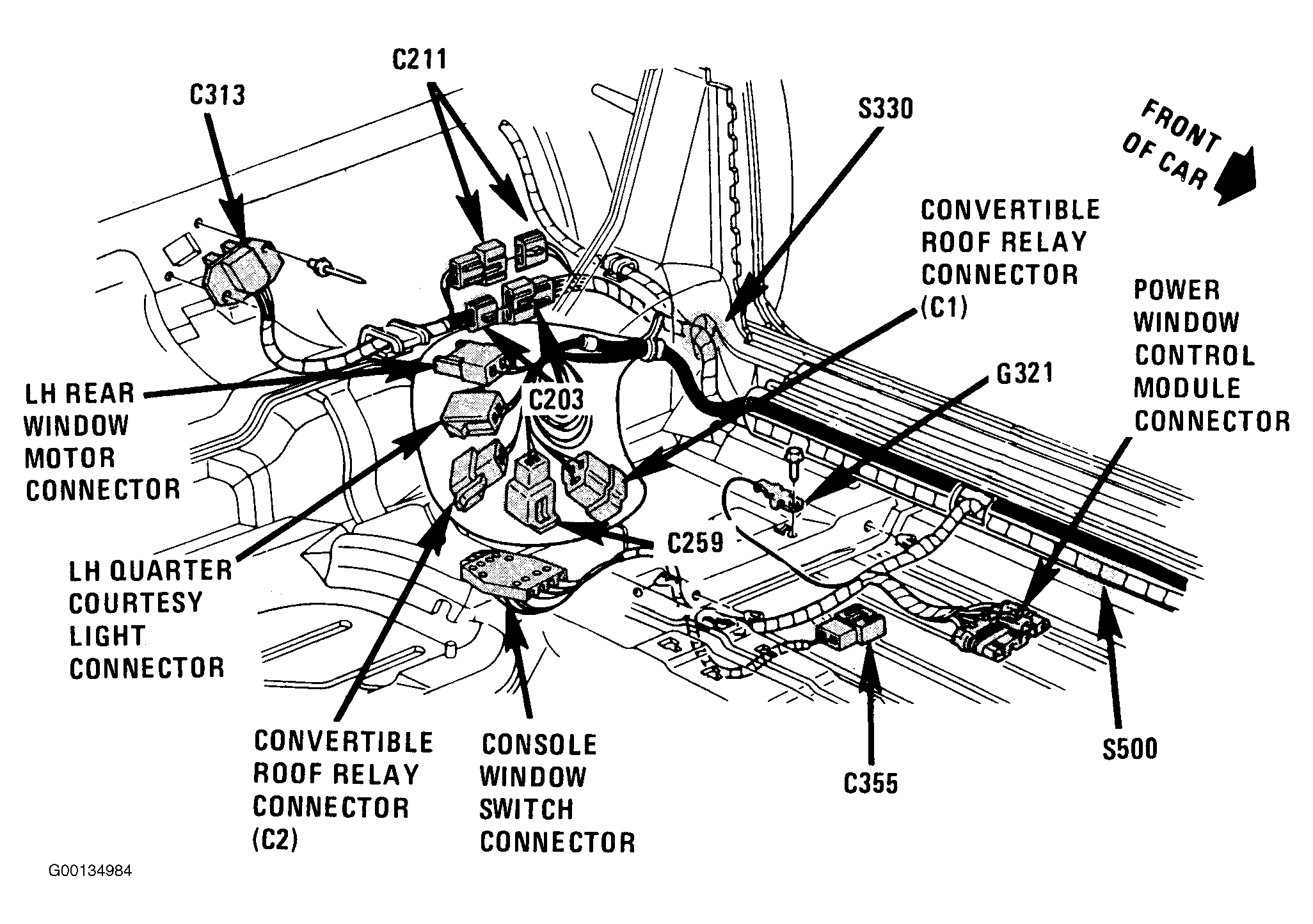

Fig 6: Locating Ground G321 (Convertible) & Splice S330 & S500
G00134984Courtesy of GENERAL MOTORS CORP.

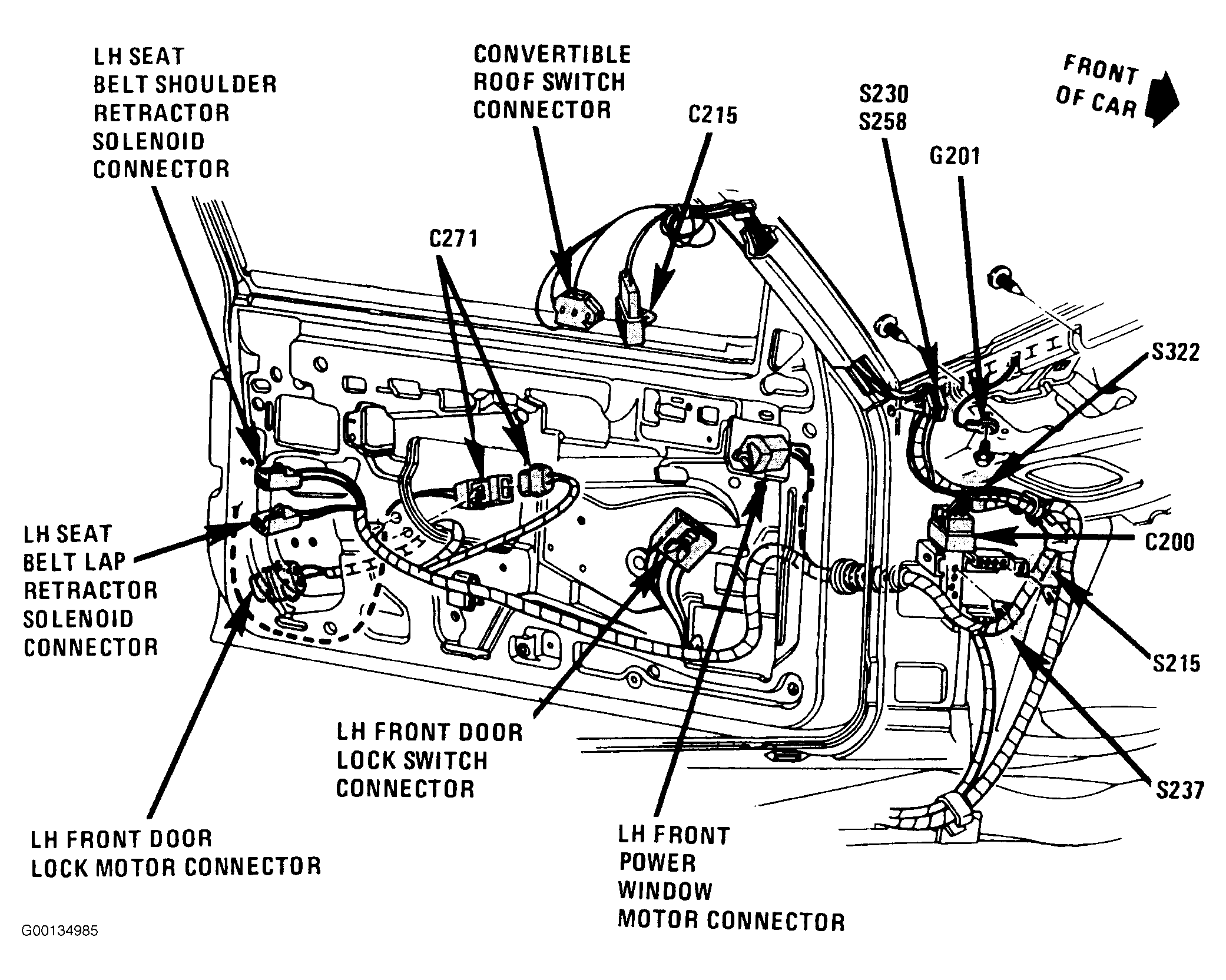

Fig 7: Locating Splice S215
G00134985Courtesy of GENERAL MOTORS CORP.

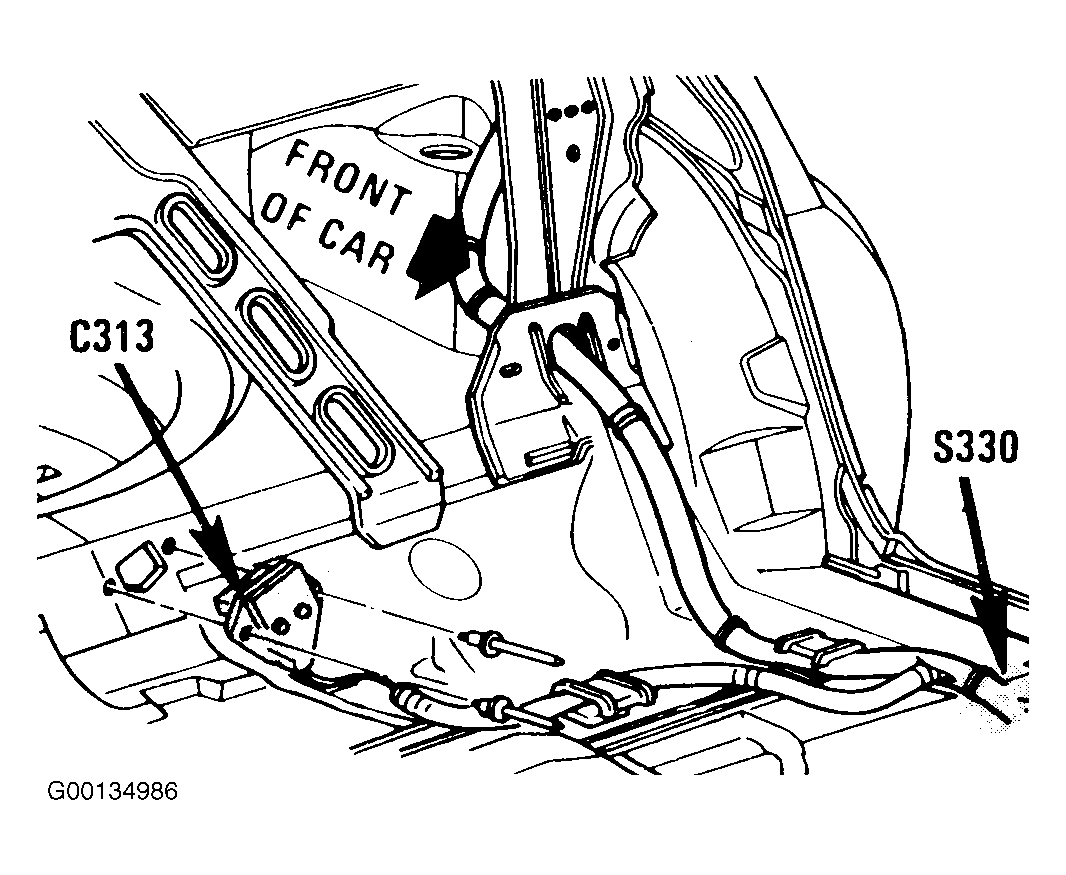

Fig 8: Locating Splice S330 (Coupe)
G00134986Courtesy of GENERAL MOTORS CORP.
