Home >> Pontiac >> 1992 >> Sunbird GT, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test E: Window Motor

Test E: Window Motor

To perform this test, see Fig 1 .

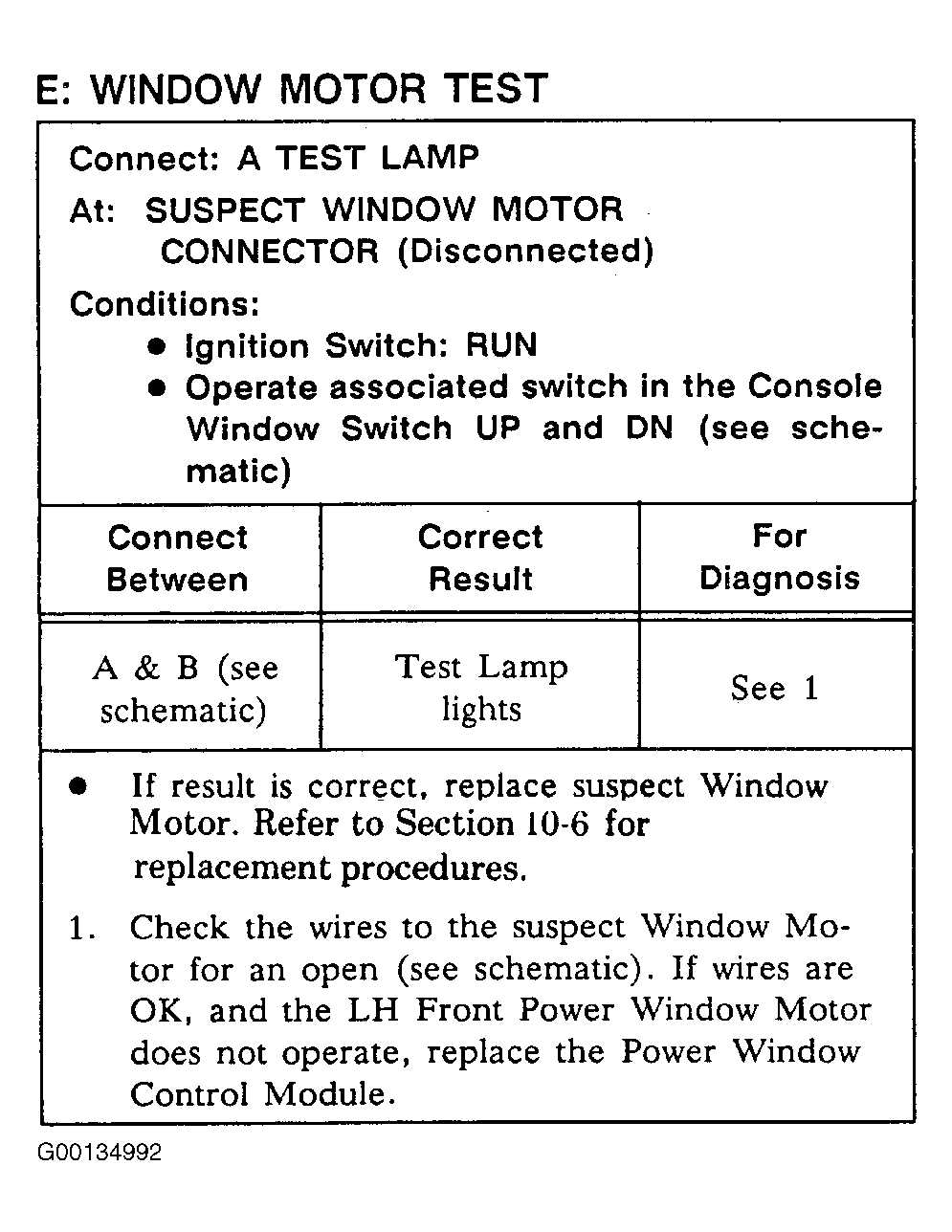

Fig 1: Test E: Window Motor

G00134992

Courtesy of GENERAL MOTORS CORP.
