LeMans VL
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Controls - Pin Voltage Charts
>>
Pin Voltage Charts
Pin Voltage Charts

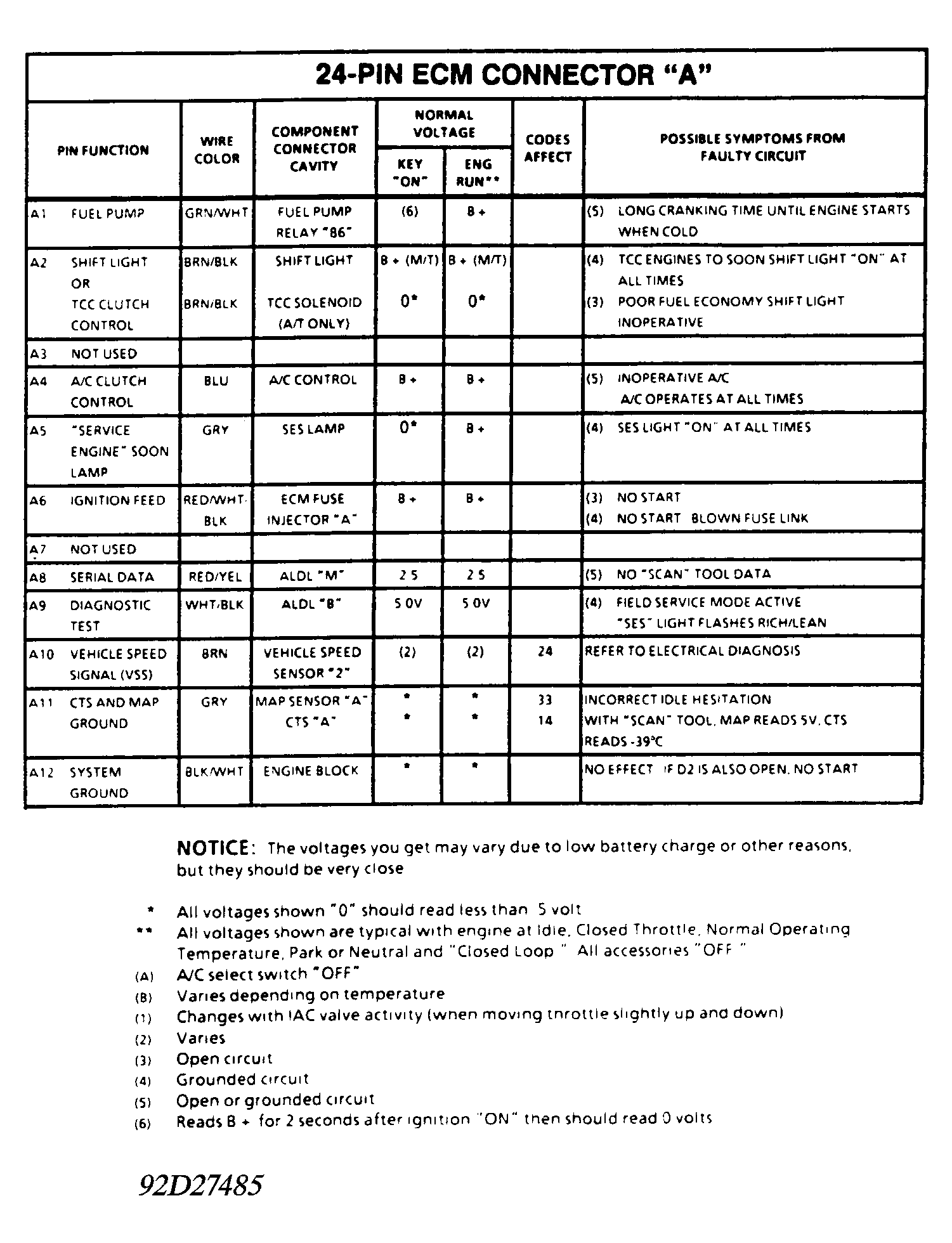

Fig 1: ECM Connector "A" Pin Voltage Chart
Courtesy of GENERAL MOTORS CORP.

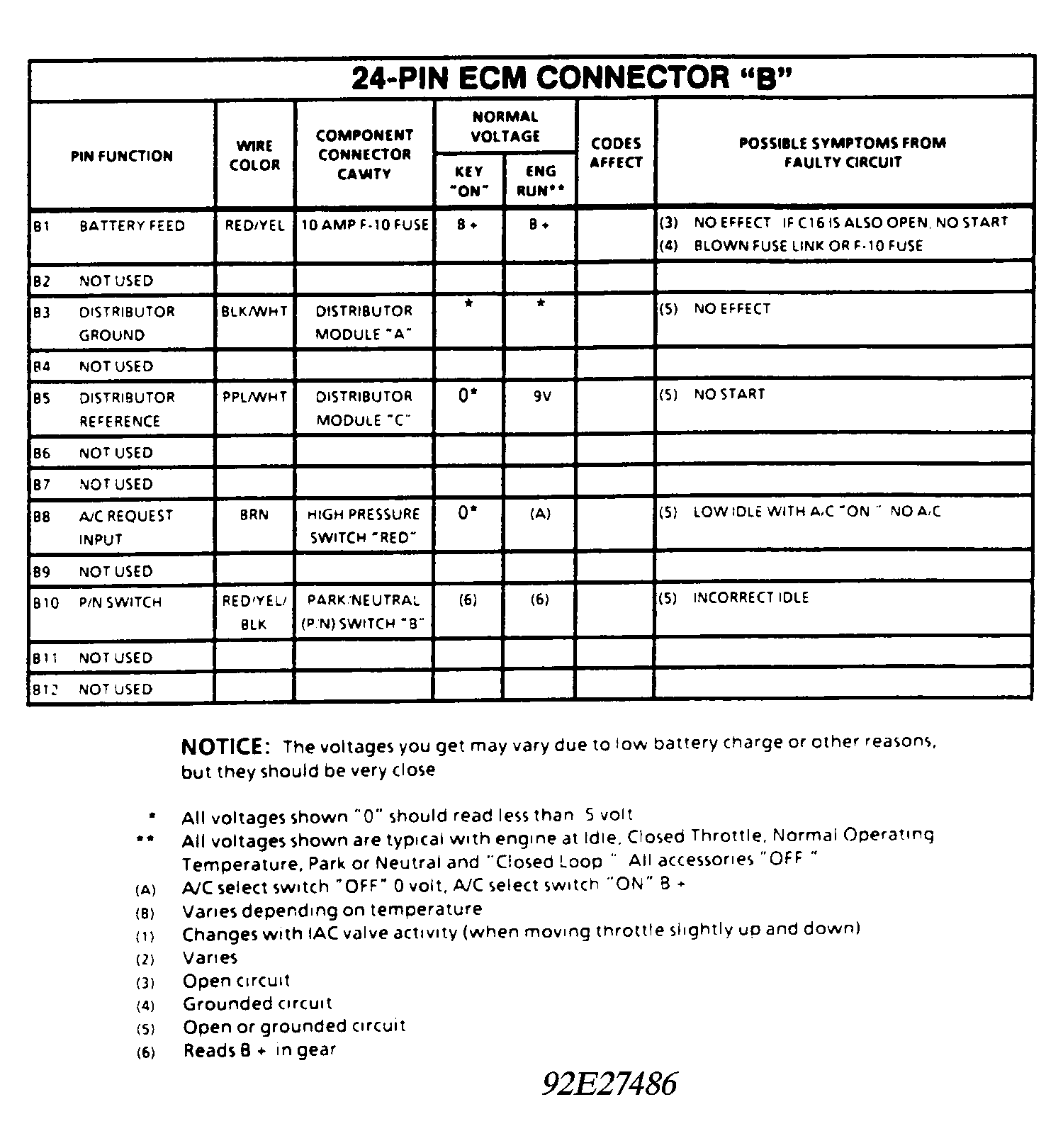

Fig 2: ECM Connector "B" Pin Voltage Chart
Courtesy of GENERAL MOTORS CORP.

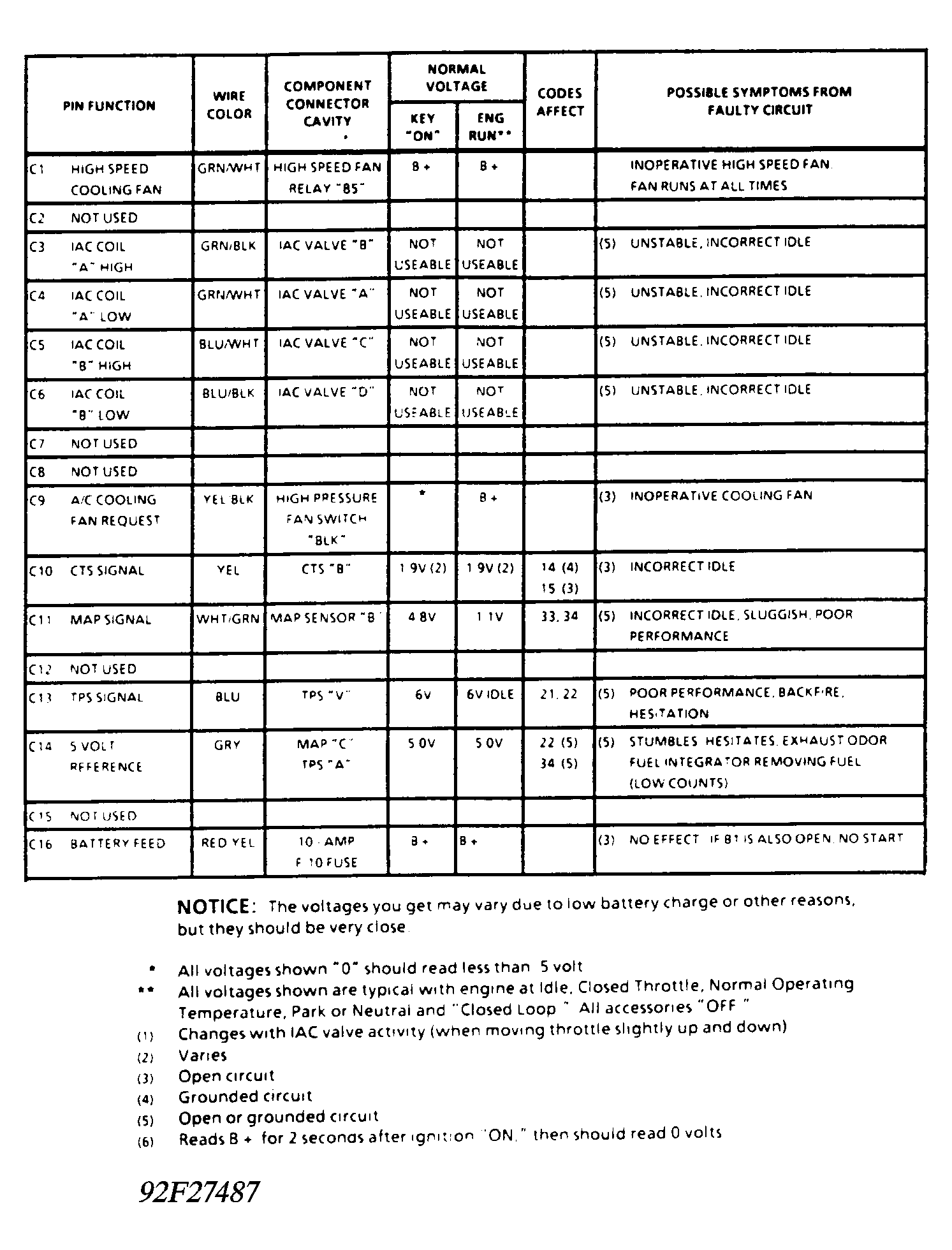

Fig 3: ECM Connector "C" Pin Voltage Chart
Courtesy of GENERAL MOTORS CORP.

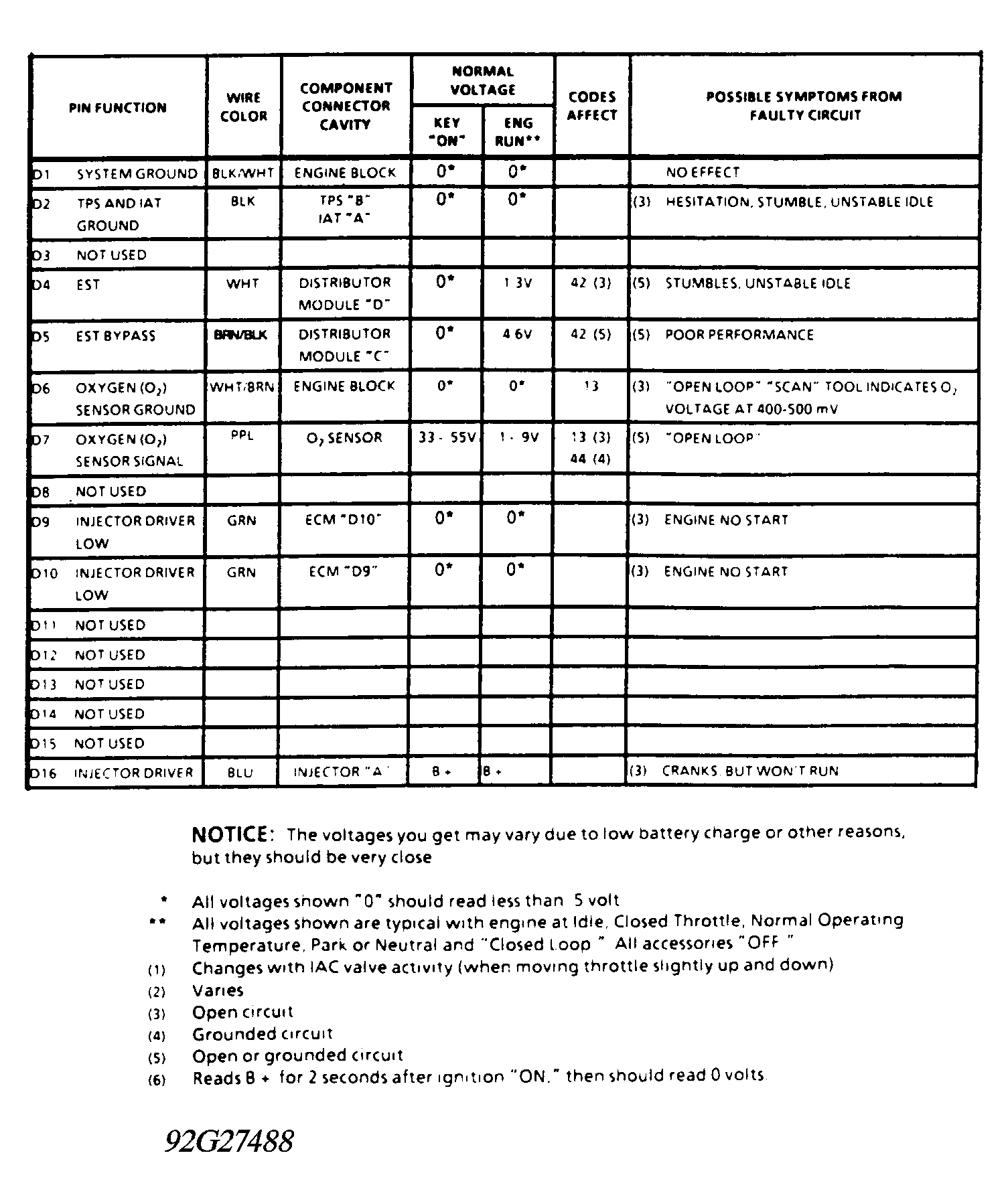

Fig 4: ECM Connector "D" Pin Voltage Chart
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
