Test C: Window Switch Test
Test C: Window Switch Test
For testing procedure, see
Fig 1
.

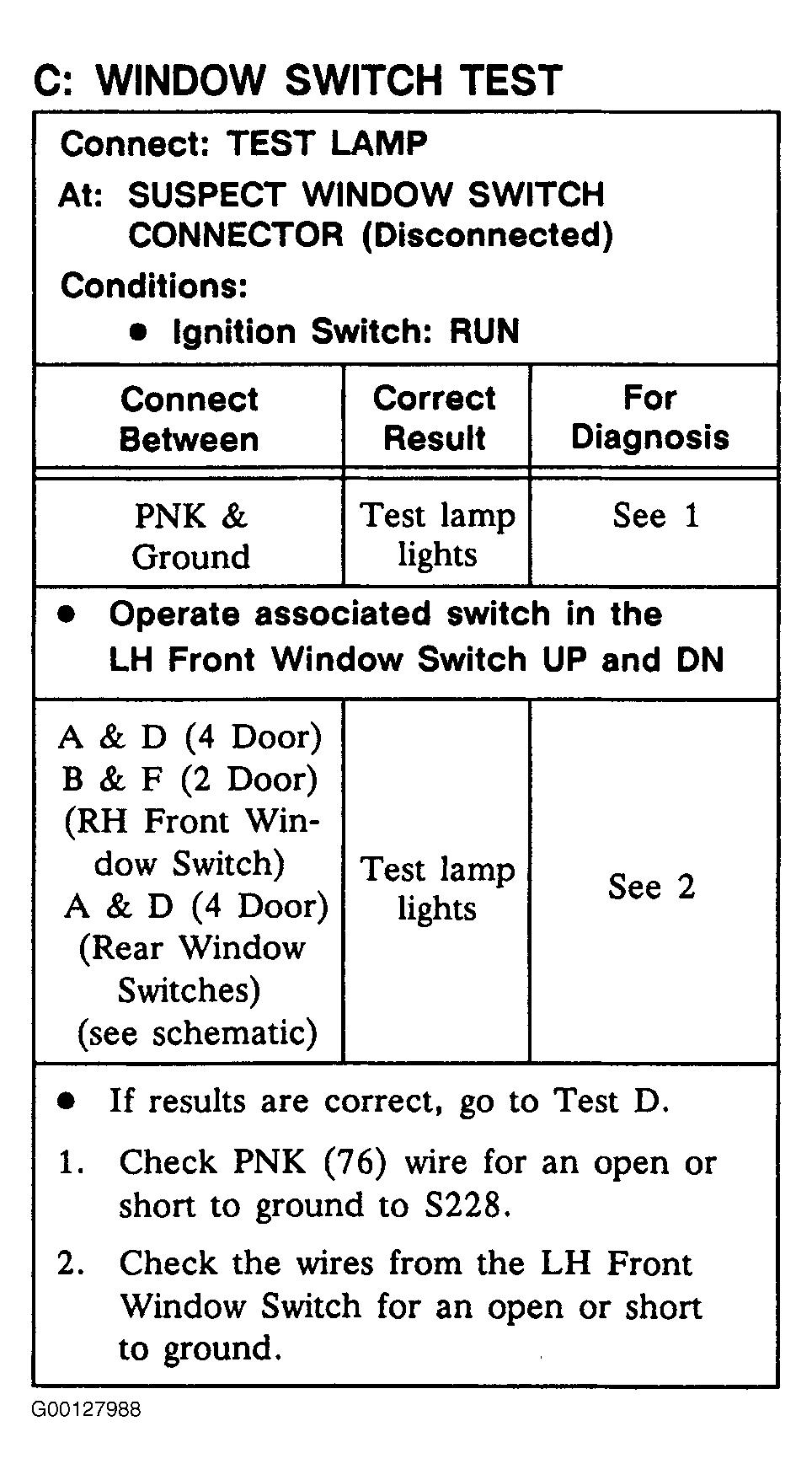

Fig 1: Test C: Window Switch Test
Courtesy of GENERAL MOTORS CORP.
