Test B: Left Front Window Switch Test

For testing procedure, see Fig 1 .

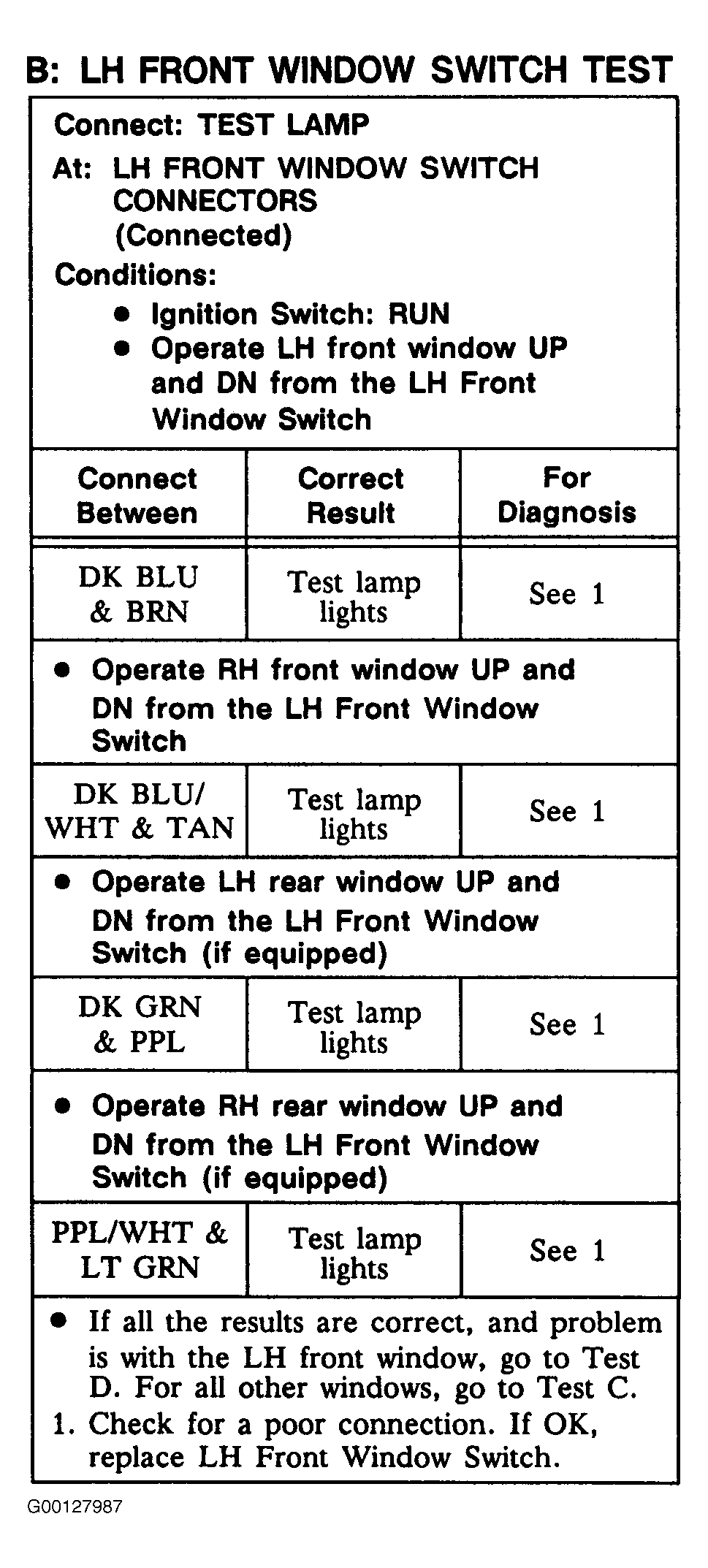

Fig 1: Test B: Left Front Window Switch Test
G00127987Courtesy of GENERAL MOTORS CORP.
