Home >> Pontiac >> 1992 >> Grand Prix LE, 3.4 X >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Component Tests >> Window Motor Test

Window Motor Test

For testing procedure, see Fig 1 .

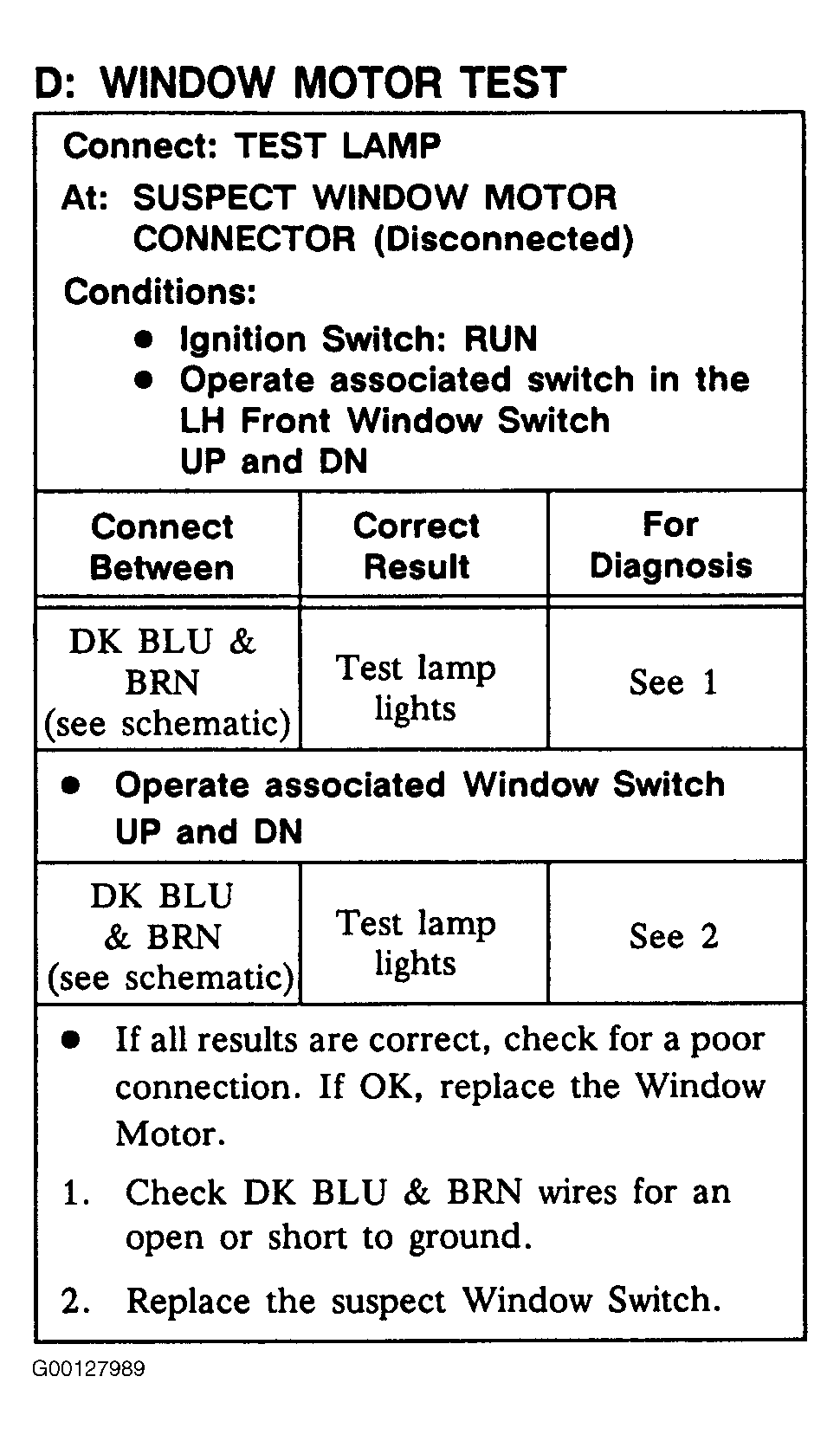

Fig 1: Window Motor Test

G00127989

Courtesy of GENERAL MOTORS CORP.
