Wiring Diagrams

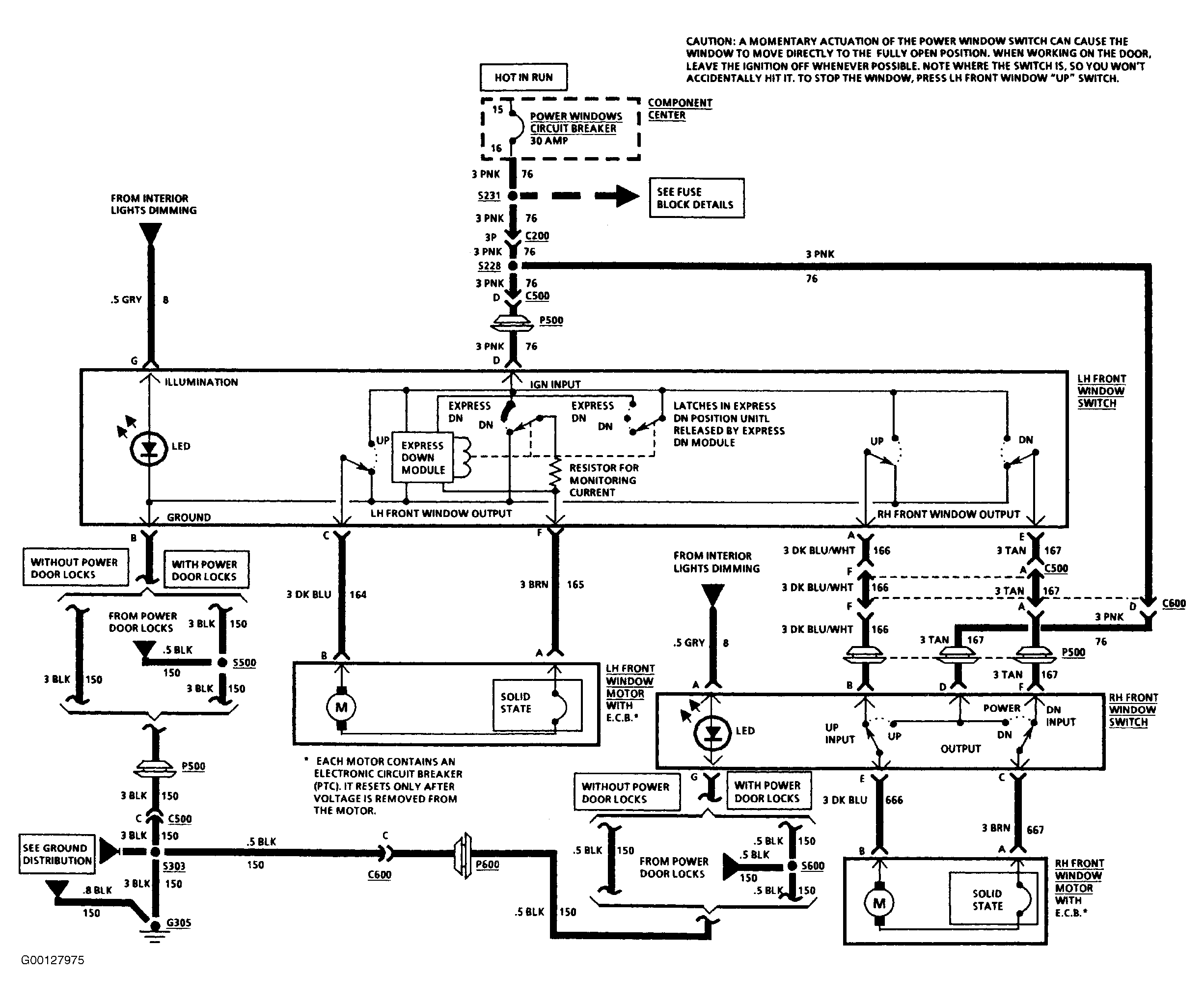

Fig 1: Power Window Wiring Diagram Grand Prix (2-Door)
G00127975Courtesy of GENERAL MOTORS CORP.

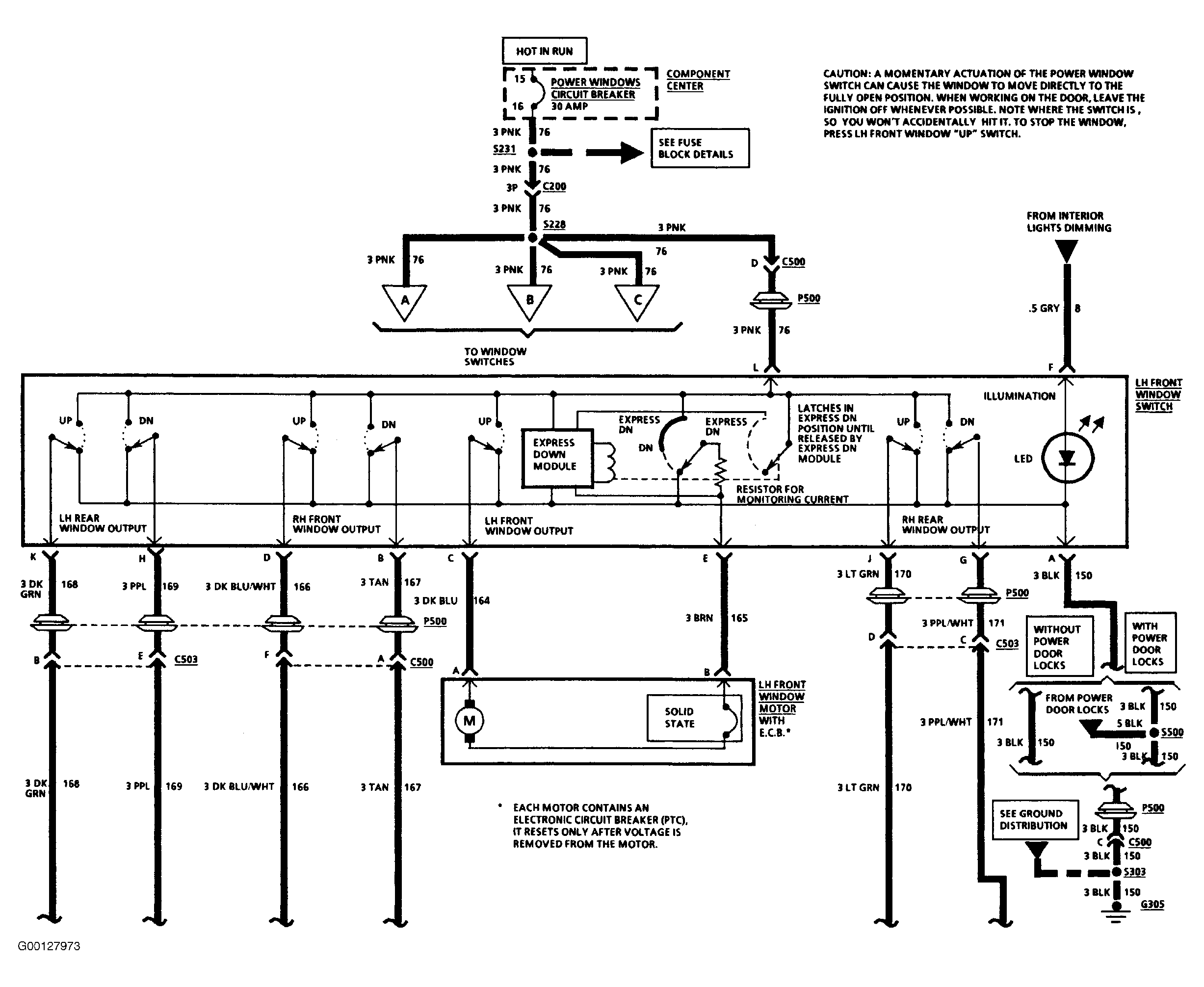

Fig 2: Power Window Wiring Diagram Grand Prix (4-Door - 1 of 2)
G00127973Courtesy of GENERAL MOTORS CORP.

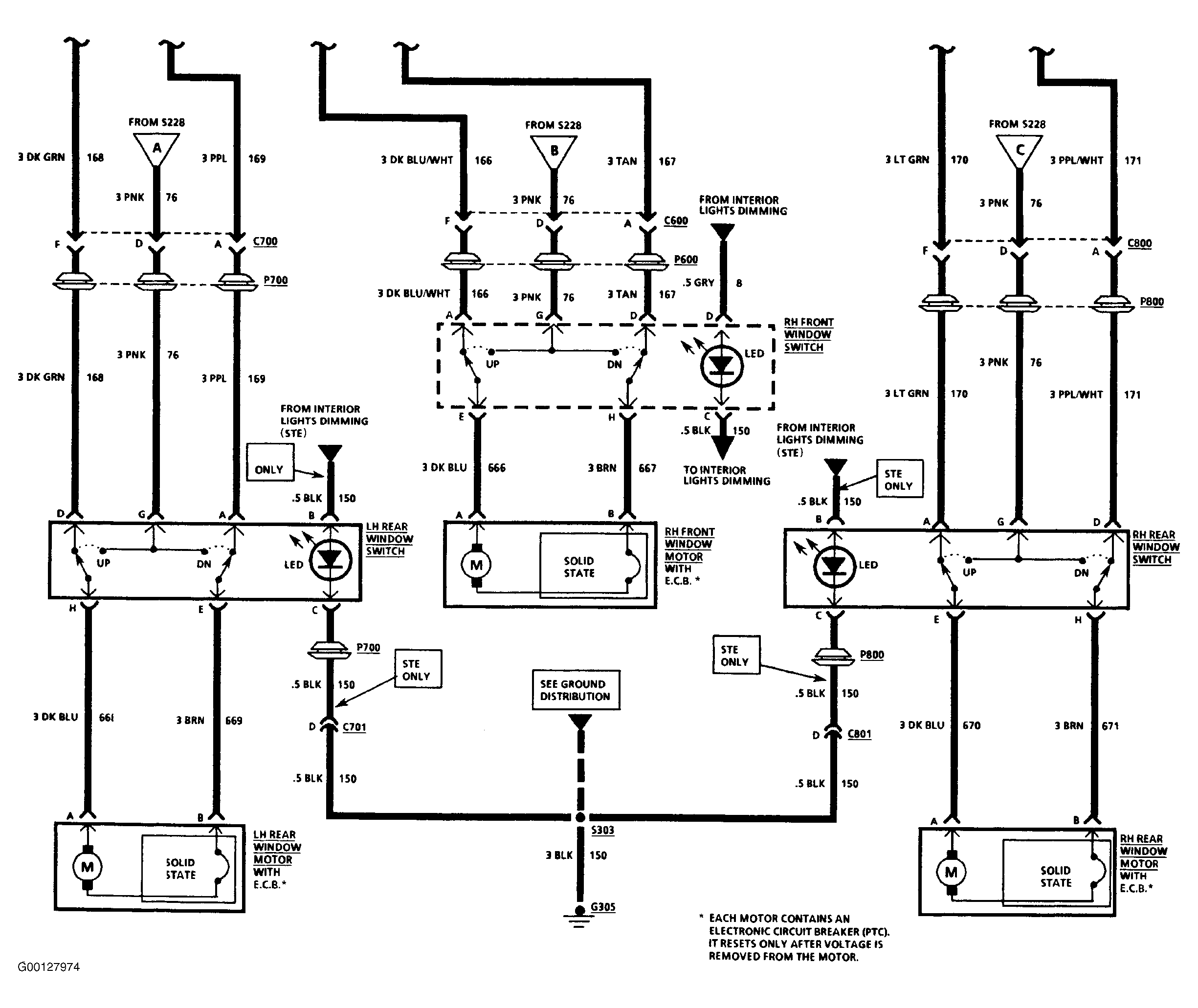

Fig 3: Power Window Wiring Diagram Grand Prix (4-Door - 2 of 2)
G00127974Courtesy of GENERAL MOTORS CORP.
