Test A: Window Power & Ground Test
Test A: Window Power & Ground Test
For testing procedure, see
Fig 1
.

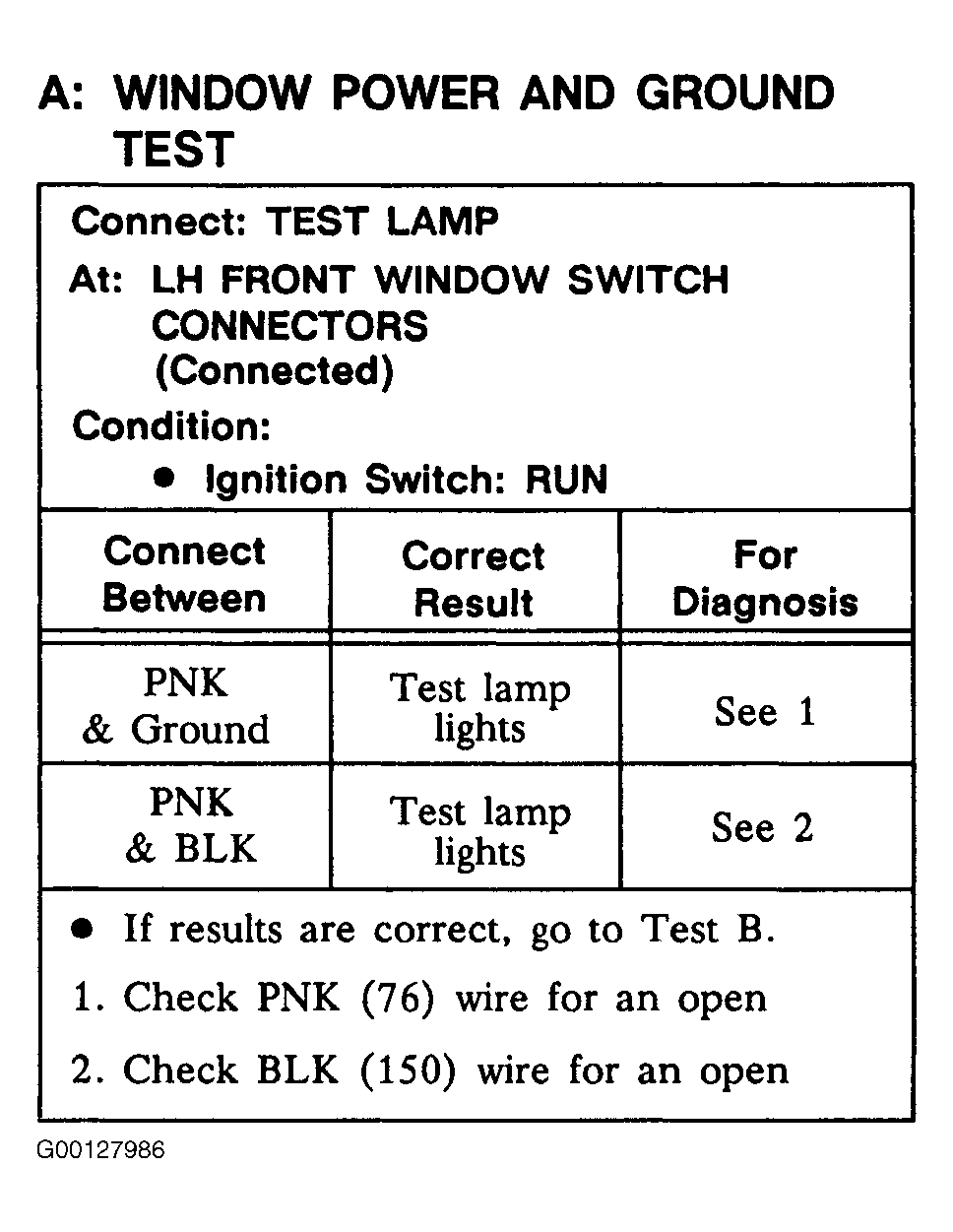

Fig 1: Test A: Window Power & Ground Test
Courtesy of GENERAL MOTORS CORP.
