Window Regulator: Installation

  1. Install regulator through access hole and attach regulator arm to sash channel. See Fig 1 .
  2. Install electrical connector to motor.
  3. Install rivets using 1/4" x 1/2" Peel-type rivets.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install door trim panel. See DOOR TRIM PANEL  .

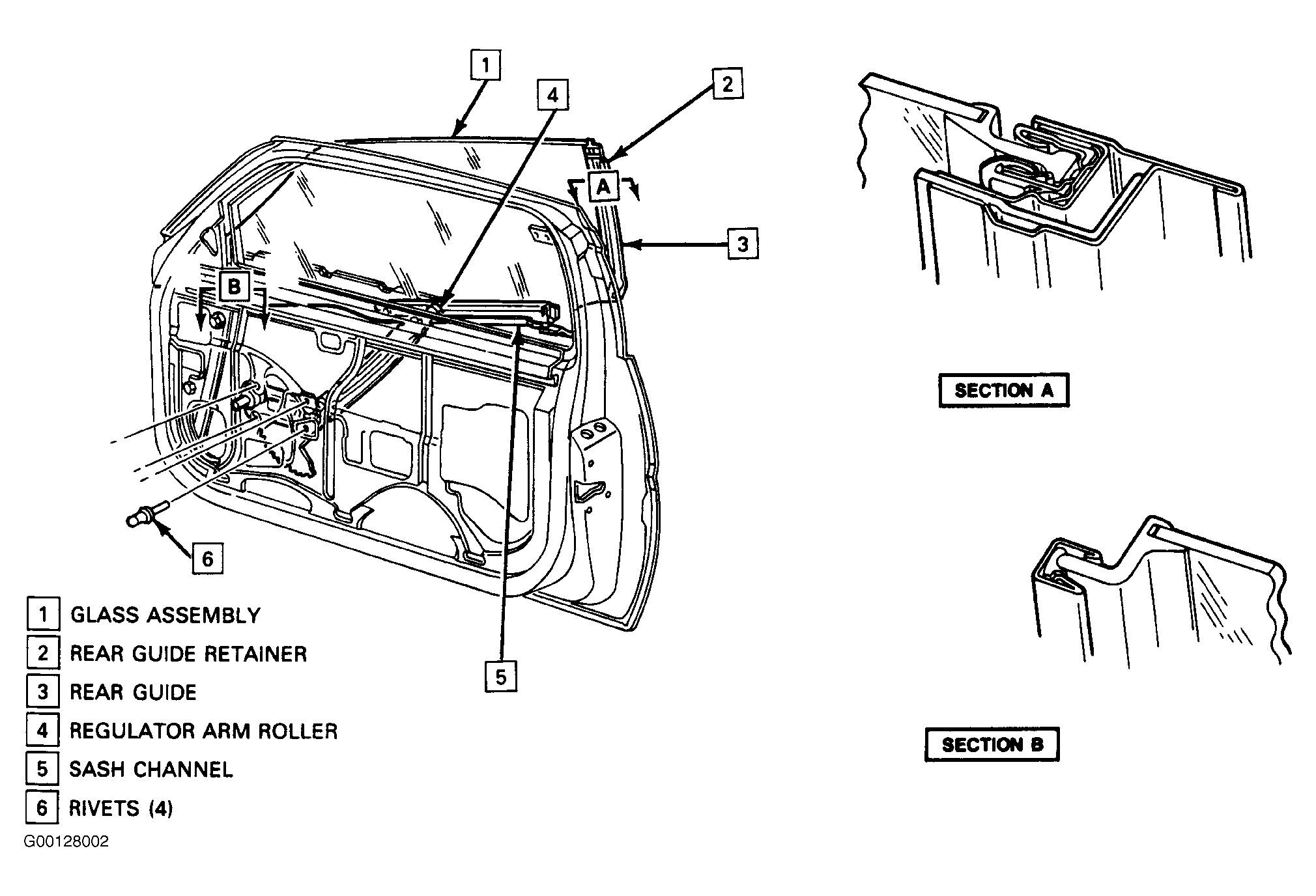

Fig 1: Removing & Installing Window Regulator (Coupe)
G00128002Courtesy of GENERAL MOTORS CORP.


  1. Install regulator through access hole and attach regulator arm to sash channel. See Fig 1 .
  2. Install electrical connector to motor.
  3. Install rivets using 1/4" x 1/2" Peel-type rivets.
  4. Install water deflector. See WATER DEFLECTOR  .
  5. Install door trim panel. See DOOR TRIM PANEL  .

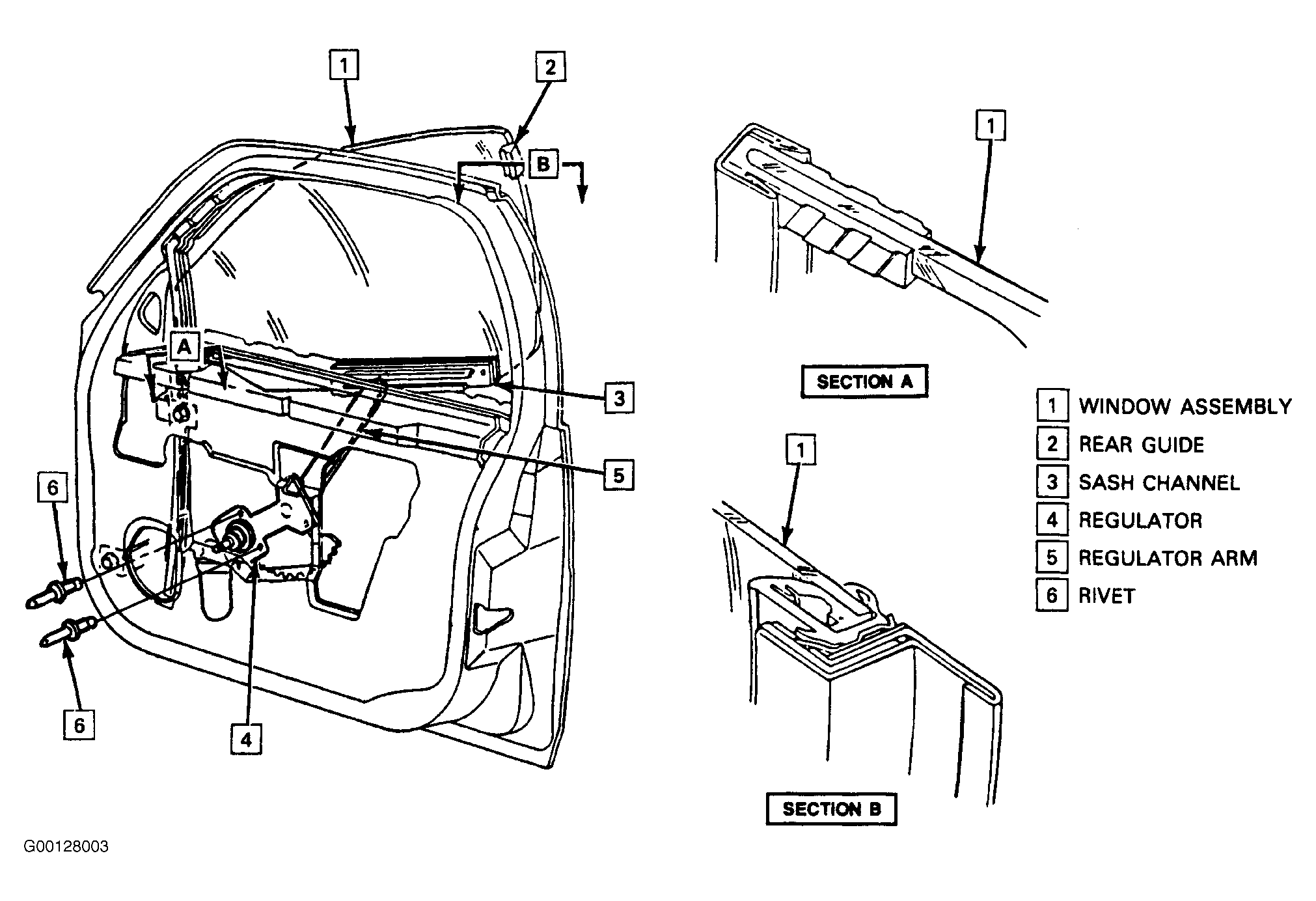

Fig 1: Removing & Installing Window Regulator (Sedan)
G00128003Courtesy of GENERAL MOTORS CORP.


  1. Install regulator through access hole. See Fig 1 .
  2. Install electrical connector to motor.
  3. Install rivets using 1/4" x 1/2" Peel-type rivets.
  4. Install nuts.
  5. Install water deflector. See WATER DEFLECTOR  .
  6. Install door trim panel. See DOOR TRIM PANEL  .

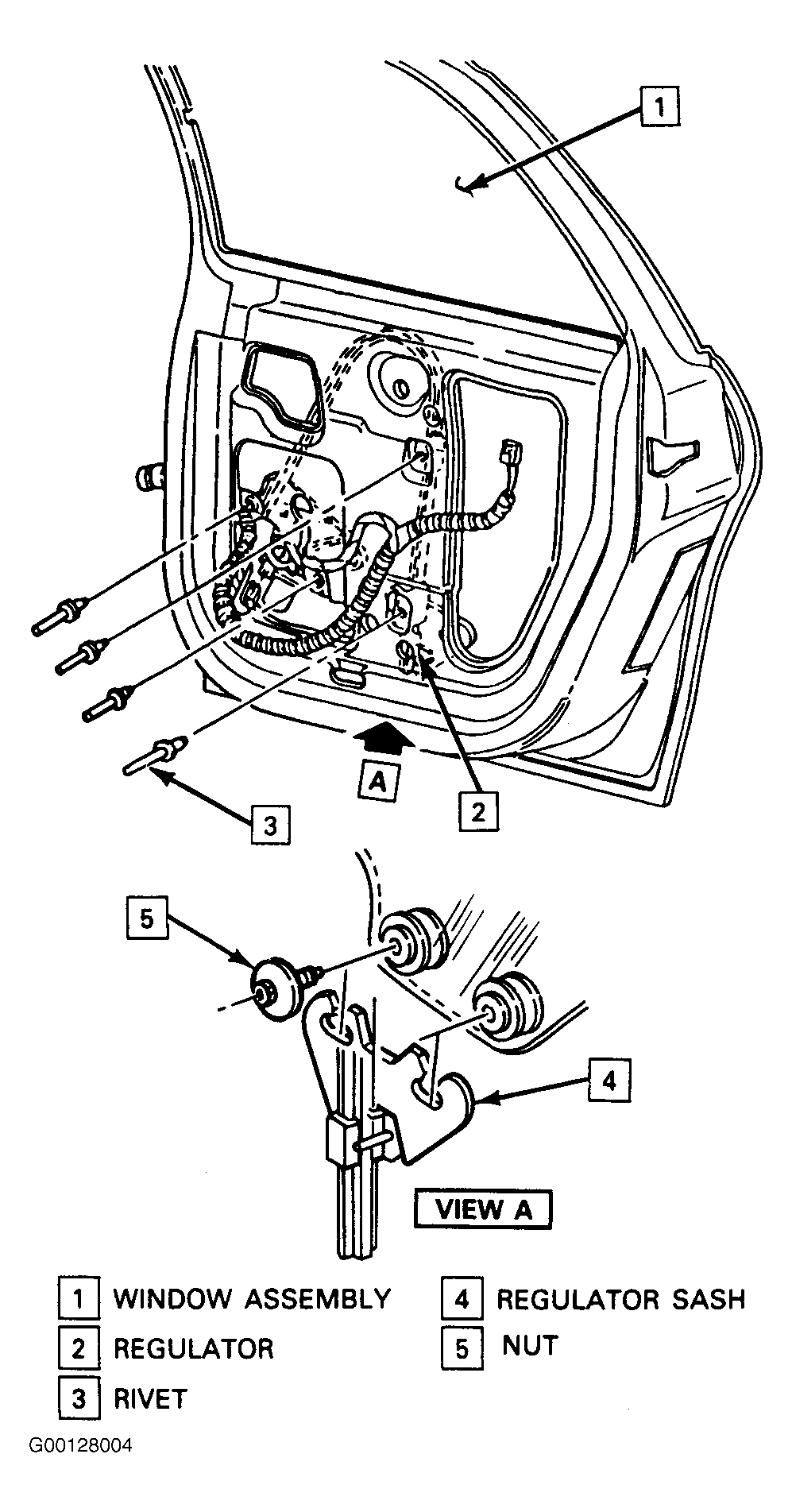

Fig 1: Removing & Installing Window Regulator (Rear)
G00128004Courtesy of GENERAL MOTORS CORP.
