Water Deflector: Installation

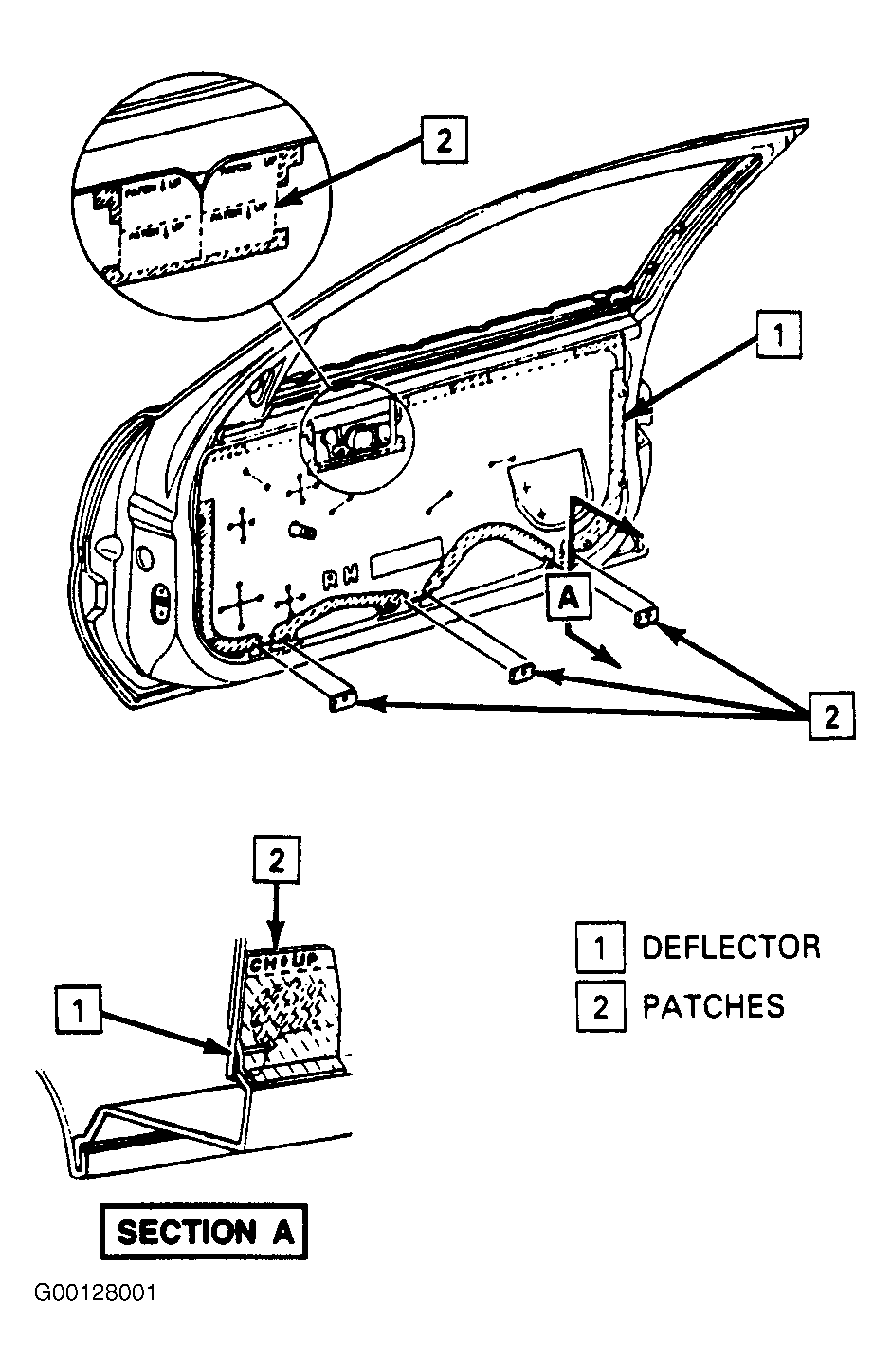

- Install water deflector to door inner panel, making sure that tabs on the bottom of deflector are in slots in bottom of door inner panel. See Fig 1
.
- Install waterproof tape over slots in bottom of door inner panel where water deflector tabs were installed.
- Install support brackets removed in step 3)
of removal procedure.
- Install safety belt retractors.
- Install waterproof tape to any damaged areas of deflector.
- Install door trim panel.
Courtesy of GENERAL MOTORS CORP.
