Power Window & Door Switch Assembly: Installation

1. Install express down module to door trim panel.
2. Install door trim panel. See DOOR TRIM PANEL  .
3. Install connectors.
4. Install retainer(s) to connector(s).
5. Install switch plate assembly to trim panel cutout. Press firmly to secure.
6. Install screws to switch plate assembly. See Fig 1 .

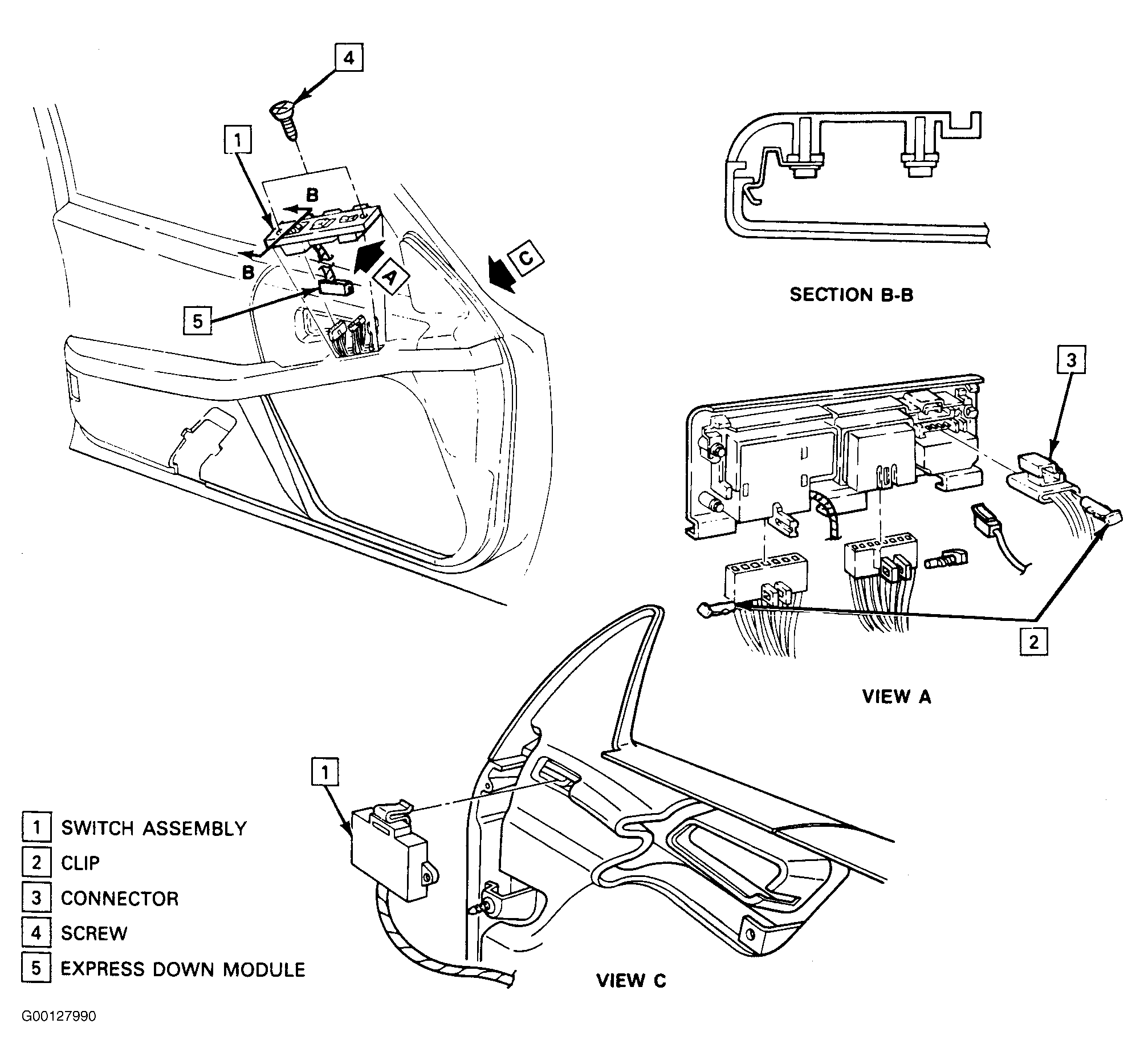

Fig 1: Removing & Installing Power Switch Assembly (Coupe)

Courtesy of GENERAL MOTORS CORP.

1. Install connector(s) to switch plate assembly.
2. Install retainer(s) to connector(s).
3. Install switch plate assembly to trim panel cutout. Press firmly to secure.
4. Install screws to switch plate assembly. See Fig 1 .

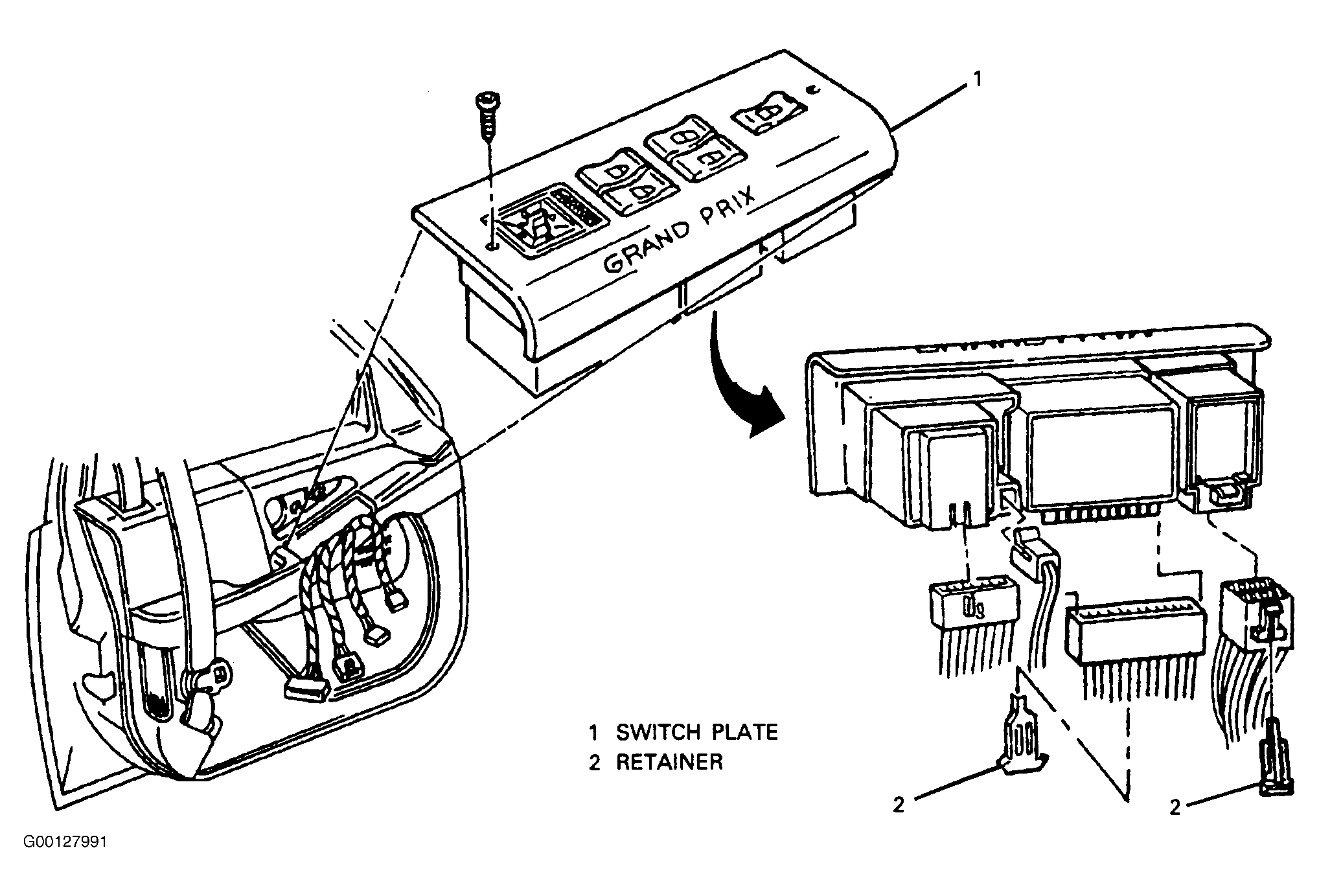

Fig 1: Removing & Installing Power Switch Assembly (Sedan - Front)

Courtesy of GENERAL MOTORS CORP.

1. Install connector(s) to switch plate assembly.
2. Install retainer(s) to connector(s).
3. Install switch plate assembly to trim panel cutout. Press firmly to secure.
4. Install screws to switch plate assembly. See Fig 1 .

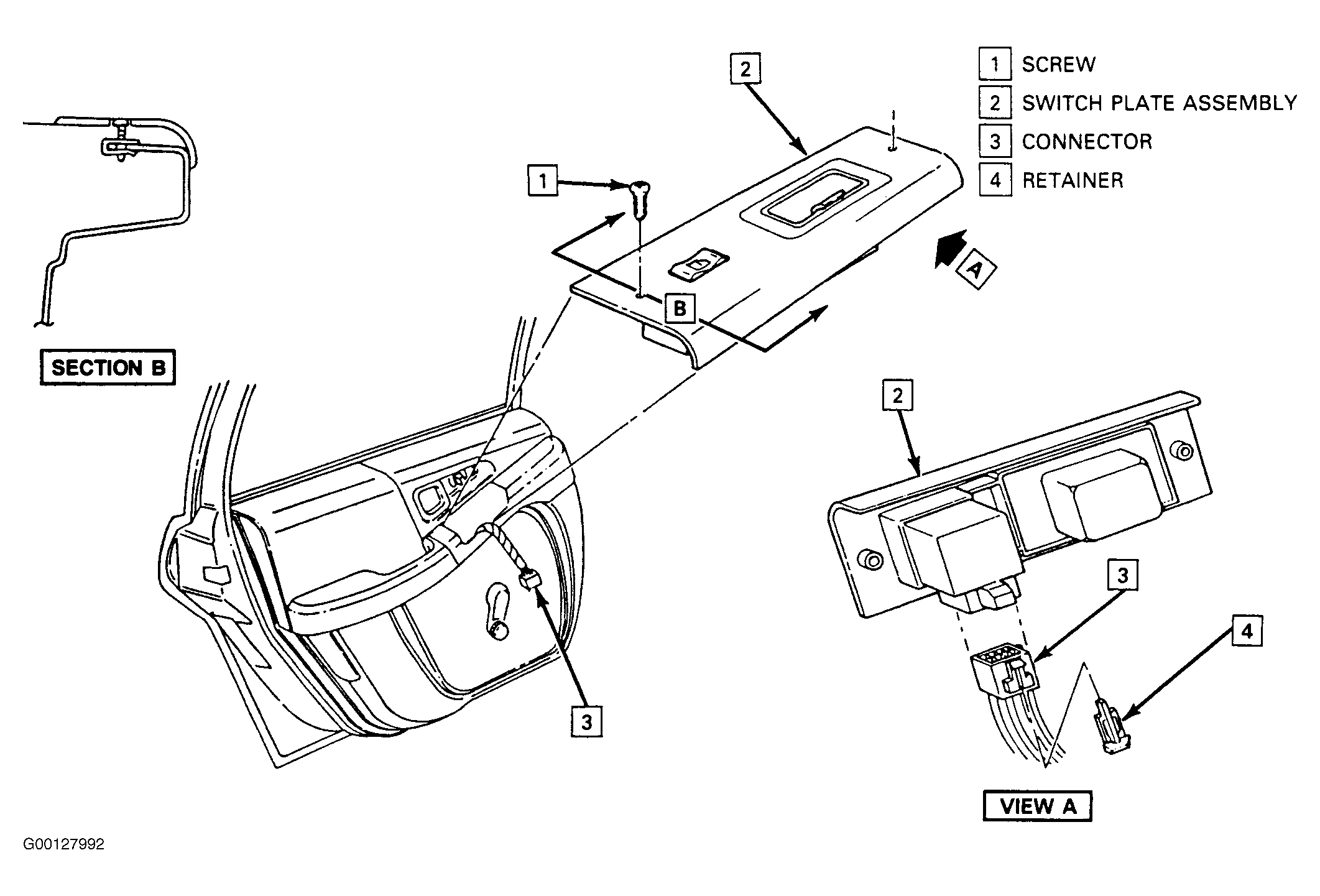

Fig 1: Removing & Installing Power Switch Assembly (Rear)

Courtesy of GENERAL MOTORS CORP.
