Pontiac
>>
1992
>>
Grand Prix GTP, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Wiring Diagrams
Wiring Diagrams

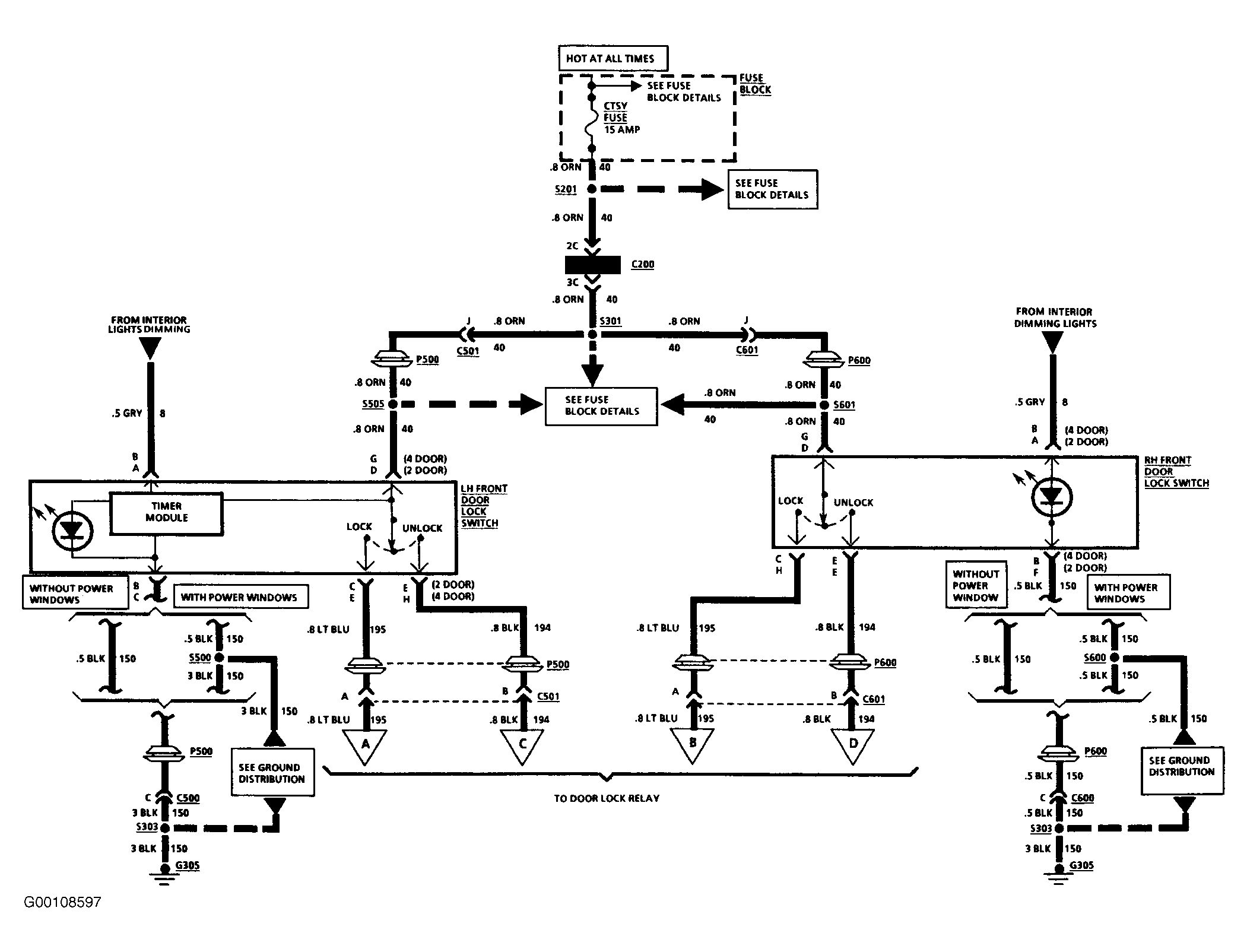

Fig 1: Keyless Entry Wiring Diagram (1 Of 4)
Courtesy of GENERAL MOTORS CORP.

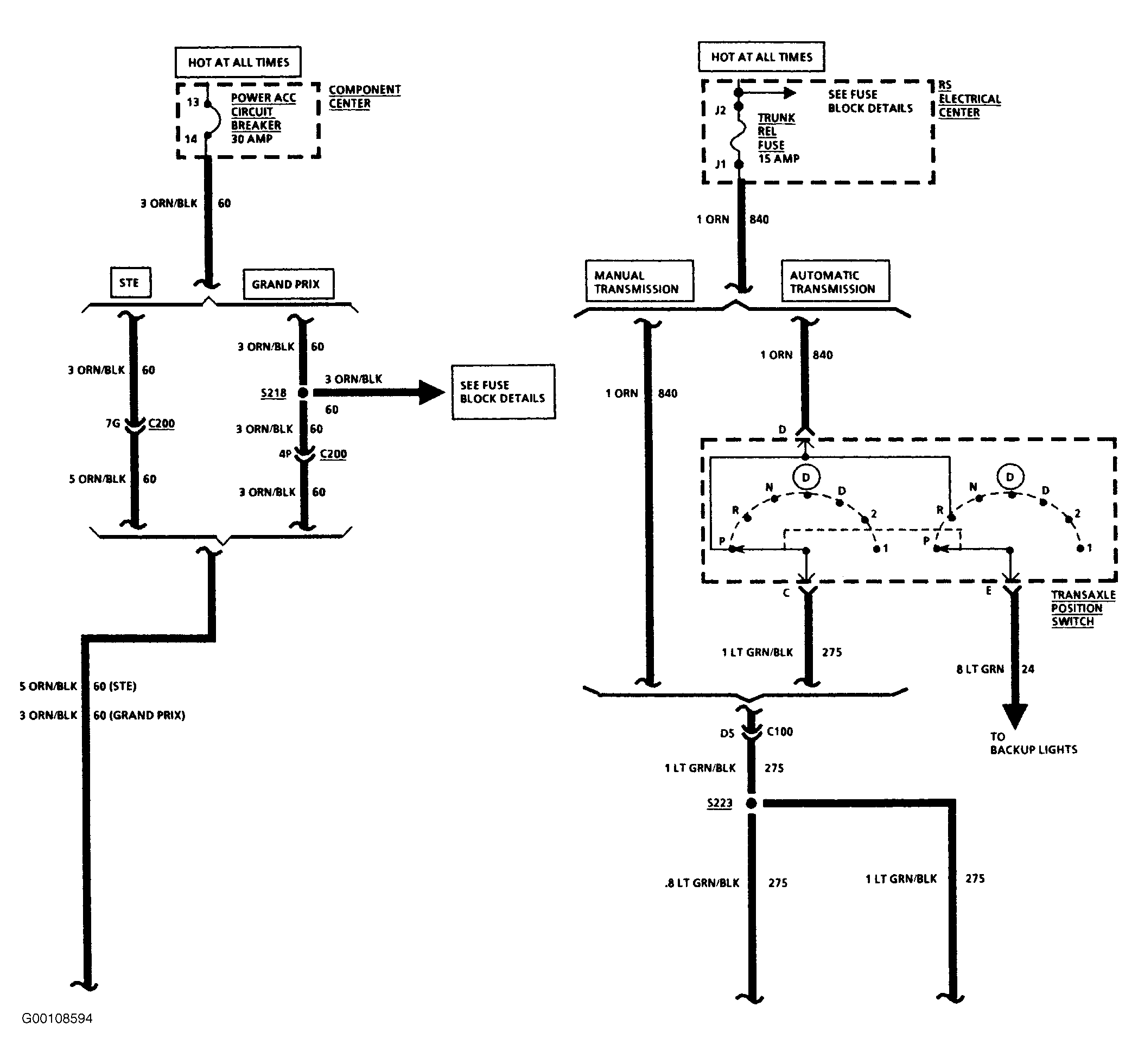

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 4)
Courtesy of GENERAL MOTORS CORP.

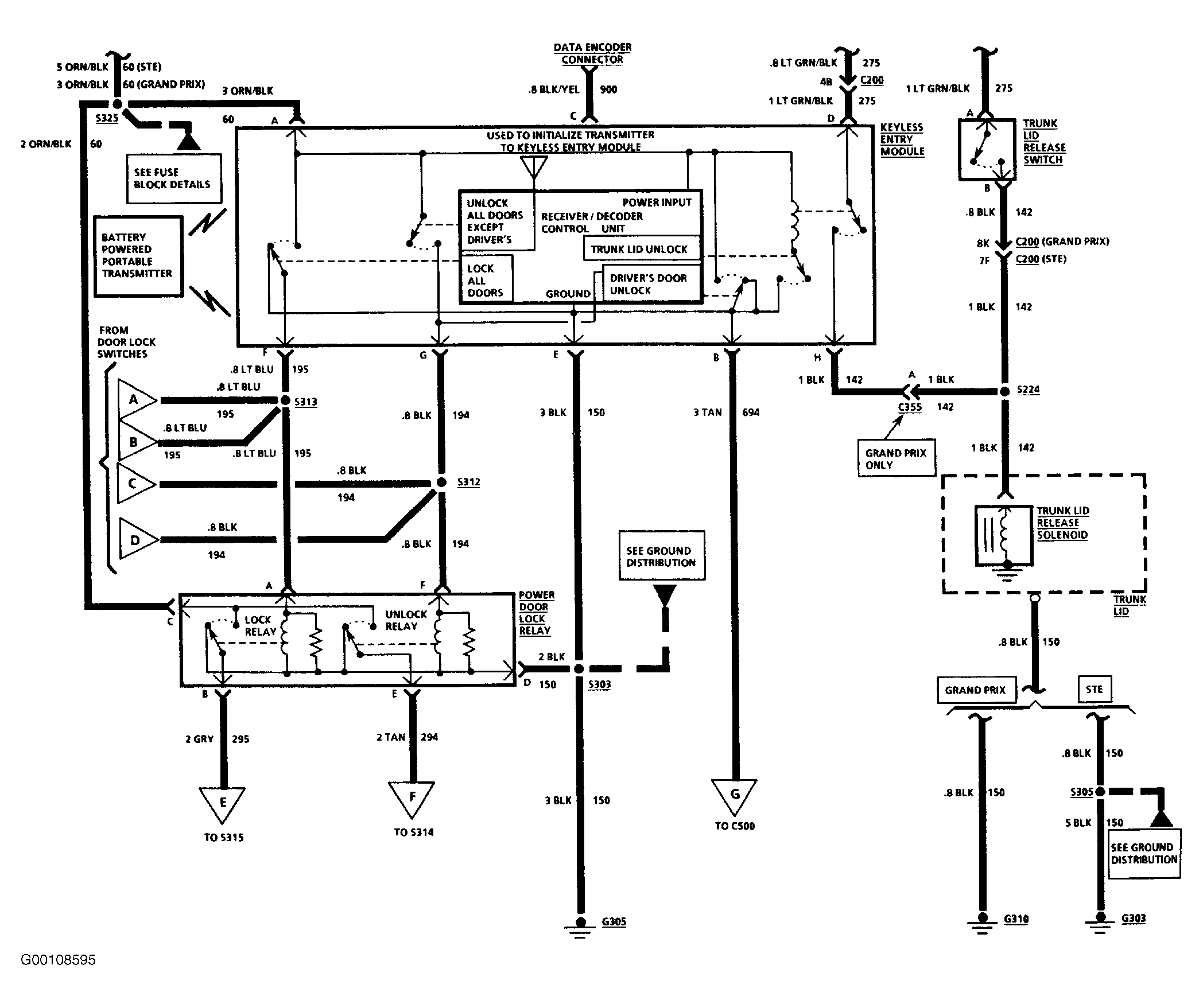

Fig 3: Remote Keyless Entry Wiring Diagram (3 Of 4)
Courtesy of GENERAL MOTORS CORP.

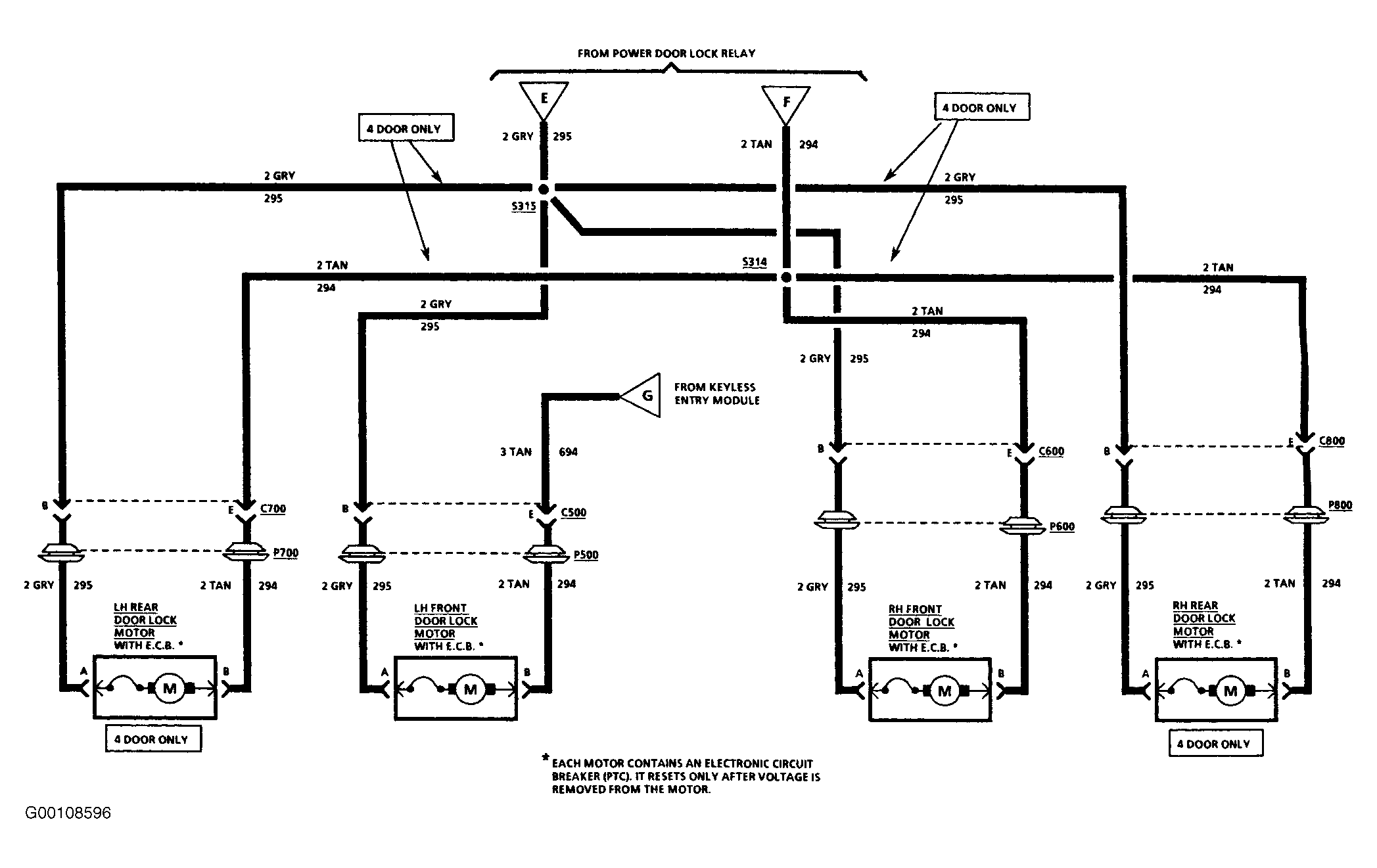

Fig 4: Remote Keyless Entry Wiring Diagram (4 Of 4)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
