Connector Identification
Connector Identification

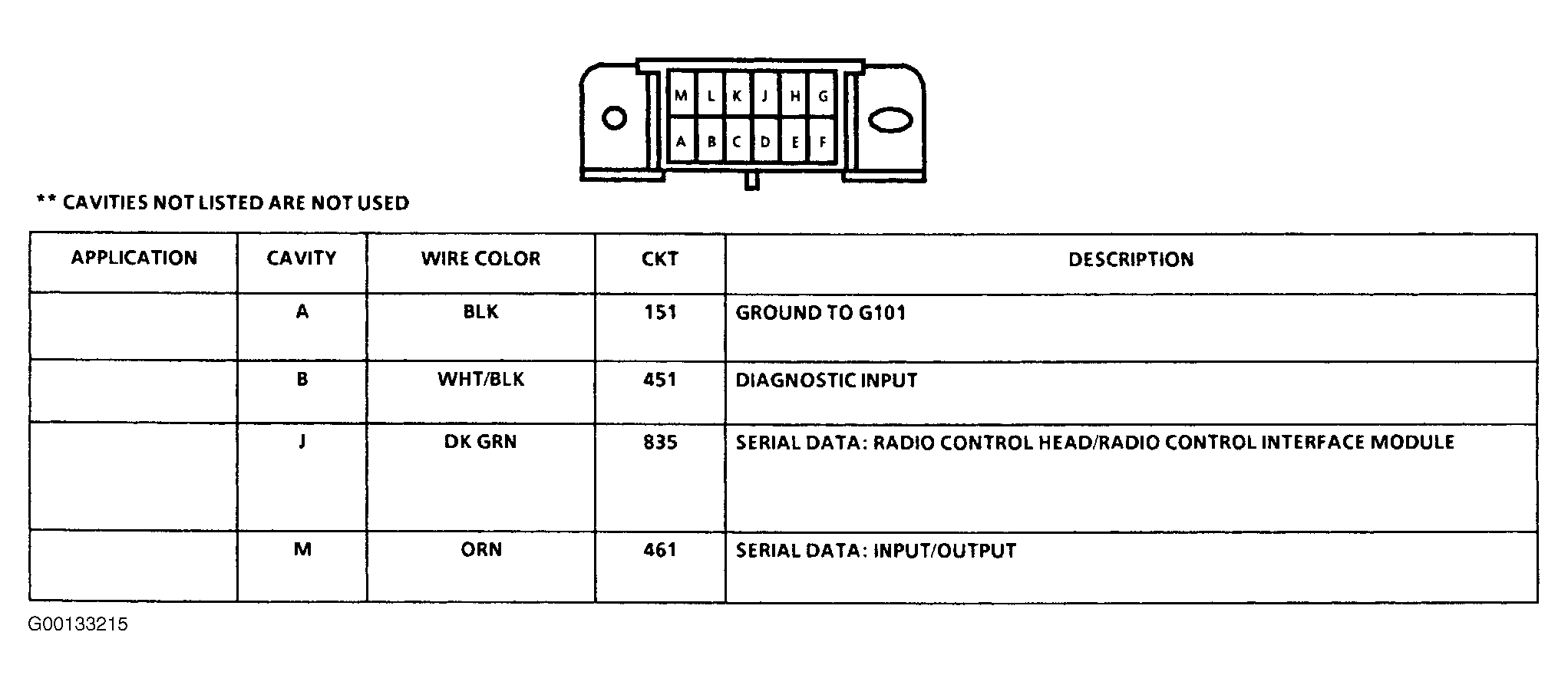

Fig 1: Identifying ALDL Connector Terminals
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
