Component Locations

COMPONENT LOCATIONS

Component Location
Assembly Line Diagnostic Link (ALDL) Connector Behind Driver Side Of Instrument Panel, Right Of Steering Column. See Fig 1
Driver Information Center & Electronic Compass (DIC/EC) In Center Console. See Fig 2
Electronic Brake Control Module (EBCM) Driver Side Of Engine Compartment, In Fender. See Fig 3
Engine Control Module (ECM) Passenger Side Of Engine Compartment, Forward Of Strut Tower. See Fig 4
Fuse Block Behind Passenger Side Of Instrument Panel, In Instrument Panel Compartment. See Fig 5
Left Side Electrical Center Driver Side Of Engine Compartment, On Strut Tower. See Fig 6
Radio Connectors (UM6 & UM7) Center Of Instrument Panel, See Fig 7
Radio Connectors (UX1 & U1A) Center Of Instrument Panel. See Fig 8
Radio Control Interface Module Underside Of Steering Column
Right Side Electrical Center Passenger Side Of Engine Compartment, On Strut Tower. See Fig 4
C100 (36 Terminals) Passenger Side Of Dash, Behind Strut Tower. See Fig 1
C150 (26 Terminals) Behind Passenger Side Of Instrument Panel. See Fig 1
C200 (106 Terminals) Behind Passenger Side Of Instrument Panel, Near Shroud. See Fig 1
C202 (48 Terminals) Behind Driver Side Of Instrument Panel, Near Steering Column. See Fig 9
G101 Lower Driver Front Of Engine. See Fig 10
G102 (VIN T) Passenger Rear Of Engine. See Fig 11
G102 (VIN X) Driver Rear Of Engine. See Fig 12
G103 Lower Driver Front Of Engine. SeeFig 10
G106 Driver Front Of Engine Compartment. See Fig 13
G200 Behind Driver Side Of Instrument Panel, On Right Side Of Brake Pedal Support. See Fig 14
G306 Under Left Side Of Driver Front Seat, On Cross Body Beam Toward Rear Of Vehicle
P100 Passenger Rear Of Engine Compartment, Near Strut Tower. See Fig 15
S106 Engine Harness, Near Electrical Center Breakout. See Fig 4
S128 Engine Harness, Near Electrical Center Breakout. See Fig 4
S135 Forward Light Harness, Near Actuator Motor Assembly Breakout. See Fig 16
S200 Instrument Panel Harness, Near C100. See Fig 1
S202 Instrument Panel Harness, Near HVAC Control Assembly. See Fig 1
S206 Instrument Panel Harness, Near Fuse Block Breakout. See Fig 1
S213 Instrument Panel Harness, Near Fuse Block Breakout. See Fig 1
S233 Instrument Panel Harness, Near C202. See Fig 9
S235 Instrument Panel Harness, Near C202. See Fig 9
S239 Instrument Panel Harness, Near C230. See Fig 1
S318 Cross Car Harness, Near C323 Breakout
S326 (Grand Prix) Cross Car Harness, Near C200 Breakout
S326 (STE) Cross Car Harness, Near C307 Breakout
S379 Console Harness, Near C349 Breakout. See Fig 2

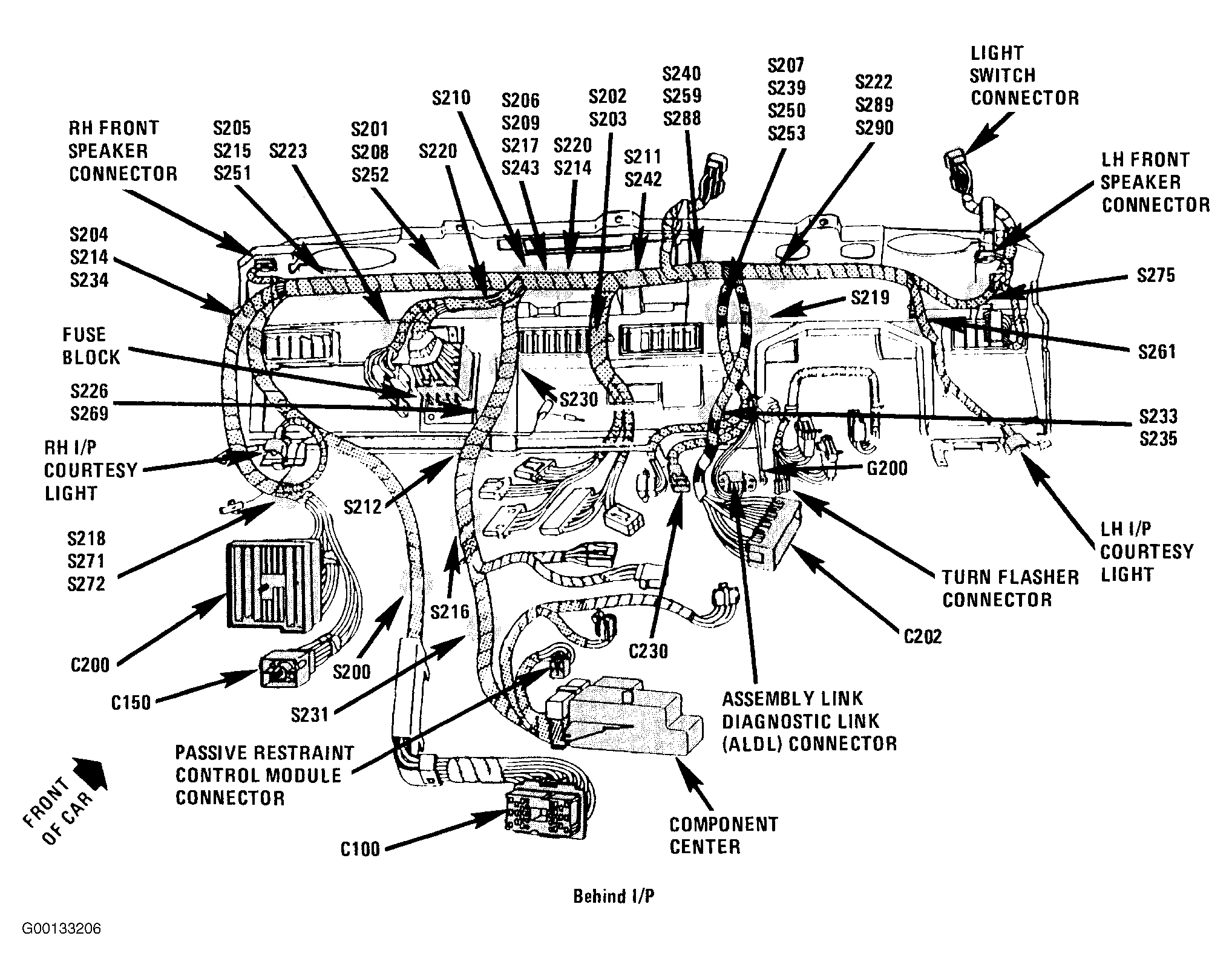

Fig 1: Locating ALDL Connector, Fuse Block, C100, C150, C200, C202, G200, S200, S202, S206, S213, S233, S235 & S239
G00133206Courtesy of GENERAL MOTORS CORP.

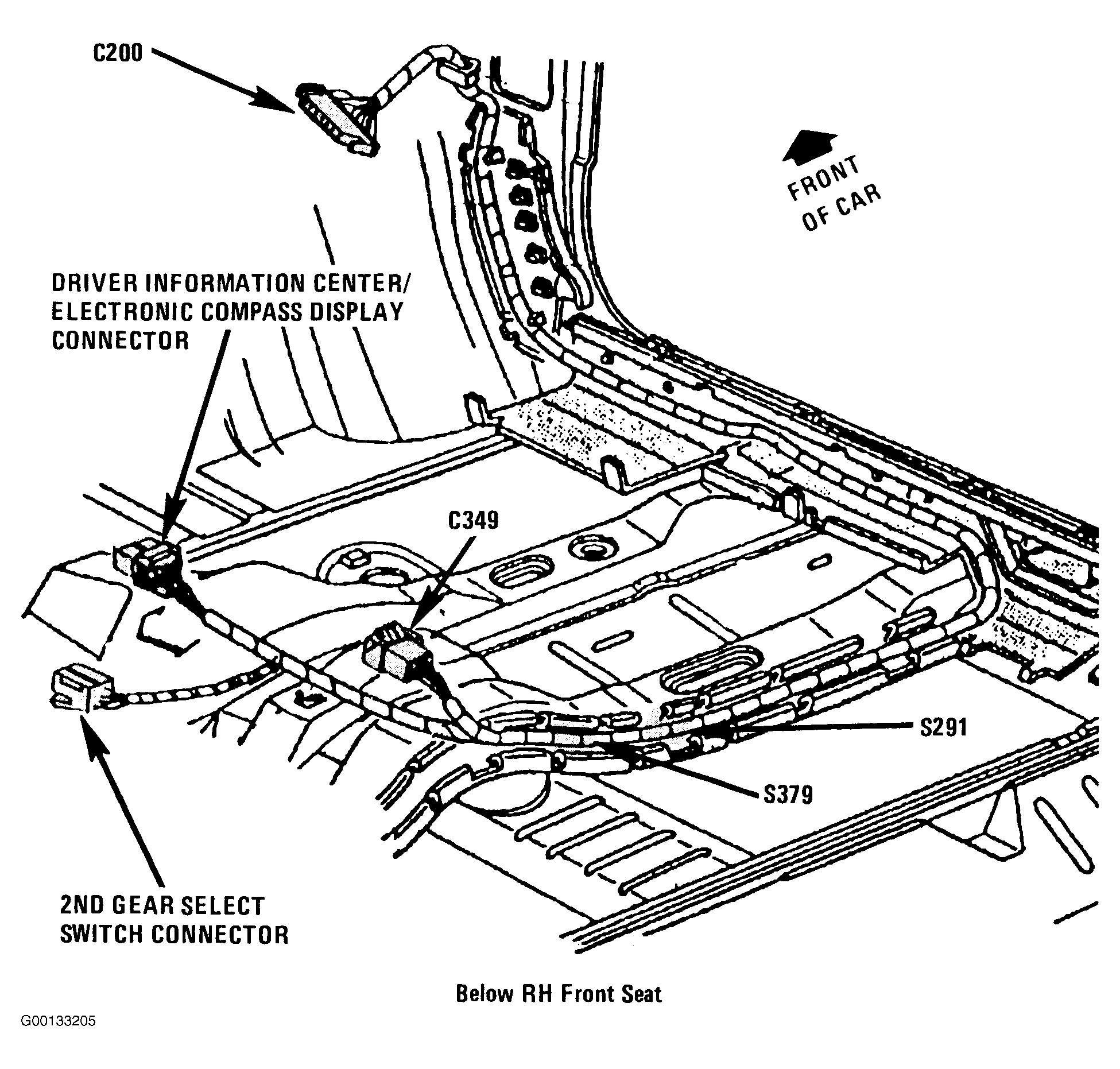

Fig 2: Locating DIC/EC & S379
G00133205Courtesy of GENERAL MOTORS CORP.

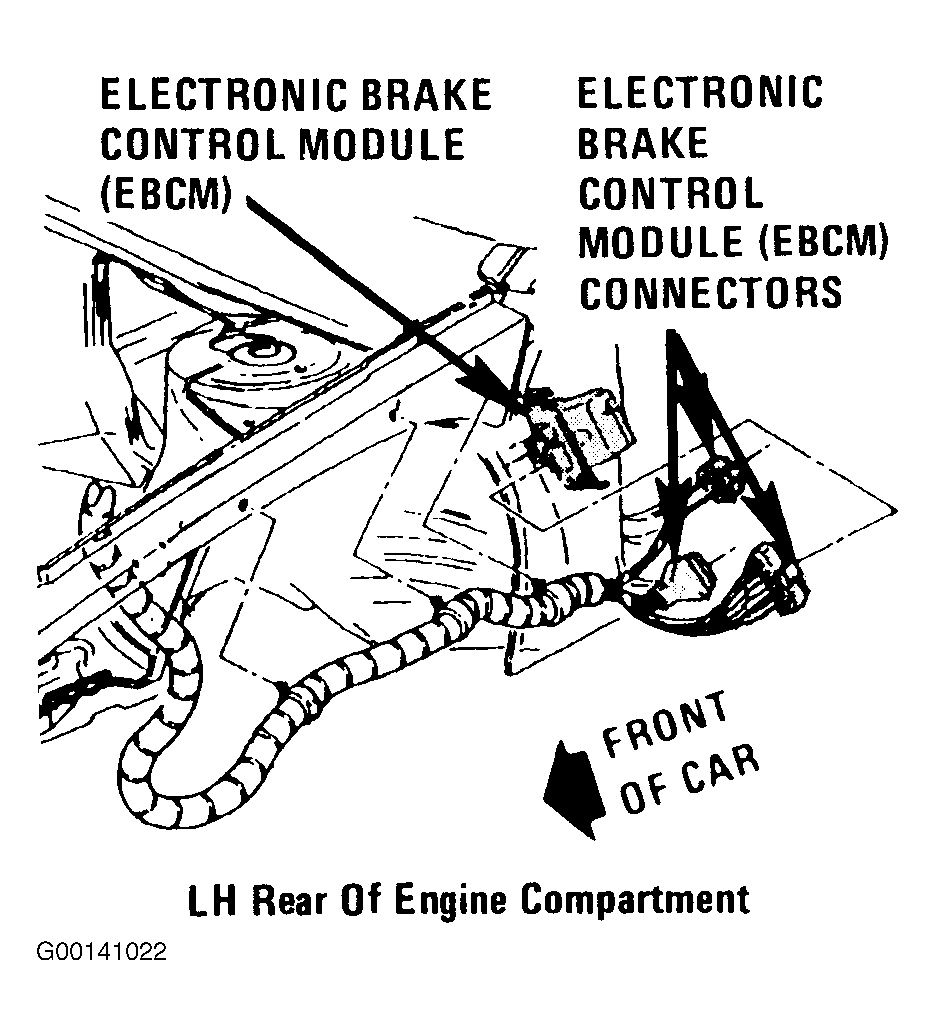

Fig 3: Locating EBCM
G00141022Courtesy of GENERAL MOTORS CORP.

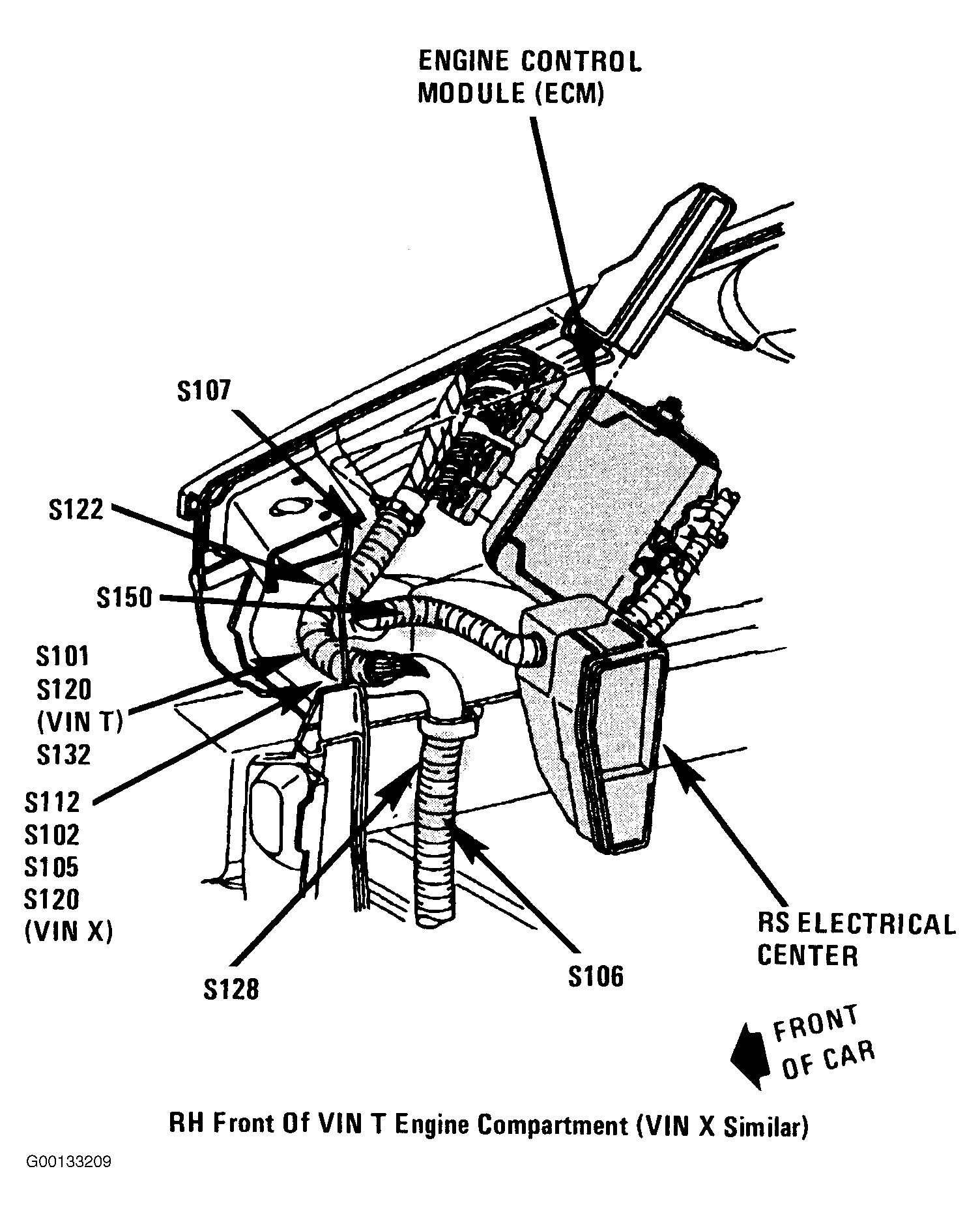

Fig 4: Locating ECM, RS Electrical Center, S106 & S128
G00133209Courtesy of GENERAL MOTORS CORP.

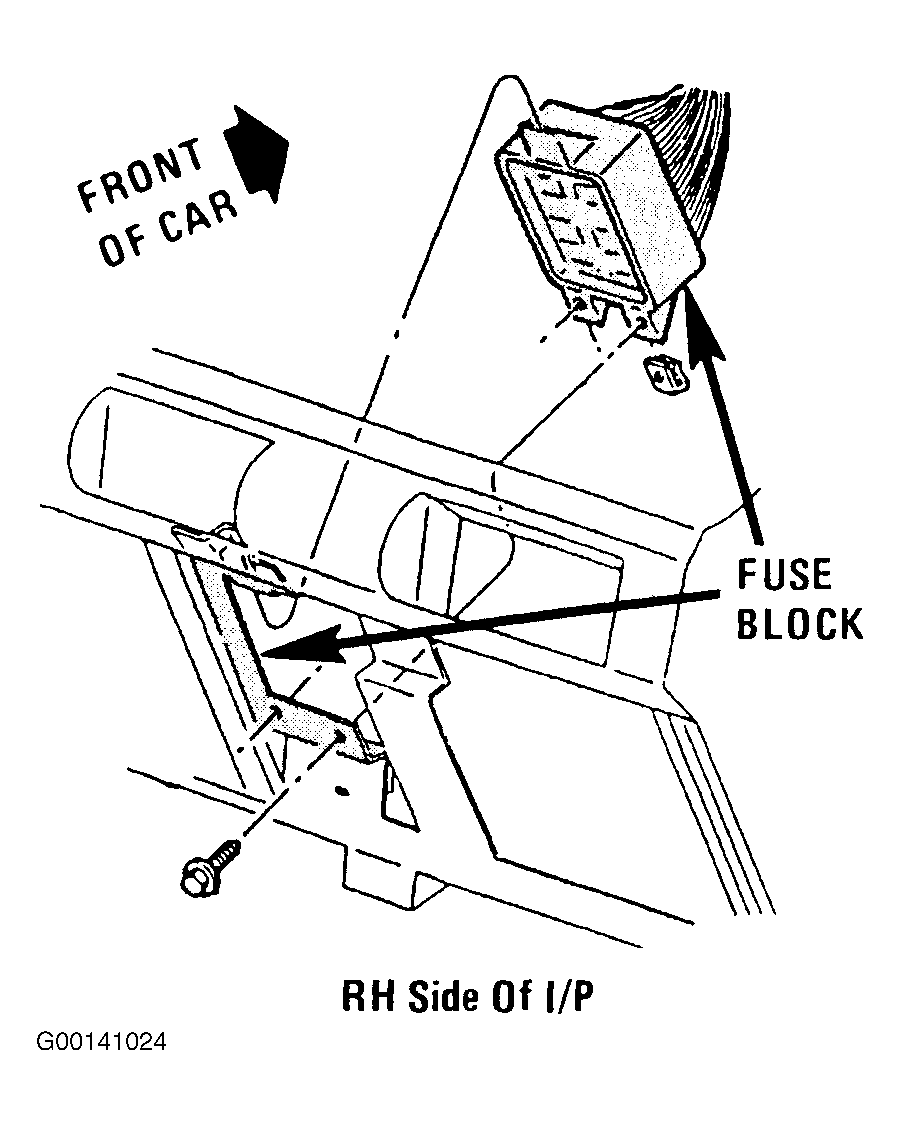

Fig 5: Locating Fuse Block
G00141024Courtesy of GENERAL MOTORS CORP.

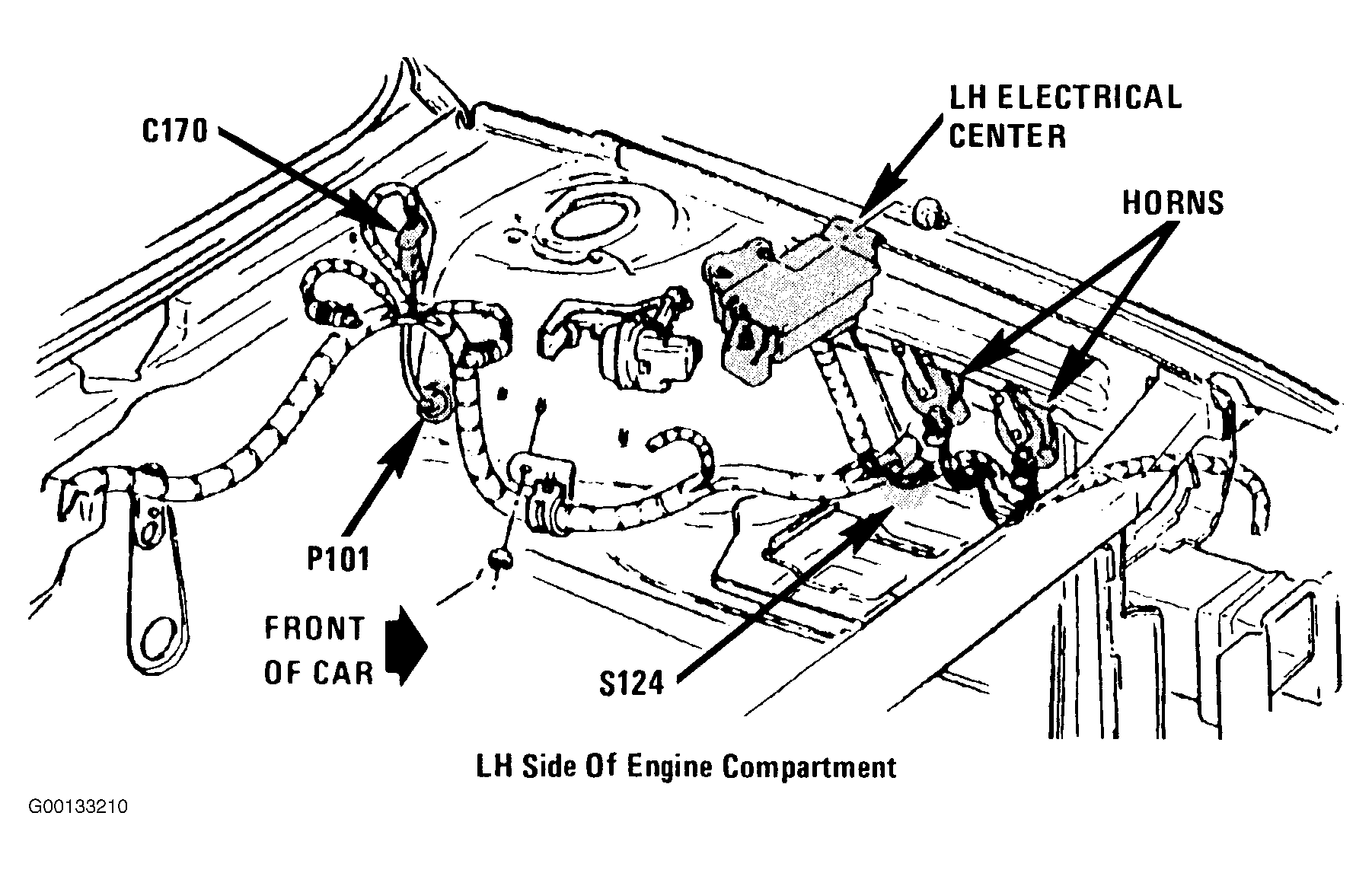

Fig 6: Locating Left Electrical Center
G00133210Courtesy of GENERAL MOTORS CORP.

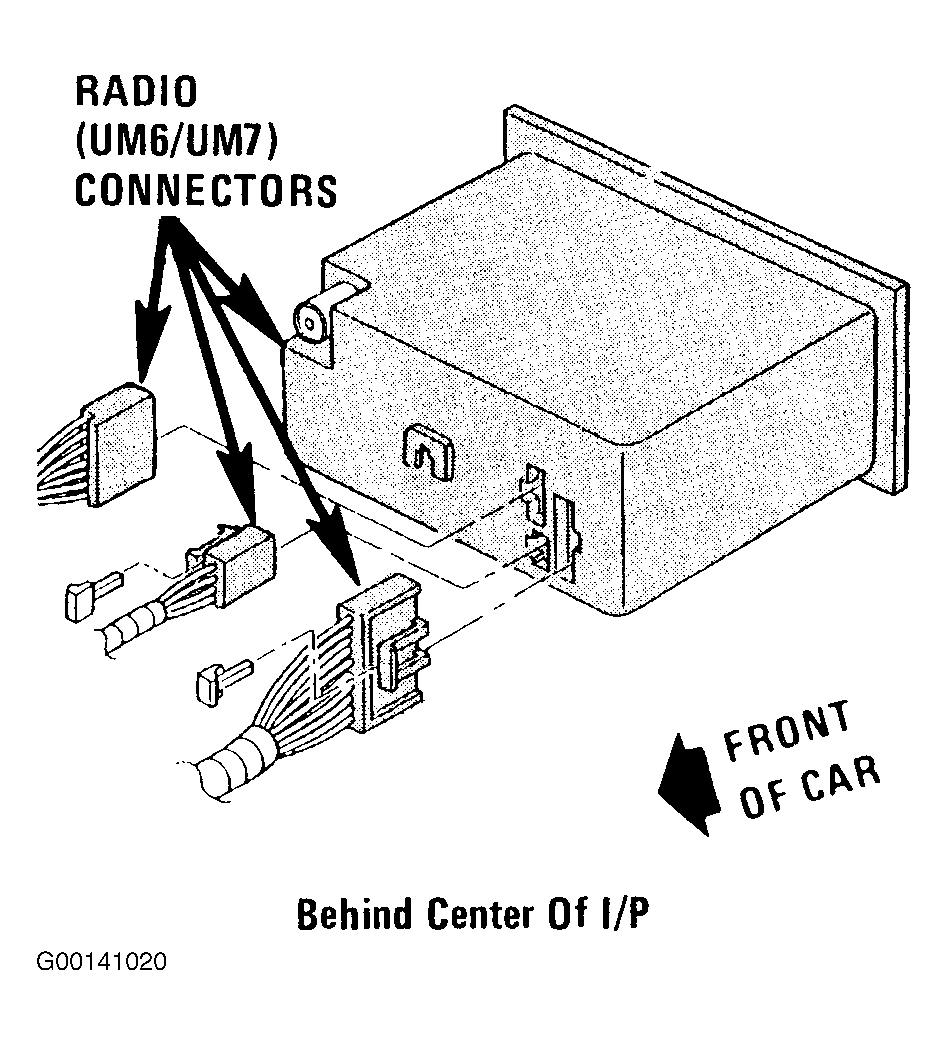

Fig 7: Locating Radio Connectors (UM6 & UM7)
G00141020Courtesy of GENERAL MOTORS CORP.

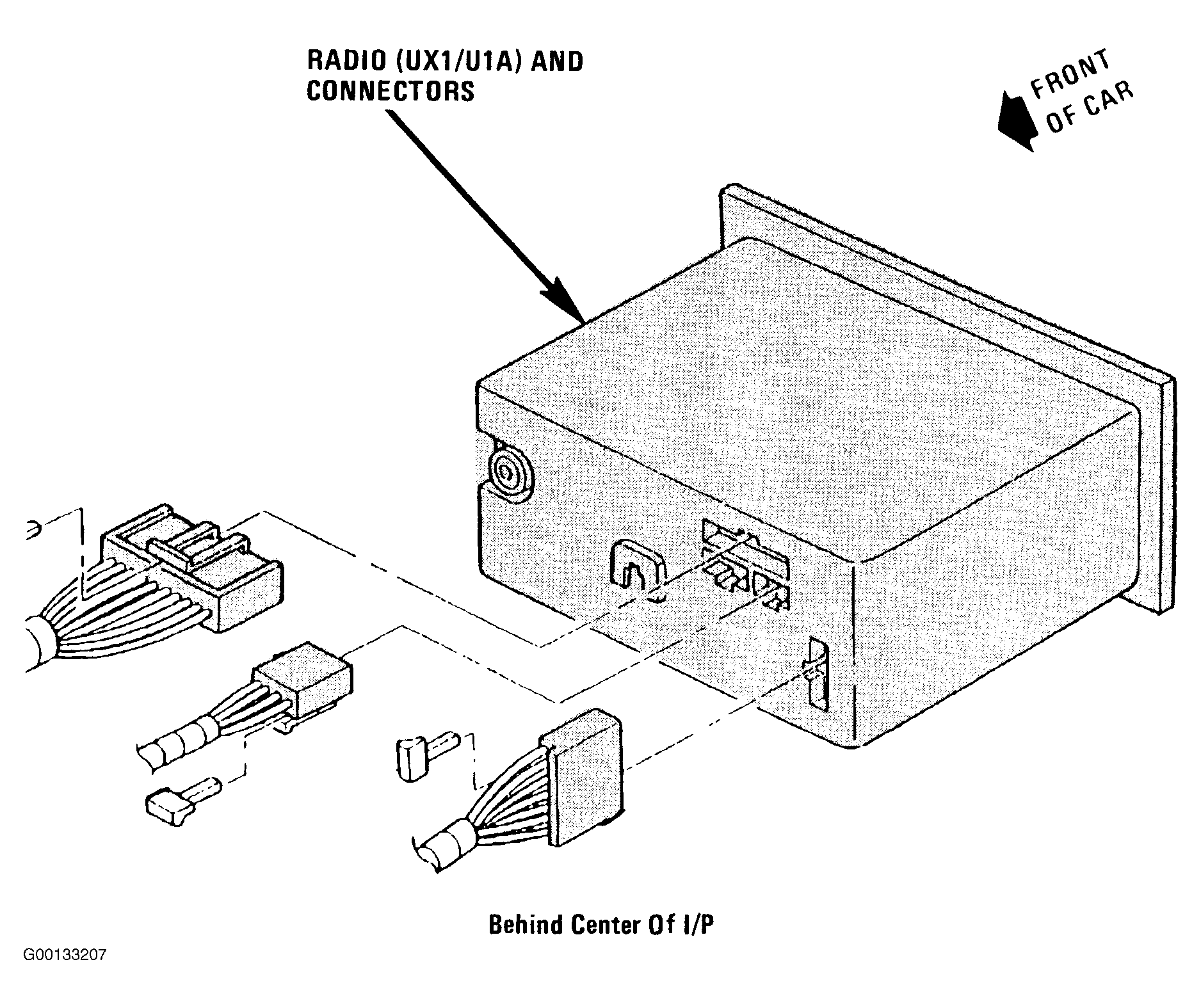

Fig 8: Locating Radio Connectors (UX1 & U1A)
G00133207Courtesy of GENERAL MOTORS CORP.

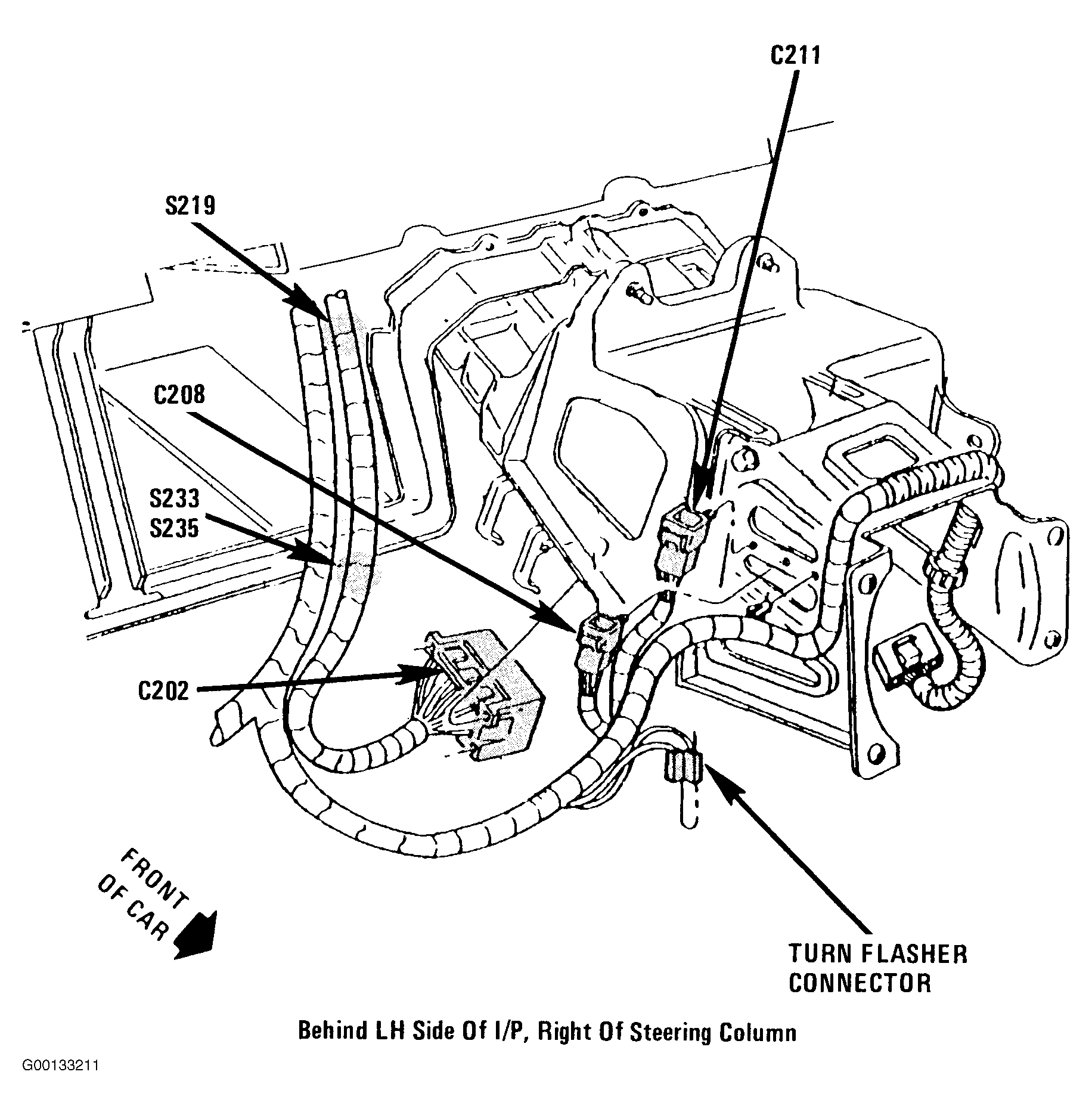

Fig 9: Locating C202, S233 & S235
G00133211Courtesy of GENERAL MOTORS CORP.

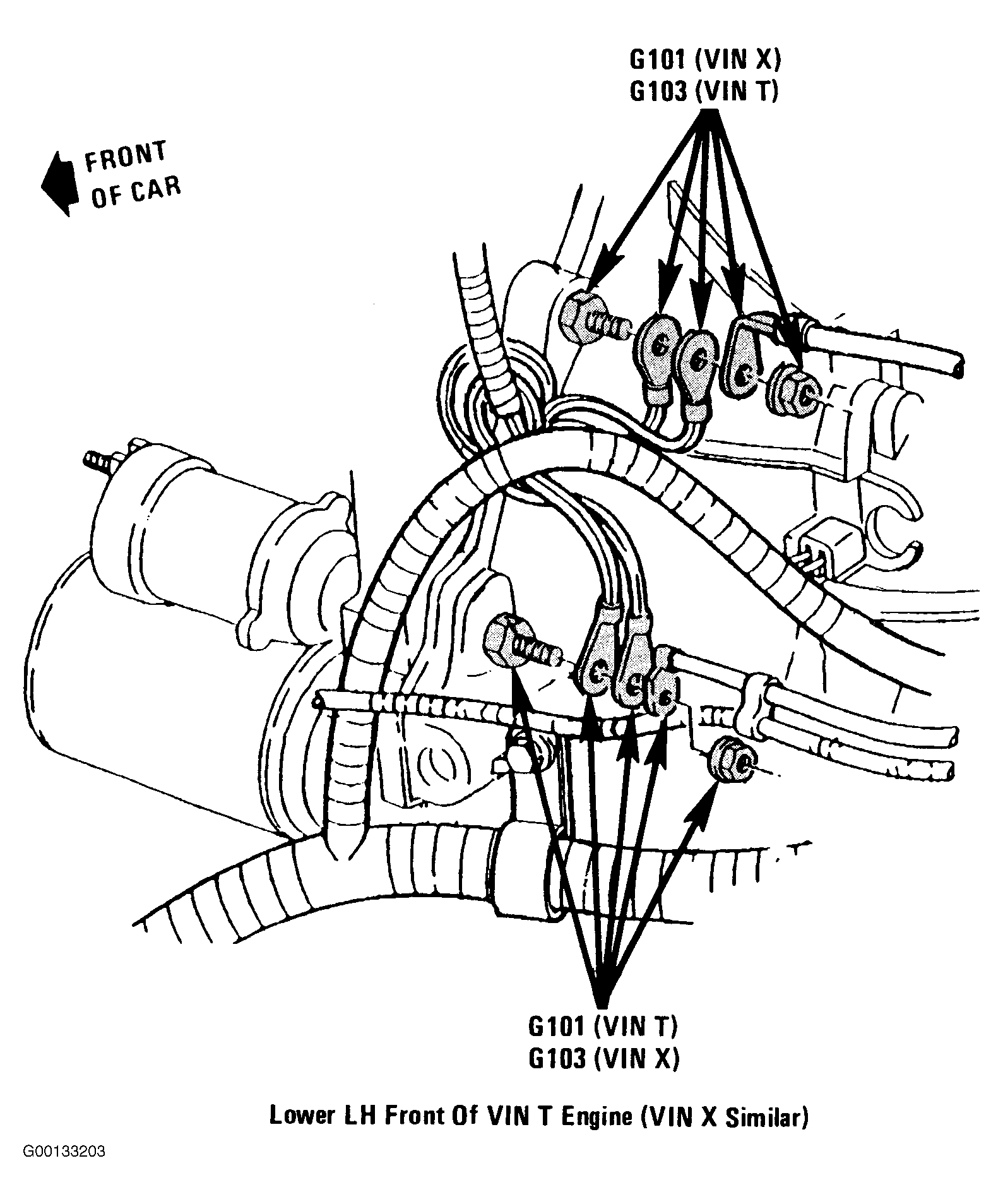

Fig 10: Locating G101 & G103 (VIN T & X)
G00133203Courtesy of GENERAL MOTORS CORP.

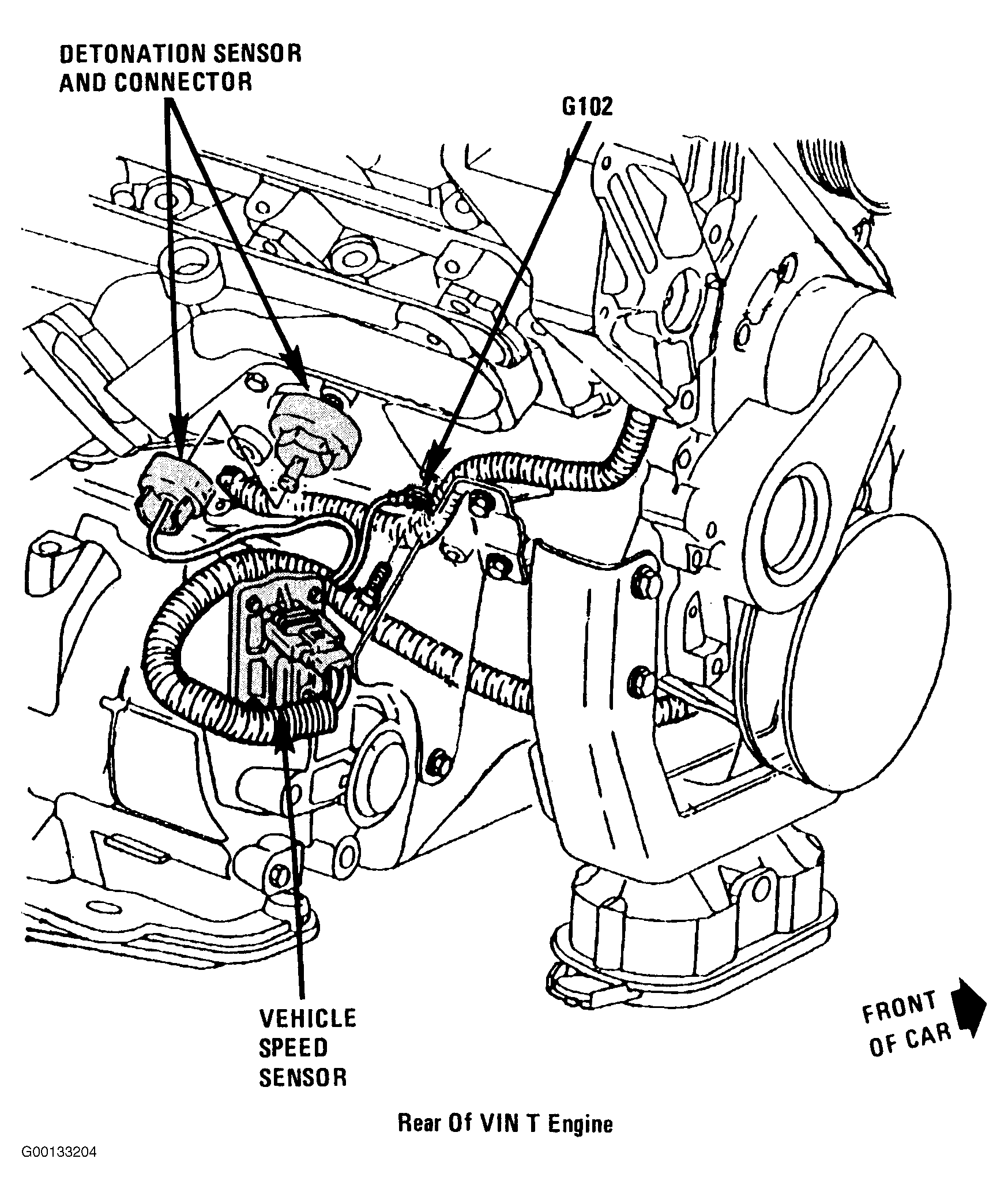

Fig 11: Locating G102 (VIN T)
G00133204Courtesy of GENERAL MOTORS CORP.

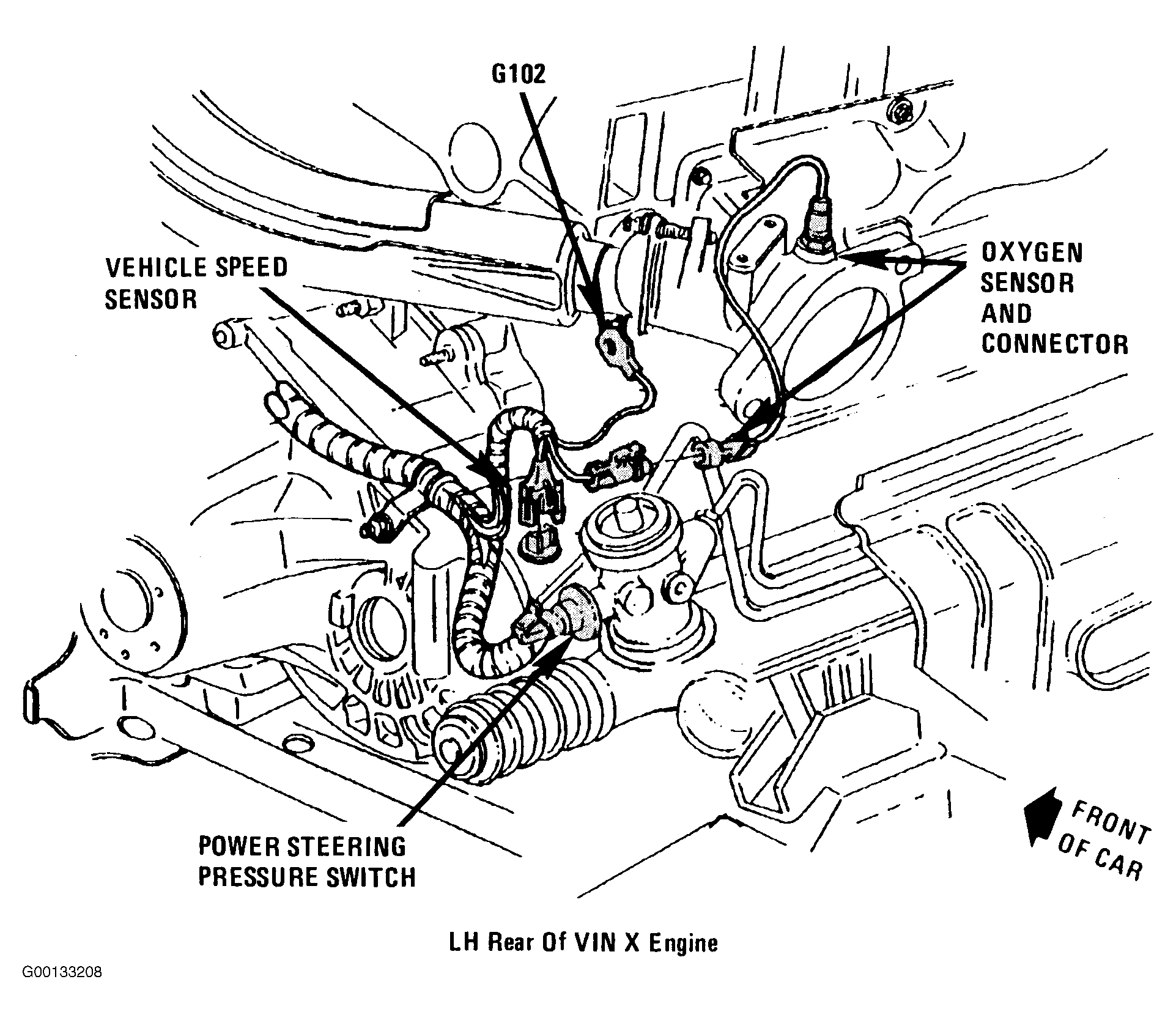

Fig 12: Locating G102 (VIN X)
G00133208Courtesy of GENERAL MOTORS CORP.

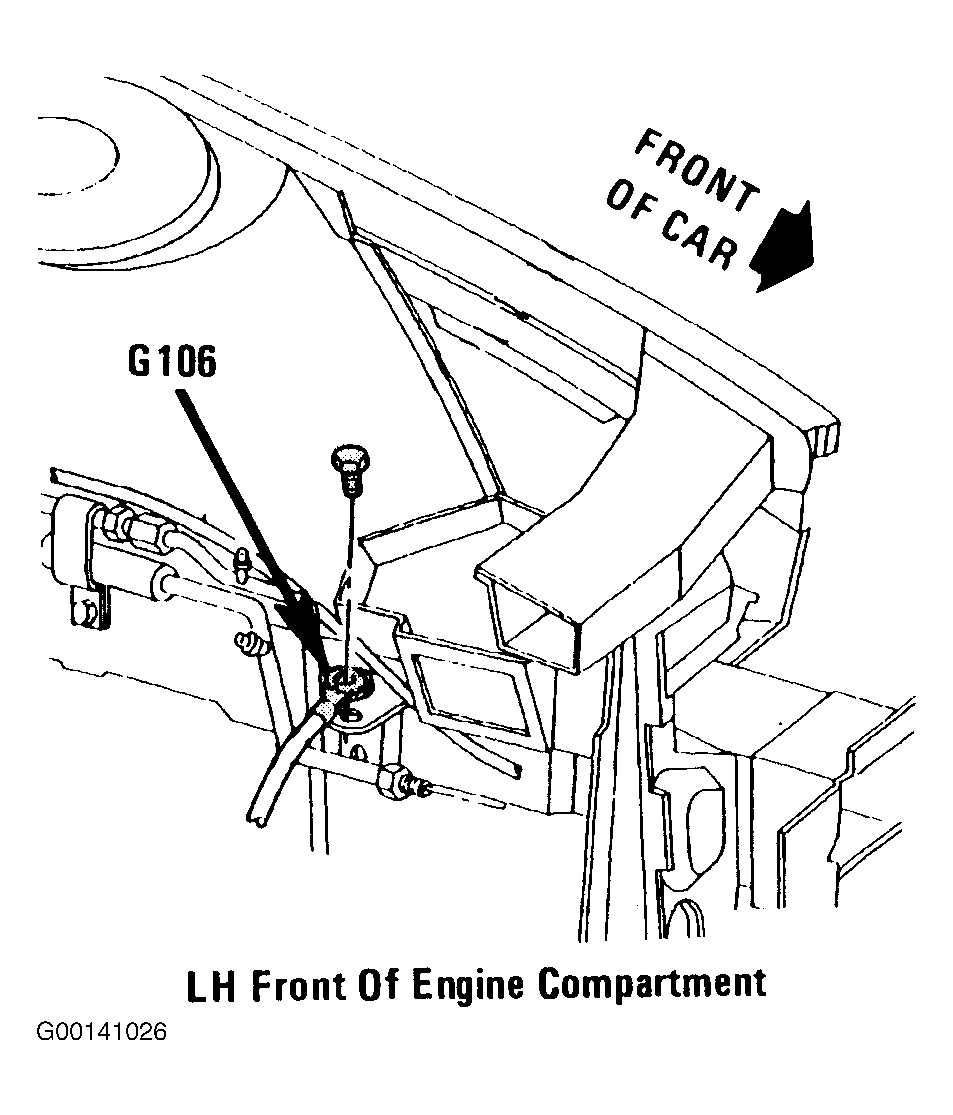

Fig 13: Locating G106
G00141026Courtesy of GENERAL MOTORS CORP.

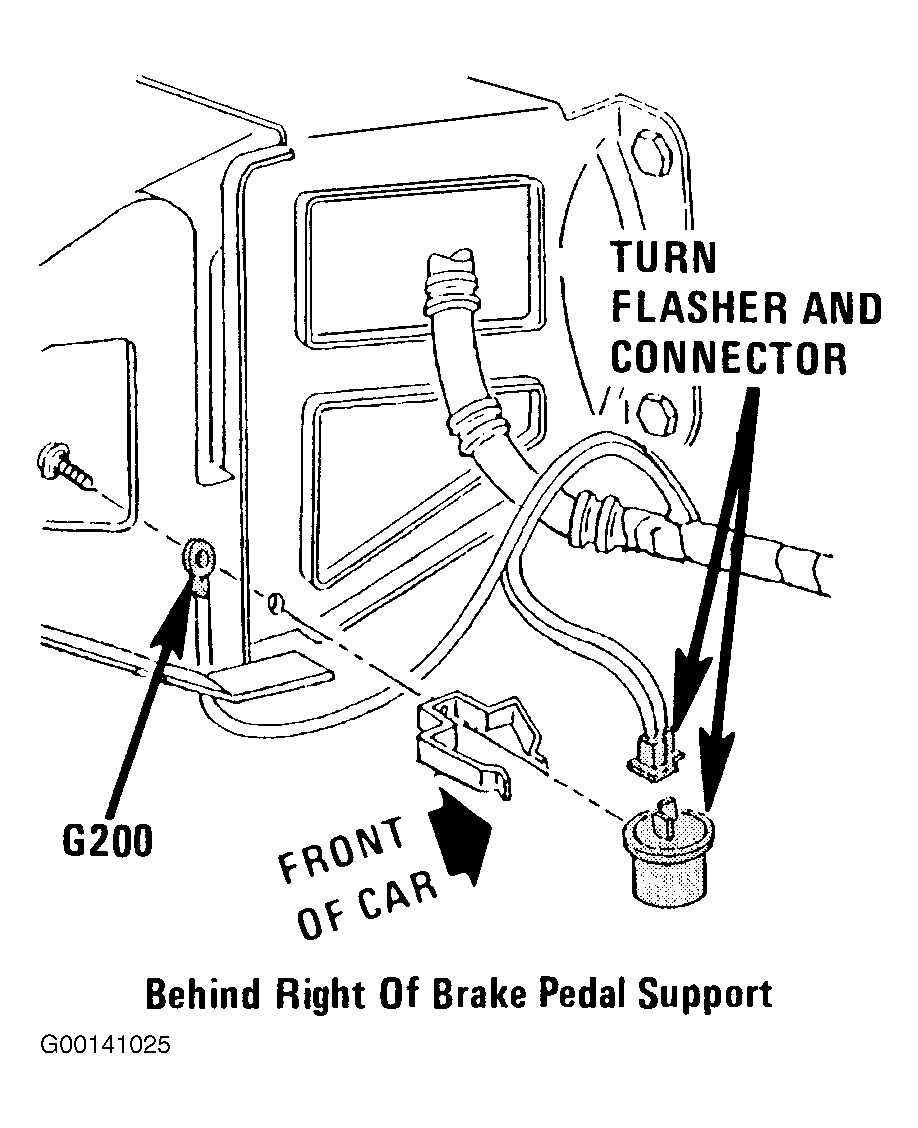

Fig 14: Locating G200
G00141025Courtesy of GENERAL MOTORS CORP.

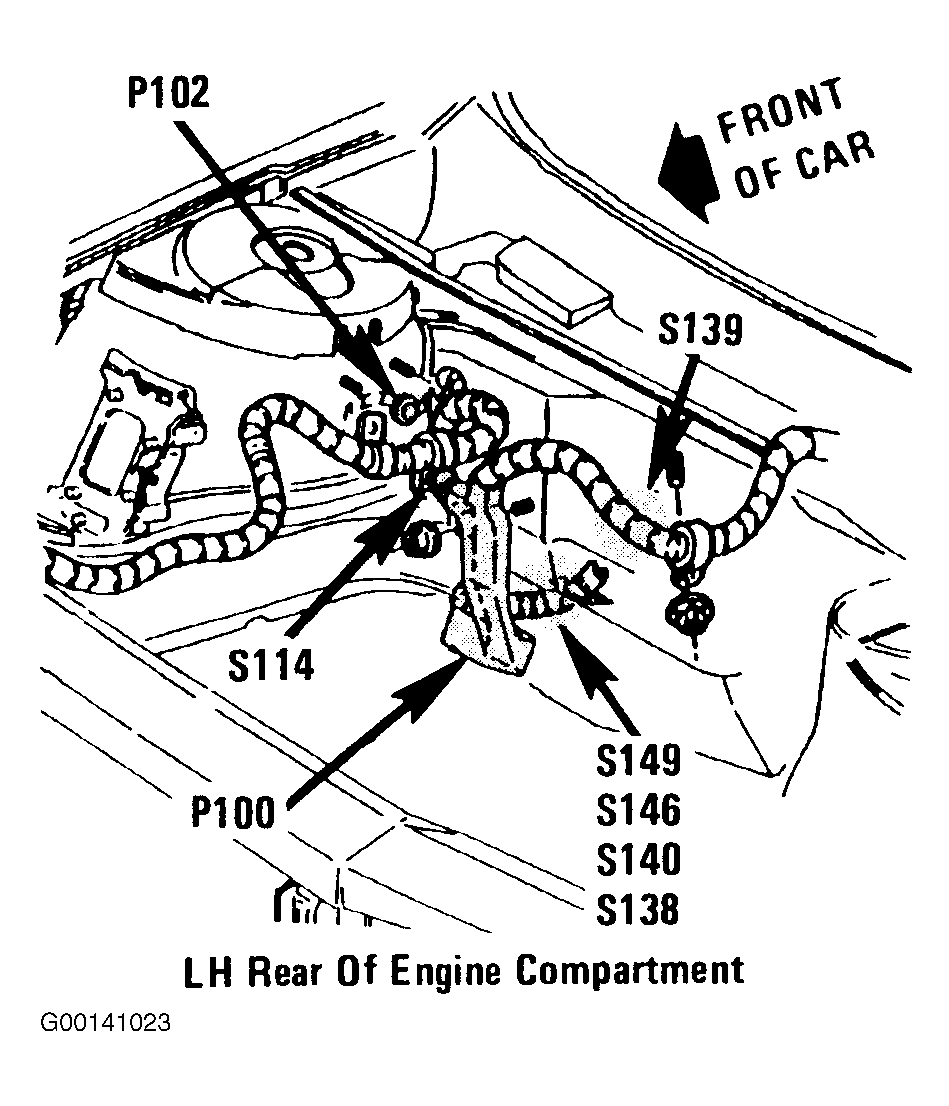

Fig 15: Locating P100
G00141023Courtesy of GENERAL MOTORS CORP.

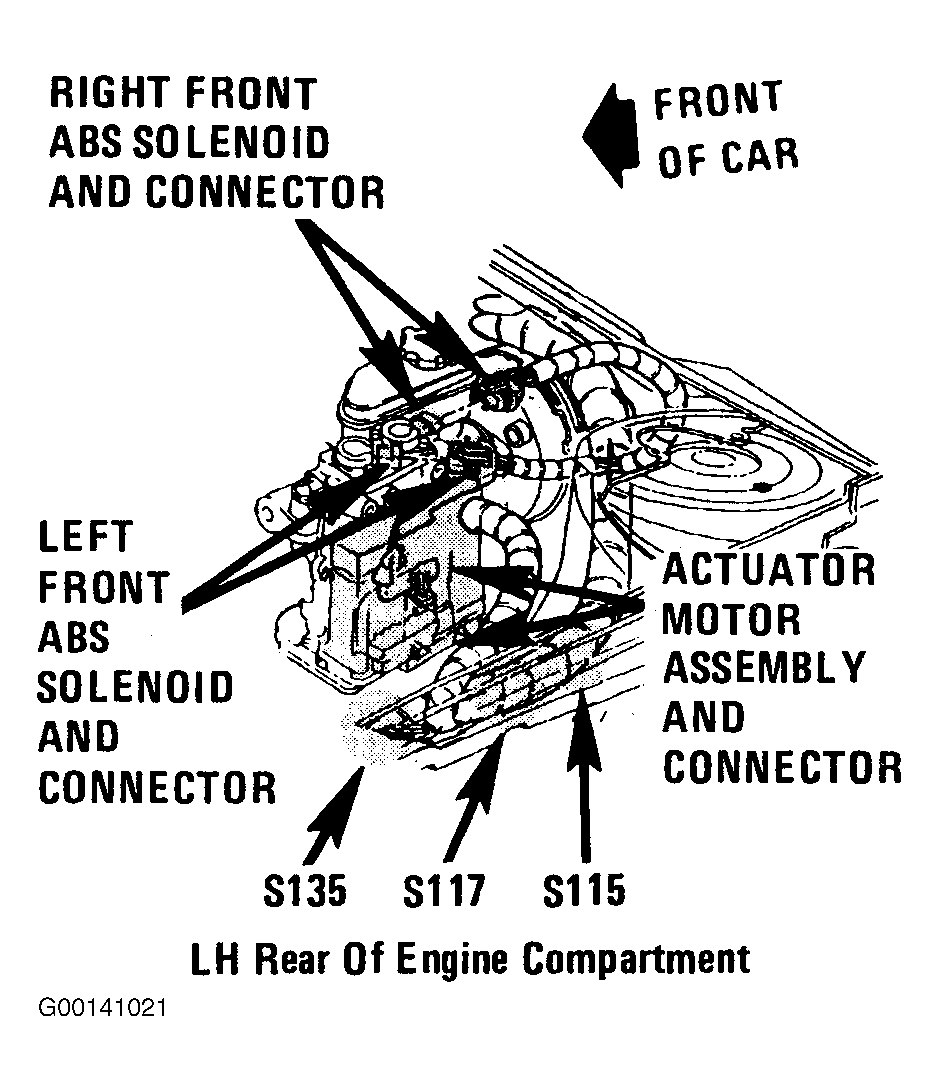

Fig 16: Locating S135
G00141021Courtesy of GENERAL MOTORS CORP.
