Test F: Window Switch Power

For test procedure, refer to illustration. See Fig 1 .

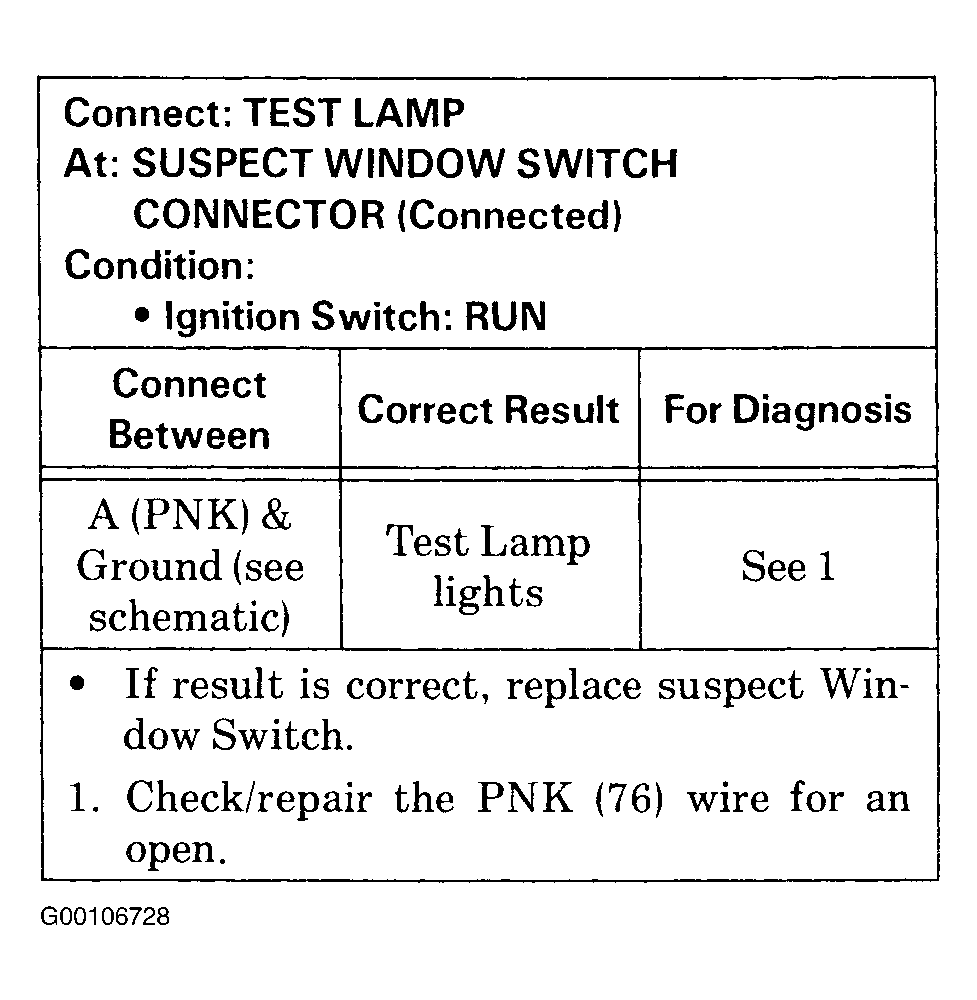

Fig 1: Test F: Window Switch Power

G00106728

Courtesy of GENERAL MOTORS CORP.
