Test D: Window Switch

For test procedure, refer to illustration. See Fig 1 .

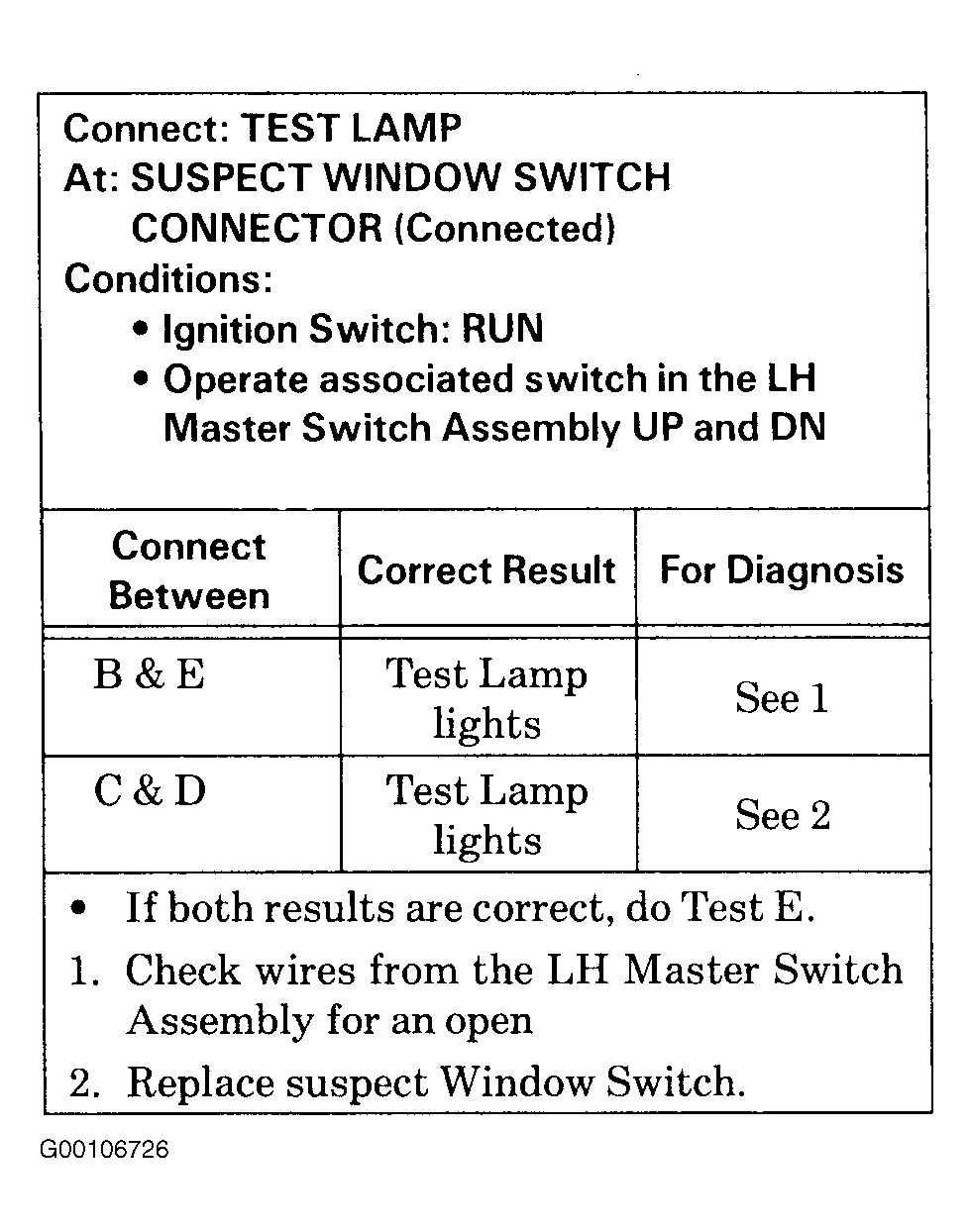

Fig 1: Test D: Window Switch

G00106726

Courtesy of GENERAL MOTORS CORP.
