Test C: Express Down Window Module

For test procedure, refer to illustration. See Fig 1 .

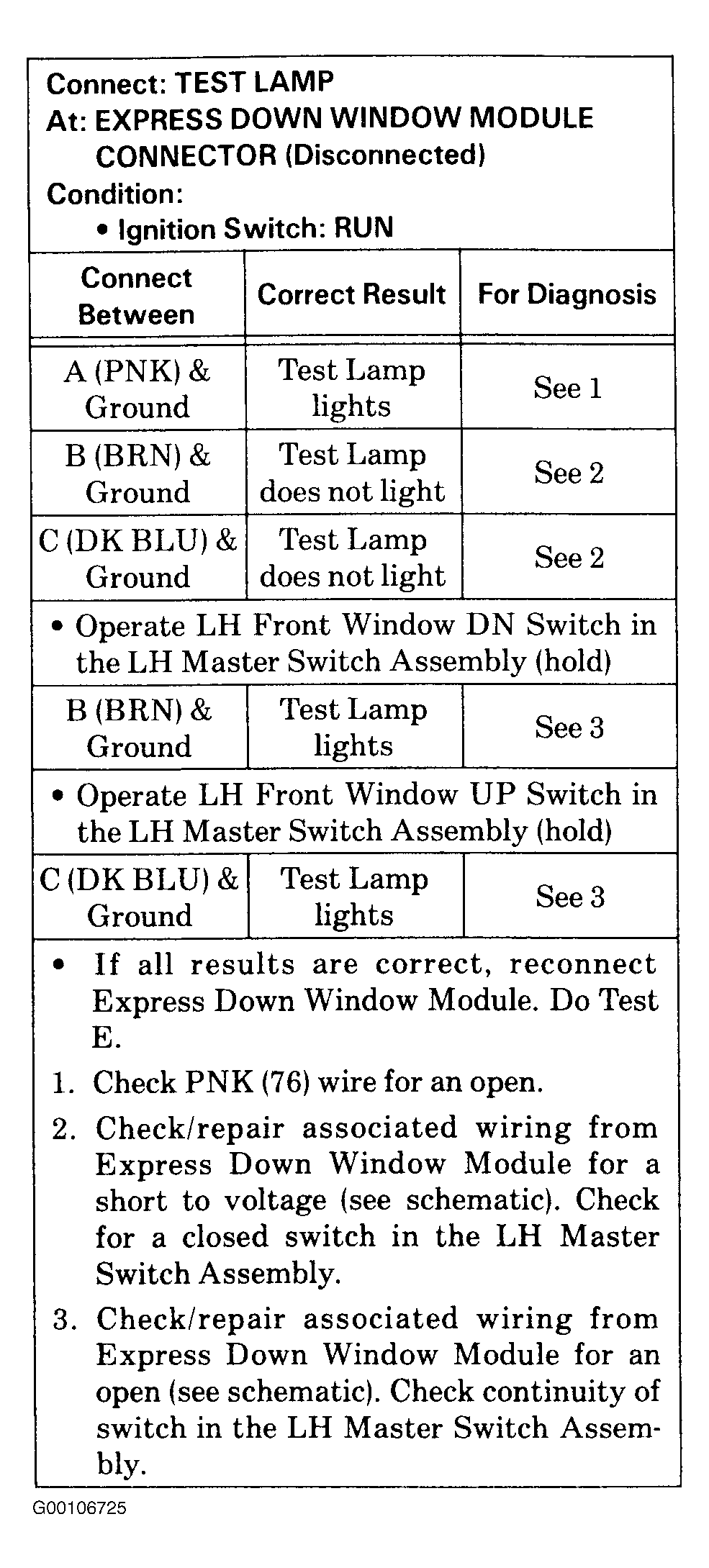

Fig 1: Test C: Express Down Window Module

G00106725

Courtesy of GENERAL MOTORS CORP.
