Home >> Pontiac >> 1992 >> Bonneville SE >> Repair and Diagnosis >> Body & Frame >> Power Windows >> System Tests >> Test B: Master Switch Assembly

Test B: Master Switch Assembly

For test procedure, refer to illustration. See Fig 1 .

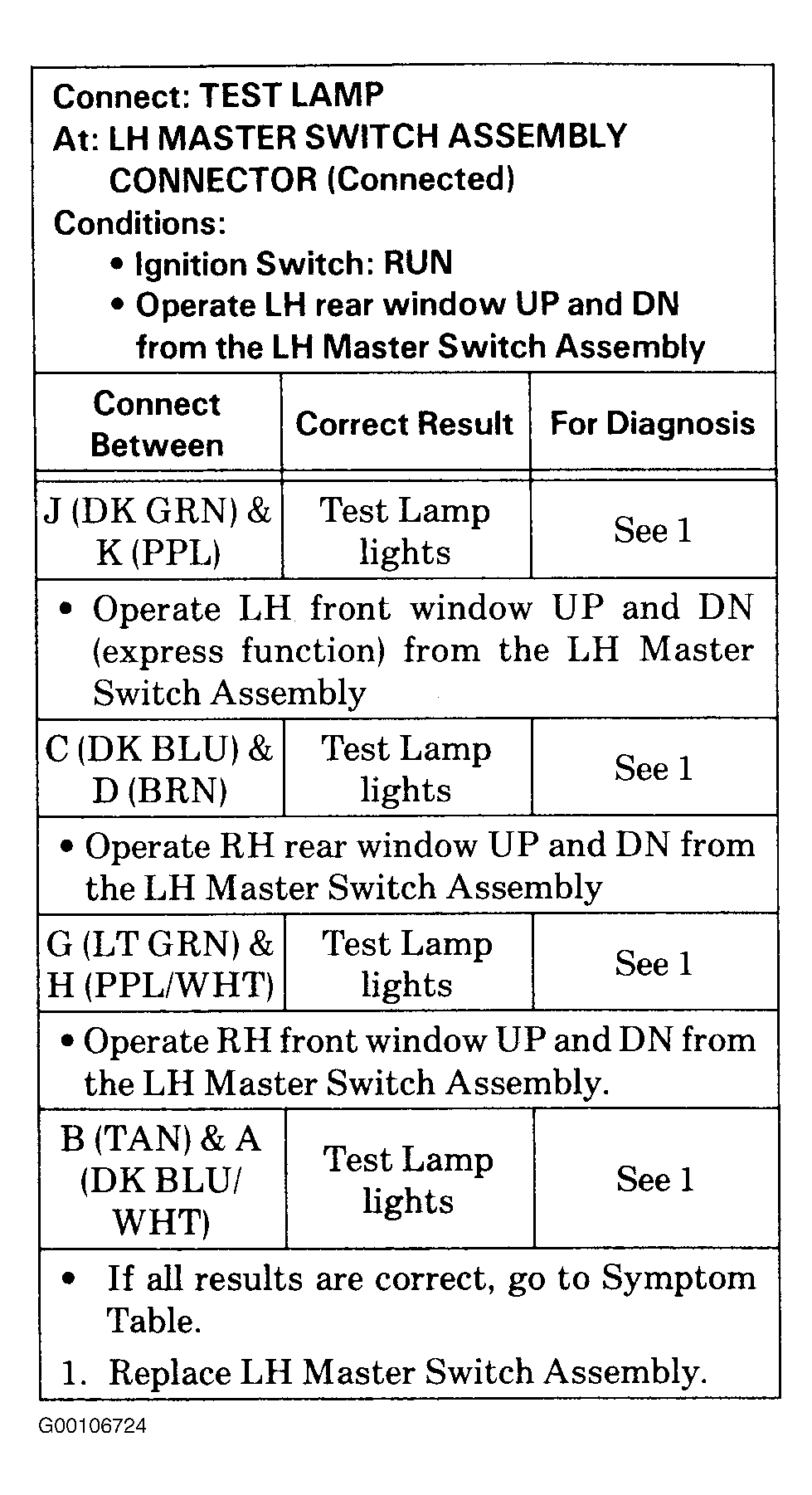

Fig 1: Test B: Master Switch Assembly
G00106724Courtesy of GENERAL MOTORS CORP.
