Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

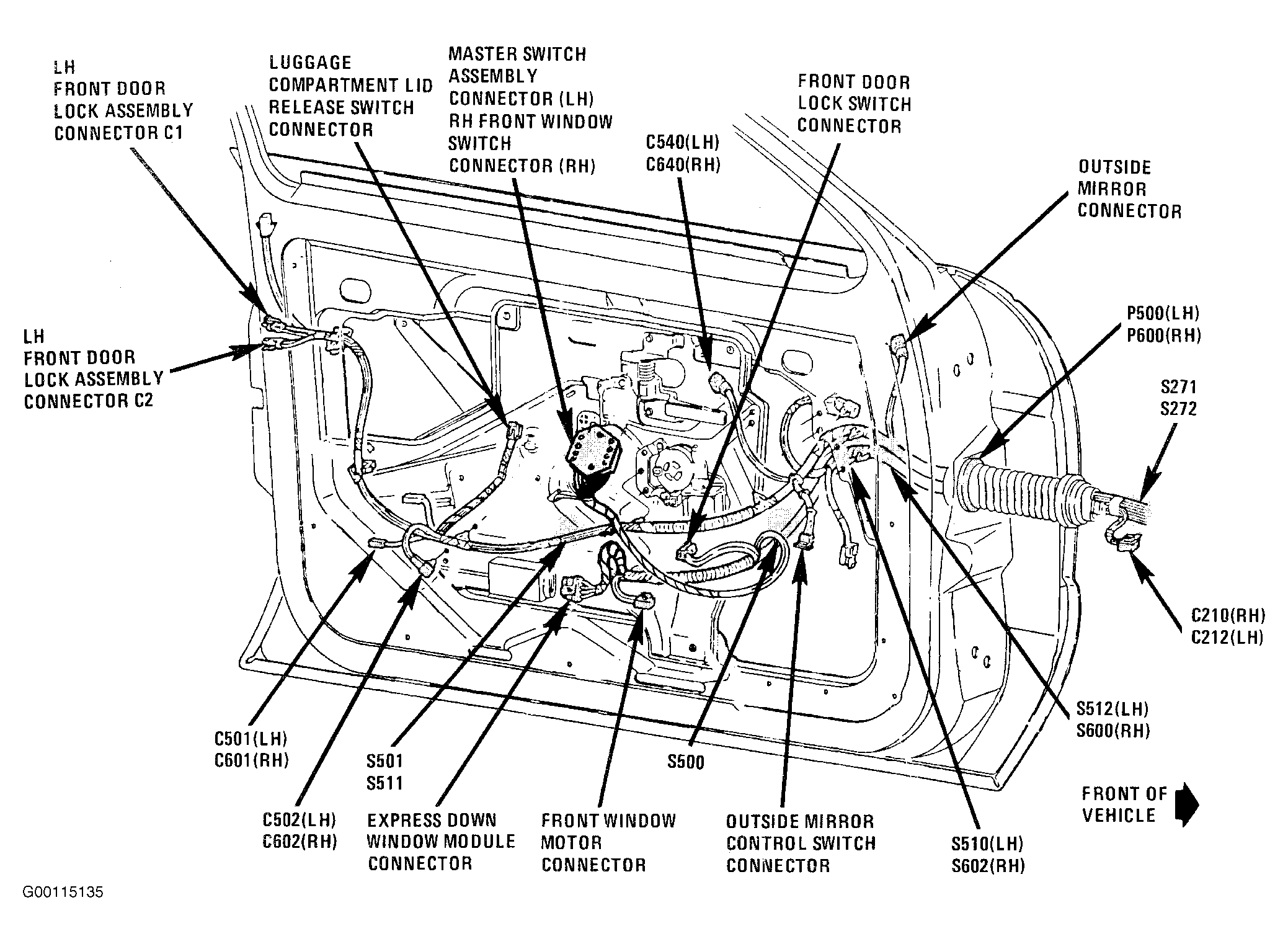

| Express Down Window Module | Center Of Left Front Door. See Fig 1 |
| Front Window Motor | In Lower Center Of Respective Front Door. See Fig 1 |

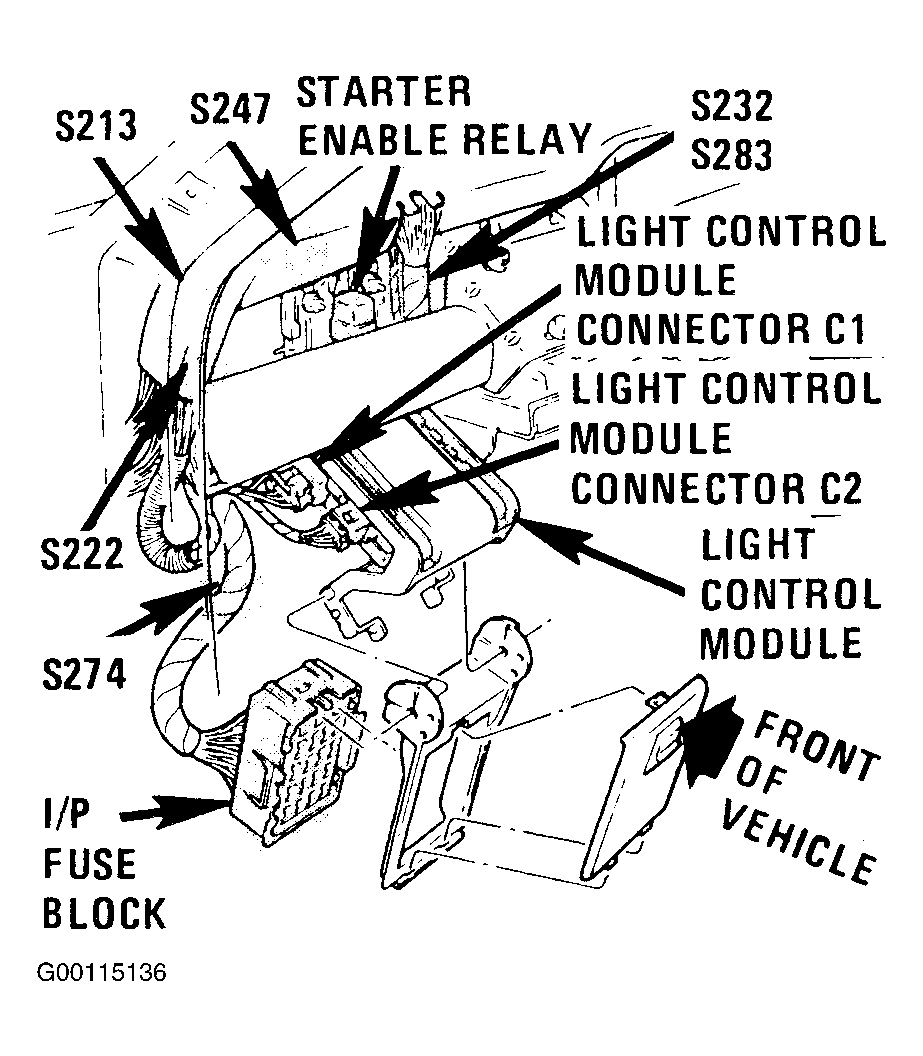

| Instrument Panel Fuse Block | Behind Left Side Of Instrument Panel, Left Of Steering Column, Behind Trim Panel. See Fig 2 |
| Master Switch Assembly | Lower Rear Of Left Front Door. See Fig 1 |

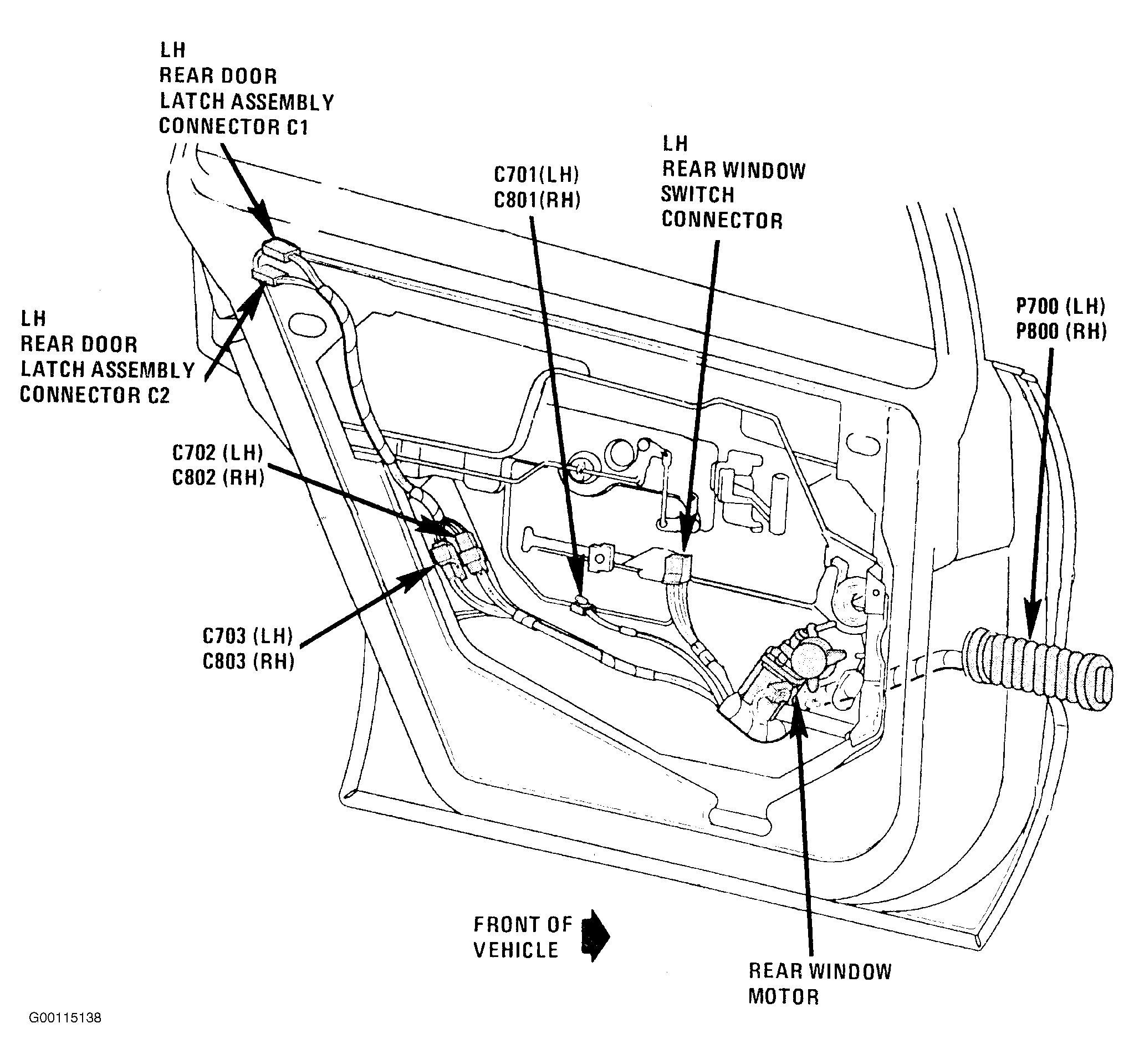

| Rear Window Motor | In Lower Front Portion Of Respective Rear Door. See Fig 3 |

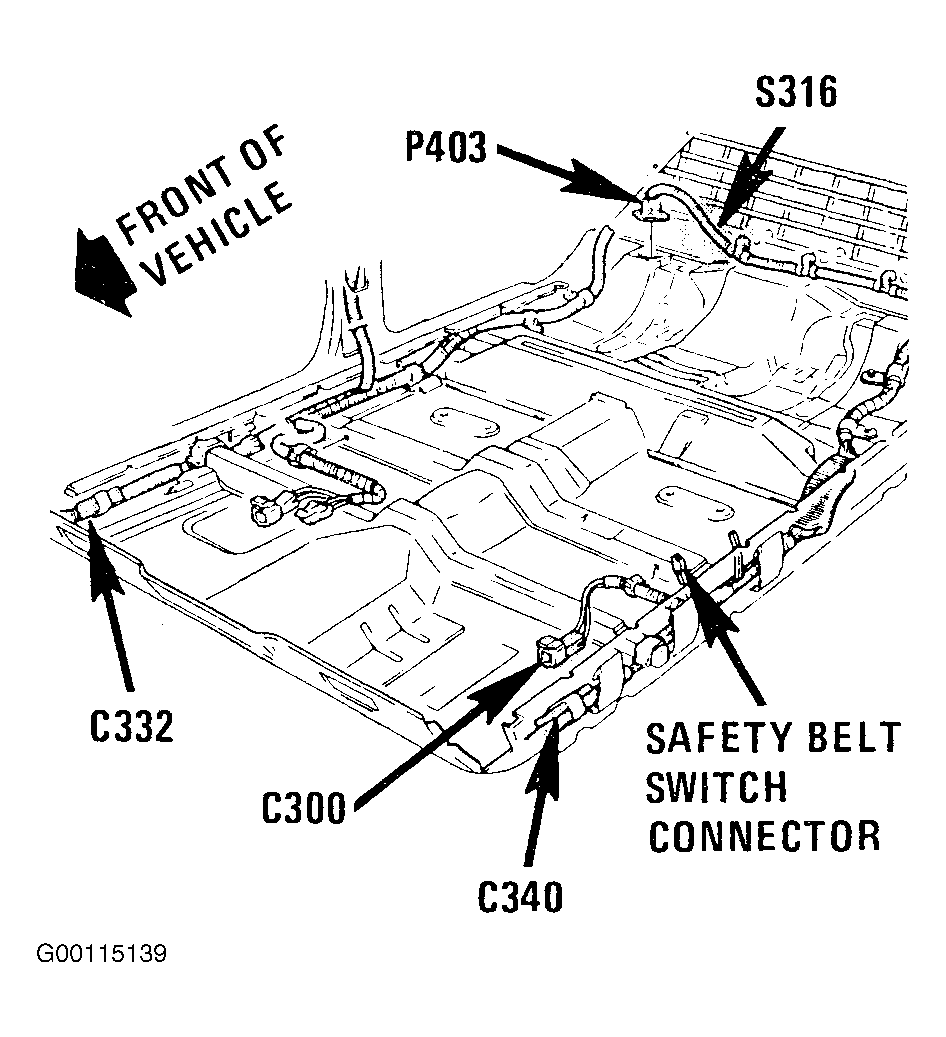

| C340 (10-Cavity) | Left Front Door Sill, Taped In Composite Harness. See Fig 4 |
| G202 | Behind Left Side Of Instrument Panel, Middle Of Shroud. See Fig 5 |
| P500 | Front Of Left Front Door. See Fig 1 |
| P600 | Front Of Right Front Door. See Fig 1 |
| P700 | Front Of Left Rear Door. See Fig 3 |
| P800 | Front Of Right Rear Door. See Fig 3 |

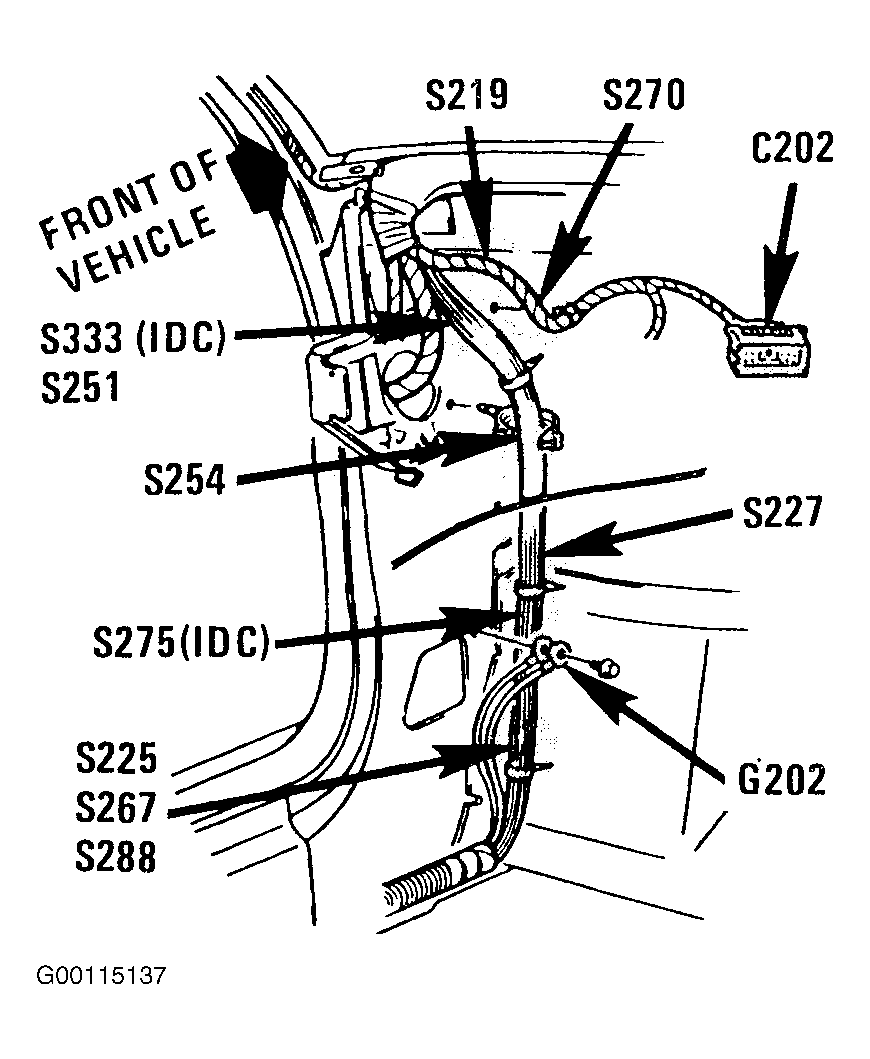

| S225 | In Composite Harness, Bottom Of Left Shroud. See Fig 5 |

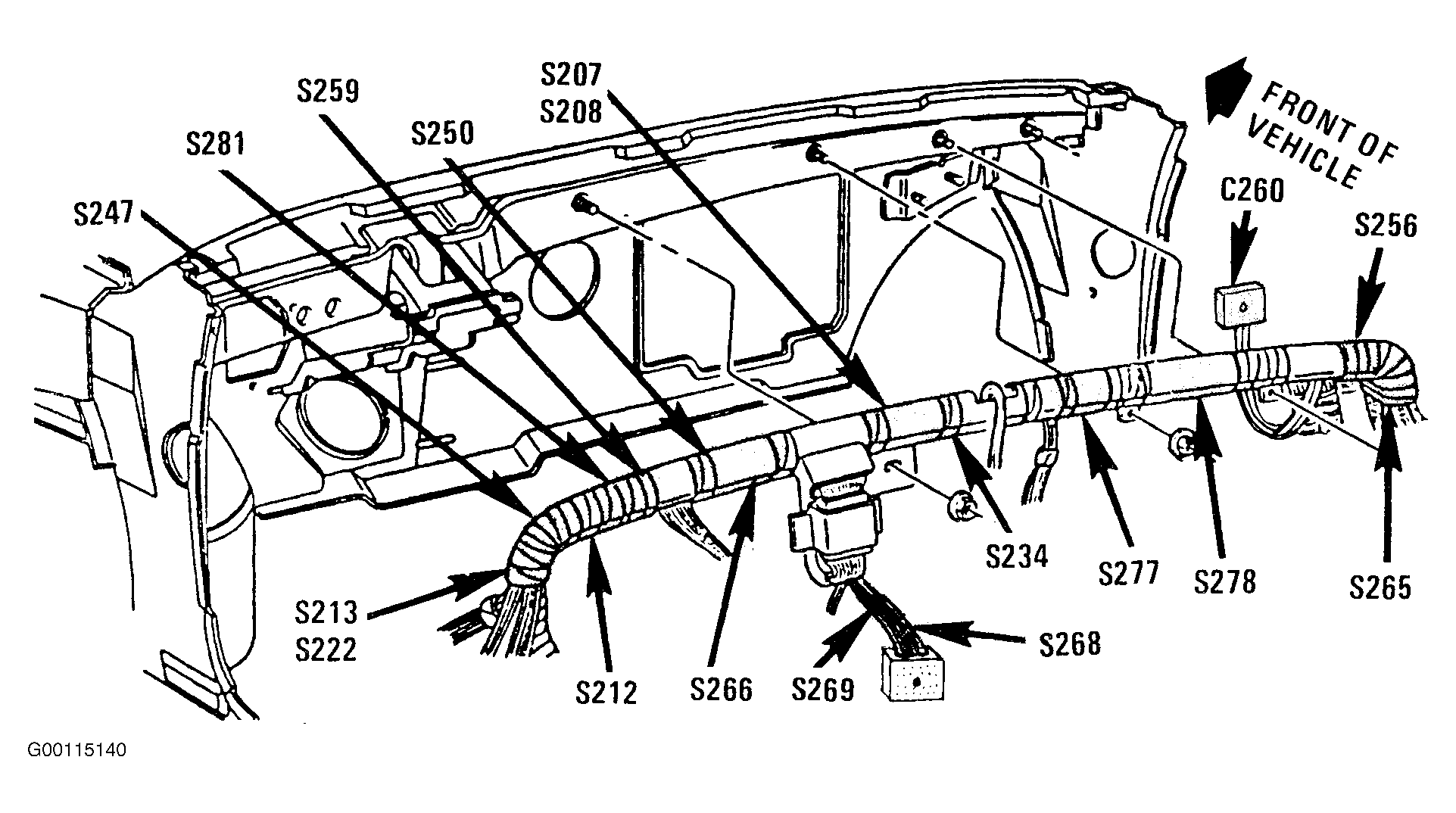

| S247 | In Composite Harness, Behind Left Side Of Instrument Panel. See Fig 6 |
| S288 | In Composite Harness, Bottom Of Left Shroud. See Fig 5 |
| S500 | In Composite Harness, In Front Portion Of Left Front Door. See Fig 1 |
