Test E: Door Lock Relay Assembly Test

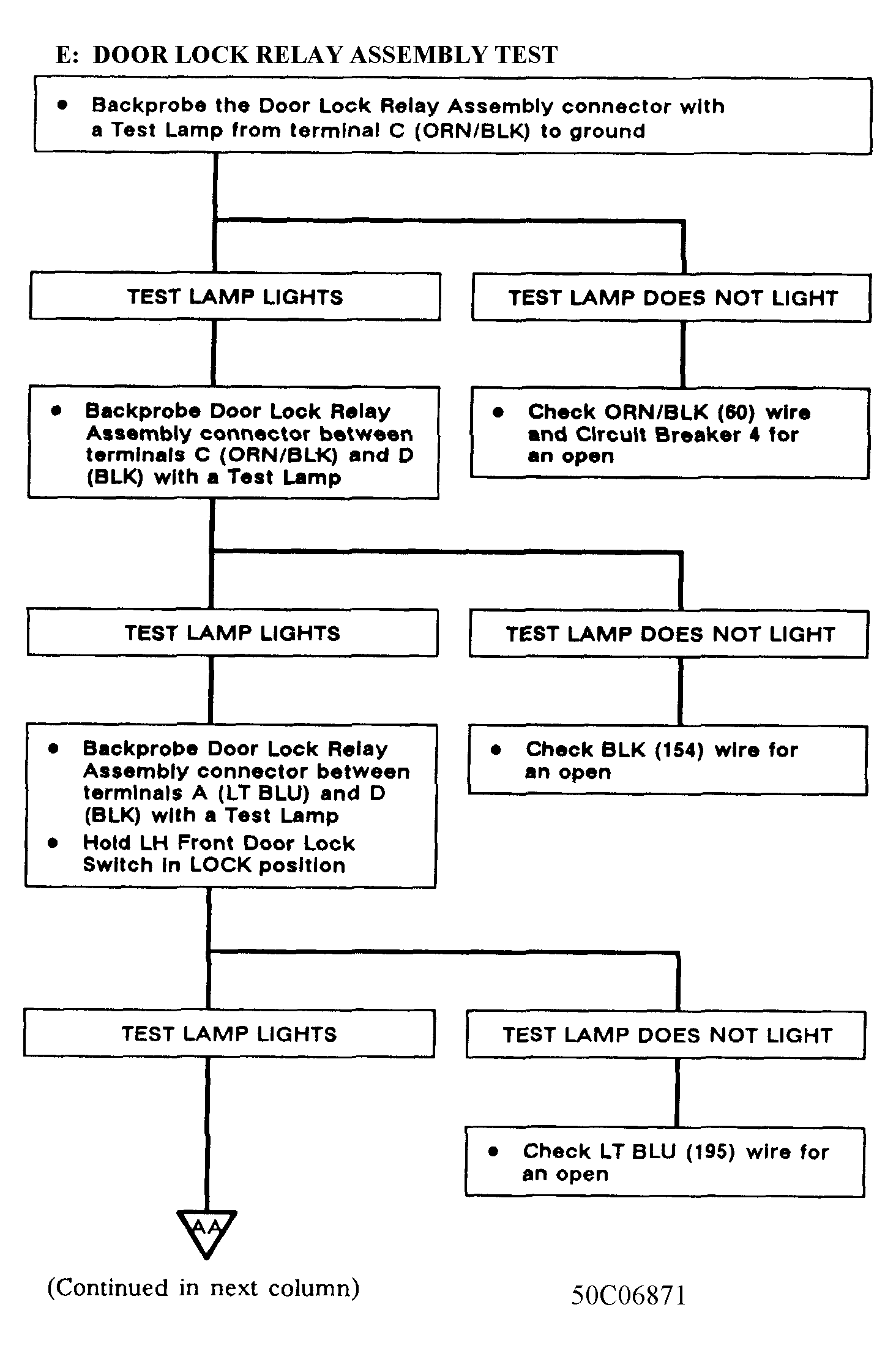

Fig 1: Test E: Door Lock Relay Assembly Test (1 Of 2)

G50C06871

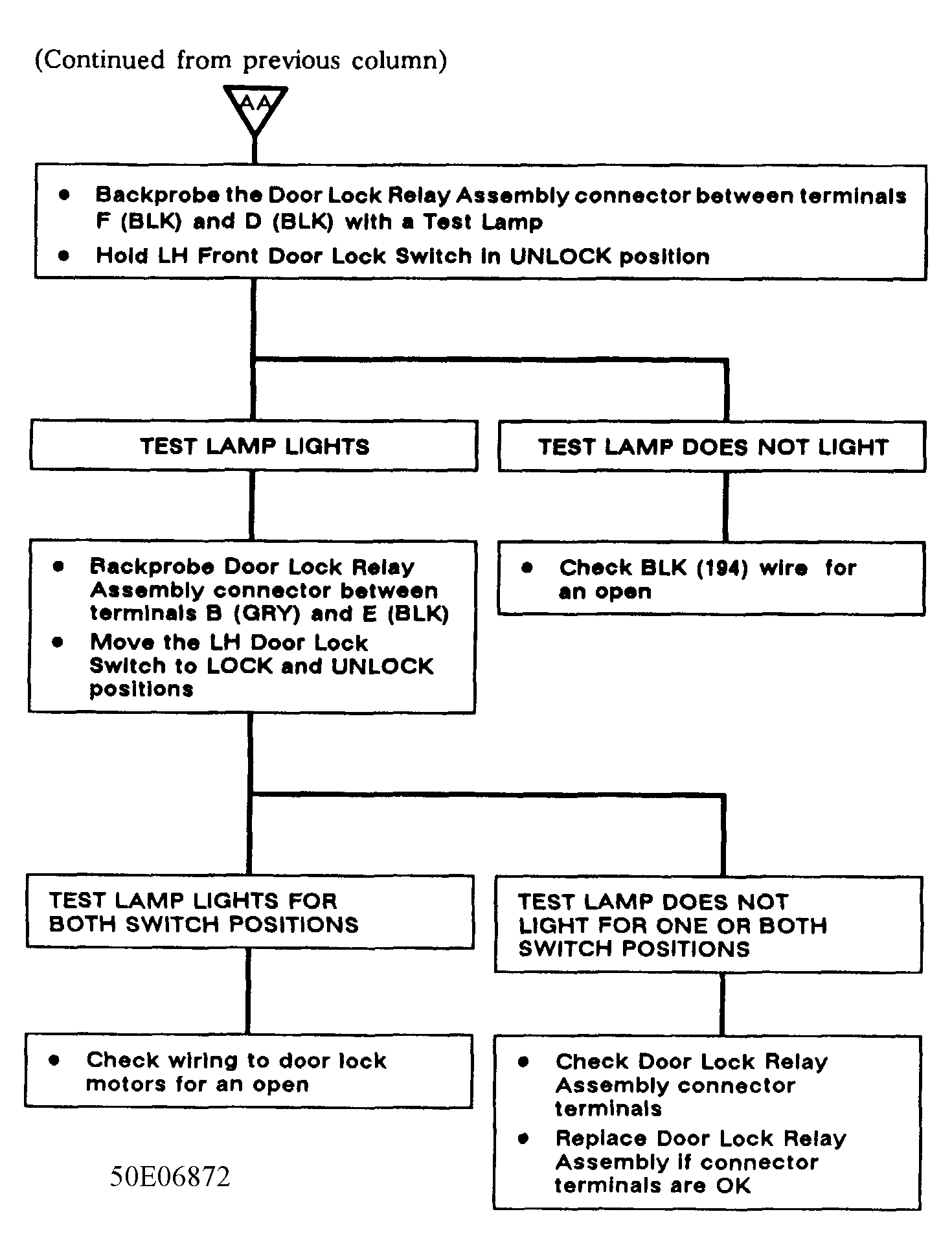

Fig 2: Test E: Door Lock Relay Assembly Test (2 Of 2)

G50E06872
