Test C: Transmitter/Module Isolation Test

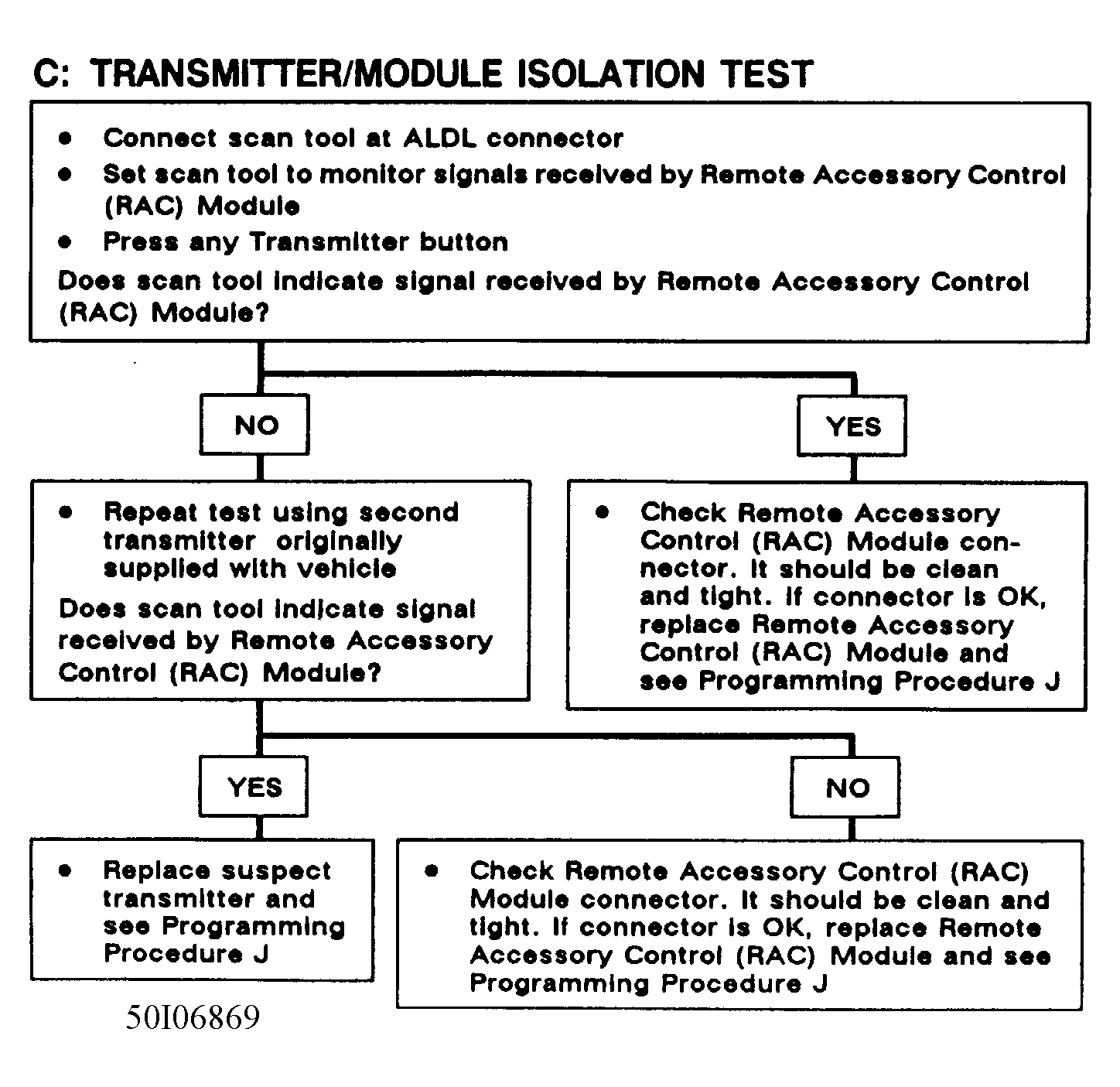

Fig 1: Test C: Transmitter/Module Isolation Test

G50I06869
