Service Indicator & Warning Lights: Notes

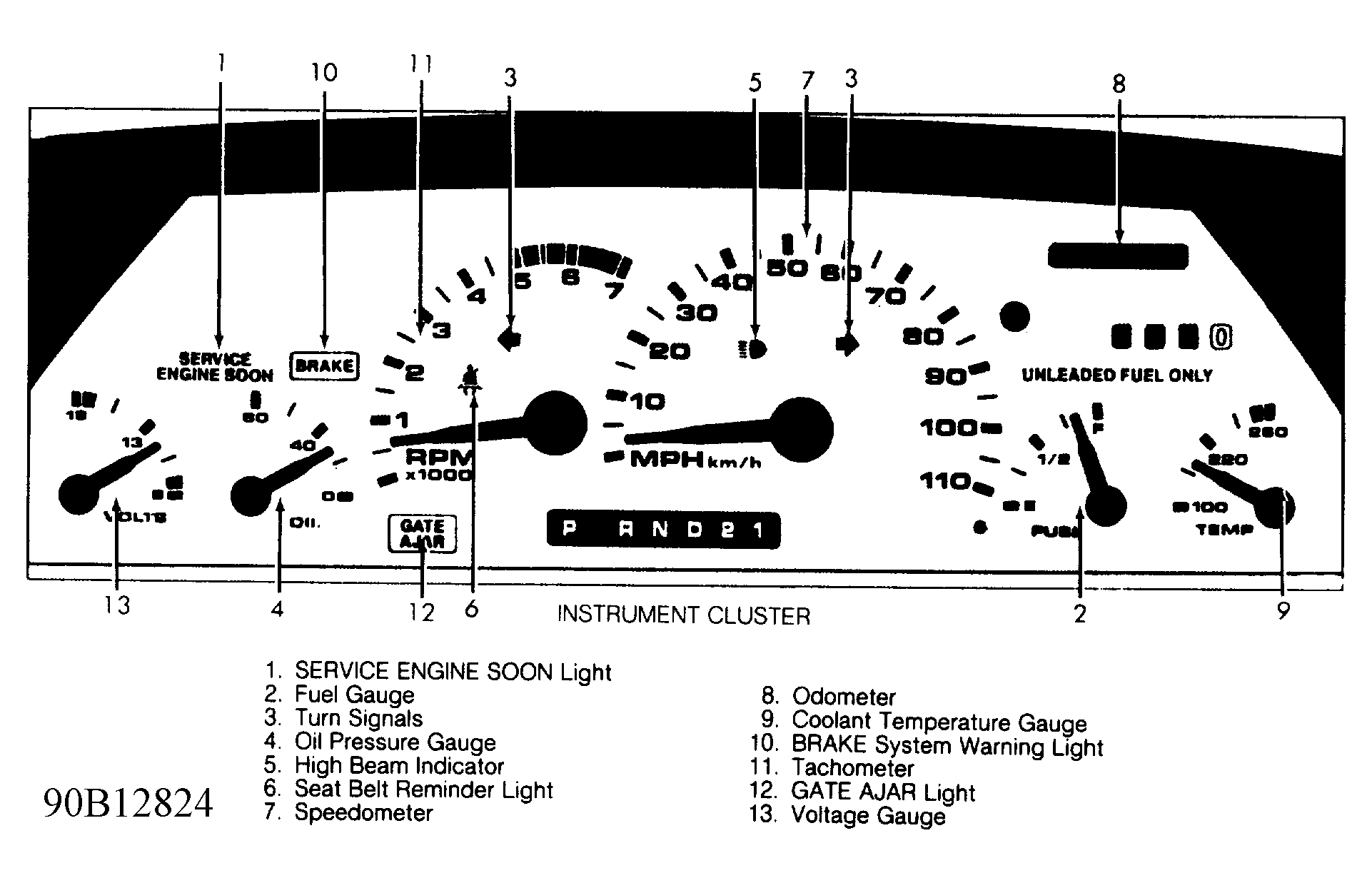

Fig 1: Dash Gauges & Warning Lights (Trans Sport & Silhouette)
G90B12824Courtesy of GENERAL MOTORS CORP.
Fig 2: Dash Gauges & Warning Lights (Lumina APV)
G92I20816Courtesy of GENERAL MOTORS CORP.
