Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|

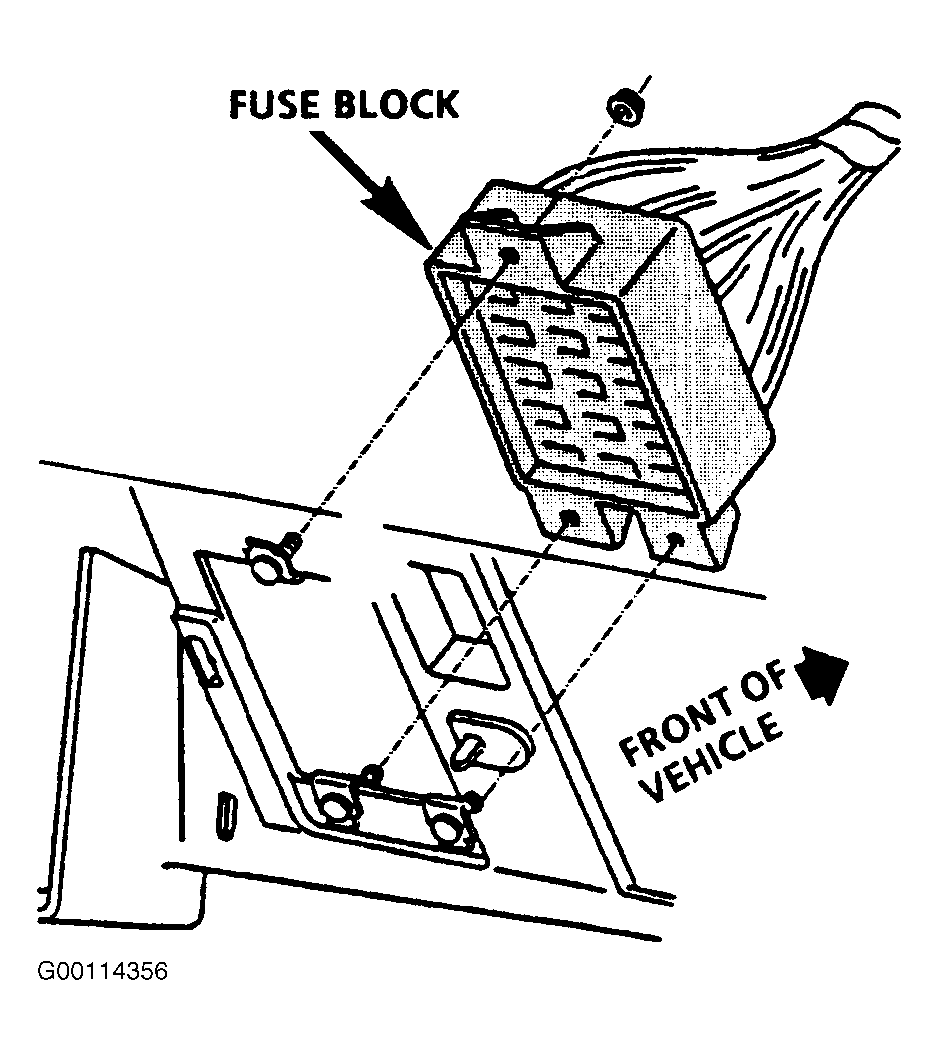

| Fuse Block | Behind Instrument Panel Compartment Door. See Fig 1 |

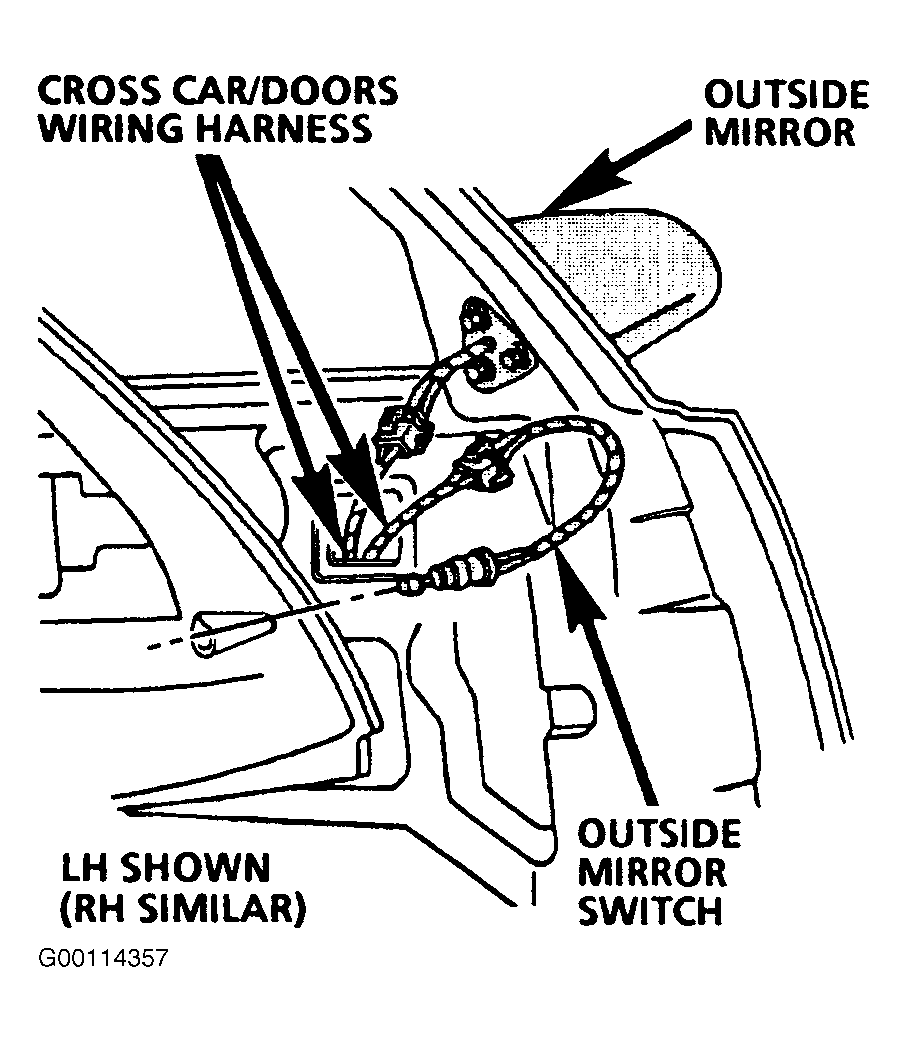

| Left Outside Mirror | Mounted To Left Front Door. See Fig 2 and Figure |
| Outside Mirror Switch | Mounted To Left Front Door Trim Panel. See Fig 2 and Figure |
| Right Outside Mirror | Mounted To Right Front Door. See Fig 2 and Figure |
| C205 (3 Cavities) | Lower Left A-Pillar, Left Of Park Brake |
| G201 | Lower Left A-Pillar, Left Of Park Brake |
| P500 | Between Left Door & Base Of Left A-Pillar |
| P600 | Between Right Door & Base Of Right A-Pillar |
| S213 | Instrument Panel Wiring Harness |
| S214 | Crosscar/Door Wiring Harness |
| S217 | Crosscar/Door Wiring Harness |
| S228 | Crosscar/Door Wiring Harness |
| S229 | Crosscar/Door Wiring Harness |
