Home >> Pontiac >> 1991 >> LeMans Base >> Repair and Diagnosis >> Steering >> Power Steering >> Steering System - Manual >> Adjustments

Steering System - Manual: Adjustments

Any adjustments are made during the reassembly procedure. See OVERHAUL  in this article.

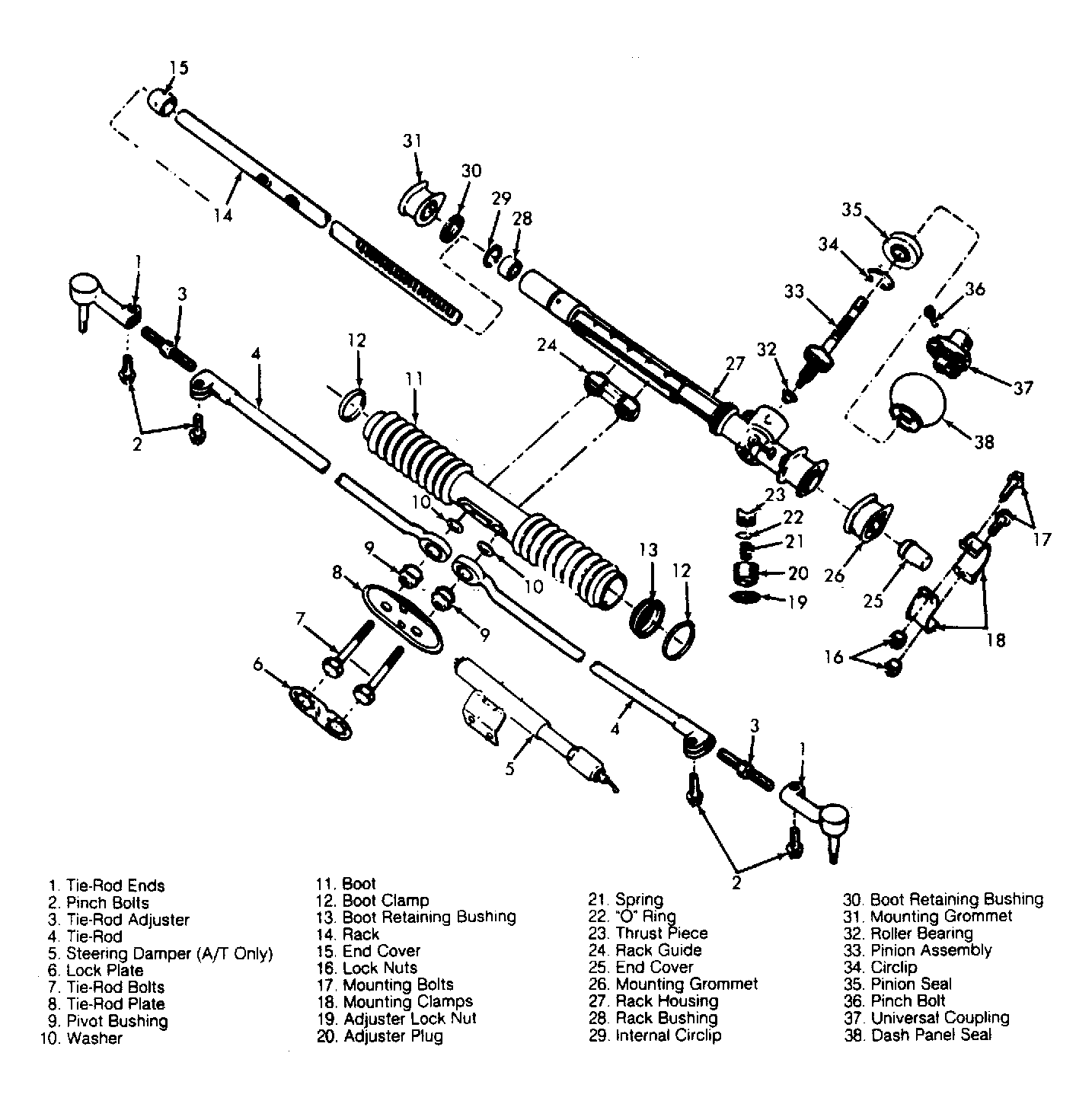

Fig 1: Exploded View of Rack & Pinion Steering Gear
G101218Courtesy of GENERAL MOTORS CORP.
