Wiring Diagrams

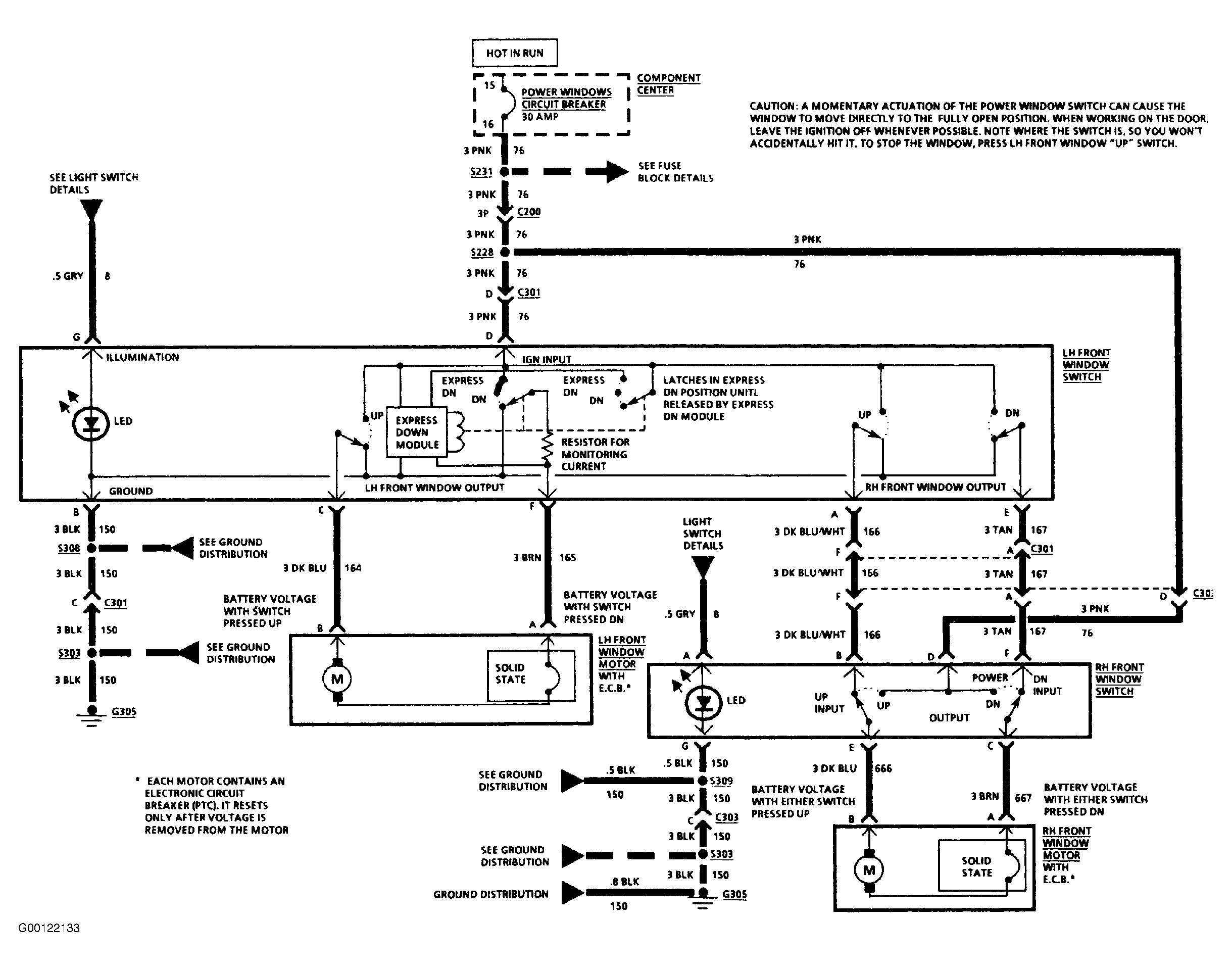

Fig 1: Wiring Diagram (Coupe)
G00122133Courtesy of GENERAL MOTORS CORP.

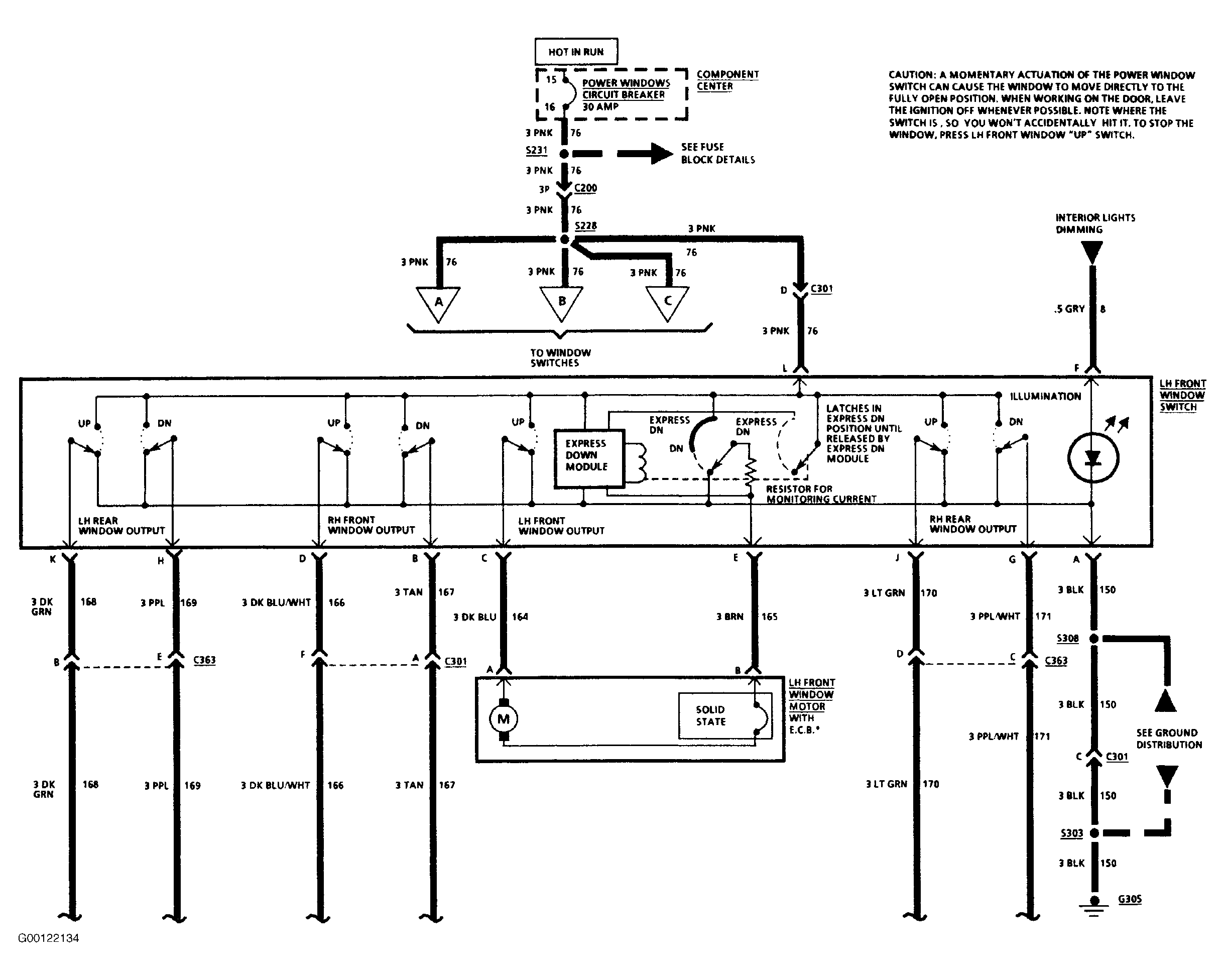

Fig 2: Wiring Diagram (Sedan - 1 of 2)
G00122134Courtesy of GENERAL MOTORS CORP.

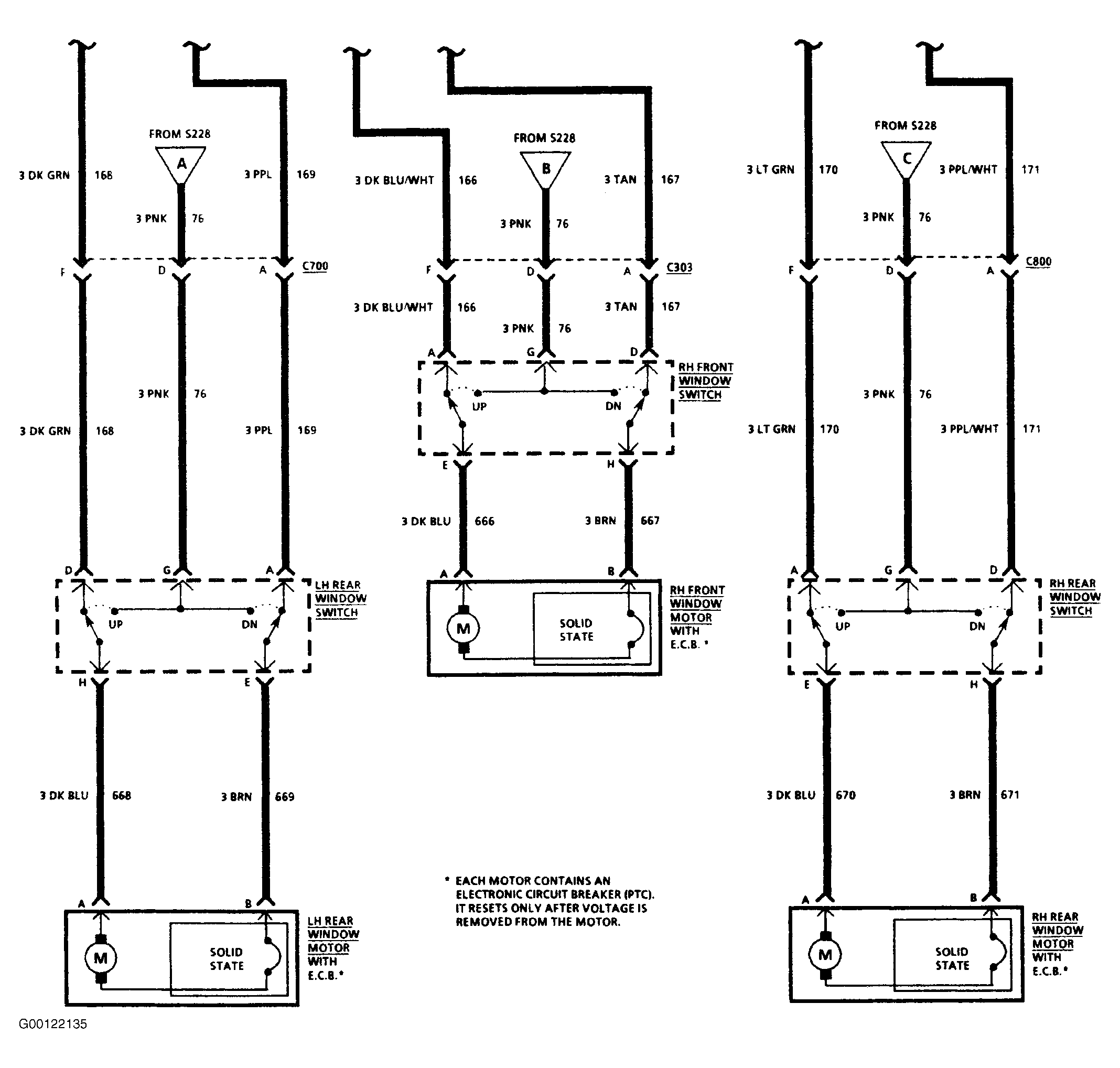

Fig 3: Wiring Diagram (Sedan - 2 of 2)
G00122135Courtesy of GENERAL MOTORS CORP.
