Test A: Power & Ground Test

To perform power and ground test, see Fig 1 .

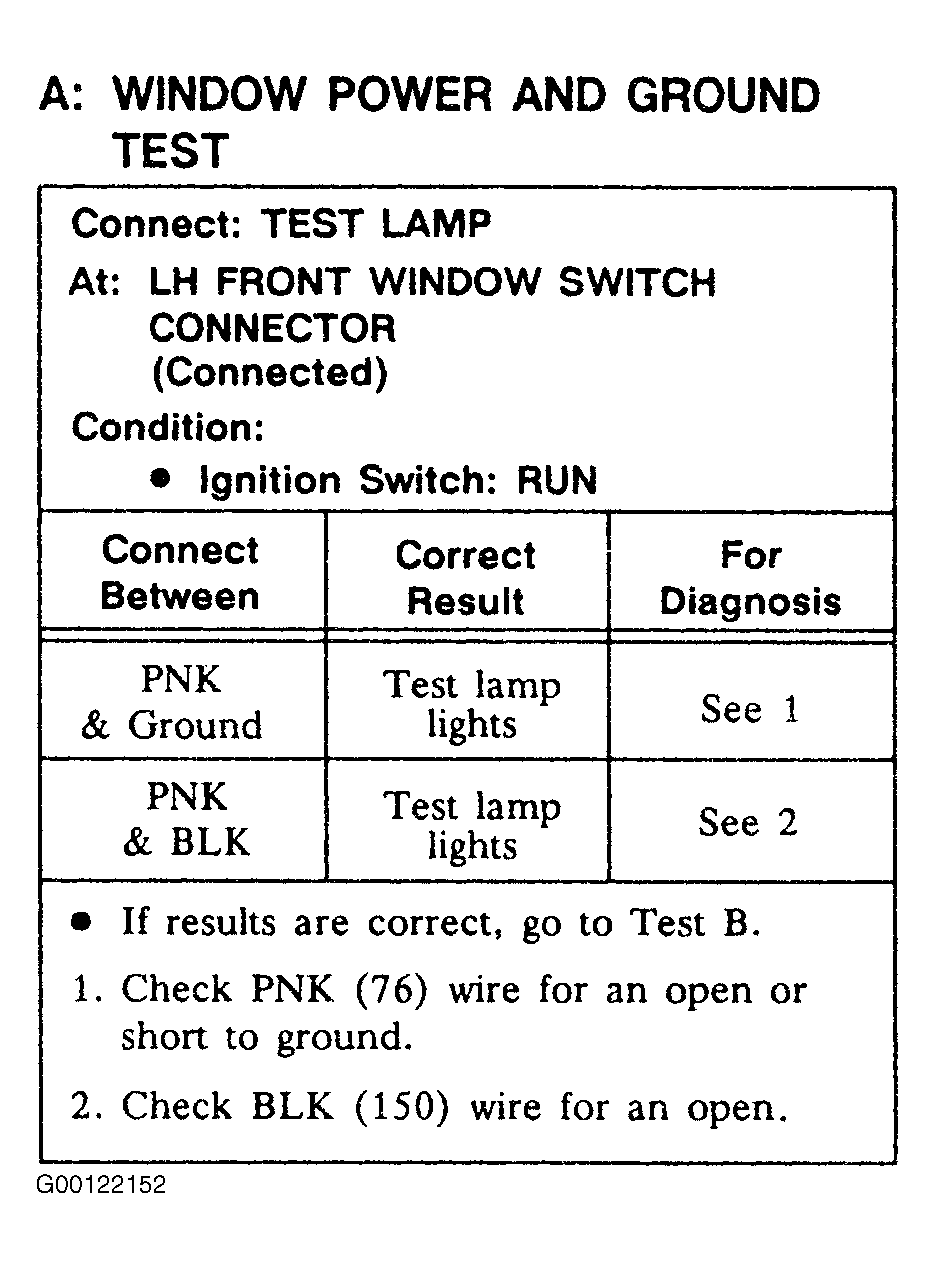

Fig 1: Test A: Power & Ground Test
G00122152Courtesy of GENERAL MOTORS CORP.
