Power Window Motor Test

To perform test, see Fig 1 .

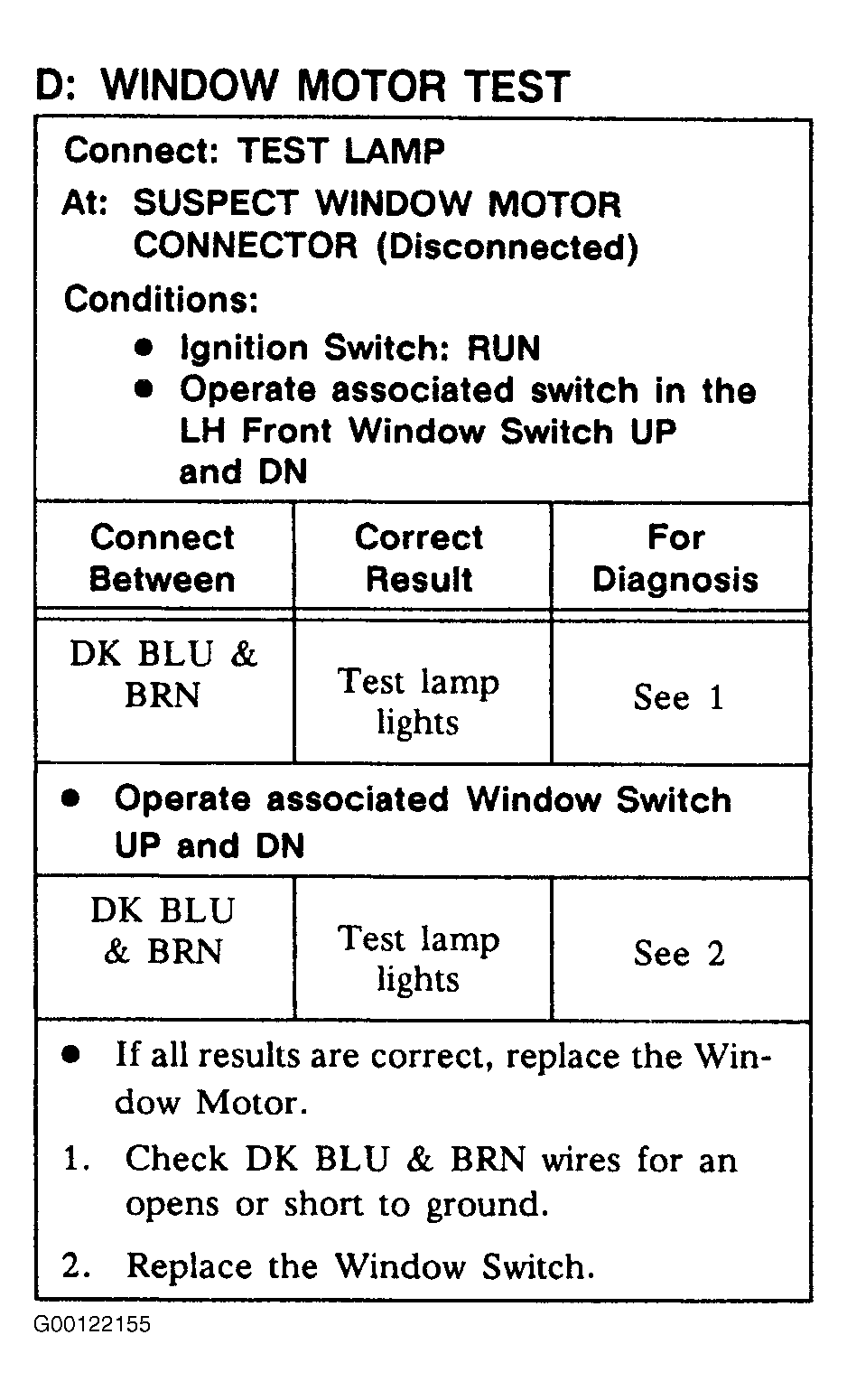

Fig 1: Window Motor Test

G00122155

Courtesy of GENERAL MOTORS CORP.
