Test B: Power Window Switch Circuit
Test B: Power Window Switch Circuit
For testing procedure, see
Fig 1
.

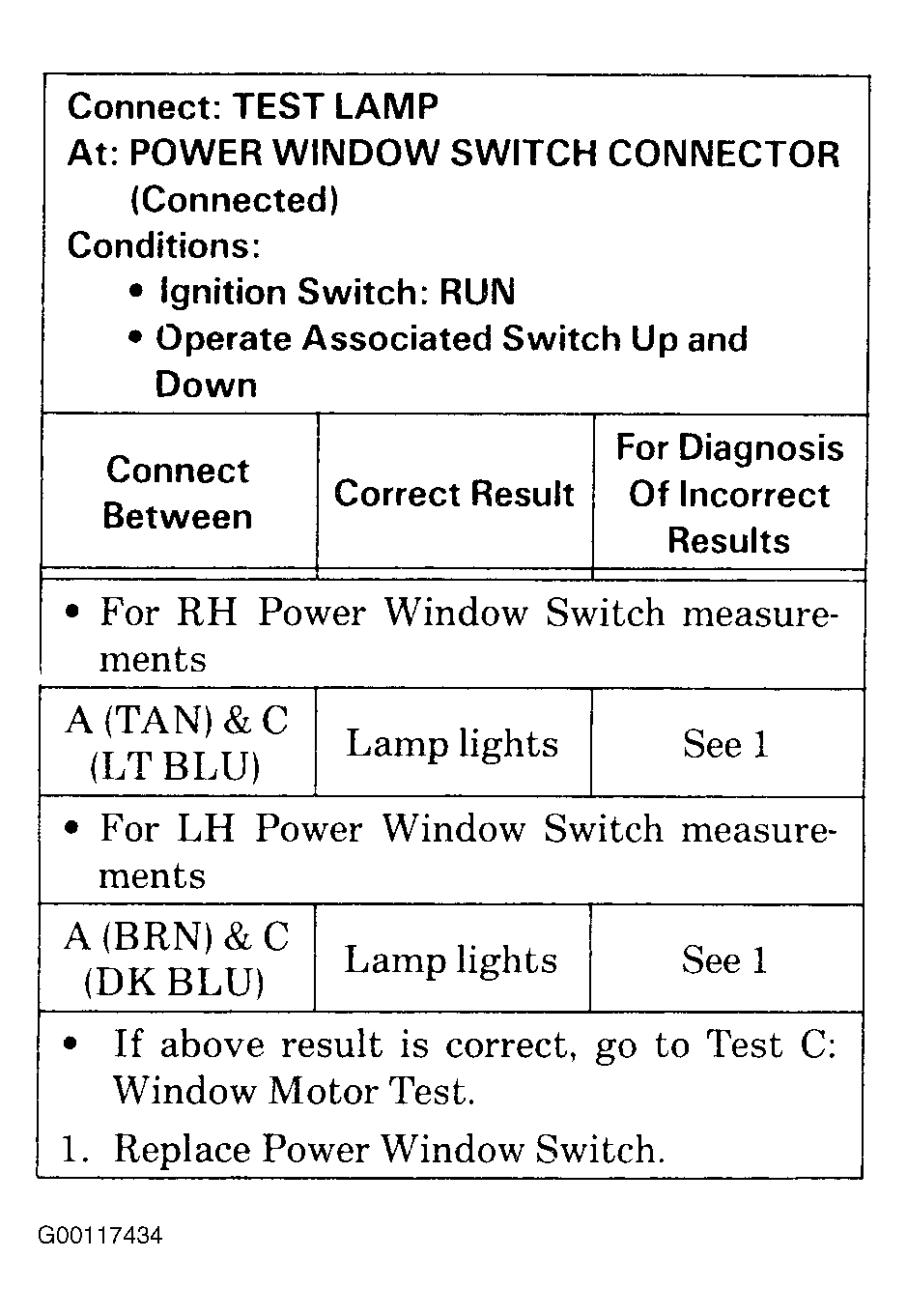

Fig 1: Test B: Power Window Switch Circuit
Courtesy of GENERAL MOTORS CORP.
