Component Locations

COMPONENT LOCATIONS

Component	Location
Fuse Block	Behind Left Side Of Instrument Panel. See Fig 1
Power Window Motor	Behind Respective Door Trim Panel. See Fig 2
Power Window Switch	On Respective Door Trim Panel
C238 (4 Cavities)	Left Side Shroud, Ahead Of Center Access Hole. See Fig 3
C239 (4 Cavities)	Left Side Shroud, Near Center Access Hole. See Fig 3
G210	Under Rear Of Console. See Fig 4
S233	Crosscar Harness, In Console Below Trim Plate. See Fig 4
S234	Crosscar Harness, In Console Below Trim Plate. See Fig 4

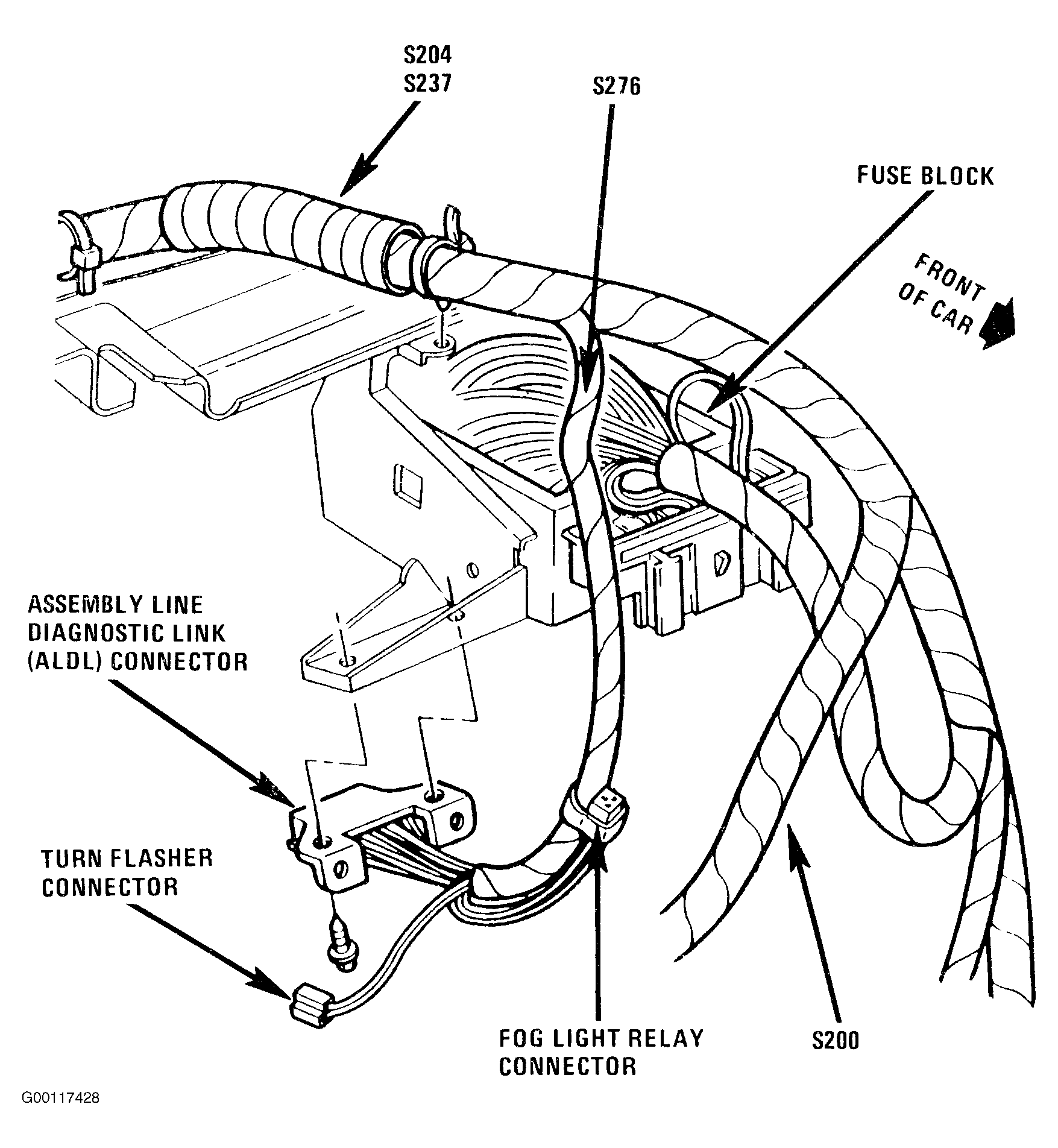

Fig 1: Locating Fuse Block

G00117428

Courtesy of GENERAL MOTORS CORP.

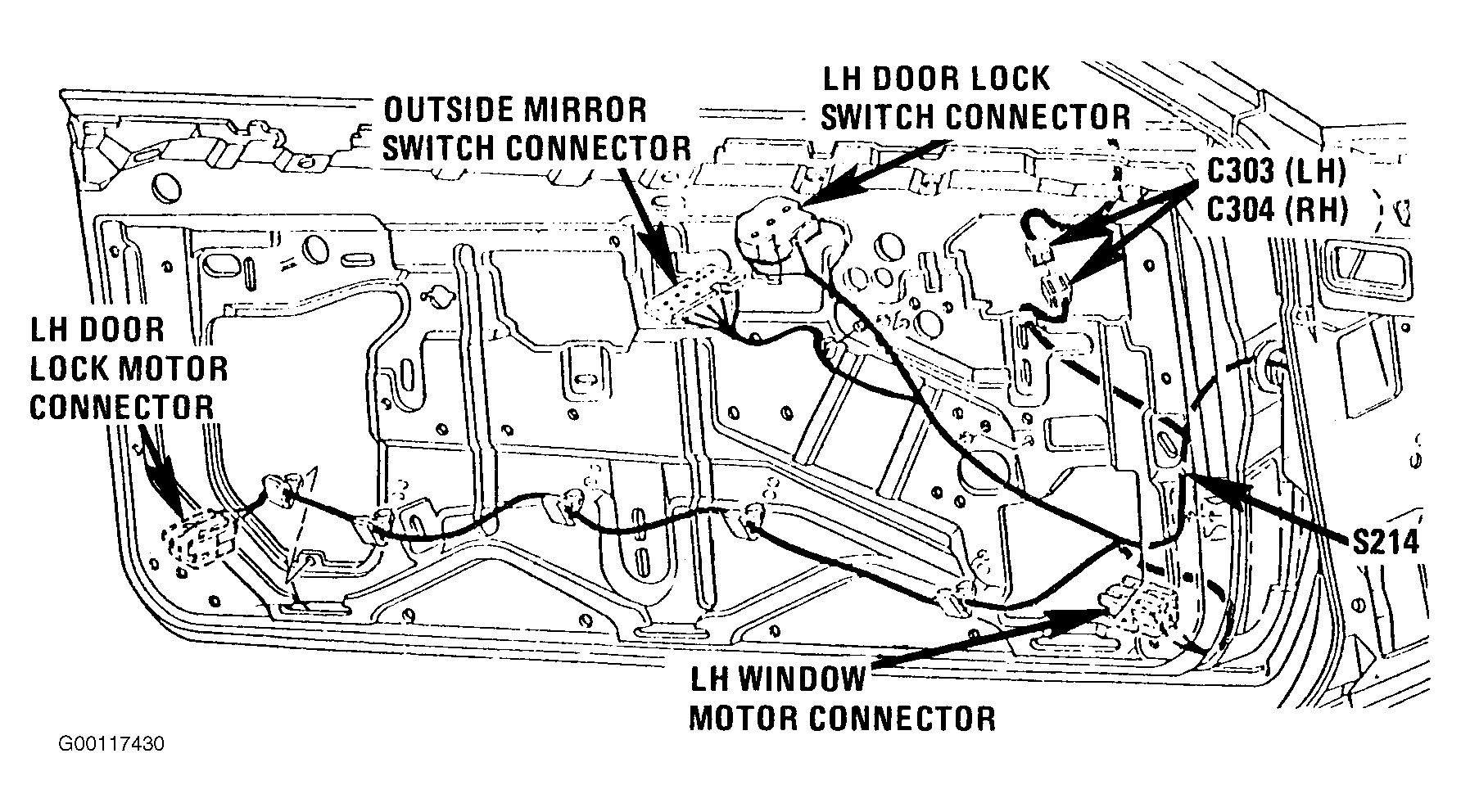

Fig 2: Locating Window Motors

G00117430

Courtesy of GENERAL MOTORS CORP.

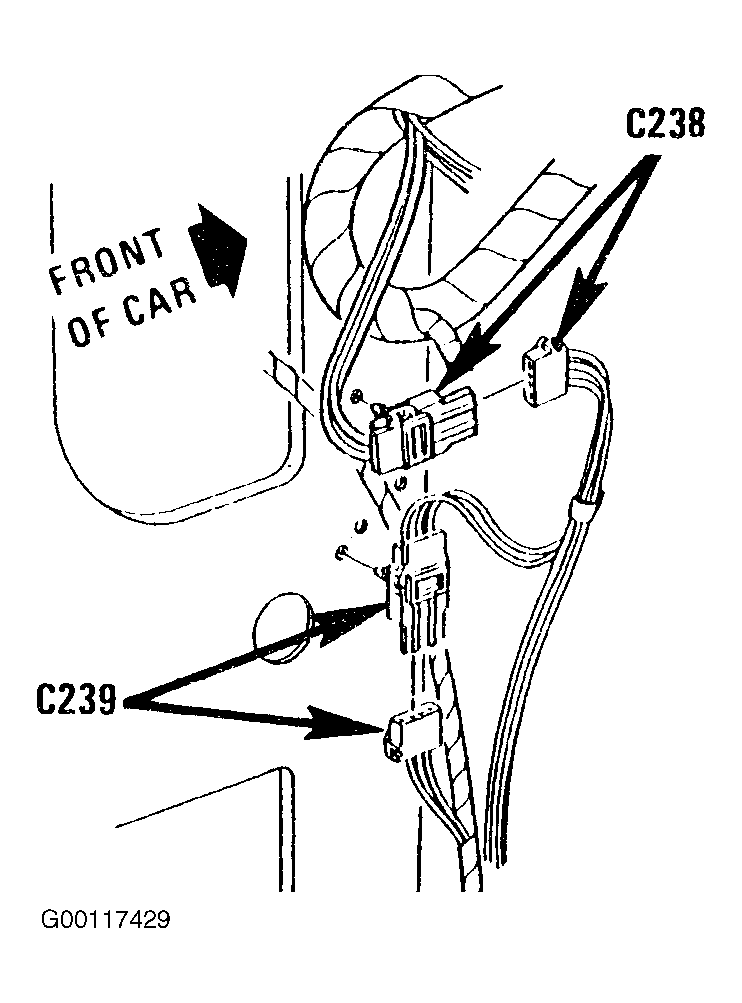

Fig 3: Locating Connectors 238 & 239

G00117429

Courtesy of GENERAL MOTORS CORP.

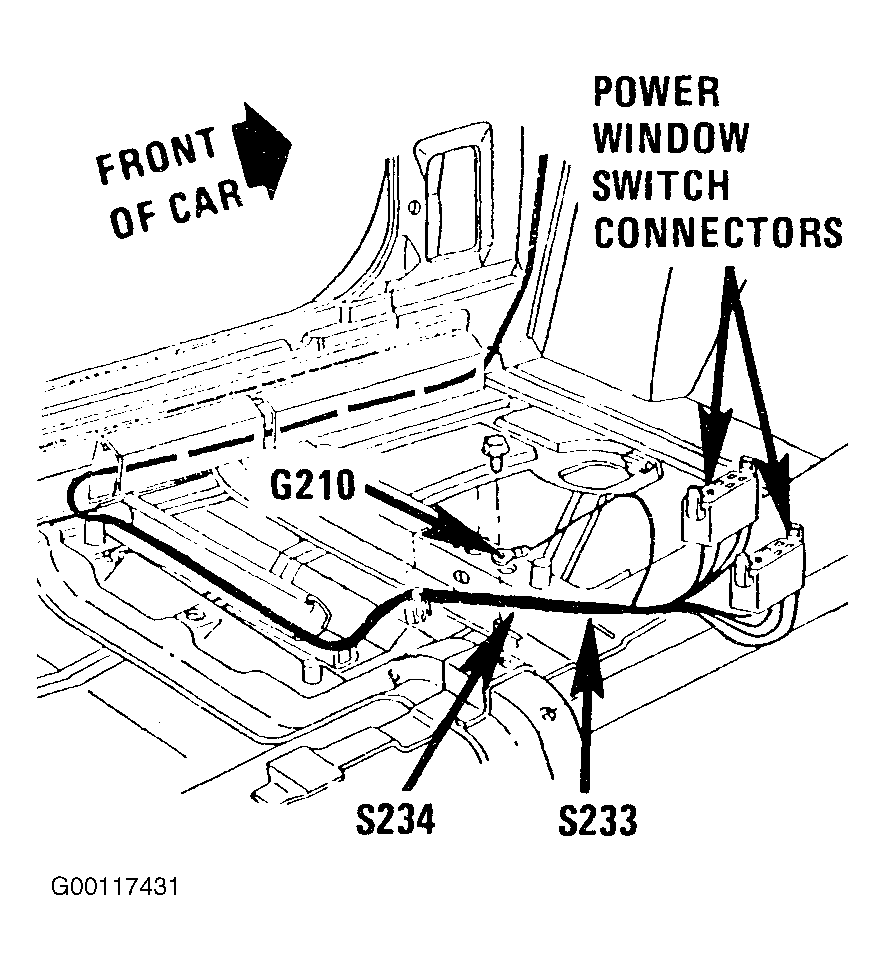

Fig 4: Locating Ground 210 & Splices 233 & 234

G00117431

Courtesy of GENERAL MOTORS CORP.
