Window Binds
Ease of window operation and stability depend to a great extent on the guide stabilizers at the belt line. Contact should be enough to stabilize the glass but not restrict window operation.
To adjust window blinds, perform the following steps:
- Adjust the glass stabilizers.
- Raise glass to full up position.

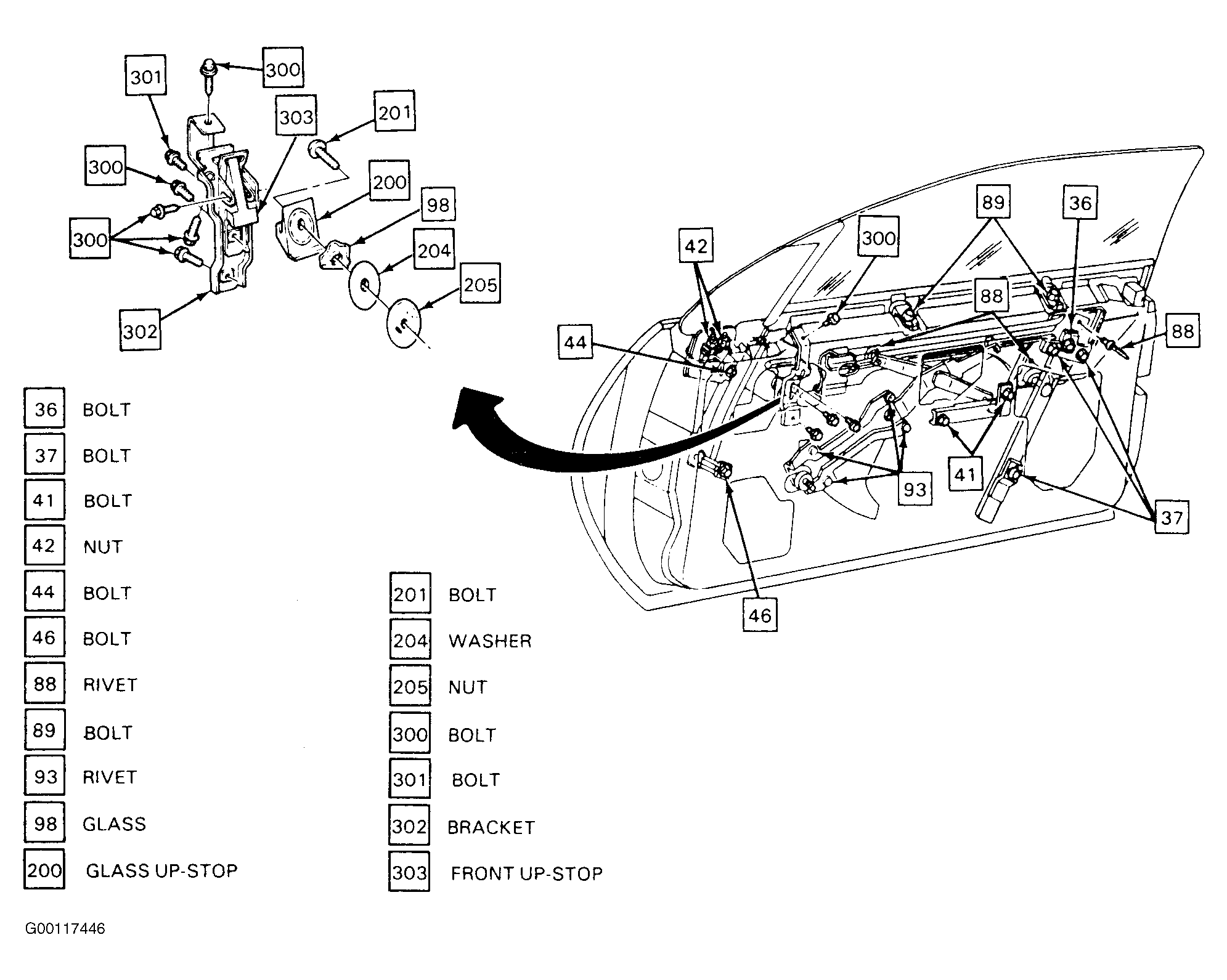

- Loosen stabilizer bolts (89). See Fig 1 .
- Apply a slight pressure outward on the door glass (98) at the belt line.
- Move the glass stabilizers outward to increase glass stability.
- Tighten the stabilizer bolts (89) to 12 N.m (106 INCH lbs.).
