LEMON Manuals
: Even more car manuals for everyone
Home
>>
Pontiac
>>
1991
>>
Firebird Base, 2D Convertible, 3.1 T, 4L60/MD8
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Windows
>>
System Tests
>>
Test C: Window Motor Circuit
Test C: Window Motor Circuit
For testing procedure, see
Fig 1
.

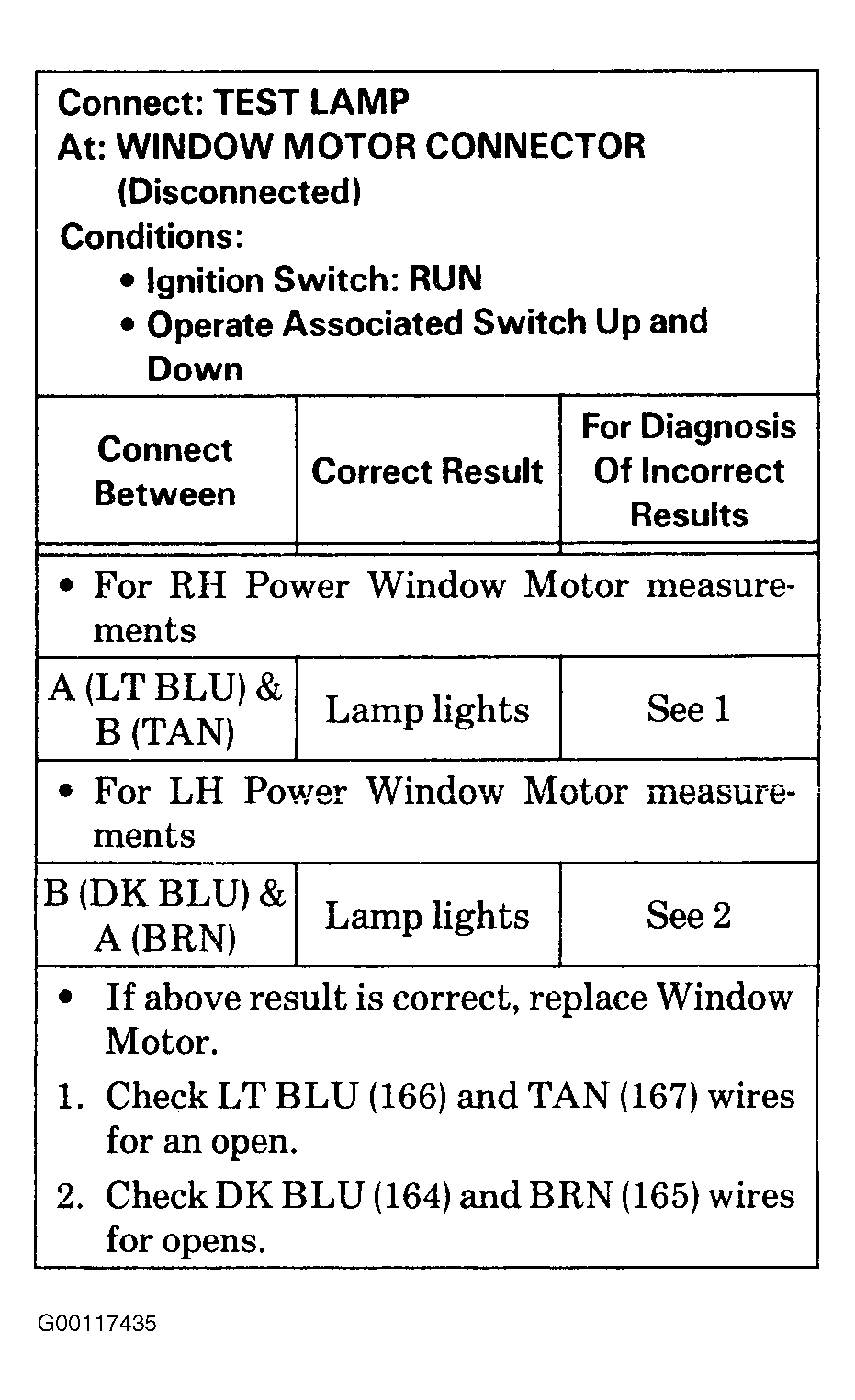

Fig 1: Test C: Window Motor Circuit
Courtesy of GENERAL MOTORS CORP.
