Component Locations

COMPONENT LOCATIONS

Component Location
Express Down Window Module In Lower Front Of Left Front Door. See Fig 1.
Instrument Panel Fuse Block Left Side Of Instrument Panel, Left Of Steering Column, Behind Trim Panel. See Fig 2.
Window Motors In Lower Center Of Respective Door. See Fig 1.
C312 (10-Cavity) Center Of Left Front Door Sill, Taped In Composite Harness. See Fig 3.
C700 (10-Cavity) In Left Center Pillar. See Fig 4.
C800 (10-Cavity) In Right Center Pillar. See Fig 4.
G200 Behind Left Side Of Instrument Panel, At Shroud. See Fig 5.
S215 Composite Harness, Behind Top Left Side Of Instrument Panel, Left Of Steering Column. See Fig 2.
S258 Composite Harness, Behind Left Side Of Instrument Panel Top Of Shroud. See Fig 2.
S500 Composite Harness, Center Of Left Front Door. See Fig 1.
P500 At Left Front Door Jamb. See Fig 1.
P600 At Right Front Door Jamb. See Fig 1.
P700 Front Of Left Rear Door. See Fig 4.
P800 Front Of Right Rear Door. See Fig 4.

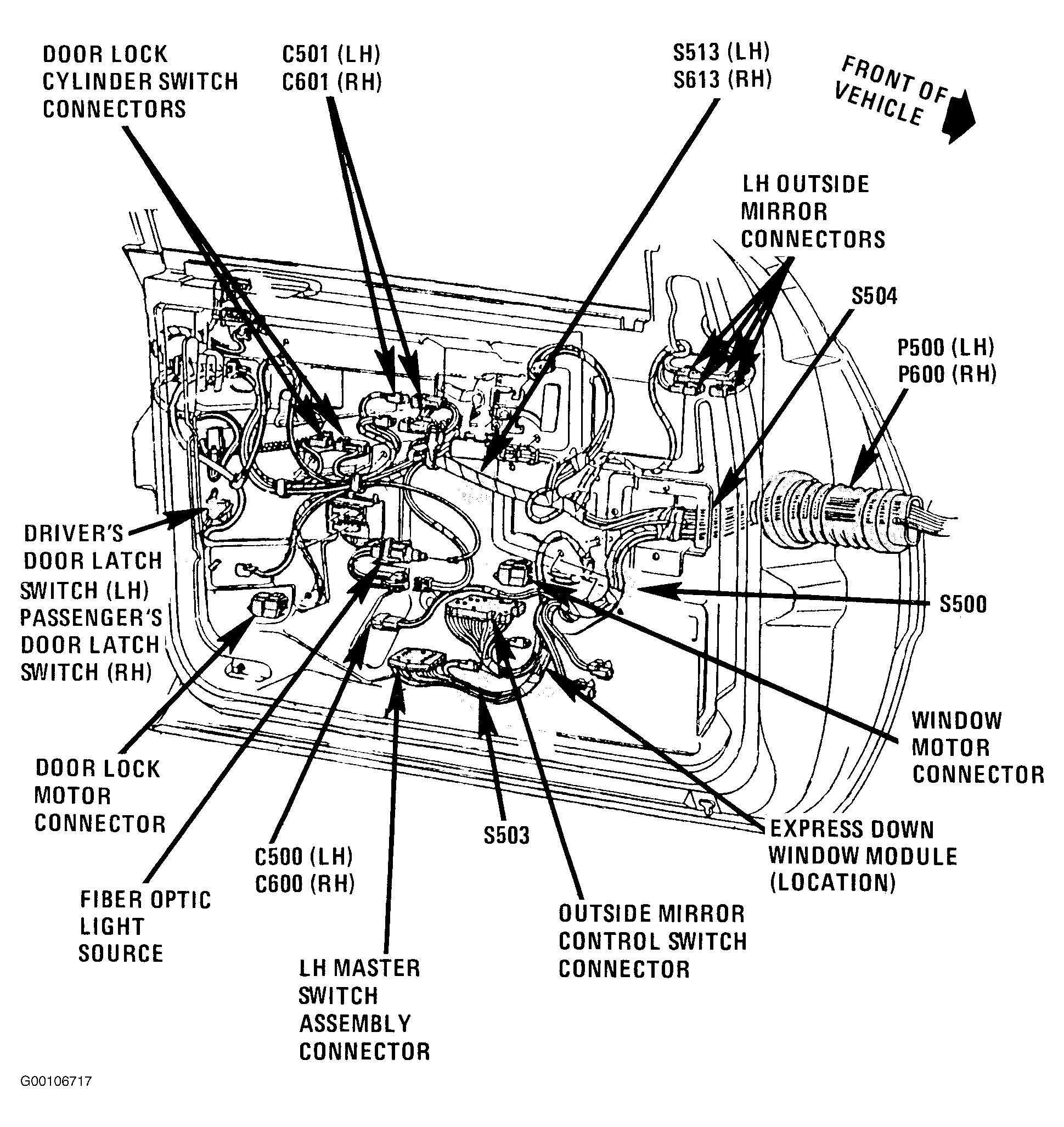

Fig 1: Locating Front Door Components
G00106717Courtesy of GENERAL MOTORS CORP.

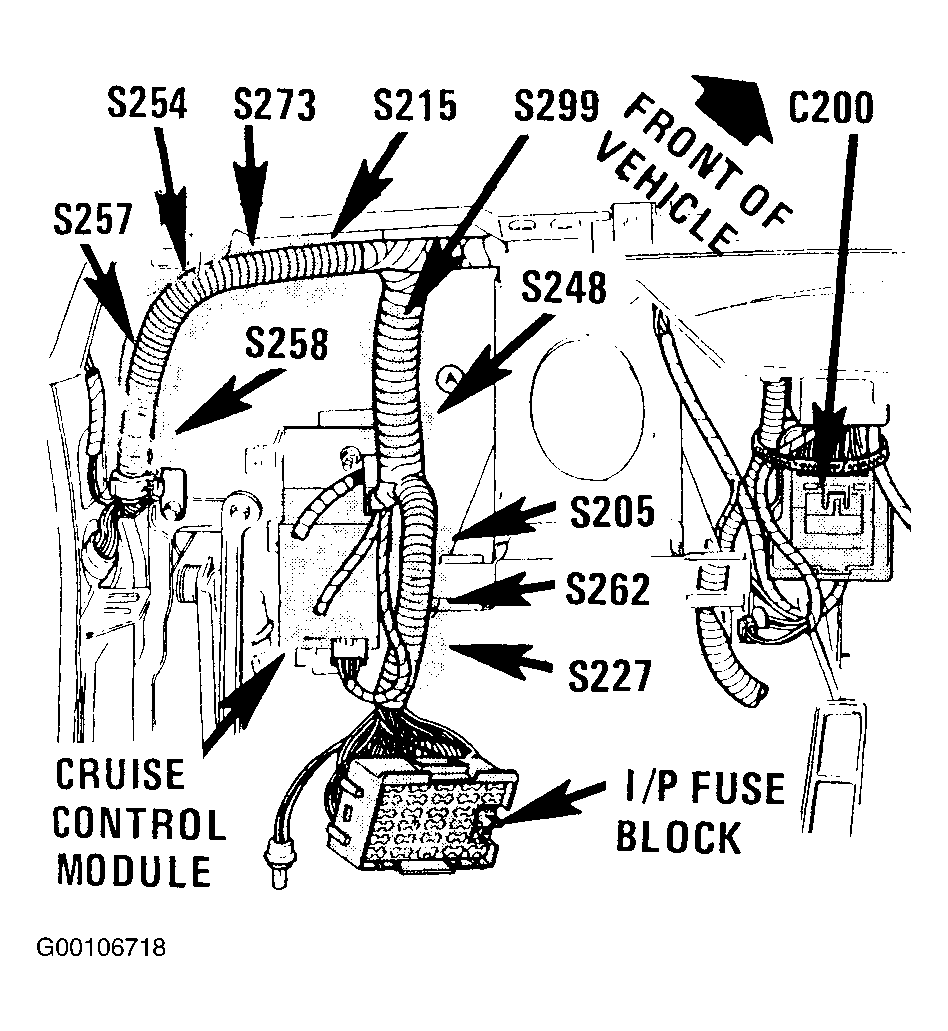

Fig 2: Locating Instrument Panel Fuse Block, & Splices S215 & S258
G00106718Courtesy of GENERAL MOTORS CORP.

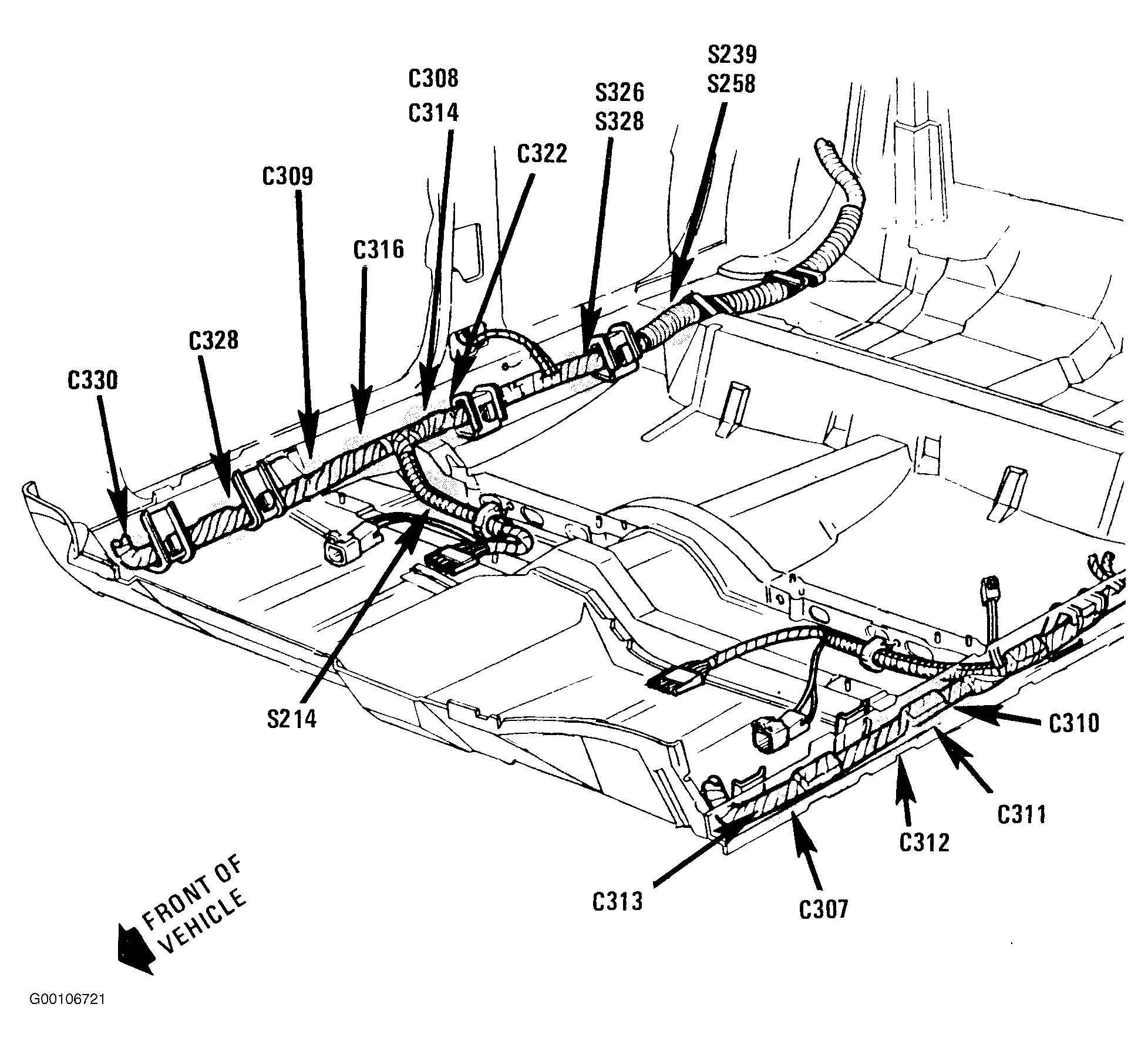

Fig 3: Locating Circuit 312
G00106721Courtesy of GENERAL MOTORS CORP.

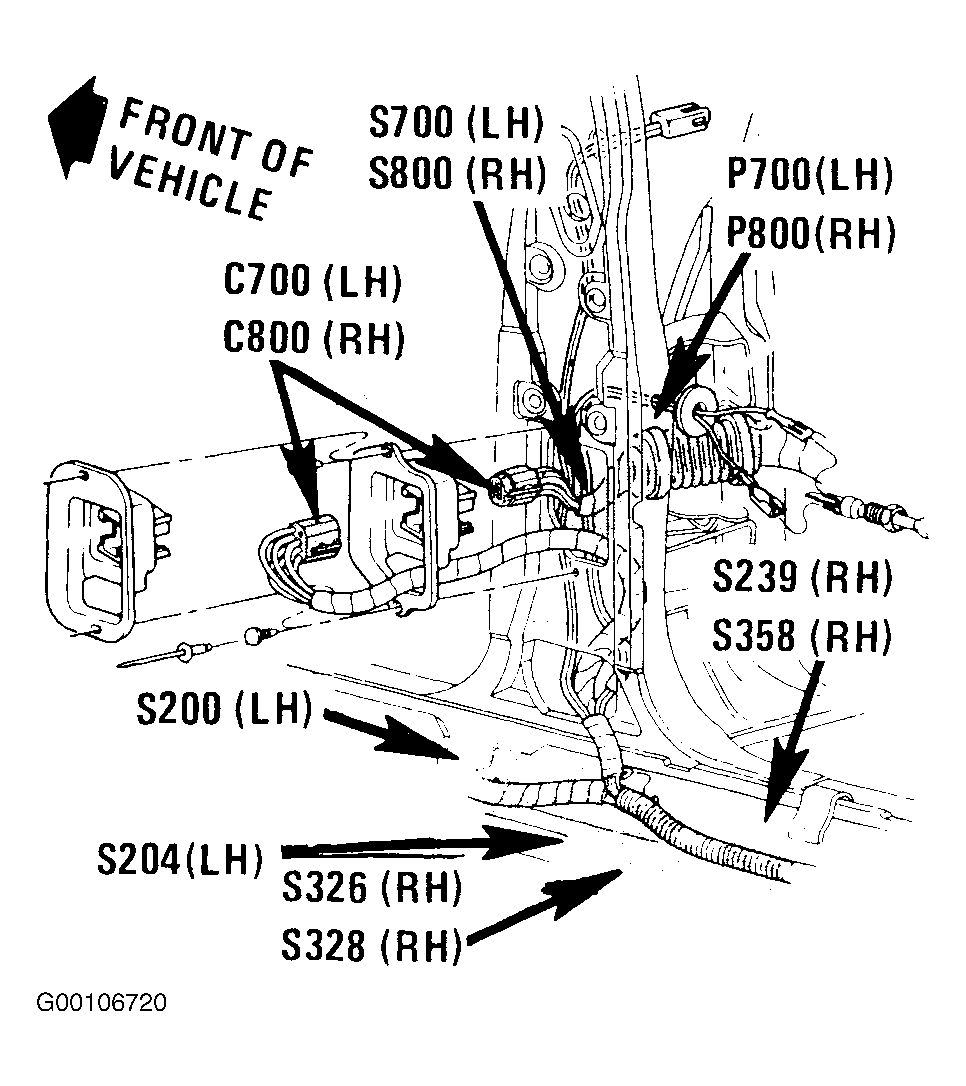

Fig 4: Locating Center Pillar Components
G00106720Courtesy of GENERAL MOTORS CORP.

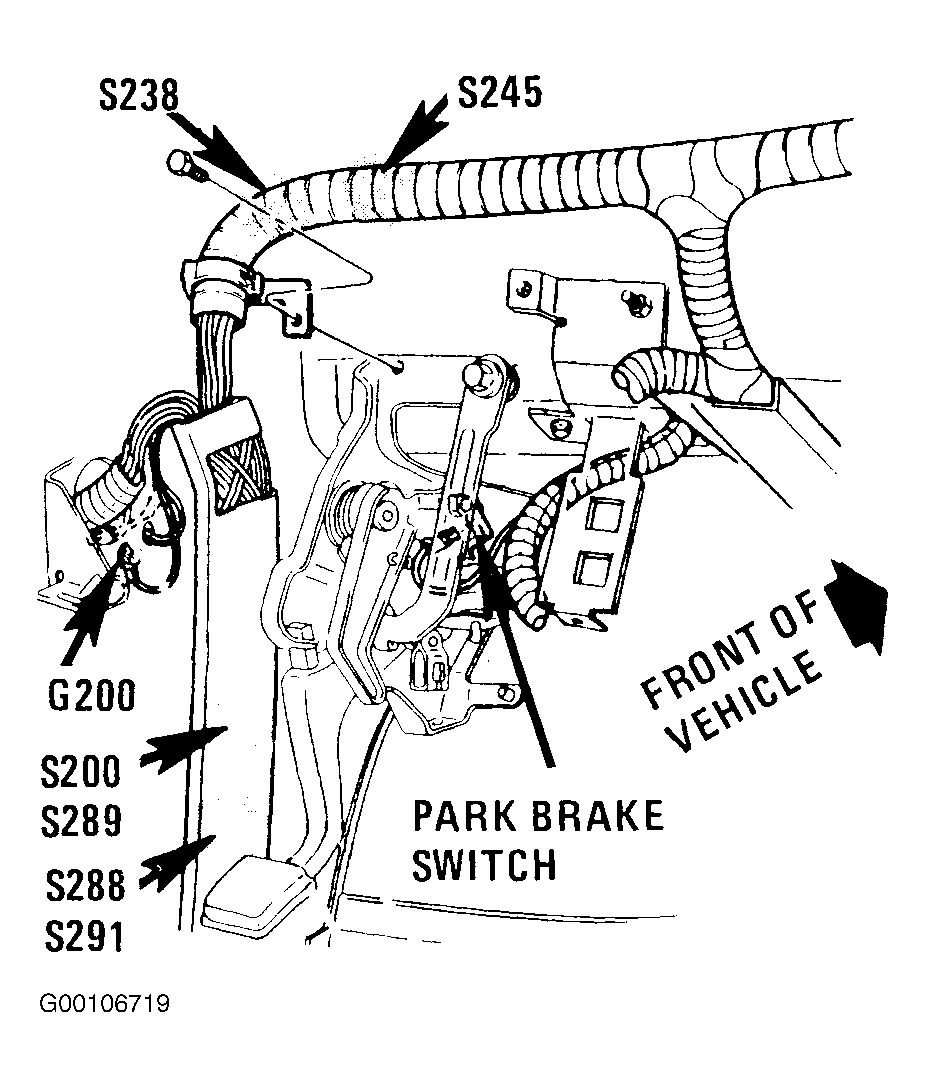

Fig 5: Locating Ground G200
G00106719Courtesy of GENERAL MOTORS CORP.
