Home >> Pontiac >> 1991 >> 6000 SE >> Repair and Diagnosis >> Body & Frame >> Power Windows >> Wiring Diagrams

Wiring Diagrams

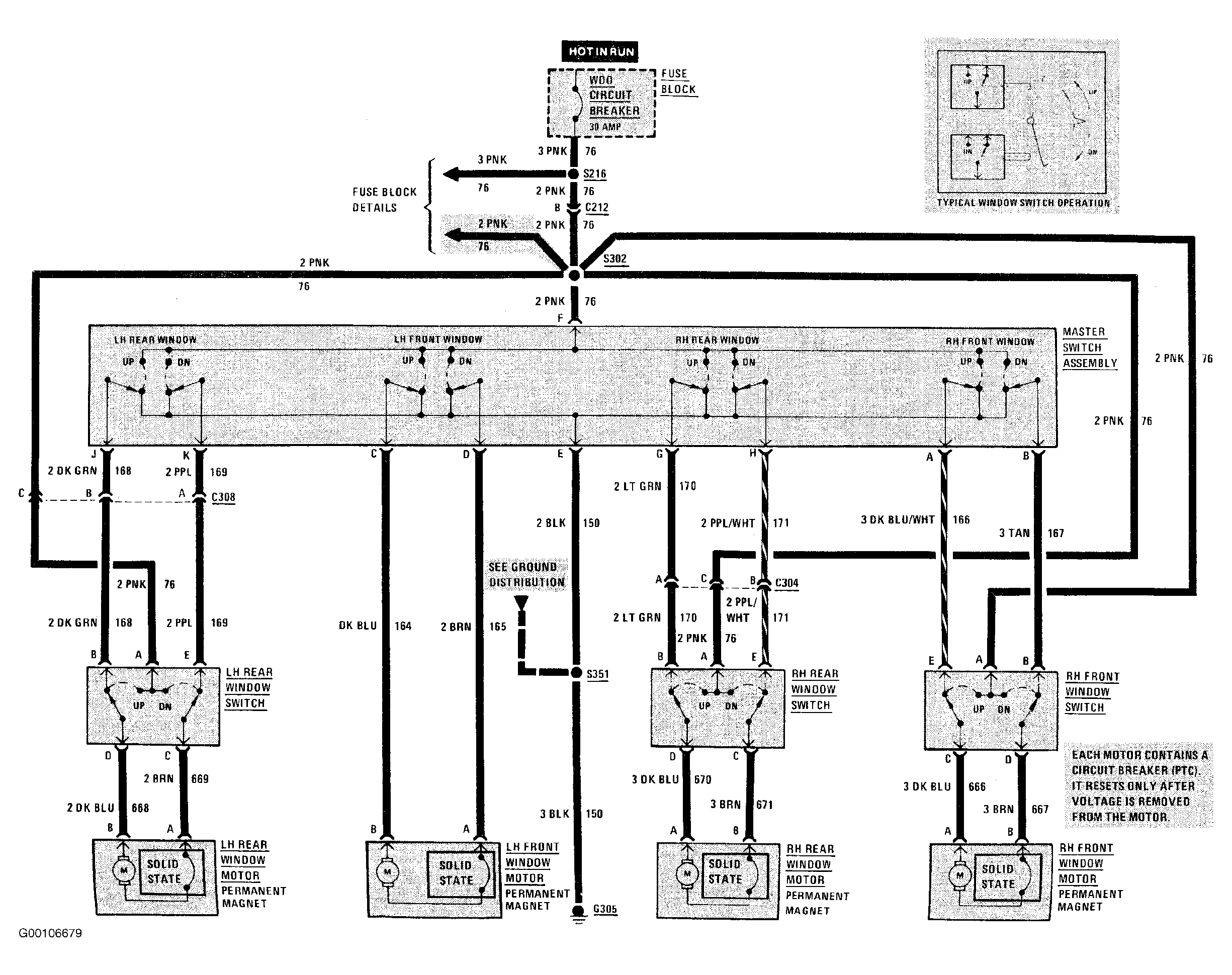

Fig 1: Power Window Wiring Diagram (6000)

G00106679

Courtesy of GENERAL MOTORS CORP.
